Lumaris Wiring & Accessories

Connectors, cable, and mounting hardware that complete a Lutron Lumaris tape light installation. Match the wiring family to the tape: 3-conductor components for tunable white, 6-conductor components for RGB + tunable white.

Tunable white runs

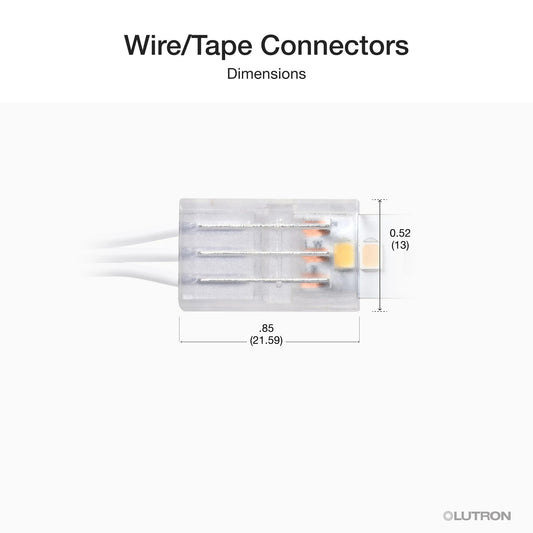

  • LU-CK1-TW — wire/tape connectors, 10-pack.
  • LU-WK1-TW — 3-conductor 22 AWG cable, 50 ft.

RGB + tunable white runs

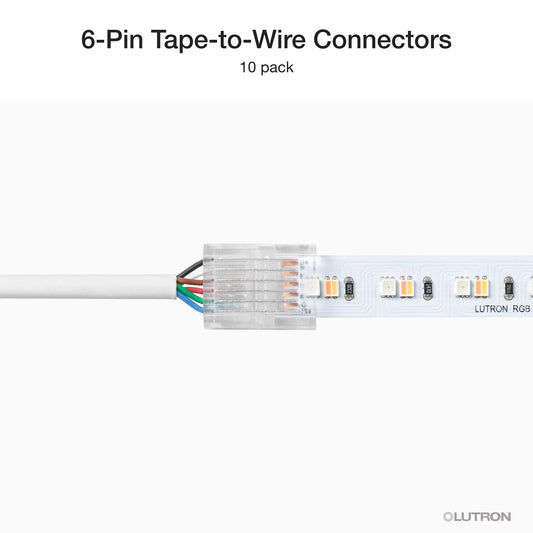

  • LU-CK1-6W — 6-pin wire/tape connectors, 10-pack.
  • LU-WK1-6W — 6-conductor 22 AWG cable, 50 ft.

Mounting and power wiring

  • LU-MK1 — tape mounting clips; Lutron recommends a clip every 12 inches.
  • LU-BP1 — barrel-to-terminal adapters, 3-pack, for wiring controllers to the LU-PH3-A interface.

Maximum cable on a controller output is 10 ft; runs using 7 or more wire-to-tape connectors reduce allowed cable length by 6 in. Browse the full Lumaris catalog.
