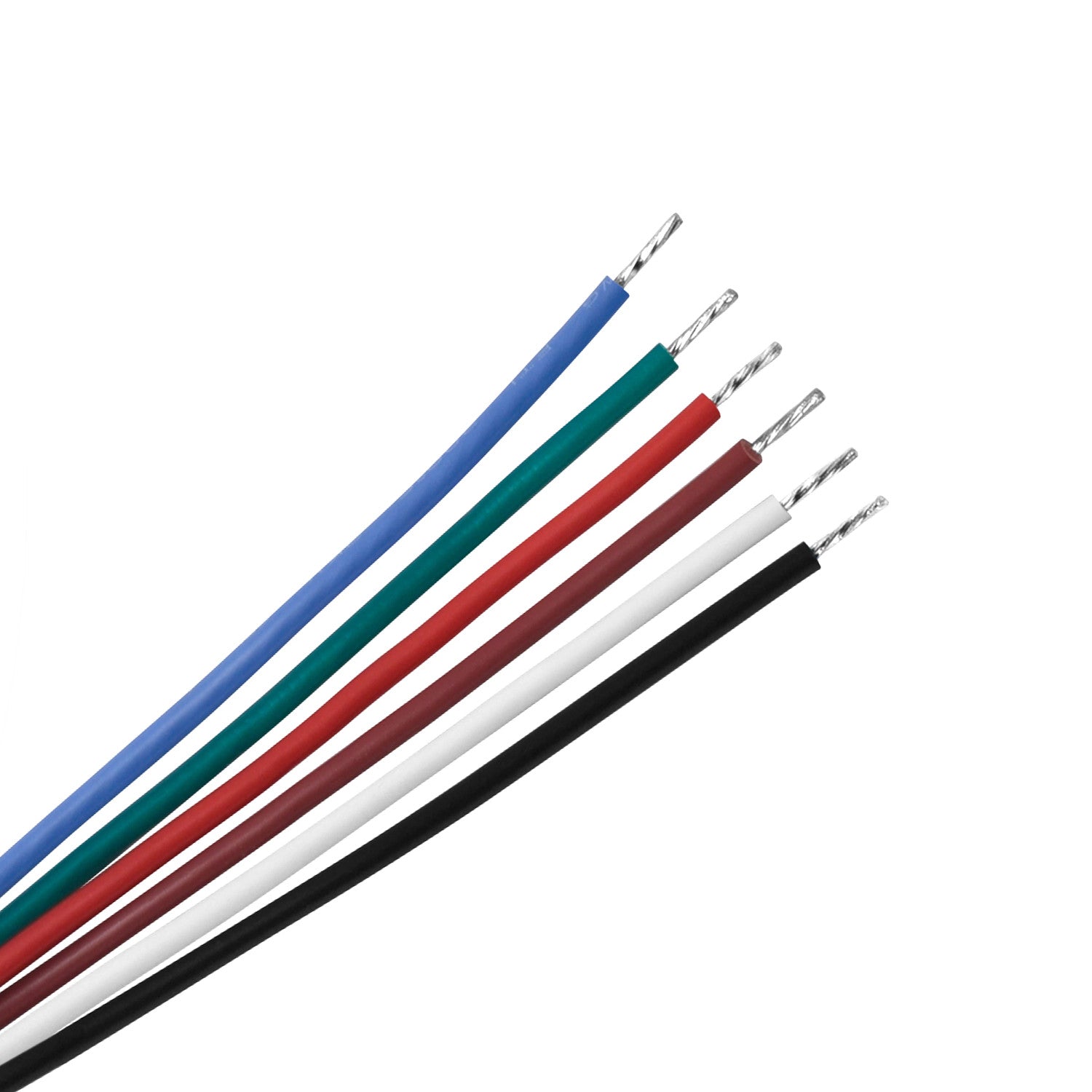

Lutron Lumaris 6-Conductor 22 AWG Wire – 50 ft, for RGB + Tunable White Tape Light | LU-WK1-6W

This 50 ft spool of 6-conductor, 22 AWG cable is purpose-made for Lutron Lumaris RGB + Tunable White tape light. Use it to feed power to runs or to break runs into segments in 5-channel installations.

Key Features

• Includes 50 ft of 6-conductor, 22 AWG cable for Lumaris RGB + tunable white tape light
• Purpose-built for 5-channel (RGB + CCT) signal and power runs

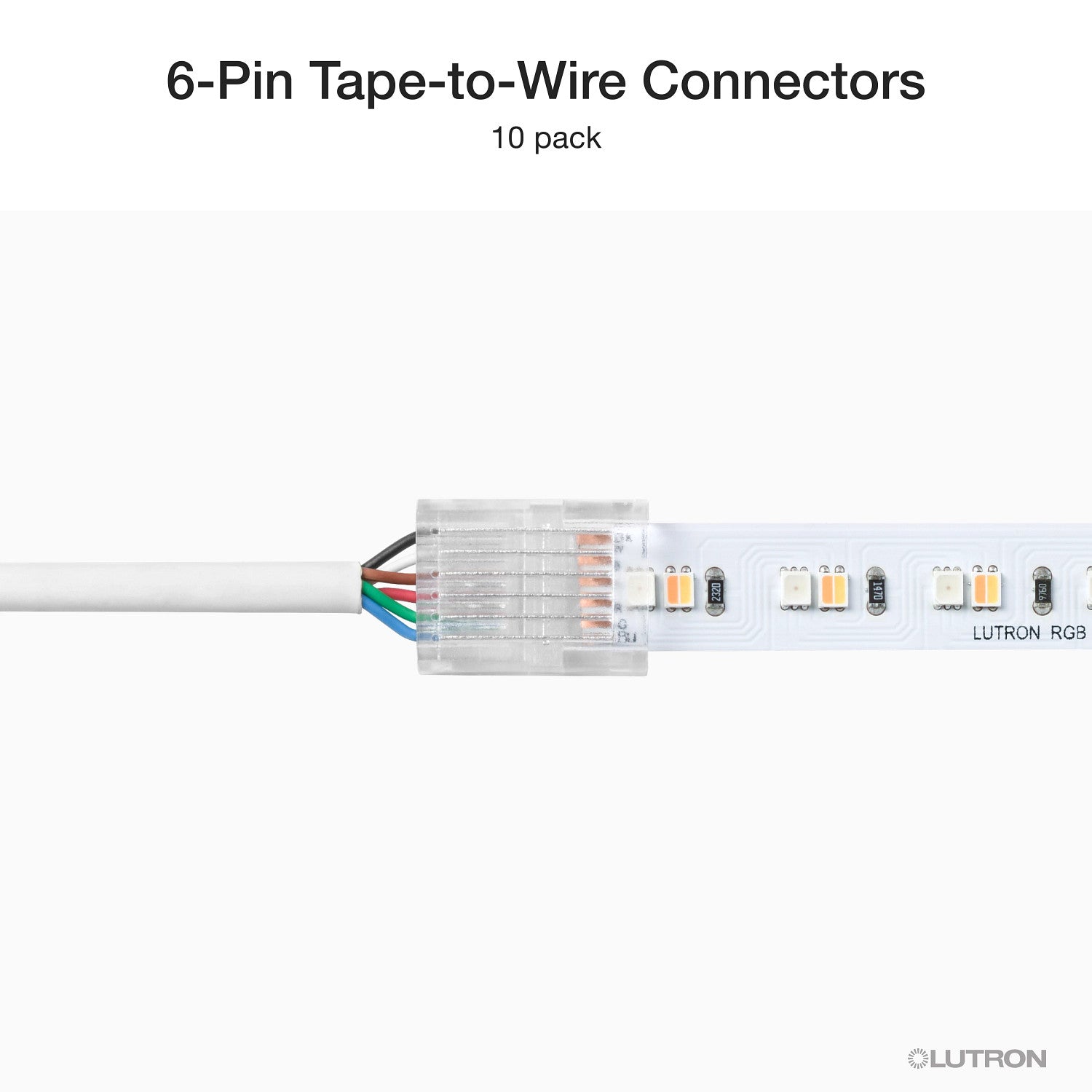

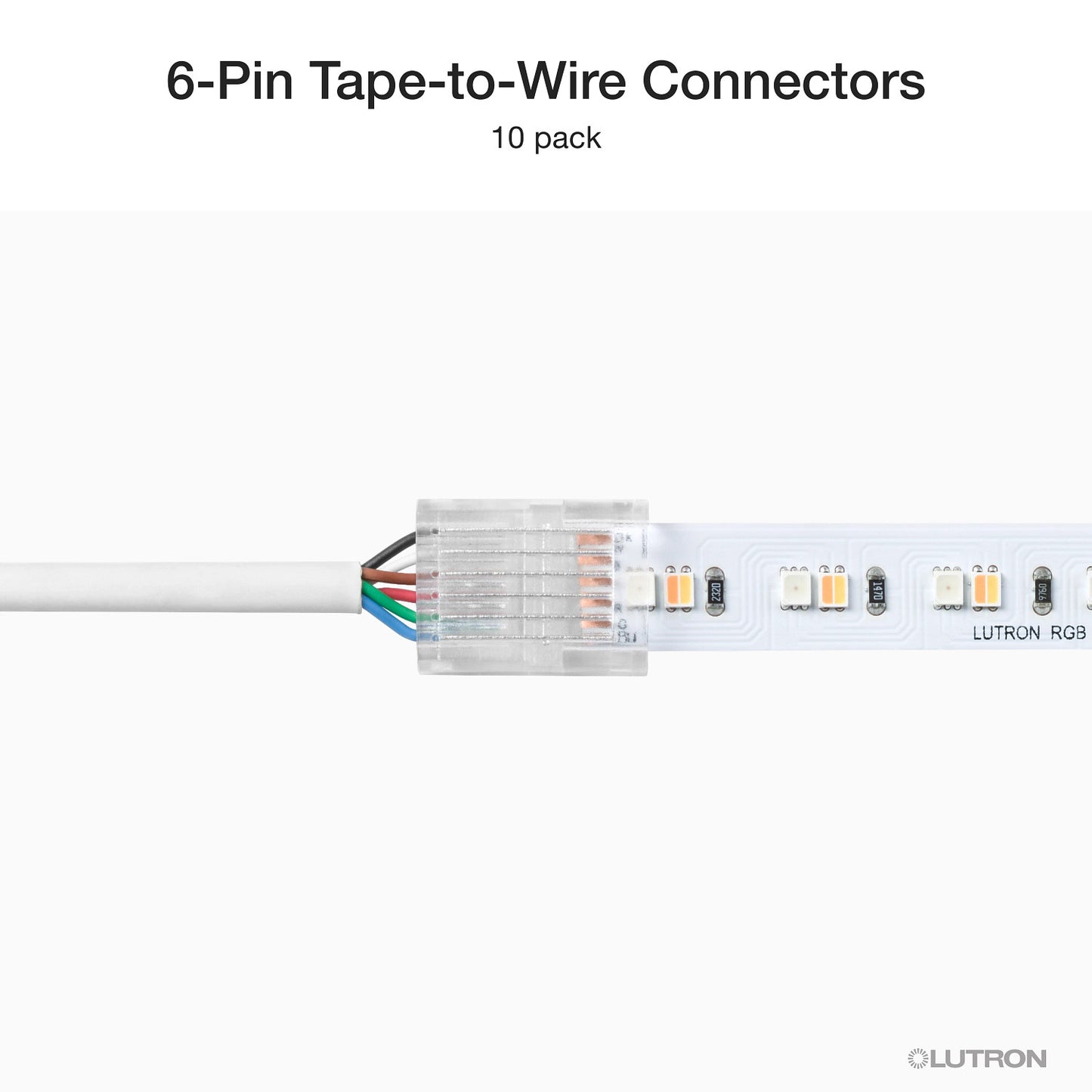

• Pairs with Lumaris 6-pin wire/tape connectors (LU-CK1-6W, sold separately)

Applications

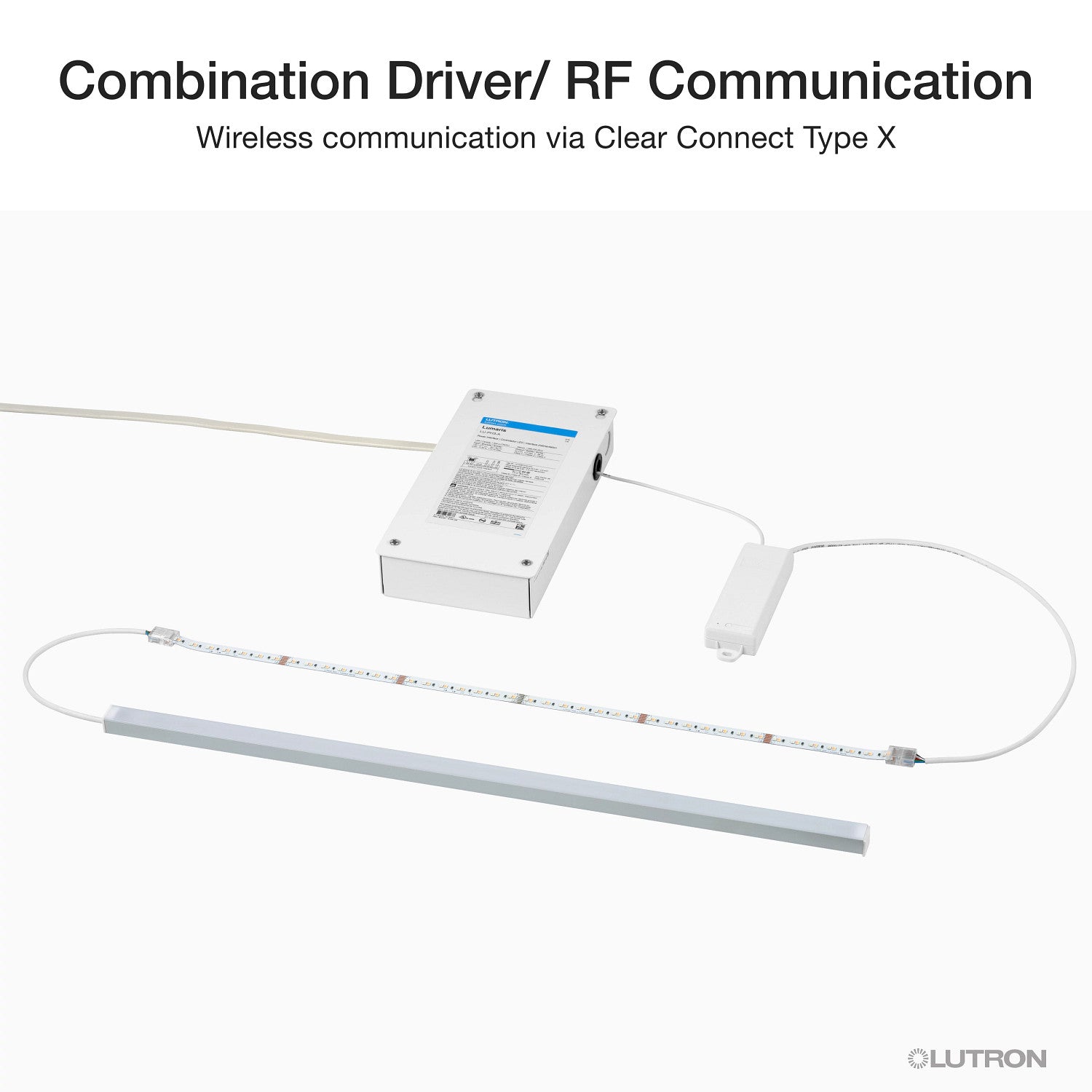

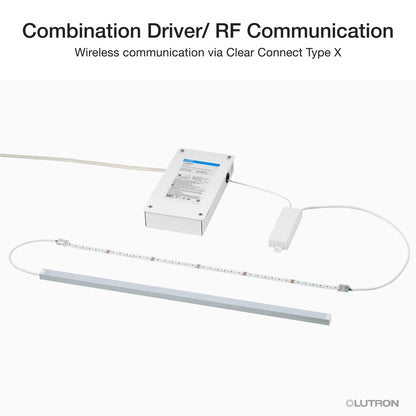

• Feeding power from the multi-channel wireless controller to RGB + tunable white tape runs
• Breaking tape runs around corners and obstacles in entertainment spaces

System Notes

• Maximum cable on the output of a multi-channel wireless controller is 10 ft (3.0 m); cable can feed the run or break up tape segments
• One multi-channel wireless controller supports up to 32.8 ft (10 m) of RGB + tunable white tape, split into parallel runs of no more than 16.4 ft (5 m) each
• For runs using 7 or more wire-to-tape connectors on a controller output, maximum allowed cable length is reduced by 6 in (152.4 mm)
• LED tape reel and other accessories sold separately
• Verify layout, load, and control requirements before ordering
