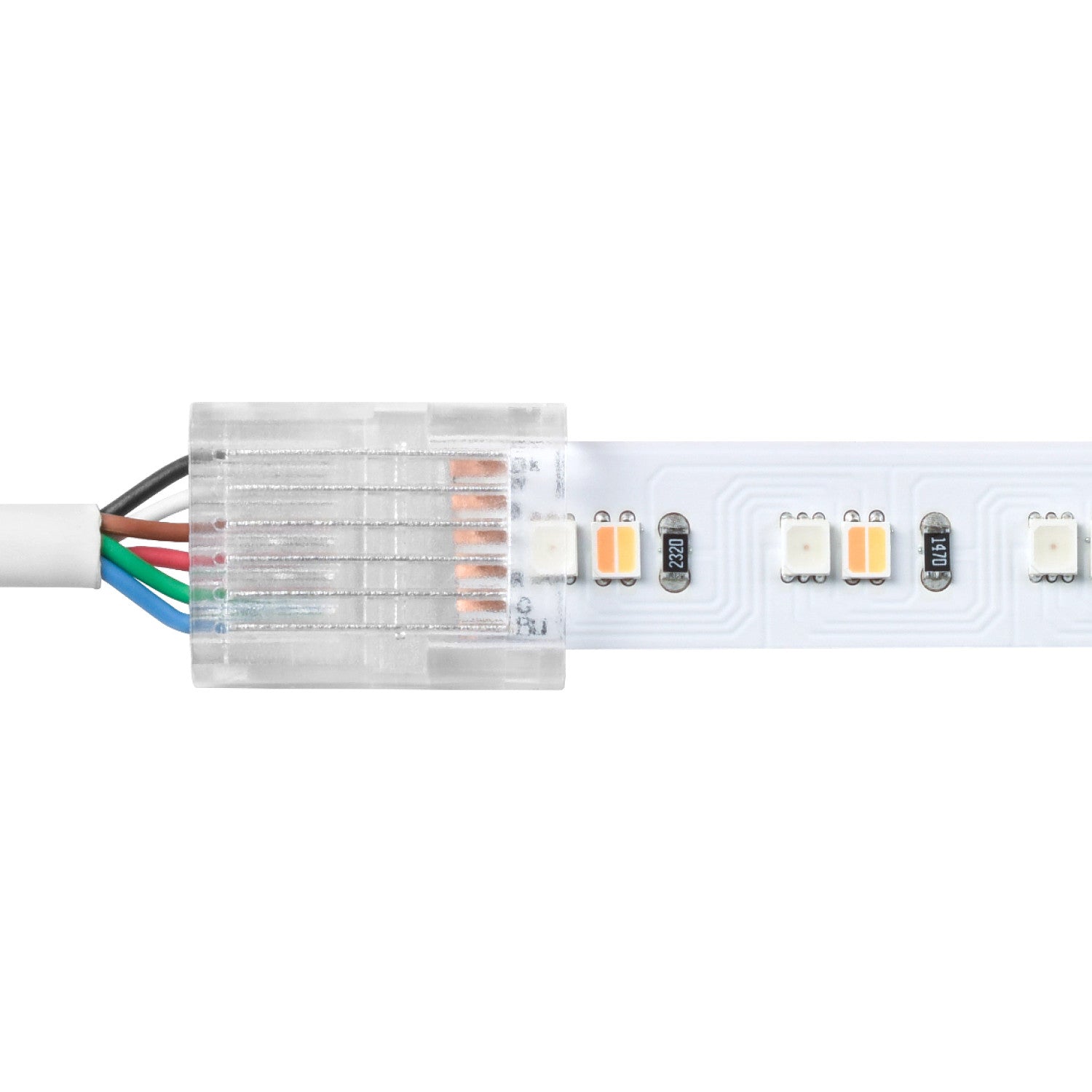

Lutron Lumaris RGB + Tunable White 6-Pin Wire/Tape Connectors – 10-Pack | LU-CK1-6W

These 6-pin wire/tape connectors are designed specifically for Lutron Lumaris RGB + Tunable White tape light, used to connect power or link multiple individual tape runs together in 5-channel installations.

Key Features

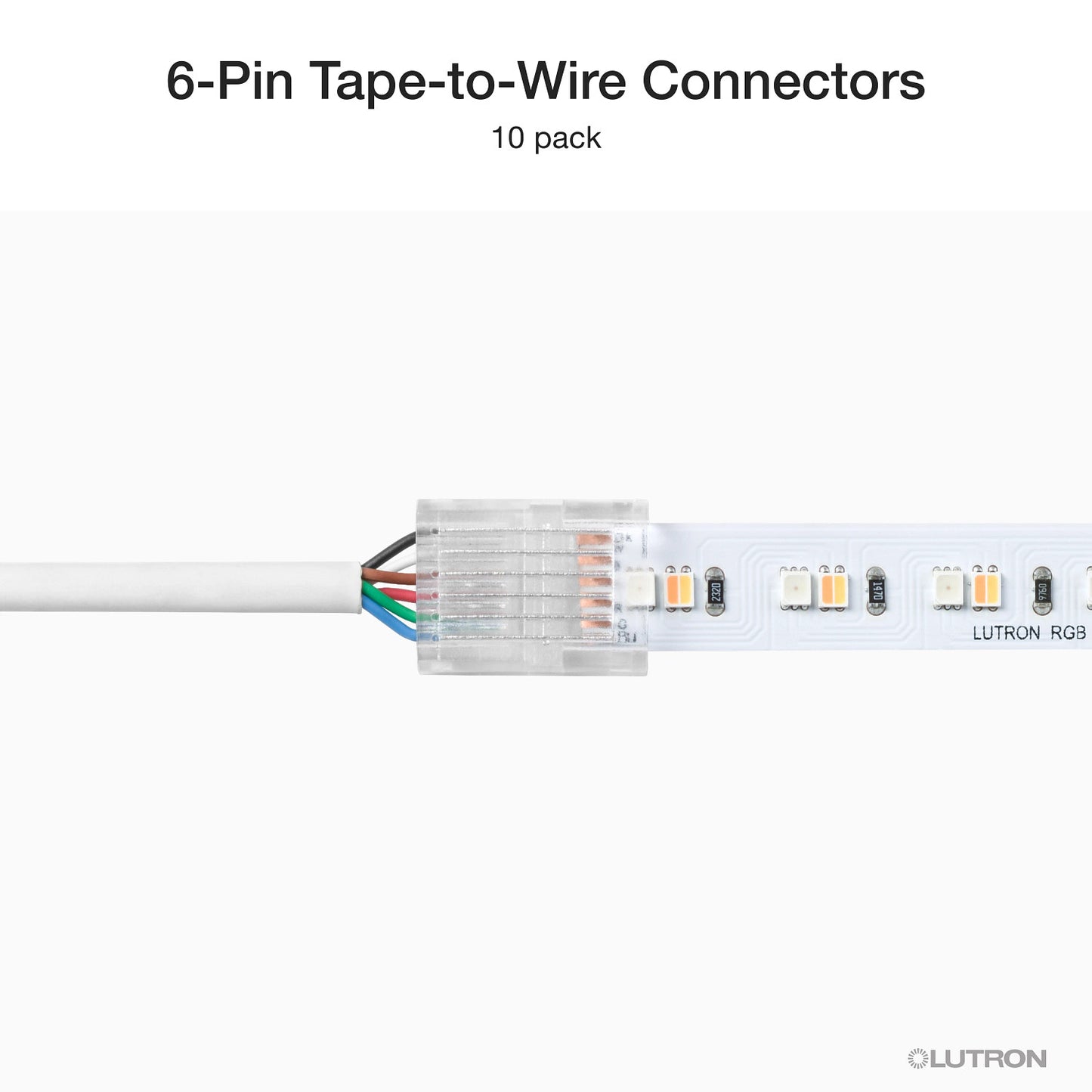

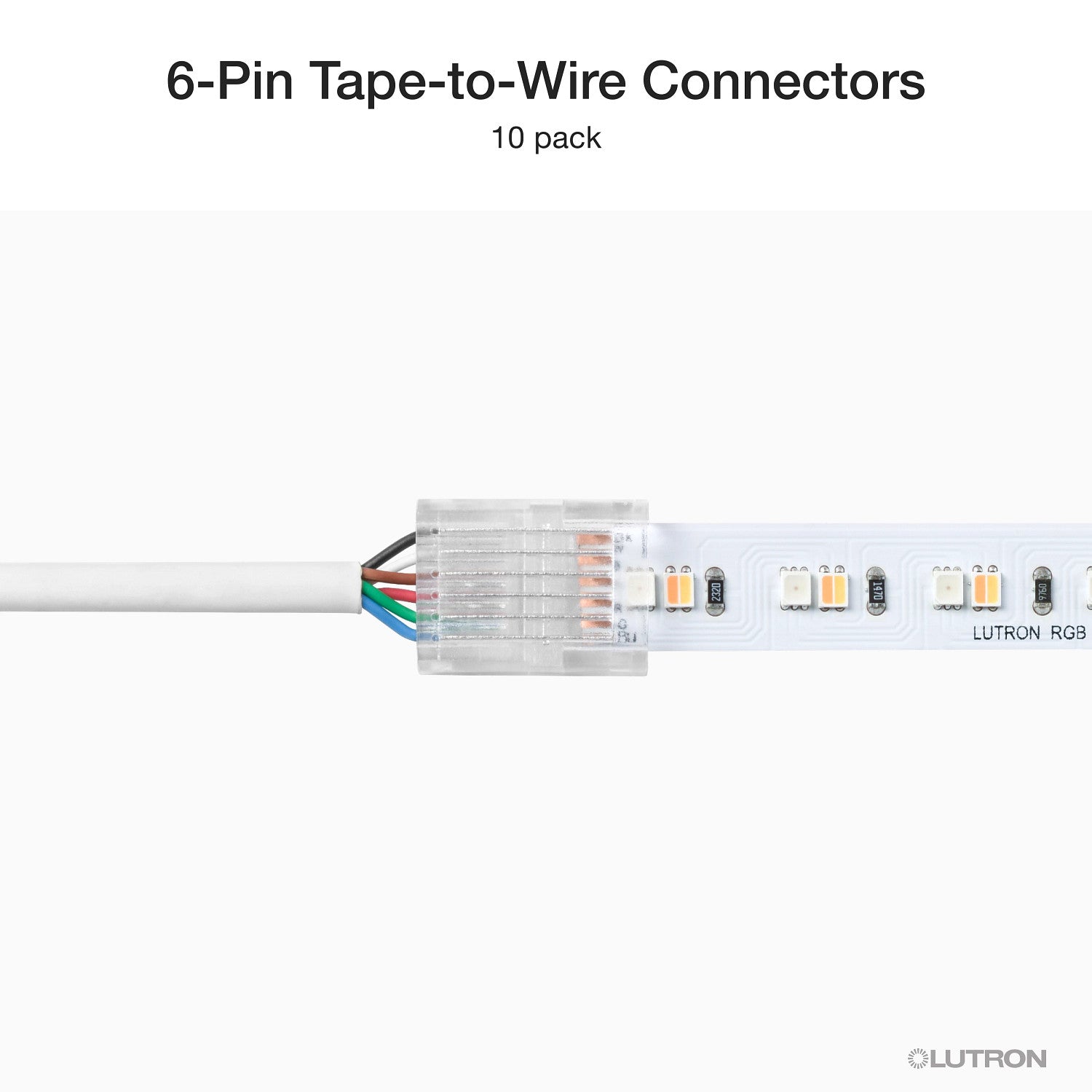

• Includes (10) 6-pin wire/tape connectors for Lumaris RGB + tunable white tape light
• Supports clean power feeds and run breaks without soldering
• Designed and verified by Lutron for Lumaris RGB + tunable white tape (LU-T05-RT-IN / LU-T30-RT-IN)

Applications

• Connecting power feeds to Lumaris RGB + tunable white tape runs
• Breaking tape runs around corners and architectural details in entertainment spaces

System Notes

• Maximum cable on the output of a multi-channel wireless controller is 10 ft (3.0 m)
• One multi-channel wireless controller supports up to 32.8 ft (10 m) of RGB + tunable white tape, split into parallel runs of no more than 16.4 ft (5 m) each
• For runs using 7 or more wire-to-tape connectors on a controller output, maximum allowed cable length is reduced by 6 in (152.4 mm)
• LED tape reel and other accessories sold separately
• Verify layout, load, and control requirements before ordering
