Lutron Lumaris 3-Conductor 22 AWG Wire – 50 ft, for Tunable White Tape Light | LU-WK1-TW
Lutron Lumaris 3-Conductor 22 AWG Wire – 50 ft, for Tunable White Tape Light | LU-WK1-TW
Available to order — ships from incoming stock
Typically ships in 2–5 Business Days (Western Canada) · 3–6 Business Days (Eastern Canada)
SKU:LU-WK1-TW
Shipping terms (Free over $300) calculated at checkout.
This 50 ft spool of 3-conductor, 22 AWG cable is purpose-made for Lutron Lumaris Tunable White tape light. Use it to feed power to runs or to break runs into segments in 2-channel tunable white installations.
Key Features
- Includes 50 ft of 3-conductor, 22 AWG cable for Lumaris tunable white tape light
- Purpose-built for 2-channel tunable white signal and power runs

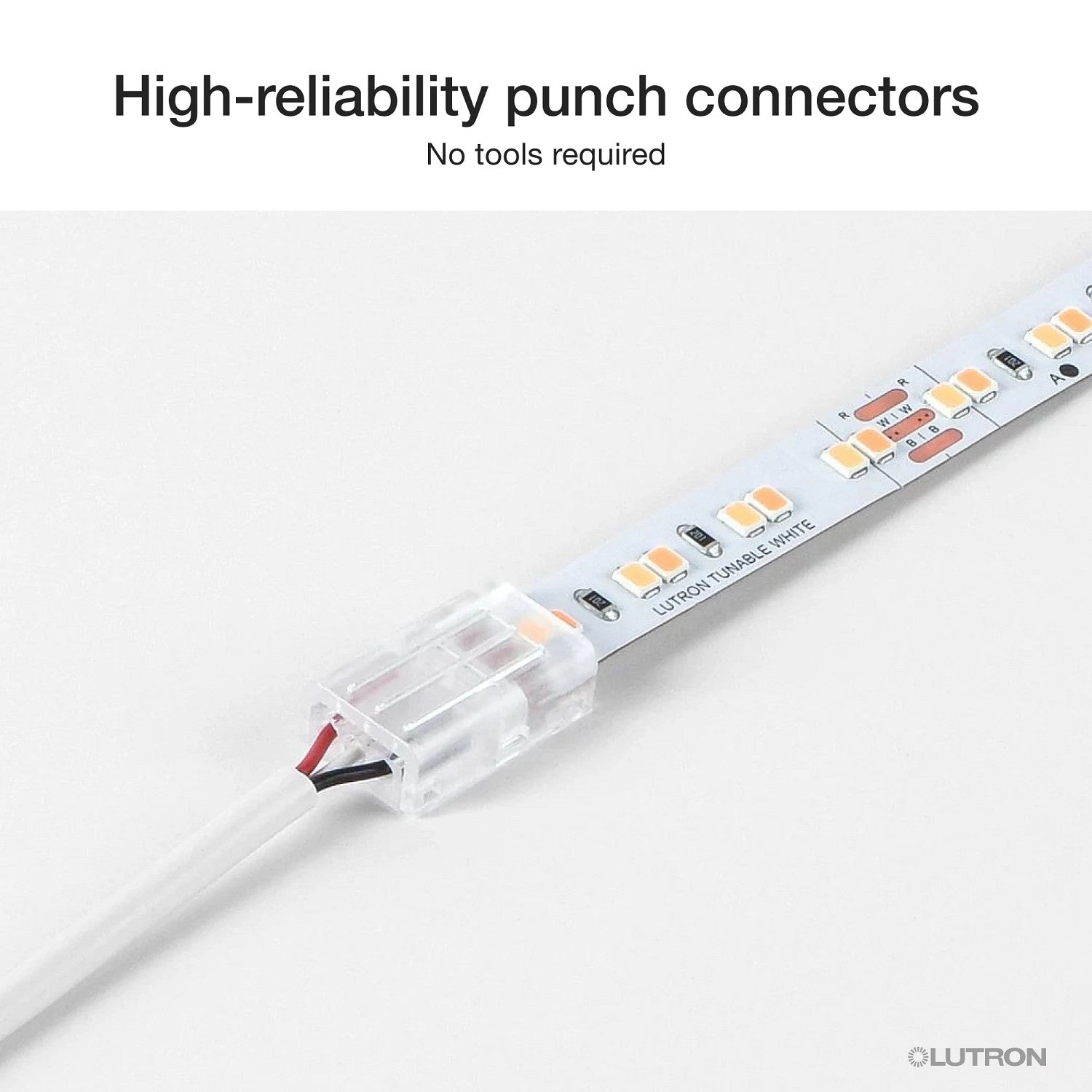

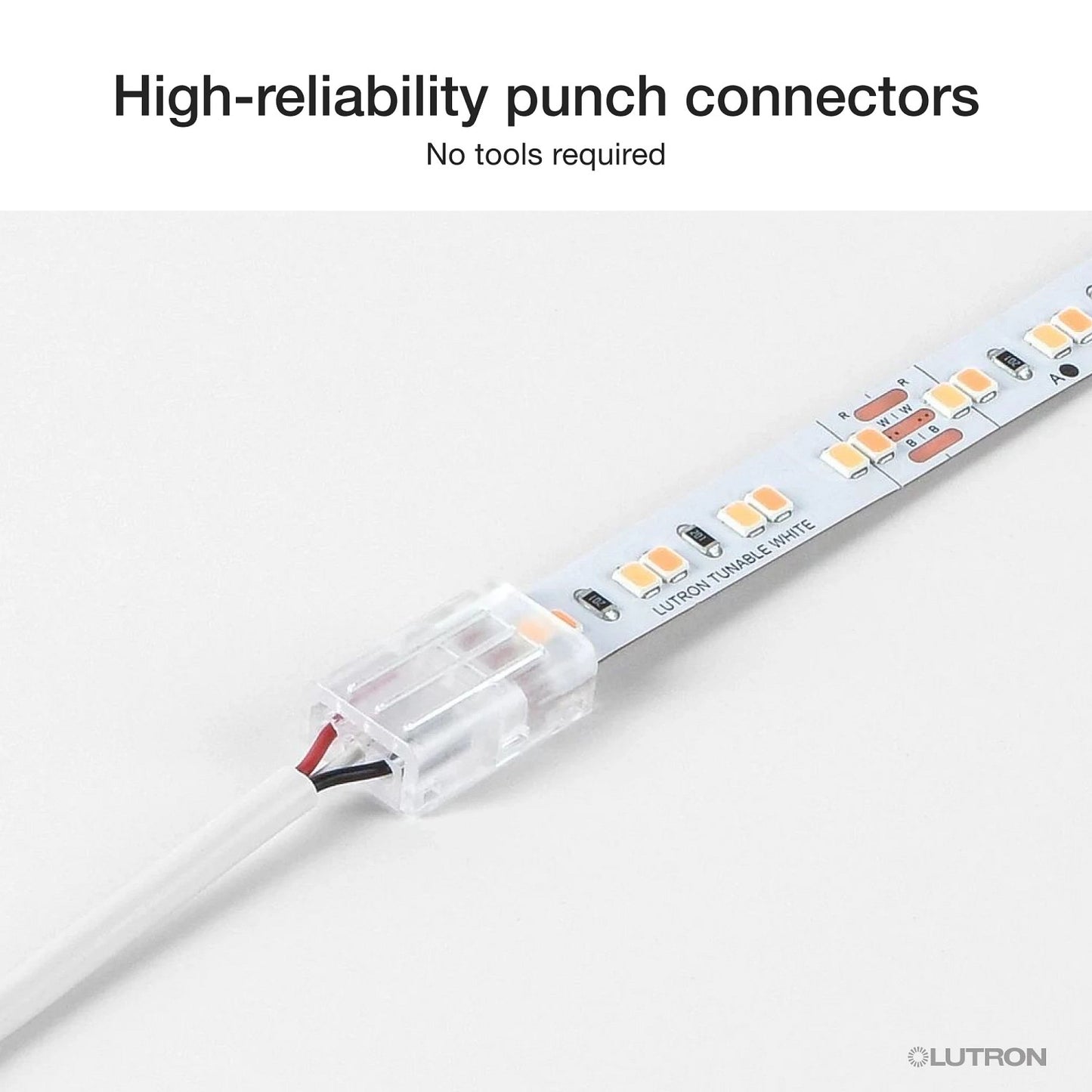

- Pairs with Lumaris wire/tape connectors (LU-CK1-TW, sold separately)
Applications
- Feeding power from the wireless controller to tunable white tape runs

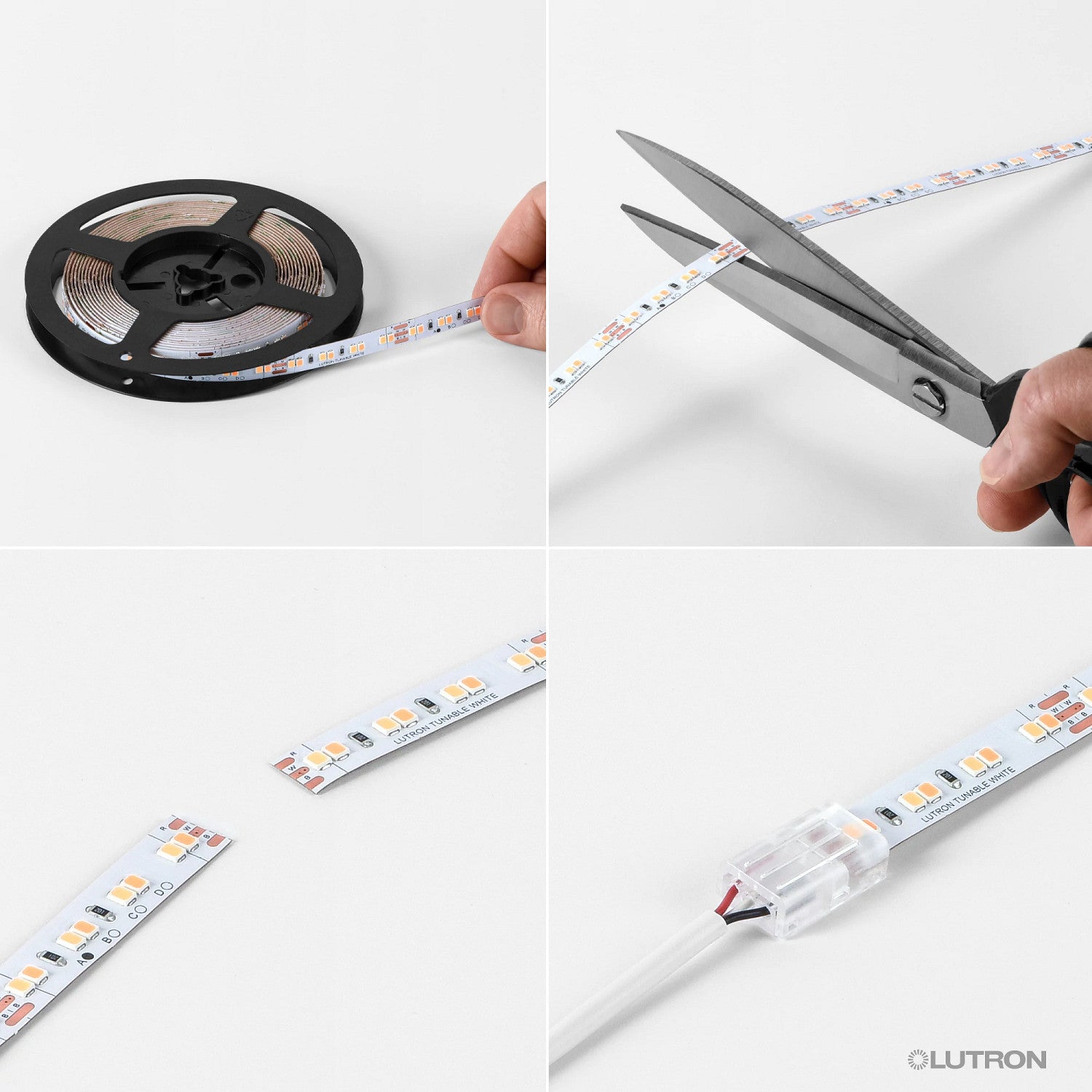

- Breaking tape runs around corners, cabinets, and architectural details
System Notes

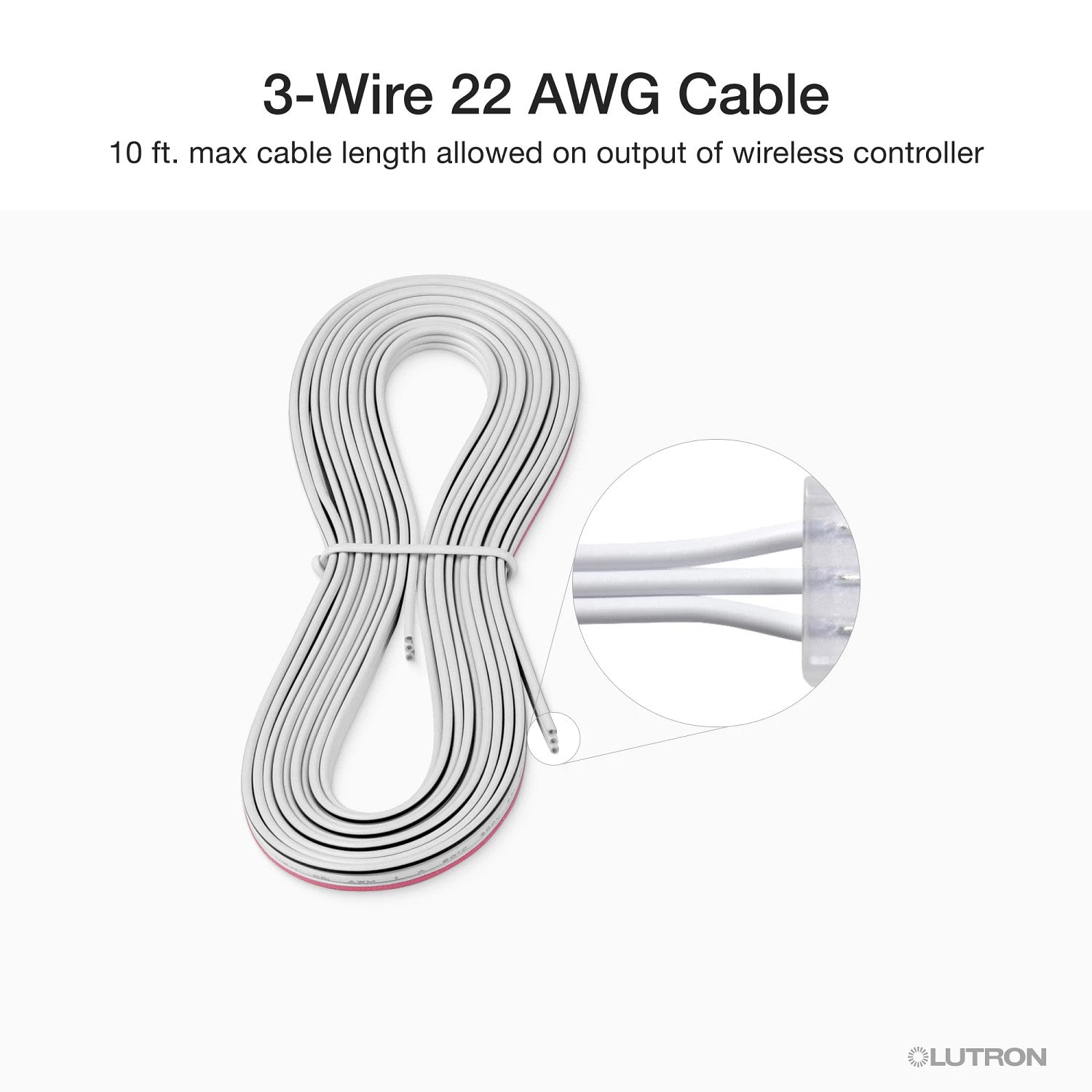

- Maximum cable on the output of a wireless controller is 10 ft (3.0 m); cable can feed the run or break up tape segments
- Supports up to 16.4 ft (5 m) of Lumaris tunable white tape (LU-T05-XX) per wireless controller (RRL-TWC-WH)
- The 24 V cable from the power supply can be extended by cutting the plug ends and adding cable of the appropriate gauge — see the spec sheet
- LED tape reel and other accessories sold separately
- Verify layout, load, and control requirements before ordering
