Professional sauna lighting for Canadian projects
Sauna lighting designed for heat, humidity and long-term serviceability
A wet-location rating alone does not confirm that a product can withstand sauna temperatures. A reliable system combines lighting with a documented operating-temperature range, secure mechanical mounting, correctly sized low-voltage drivers and controls located outside the hot room.
Choose the right lighting system
Linear sauna lighting
Create continuous, dot-free illumination beneath benches, behind backrests and within indirect coves using Lotus high-temperature COB LED strip.
Recessed downlights
Use round or square Lotus CPL downlights for a clean architectural finish where the planned mounting location meets the fixture specifications.
Drivers and dimming
Place the matched Lotus driver and compatible Lutron control outside the hot room in an accessible, ventilated location.
Adjacent wet areas
Use suitable Reno vapor-tight fixtures in nearby wash areas, change rooms, corridors and mechanical spaces.
1) Lotus sauna COB LED strip
The Lotus ES-FSCOBWW-24-IP67 family is designed for demanding sauna, spa and steam-shower environments. It operates at 24V DC, uses 3W per foot and provides seamless COB illumination without visible LED dots or a required diffuser.
Maximum temperature
220°F / 105°C
Input
24V DC constant voltage
Power
3W per foot
Protection
IP67
Maximum run
16 ft / 5 m per feed
Cut increment
2 in / 50 mm
Installation requirements
- Secure the strip with the supplied transparent silicone clips and screws.
- Do not rely on the adhesive backing as the only means of support.
- Do not install the sauna strip in an aluminum channel inside a sauna or steam shower.
- Cut only at the marked cutting locations.
- Reseal cut ends with the supplied end caps and neutral-cure, alcohol-based silicone.
- Use the Lotus driver specified for the selected strip and connected load.
Planning reference: a full 16-foot reel uses approximately 48W. Allow appropriate driver capacity and account for voltage drop, feed length and the number of separately powered sections.
2) Corrosion-resistant recessed downlights
Lotus CPL downlights provide a recessed alternative for sauna and steam-room designs. Their deep-regressed construction reduces glare, while the corrosion-resistant polycarbonate-composite trim is available in white or black.
Round, deep-regressed CPL downlight with selectable-CCT and Dim-to-Warm options. Includes a 120V TRIAC-dimmable driver on applicable configurations.
Square, deep-regressed CPL downlight with selectable-CCT and Dim-to-Warm options for coordinated architectural layouts.
Specification guidance: verify the expected temperature at the exact fixture location, heater clearances, ceiling construction and the current Lotus installation instructions before ordering.

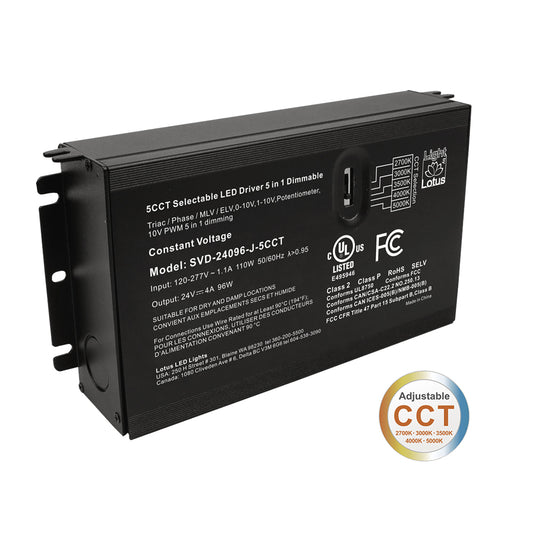

3) Remote Lotus drivers
Install the LED driver outside the sauna hot room in a cool, dry, ventilated and serviceable location. Select the driver according to the connected wattage, required headroom and dimming method.
Lotus sauna-lighting systems can be configured with suitable 24V KVG drivers or SDD driver-and-dimmer packages in capacities appropriate to the project. Longer installations may require multiple drivers or parallel feeds.
Shop Lotus 24V LED drivers and power supplies
4) Lutron controls located outside the hot room
Lutron wall controls provide familiar local dimming and smart-control options when matched to the selected driver. Install the dimmer outside the sauna hot room and confirm whether the driver requires forward-phase, reverse-phase or another control method.

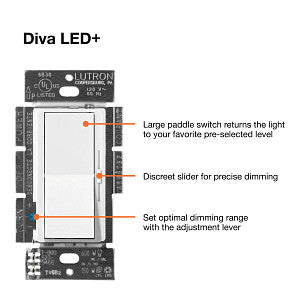

A straightforward wall-control option for compatible forward-phase dimmable drivers.

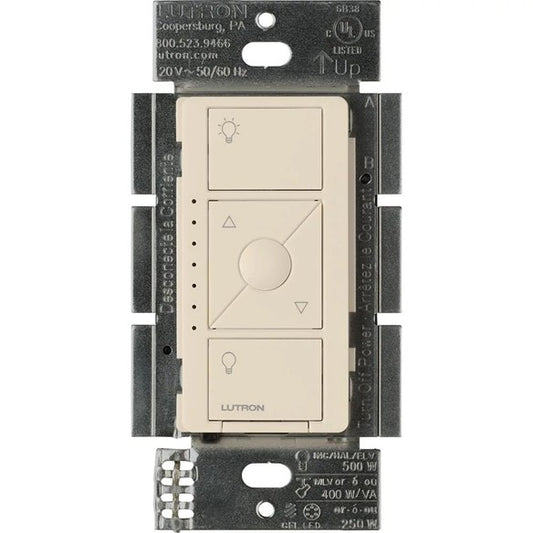

Wireless Caséta dimming for compatible forward-phase loads and app-based system control.
Caséta control for compatible ELV or reverse-phase dimmable drivers.
Compatibility matters: confirm the exact dimmer-and-driver pairing, minimum load, wiring requirements and low-end trim performance before installation.
5) Popular sauna-lighting layouts
-
Under-bench lighting: creates a soft floating effect with reduced direct heat exposure and easier service access.
-
Backrest glow: provides comfortable indirect illumination behind a wood backrest or architectural panel.
-
Toe-kick lighting: improves visual definition at floor level while keeping the source concealed.
-
Indirect perimeter cove: produces an even architectural glow when positioned away from the heater plume and exclusion zones.
-
Recessed accent lighting: adds focused downlight where fixture specifications and local temperatures permit.
6) Reno lighting for adjacent wet and utility areas
Reno Mako vapor-tight fixtures are well suited to nearby wash areas, change rooms, corridors and mechanical spaces when the selected model's wet-location and ambient-temperature ratings match the application. Selected models are also available with microwave occupancy and photocell controls.
Browse Reno Lighting
Safety notice: Follow current manufacturer instructions, heater exclusion zones, applicable Canadian electrical requirements and local authority requirements. Use a qualified electrical professional where required.
