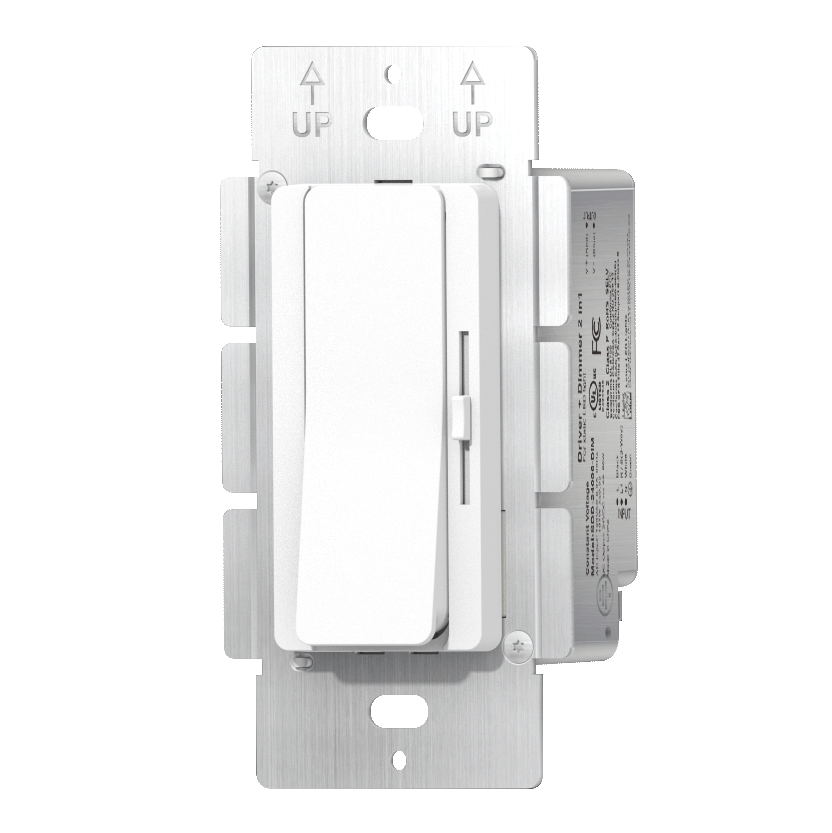

Lotus 2-in-1 Driver + Dimmer for Single CCT LED, 24V 96W | SDD-24096-DIM
Lotus 2-in-1 Driver + Dimmer for Single CCT LED, 24V 96W | SDD-24096-DIM
Limited Stock - Order Soon
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:SDD-24096-DIM
Shipping terms (Free over $300) calculated at checkout.
Overview
The SDD-24096-DIM combines driver and dimmer functions in one compact wall-box form factor for single-CCT 24V LED tape applications. It is designed to reduce compatibility issues between separate drivers and dimmers, includes a separation plate for high- and low-voltage circuits in the same box, supports single-pole or 3-way wiring, and delivers smooth 0.3%-100% dimming.
Key Features
- 2-in-1 design combines driver and wall dimmer in one Class 2 electrical box solution.
- Designed for 24V single CCT LED installations to help reduce driver and dimmer compatibility issues.
- Smooth 0.3% to 100% dimming with constant-voltage PWM output.
- Supports single-pole and 3-way wiring.
- Includes a separation plate for high- and low-voltage circuits in the same box.
Technical Specifications
- Input Voltage: 120V AC 60 Hz
- Output: 24V DC / 4A
- Power Rating: 96W
- Voltage Adjustment: 24V to 26V ± 0.5V
- Dimming Range: 0.3% - 100%
- PWM Frequency: 16 KHz
- Load Range: No minimum load / 96W maximum
- Approved Locations: Dry and Damp Locations
- Operating Temperature: -40°F (-40°C) to +140°F (+60°C)
- Warranty: 5 Year when used with Lotus products
