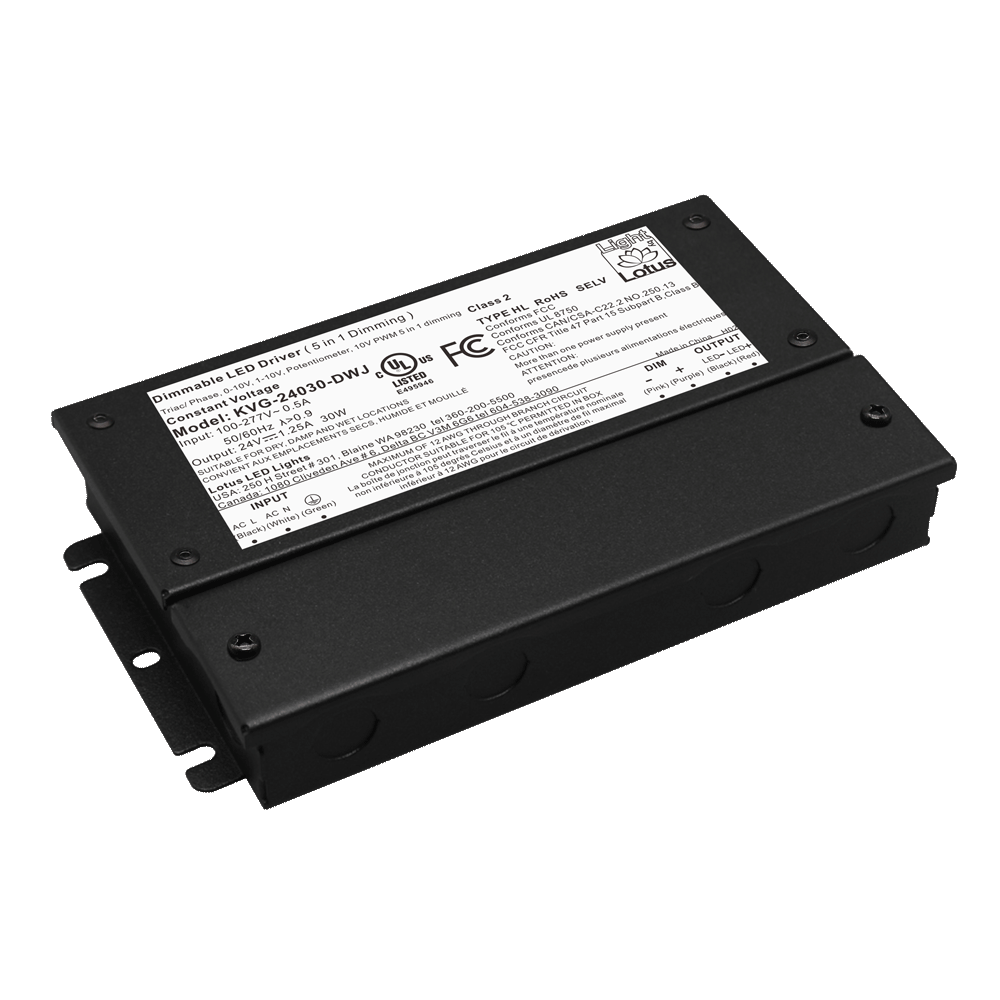

Lotus 24V 30W 5-in-1 Dimmable Driver 120-277V Wet | KVG-24030-DWJ

• Input: 120V - 277V AC
• Output: 24V DC / 1.25A
• Power: 30 W
• 5-in-1 forward and reverse phase dimming: TRIAC / ELV / MLV, 0-10V, 1-10V, Potentiometer, 10V PWM
• Approved Locations - Dry, Damp & Wet
• Wiring Volume - 5 cu in per chamber
• Ambient Temperature: -40°F (-40°C) to +140°F (+60°C)
• Compliance: cULus, Class 2, Type HL, FCC
• Warranty: 5 Year

DIMENSIONS:

• Length 6 1/2"; Width 3 3/4"; Depth 1 3/4"

Product Features

• 30W maximum load
• 120V-277V AC Input
• 24V DC Constant Voltage Output / 1.25A
• 5-in-1 forward and reverse phase dimming: TRIAC / ELV / MLV, 0-10V, 1-10V, Potentiometer, 10V PWM
• Built-in wiring compartments for line and low voltage connections, 5 cu in per chamber
• Wet Location, cULus Listed
• Warranty: 5 Year
