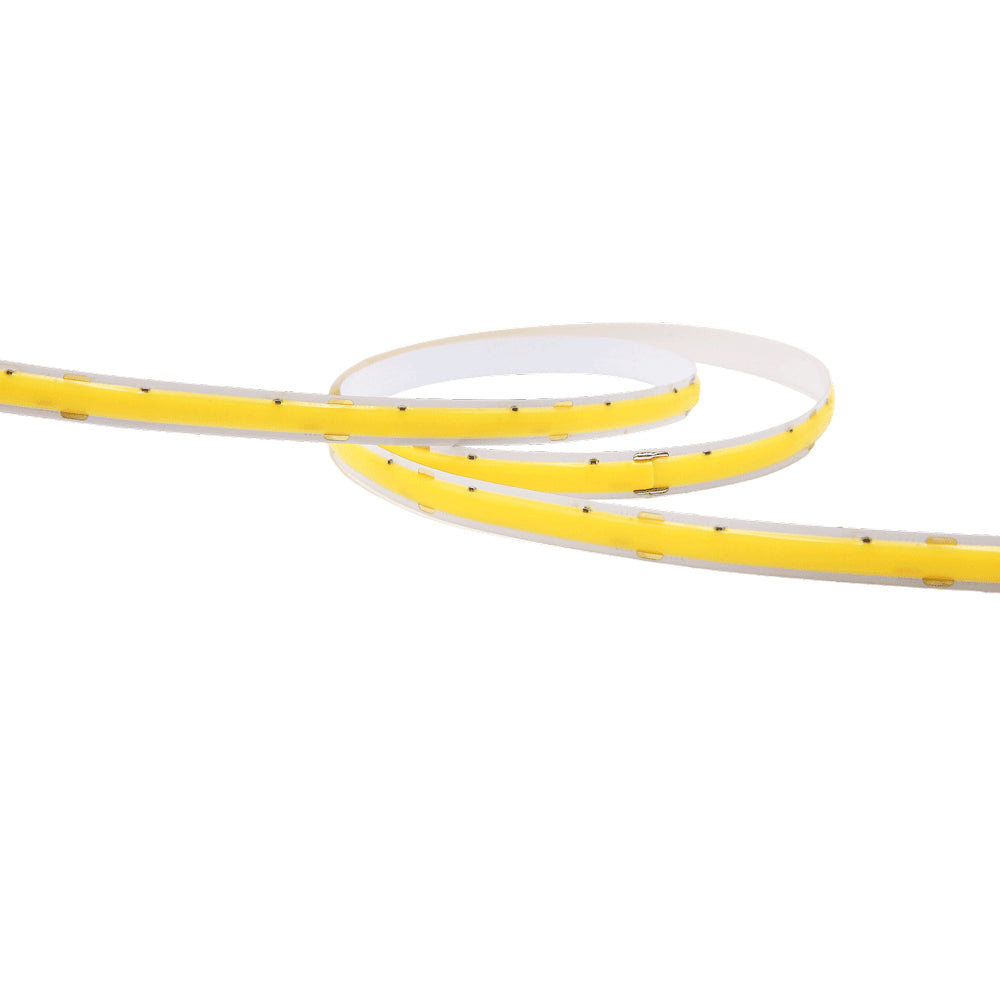

Lotus Sauna COB LED Strip 24V DC 3W/ft 12mm CRI 90+ IP67 | ES-FSCOBWW-24-IP67 | ES-FSCOBWW-24-IP67

Overview

The Lotus LED Sauna COB LED Strip is an architectural-spec linear lighting solution specifically engineered for high-temperature environments such as saunas, spas, and steam showers. This 24V constant voltage fixture utilizes advanced Chip-on-Board (COB) technology to provide seamless, hotspot-free illumination that remains stable in temperatures up to +220°F (+105°C).

Key Features

• Extreme Temperature Resistance: Rated for operation in environments reaching up to +220°F (+105°C), making it ideal for professional sauna and spa installations.
• Seamless Linear Output: COB technology with 480 LEDs per meter delivers uniform light with no hotspots, eliminating the need for a diffused cover.
• Architectural-Spec Durability: Constructed with a 3 oz copper PCB and real gold wires to ensure superior light maintenance and thermal stability.
• Wet Location & Closet Rated: Features an IP67 waterproof rating and is certified for use in clothes closet storage spaces, offering exceptional installation versatility.
• Dynamic Lighting Options: Available in multiple single CCT options or a Dim-to-Warm (3000K to 1800K) version to create the perfect ambient atmosphere.

Technical Specifications

• Input Voltage: 24V DC
• Power Consumption: 3 W/ft (10 W/m)
• Light Output: 750 lm/m to 980 lm/m depending on CCT
• Color Temperature: 2700K, 3000K, 4000K, 5000K, or Dim-to-Warm (3000K-1800K)
• CRI: 90+
• Beam Angle: 120°
• Dimmable: Yes
• IP Rating: IP67 (Wet Location)
• Approved Locations: Saunas, Spas, Steam Showers, Wet Location, Closet Rated
• Operating Temperature: -4°F (-20°C) to +220°F (+105°C)
• Width: 1/2" (12 mm)
• Cuttable Increment: 2" (50 mm)
• Minimum Bending Radius: 2" (50 mm)
• Maximum Connection Length: 16 ft (5 m)
• Projected Life: 70% light output at 50,000 hours
• Certification: cULus
• Warranty: 5 Year Indoor / 3 Year Outdoor (when installed with a Lotus LED Lights driver)
