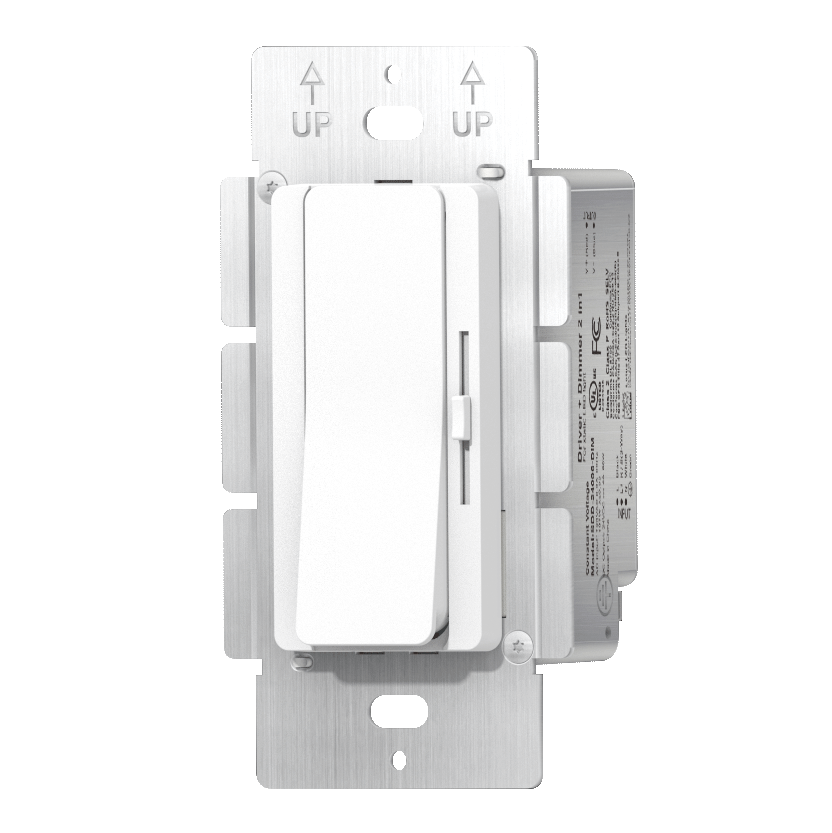

Lotus 2 in 1 Driver + Dimmer for Single CCT LED 24V 60W | SDD-24060-DIM
Lotus 2 in 1 Driver + Dimmer for Single CCT LED 24V 60W | SDD-24060-DIM
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:SDD-24060-DIM
The Lotus SDD-24060-DIM is a compact 2-in-1 LED driver and dimmer designed for clean 24V low-voltage lighting installations. It combines the Class 2 power supply and dimming control into one wall-box-ready device, helping simplify installation while reducing compatibility issues between separate drivers and dimmers.
Built for 24V DC single CCT and dim-to-warm LED applications, this unit delivers 24V DC / 2.5A output with up to 60W maximum load, smooth 0.3% to 100% dimming, and constant voltage PWM output. With single-pole or 3-way wiring, dry and damp location approval, no minimum load requirement, and fine 24V to 26V output voltage adjustment, it is a strong choice for streamlined LED tape, puck, step light, and 24V fixture control.
Why this driver/dimmer sells
- 2-in-1 design: driver + dimmer in one compact device
- Reduces compatibility issues: no need to pair separate drivers and dimmers
- Built for 24V lighting: ideal for single CCT and dim-to-warm LED loads
- Deep dimming: 0.3% to 100%
- Universal wiring flexibility: single-pole or 3-way wiring
- No minimum load
- Electrical box installation: Class 2 wall-box-ready power supply
- Fine output voltage adjustment: 24V to 26V +/- 0.5V
Recommended application
Designed for 24V DC single CCT and dim-to-warm LED installations.
Compatible Lotus LED applications
Use with single CCT / DTW LED tape, 24V DC fixtures, 24V pucks, and 24V step lights.
Key specifications
| Model | SDD-24060-DIM |
|---|---|
| Device Type | Driver + Dimmer 2 in 1 |
| Application | 24V DC single CCT & DTW LED installations |
| Power | 60 W |
| Input | 120V AC 60 Hz |
| Output | 24V DC / 2.5A |
| Voltage Adjustment | 24 to 26 V +/- 0.5V |
| Output Type | Constant Voltage PWM output |
| Min / Max Load | No minimum / 60 W |
| Dimming Range | 0.3% - 100% |
| Wiring | Single Pole or 3-Way |
| THD | < 10% at full load |
| Power Factor | > 0.99 at full load |
| Efficiency | 91% at full load |
| Inrush Current | 50A, 150us @ 50% |
| Leakage Current | < 0.5mA |
| PWM Frequency | 16 KHz |
| Approved Location | Dry & Damp Locations |
| Working Temperature | -40°F (-40°C) to +140°F (+60°C) |
| Protection | Short circuit, over-voltage, over-heat, over-load |
| Safety Standards | c UL us Listed UL8750; CAN/CSA-C22.2 No.250.13 |
| Certifications | Class 2, UL Class P, FCC Part 15 Subpart B Class B |
| Net Weight | 0.55 lbs / 0.25 kg |
| Warranty | 5 Year when used with Lotus products |
Features & benefits
- Helps eliminate compatibility issues between separate drivers and dimmers
- Combines power supply and dimming control into one compact wall-box-ready unit
- Includes a separation plate that allows installation of high and low voltage circuits in the same box
- Supports smooth dimming from 0.3% to 100%
- Fine tuning of the output voltage for installation flexibility
- Suitable for 24V single CCT / DTW tape, 24V fixtures, pucks, and step lights
Installation note
This unit is designed as a Class 2 power supply for electrical box installation. It supports single-pole or 3-way wiring and is approved for dry and damp locations.
- 2-in-1 driver and dimmer
- 24V DC / 2.5A output, 60W max
- For single CCT and dim-to-warm 24V LED applications
- 0.3%-100% dimming performance
- Single-pole or 3-way wiring
- Wall-box-ready Class 2 installation
- No minimum load
- Dry and damp location approved
Frequently Asked Questions
What does the Lotus SDD-24060-DIM do?
It combines a 24V Class 2 LED driver and dimmer into one compact 2-in-1 device for single CCT and dim-to-warm LED installations.
Is this a tunable white CCT controller?
No. The SDD-24060-DIM is the driver + dimmer version for single CCT and dim-to-warm 24V LED loads. For manual tunable white CCT control, use the dedicated CCT controller version instead.
What are the input and output ratings?
The unit accepts 120V AC 60 Hz input and provides 24V DC / 2.5A output, up to 60W.
Can it be used in a 3-way setup?
Yes. The spec sheet indicates support for single-pole or 3-way wiring.
Is there a minimum load requirement?
No. The listed minimum / maximum load is no minimum / 60W.
Where can it be installed?
The SDD-24060-DIM is approved for dry and damp locations and is designed for electrical box installation.
What types of 24V lighting can it be used with?
It is designed for 24V DC single CCT and dim-to-warm LED installations, including compatible LED tape, 24V fixtures, 24V pucks, and 24V step lights.
