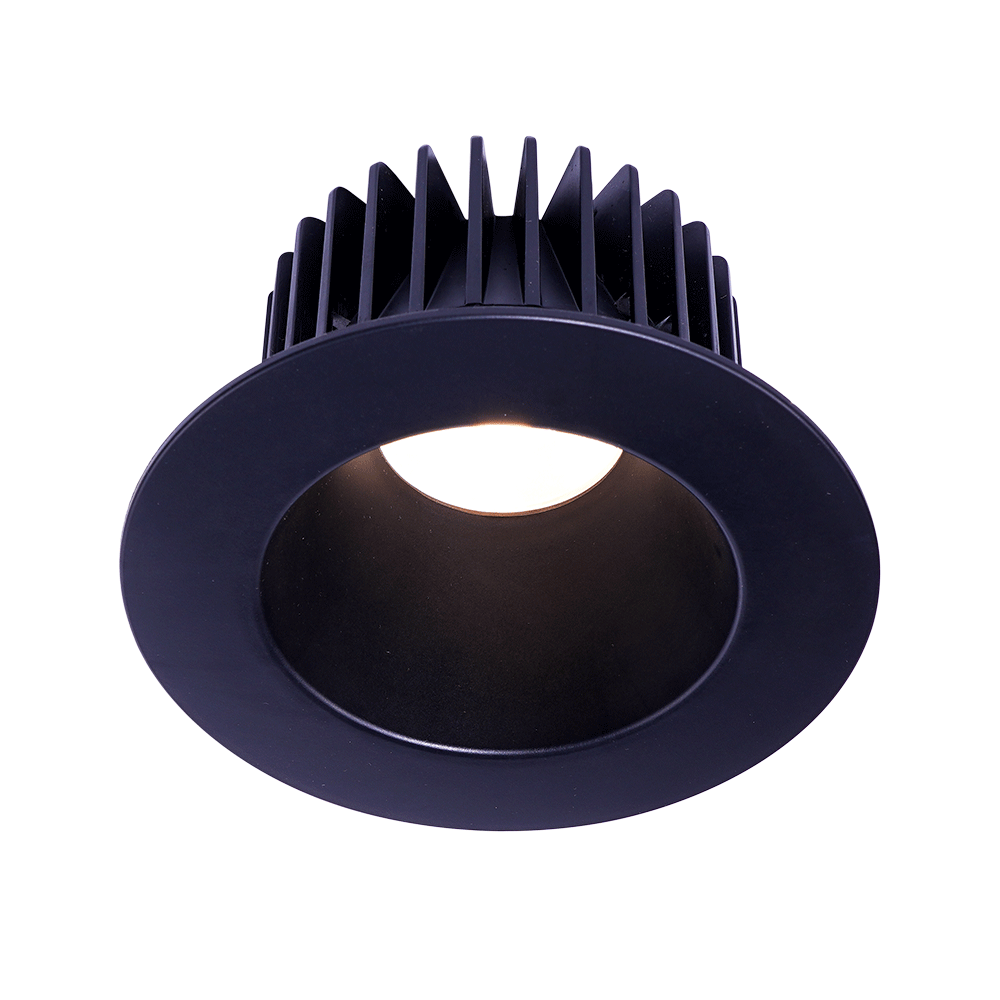

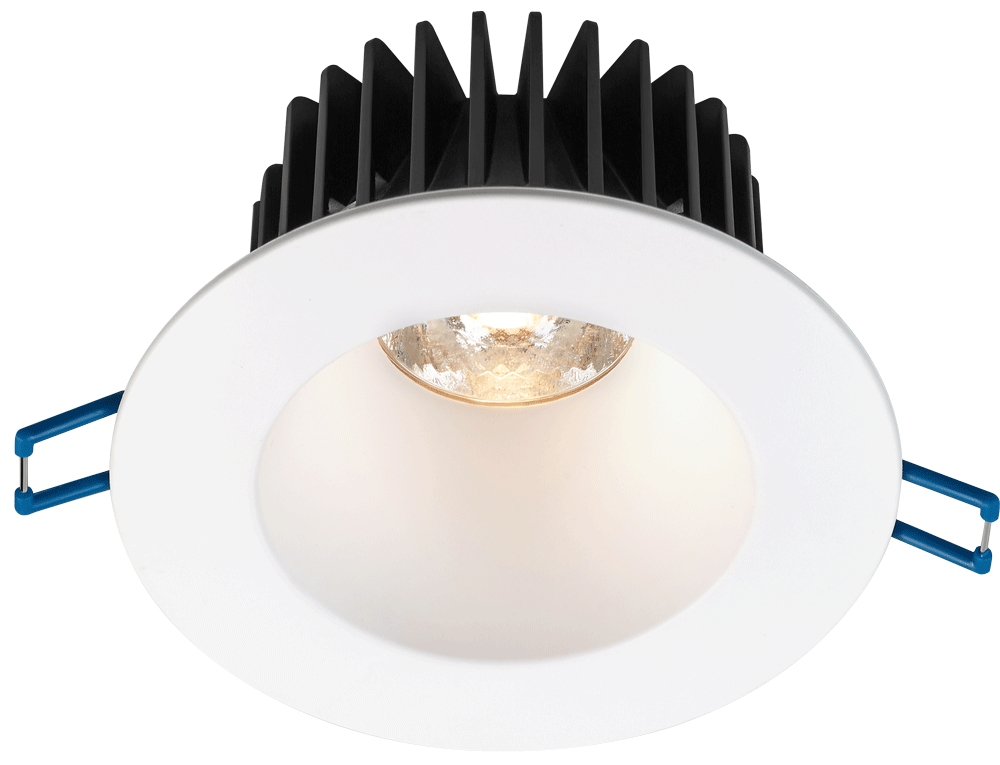

Lotus 4" Round LED Downlight 5-CCT Field Selectable & Corrosion-Proof Polycarbonate - IC Rated & Wet Location| LD4R-CPL

Rust-Proof Performance: The High-Integrity Polycarbonate Downlight

The Lotus LD4R-CPL is engineered specifically for environments where standard aluminum fixtures fail. Built with a high-grade Corrosion-Resistant Polycarbonate trim, this 4-inch round recessed light is immune to rust and oxidation, making it the industry standard for coastal installations, steam showers, and saunas. With its ultra-slim 1/2" profile and 5-CCT field selectable technology, it offers maximum project flexibility with zero maintenance concerns.

Dealer & Contractor Benefits:

• Corrosion-Proof Construction: The CPL (Polycarbonate) trim and body will not rust or pit, even in salt-heavy air or high-humidity zones.
• 5-CCT Field Selectable: On-site switch allows for instant selection of 2700K, 3000K, 3500K, 4000K, or 5000K.
• Plenum Rated (LD4R): Deep regressed design with a remote junction box for easy installation in tight ceiling spaces (only 2" clearance required).
• WET Location & IC Rated: Approved for direct contact with insulation and suitable for use in showers or outdoor soffits.
• Superior Light Quality: 90+ CRI for accurate color rendering and a regressed lens to minimize glare.

Technical Specifications

Installation Dimensions

• Cutout: 4-1/4" (108mm)
• Fixture Thickness: 1/2" (12mm)
• Junction Box: 3.5" x 3.5" x 1.5" (Fits easily into plenum spaces)

Professional Usage Notes

Coastal & Marine Environments: The CPL series is the only recessed light we recommend for homes within 5 miles of the ocean. The polycarbonate trim prevents the "white powdering" or pitting often seen on aluminum fixtures in salt air.

Title 24 Compliance: This fixture is JA8 Title 24 High Efficacy compliant and Energy Star certified.

In the Box

• LD4R-CPL Polycarbonate LED Panel
• Remote Driver inside Junction Box with Quick Connects
• Mounting Spring Clips
• Installation Guide
