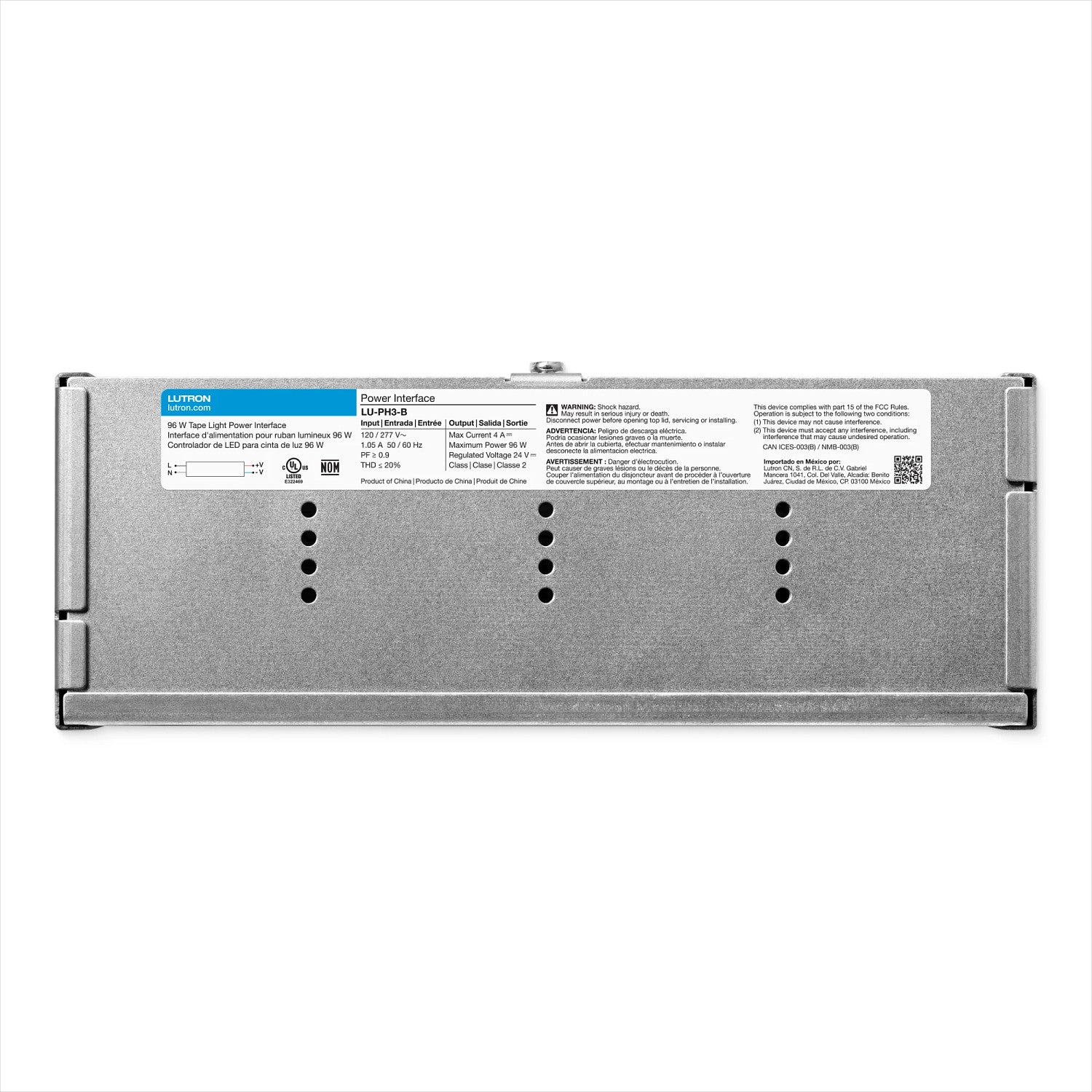

Lutron Lumaris 96 W Hardwired Power Interface with Flying Leads – 120/277 V Input, 24 V Output | LU-PH3-B
Lutron Lumaris 96 W Hardwired Power Interface with Flying Leads – 120/277 V Input, 24 V Output | LU-PH3-B
Available to order — ships from incoming stock
Typically ships in 2–5 Business Days (Western Canada) · 3–6 Business Days (Eastern Canada)
SKU:LU-PH3-B
Shipping terms (Free over $300) calculated at checkout.
The Lutron 96 W hardwired power interface — now 60% smaller — powers up to 3 Lumaris multi-channel wireless controllers and up to 32.8 ft of Lumaris RGB + tunable white LED tape. Flying leads make wiring to the multi-channel wireless controller faster and cleaner.
Key Features
- Includes (1) 96 W hardwired power interface with flying leads

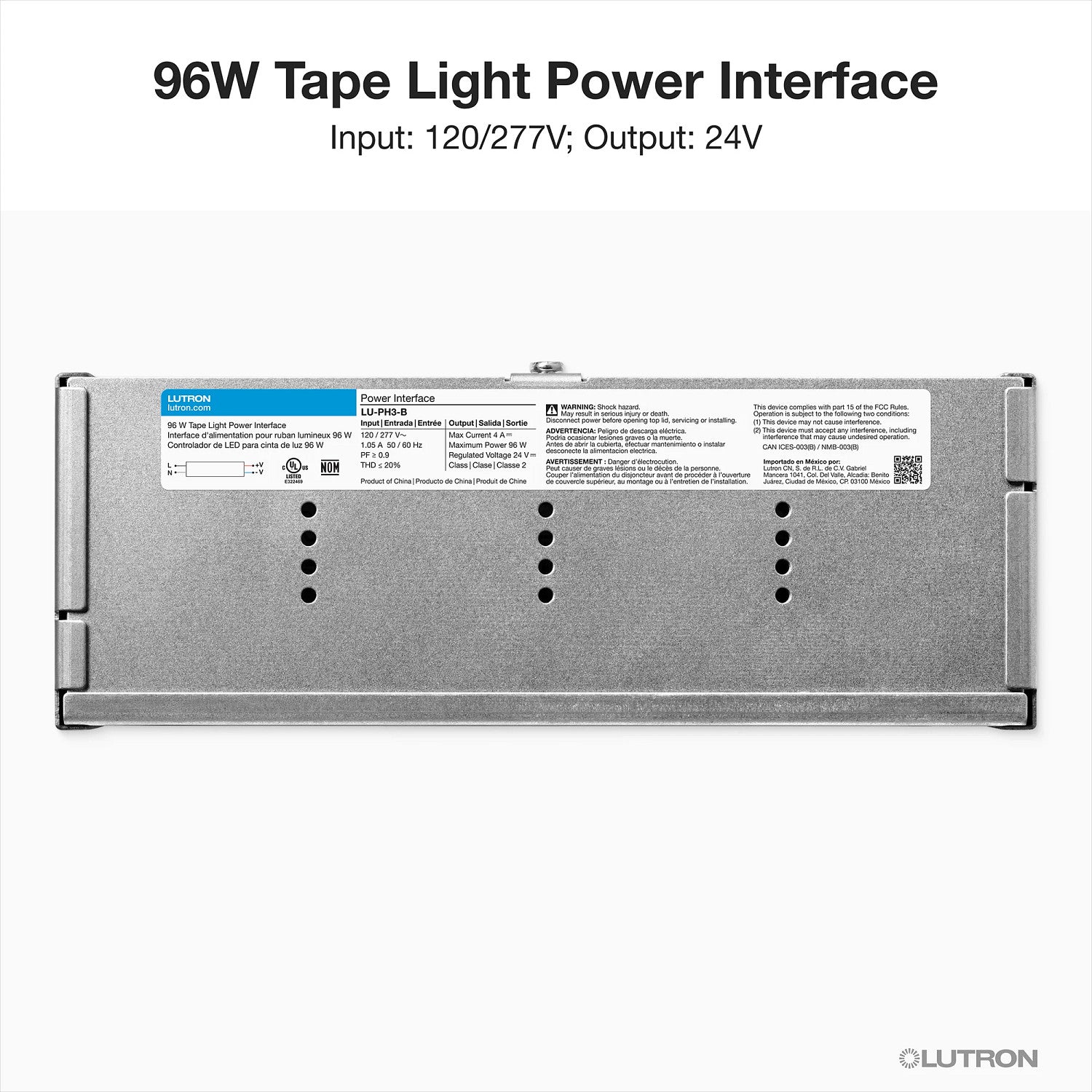

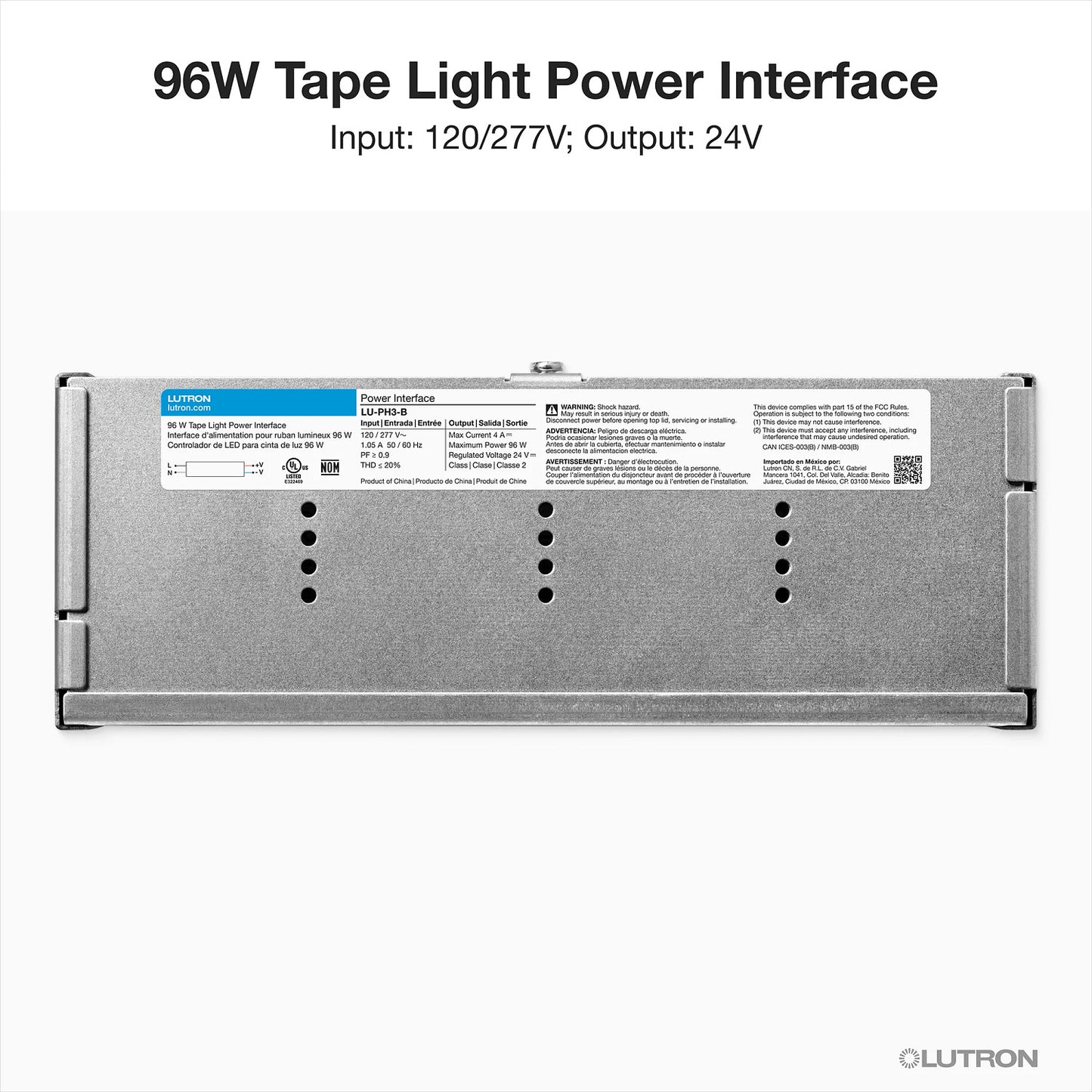

- Input: 120/277 V~ (50/60 Hz); output: 24 V, 96 W max
- Accepts 12 AWG to 20 AWG conductors — see the wiring section of the spec sheet for length configurations
- Powers up to (3) Lumaris multi-channel wireless controllers
Applications
- Powering Lumaris RGB + tunable white zones in media rooms and entertainment spaces
- Central power for multi-controller RGB + tunable white layouts
System Notes
- Must be used with a Lumaris Multi-Channel Wireless Controller for RadioRA 3 (RRL-MWCL-WH) or for HomeWorks QSX (HWL-MWCL-WH)
- For independent control, home-run each wireless controller to the power interface; zone or grouped applications may be home-run or T-tapped
- Indoor damp/dry location rating with output short-circuit and overload protection
- Verify layout, load, and control requirements before ordering
