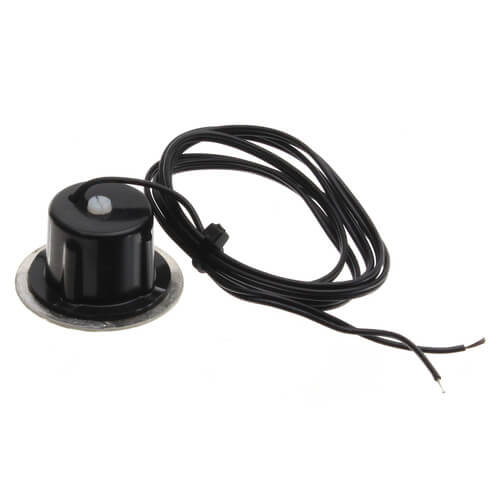

AprilAire 8051 Flush-Mount Temperature Sensor
AprilAire 8051 Flush-Mount Temperature Sensor
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 3–6 Business Days (Eastern Canada)
SKU:8051
MPN: 8051
Remote indoor temperature sensing with a discreet flush-mount finish.
The AprilAire 8051 is a wired remote temperature sensor designed for installations where the sensing location should remain visually unobtrusive. The small flush-mount disk can be painted or wallpapered to better blend into the finished wall.
Depending on the connected AprilAire thermostat or support module, the remote temperature reading can be used for monitoring or as the active temperature input.
Key Features
- Flush-mount indoor design for minimal visual impact.
- 10 kOhm nominal temperature-sensing element.
- +/-3% published resistance tolerance.
- Maximum published sensor-wire length of 300 ft.
- Uses 18-24 gauge, 2-conductor or greater low-voltage wiring.
- Compatible with a range of AprilAire thermostats and legacy support modules; verify the exact control before ordering.
Application & Compatibility
Current AprilAire sensor documentation lists compatibility across selected 8600/8800/8900 and S86 controls, plus S84NSU. Legacy documentation also uses the 8051 with 8061/8062 support modules. Compatibility depends on the thermostat input architecture, so verify the exact target model.
Key Specifications
| Model | 8051 |
|---|---|
| Sensor Type | Wired temperature sensor |
| Mounting | Flush wall mount |
| Nominal Resistance | 10 kOhm |
| Tolerance | +/-3% |
| Maximum Wire Length | 300 ft |
| Wire | 18-24 AWG, 2 conductor or more |
Related AprilAire Products
- AprilAire 8062 Temperature & Humidity Support Module for 8870 Thermostat
- AprilAire 8840 Wi-Fi Home Automation IAQ Thermostat
- AprilAire 8910 Home Comfort Control IAQ Thermostat
- AprilAire 8920W Wi-Fi Color Touchscreen IAQ Thermostat
- AprilAire S86NMU Multi-Stage Universal Programmable Thermostat
- AprilAire S86NMUPR Multi-Stage Programmable IAQ Thermostat
- AprilAire S86WMUPR Wi-Fi Multi-Stage Programmable IAQ Thermostat
- AprilAire S84NSU Universal 1H/1C or 2H/1C Heat Pump Thermostat
Frequently Asked Questions
Is the 8051 a humidity sensor?
No. The 8051 measures temperature only.
Can the 8051 be painted?
AprilAire documentation describes the flush-mount sensor as suitable for painting or wallpapering to blend with the wall.
Does it work with every AprilAire thermostat?
No. Verify the thermostat or support-module compatibility before ordering.
