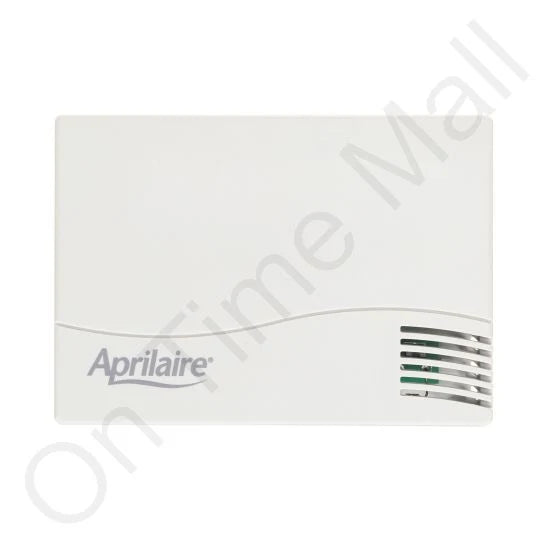

AprilAire 8062 Temperature & Humidity Support Module for 8870 Thermostat
AprilAire 8062 Temperature & Humidity Support Module for 8870 Thermostat
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 3–6 Business Days (Eastern Canada)
SKU:8062
MPN: 8062
Wired temperature and humidity sensing for legacy AprilAire 8870 communicating thermostat systems.
The AprilAire 8062 TrH Support Module adds remote temperature and relative-humidity sensing to a compatible AprilAire 8870 communicating thermostat. DIP-switch configuration allows its sensor inputs to be used for monitoring, control or multi-location averaging.
The module contains onboard temperature and humidity sensing and can also use a compatible remote temperature sensor when the installation requires sensing away from the module location.
Key Features
- Designed for the legacy AprilAire 8870 communicating thermostat architecture.
- Onboard temperature and relative-humidity sensing.
- Configurable monitor or control functions.
- Supports temperature and humidity averaging with multiple modules.
- Up to four support modules can be connected to one compatible thermostat.
- CAT5 communication wiring to the thermostat.
- Published thermostat-to-module distance up to 1,000 ft.
- Remote temperature sensor wiring supported up to 300 ft.
Application & Compatibility
This is a legacy communicating-system accessory. It is not a Z10 wireless sensor and should not be substituted for S84/S86 sensor accessories. Verify that the existing system is based on the 8870 support-module architecture before ordering.
Key Specifications
| Model | 8062 |
|---|---|
| Product Type | Temperature / RH support module |
| Compatible Platform | AprilAire 8870 communicating thermostat |
| Module Capacity | Up to 4 per thermostat |
| Communication Wiring | CAT5 |
| Maximum Module Distance | 1,000 ft |
| Maximum Remote Sensor Distance | 300 ft |
Related AprilAire Products
- AprilAire 8051 Flush-Mount Temperature Sensor
- AprilAire 8811 RS-232 / RS-485 Thermostat Protocol Adapter
Frequently Asked Questions
Is the 8062 wireless?
No. It is a wired support module for the legacy 8870 communicating thermostat system.
Can multiple 8062 modules be averaged?
Yes. AprilAire documents multiple support modules for temperature or humidity averaging.
Can I use it with an S86 thermostat?
No. Use the sensor accessories specified for the S86 model instead.
