Lumaris Wireless Controllers

Lumaris wireless controllers are combination driver-controllers with integrated LED drivers and Lutron Clear Connect – Type X wireless — the control core of every Lumaris tape light zone. All deliver continuous, flicker-free dimming from 100% down to 0.1%.

Match the controller to the tape family

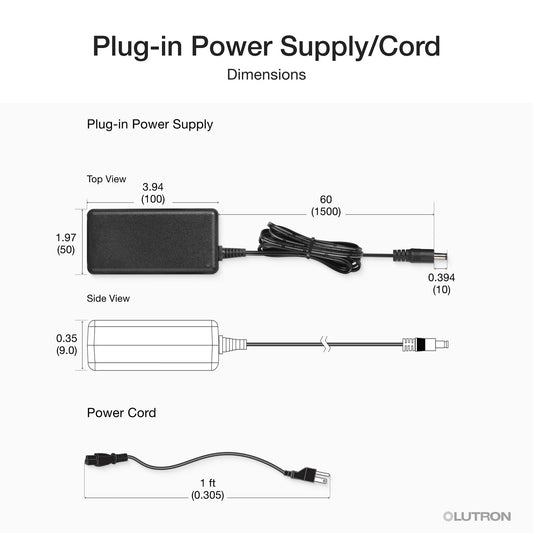

  • RRL-TWC-WH — tunable white controller with plug-in power supply included; drives up to 16.4 ft of 2-channel tape.

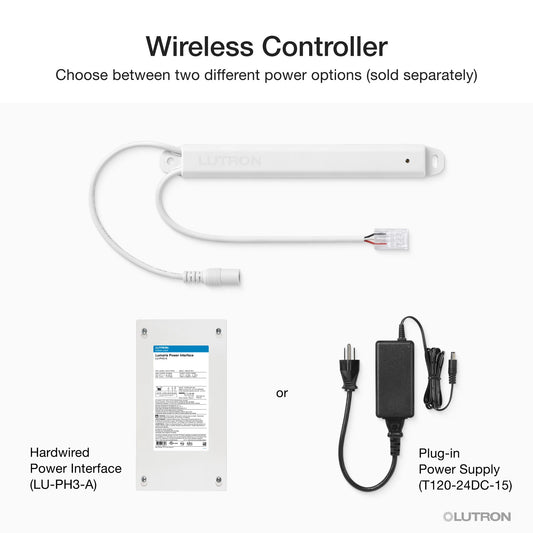

  • RRL-TWCL-WH — tunable white controller only; power separately via T120-24DC-15 or LU-PH3-A.

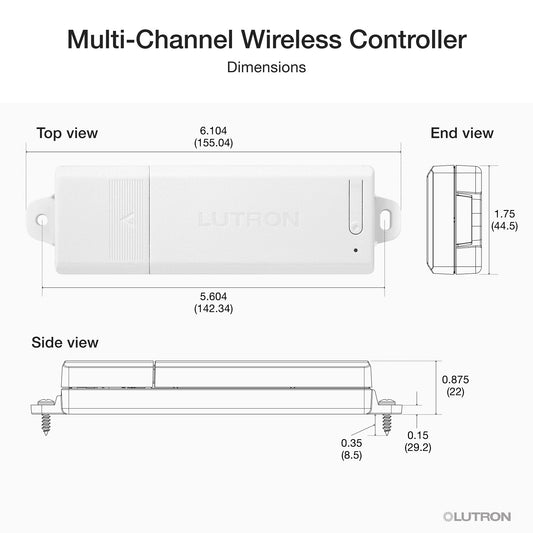

  • RRL-MWCL-WH — 5-channel multi-channel controller for RGB + tunable white tape; up to 32.8 ft in parallel runs, powered by the 96 W LU-PH3-B interface.

RRL- models are RadioRA 3; specify HWL- equivalents for HomeWorks QSX — they are not interchangeable. Keep Type X devices within 25 ft of another Type X device (Lutron App Note #804). Browse the full Lumaris catalog.
