Lutron Lumaris Tunable White Tape Light Wireless Controller – Controller Only, White | RRL-TWCL-WH

Available to order — ships from incoming stock

Typically ships in 2–5 Business Days (Western Canada) · 3–6 Business Days (Eastern Canada)

SKU:RRL-TWCL-WH

MPN: RRL-TWCL-WH

Shipping terms (Free over $300) calculated at checkout.

Color White

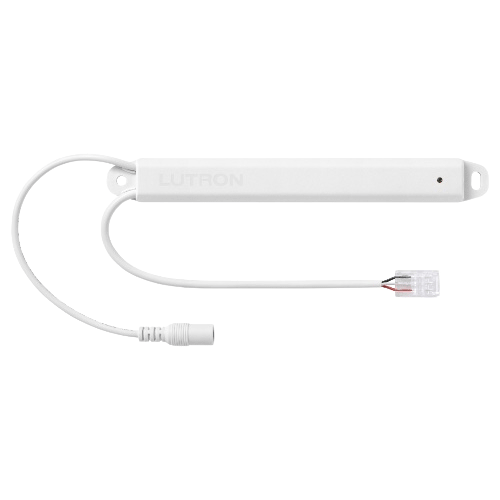

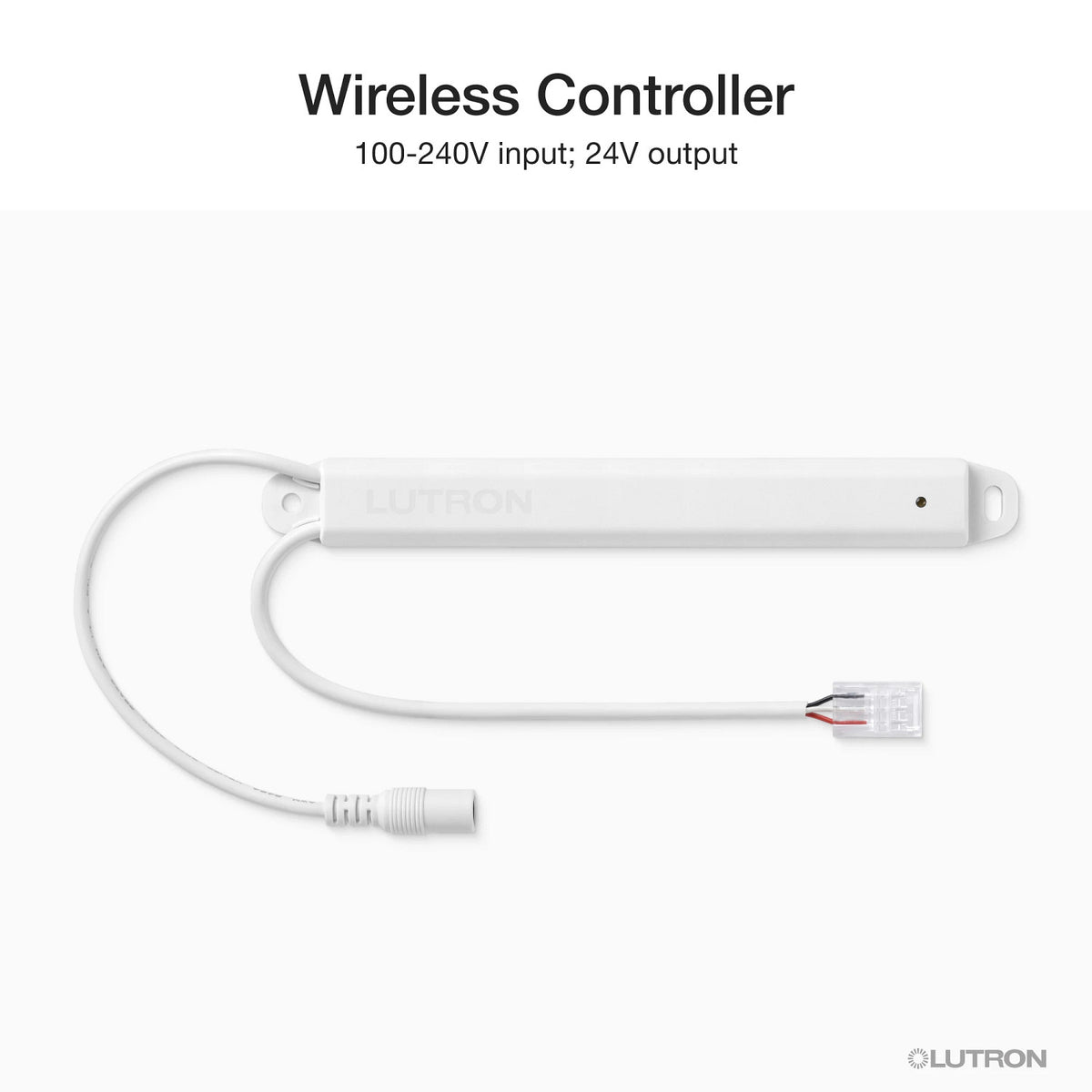

This controller-only version of the Lumaris tunable white wireless controller is a combination driver-controller with integrated LED drivers and Lutron Clear Connect – Type X wireless technology. Specify it when the power source is provided separately — either a plug-in power supply or a hardwired power interface.

Key Features

2-channel combination driver-controller with integrated LED drivers
Continuous, flicker-free dimming from 100% down to 0.1% of measured light output
Controller input: 24 V; output: 24 V, 0–1375 mA, 33 W max
Low-profile housing that is easy to conceal

Applications

Multi-zone Lumaris tunable white layouts powered from a shared hardwired power interface
Replacement or expansion controller for existing Lumaris runs

System Notes

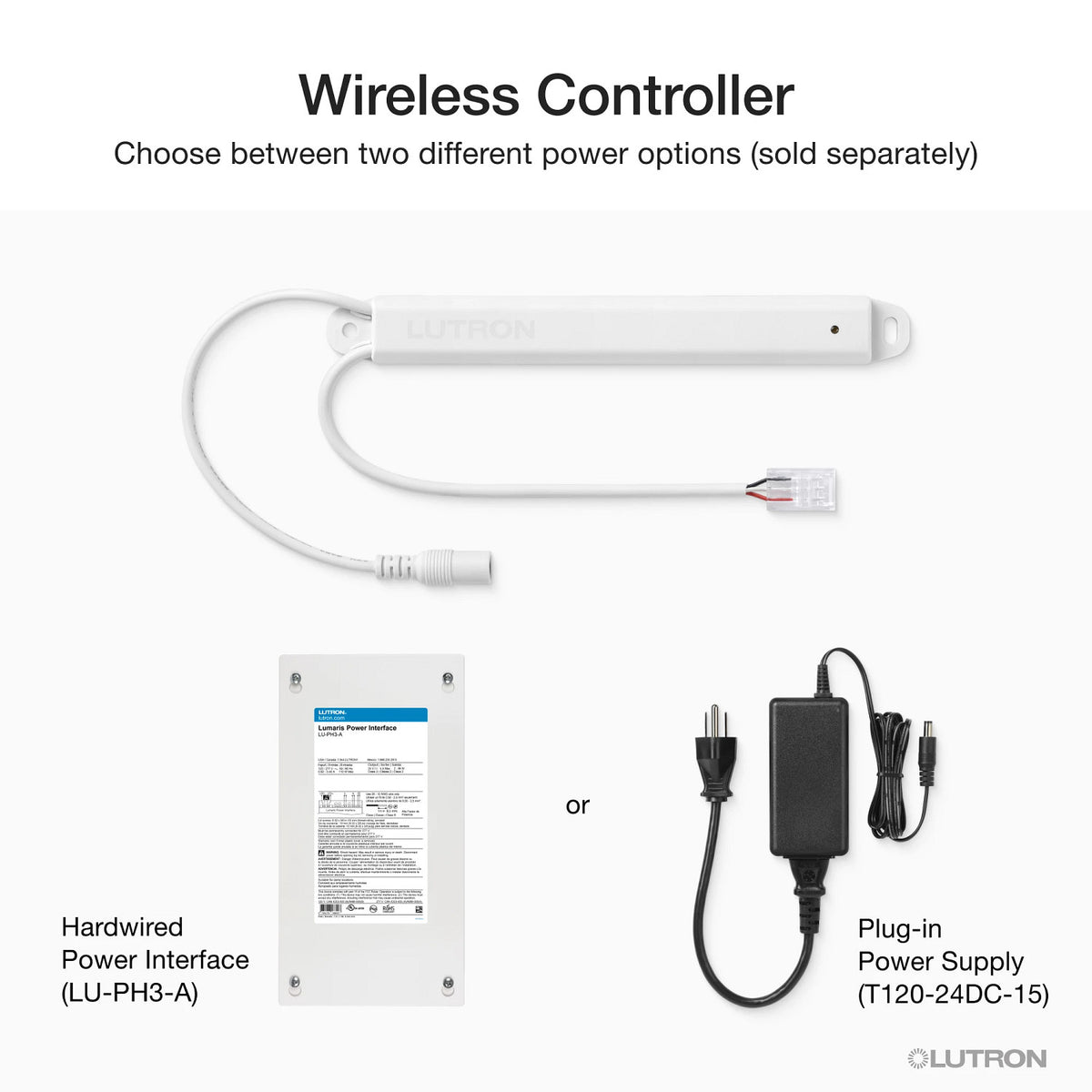

Power sold separately: use the Lutron plug-in power supply (T120-24DC-15) or hardwired power interface (LU-PH3-A)
Supports up to 16.4 ft (5 m) of Lumaris tunable white tape (LU-T05-XX or field-cut from LU-T30-XX): single run or multiple runs
LED tape reel and accessories sold separately
Communicates wirelessly using Lutron Clear Connect – Type X technology; devices must be within 25 ft (7.6 m) of other Clear Connect – Type X devices (see Lutron App Note #804)
Indoor damp/dry location rating with output short-circuit and overload protection
Verify layout, load, and control requirements before ordering
