Lutron Lumaris RadioRA 3 Multi-Channel Wireless Controller – RGB + Tunable White, White | RRL-MWCL-WH
Lutron Lumaris RadioRA 3 Multi-Channel Wireless Controller – RGB + Tunable White, White | RRL-MWCL-WH
Available to order — ships from incoming stock
Typically ships in 2–5 Business Days (Western Canada) · 3–6 Business Days (Eastern Canada)
SKU:RRL-MWCL-WH
Shipping terms (Free over $300) calculated at checkout.

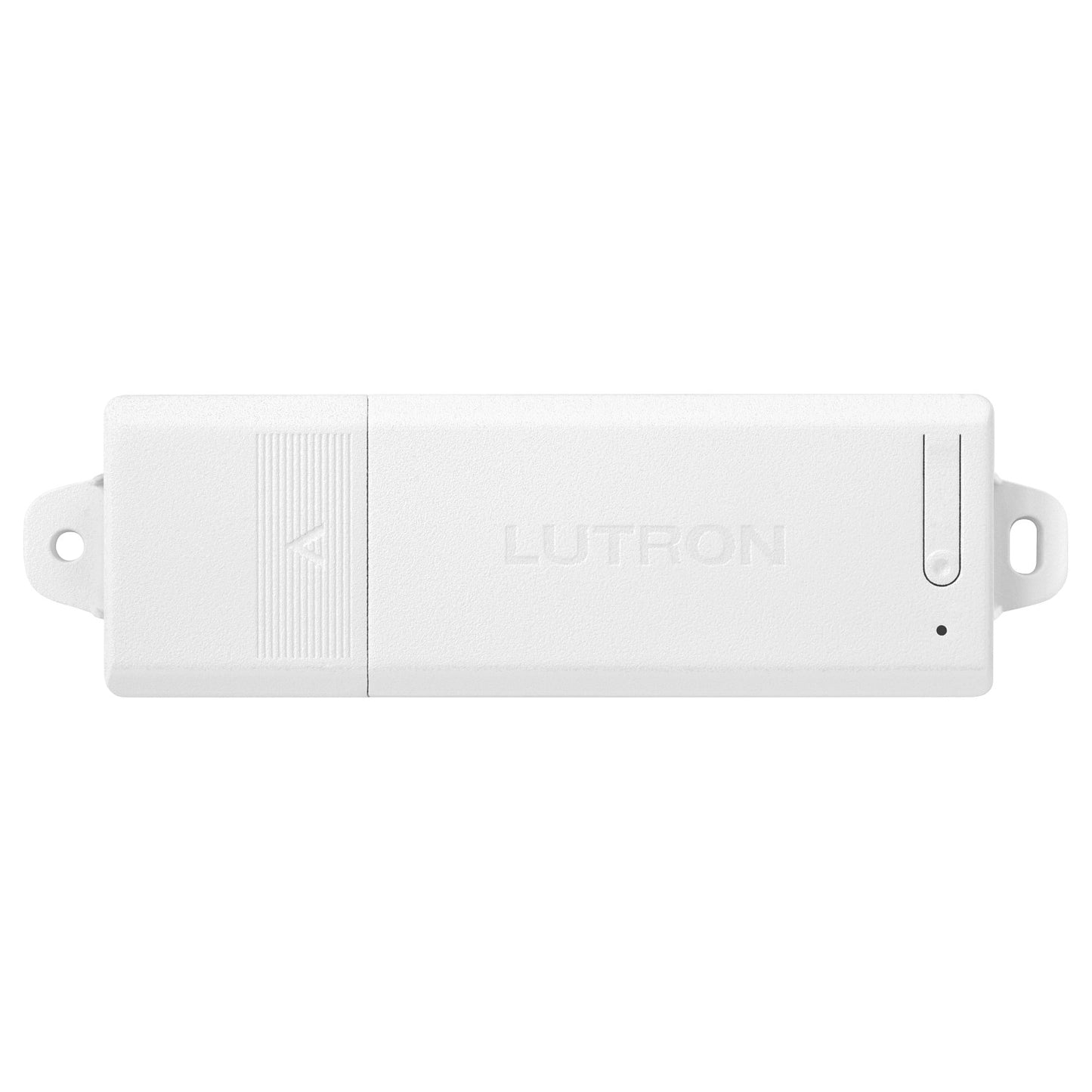

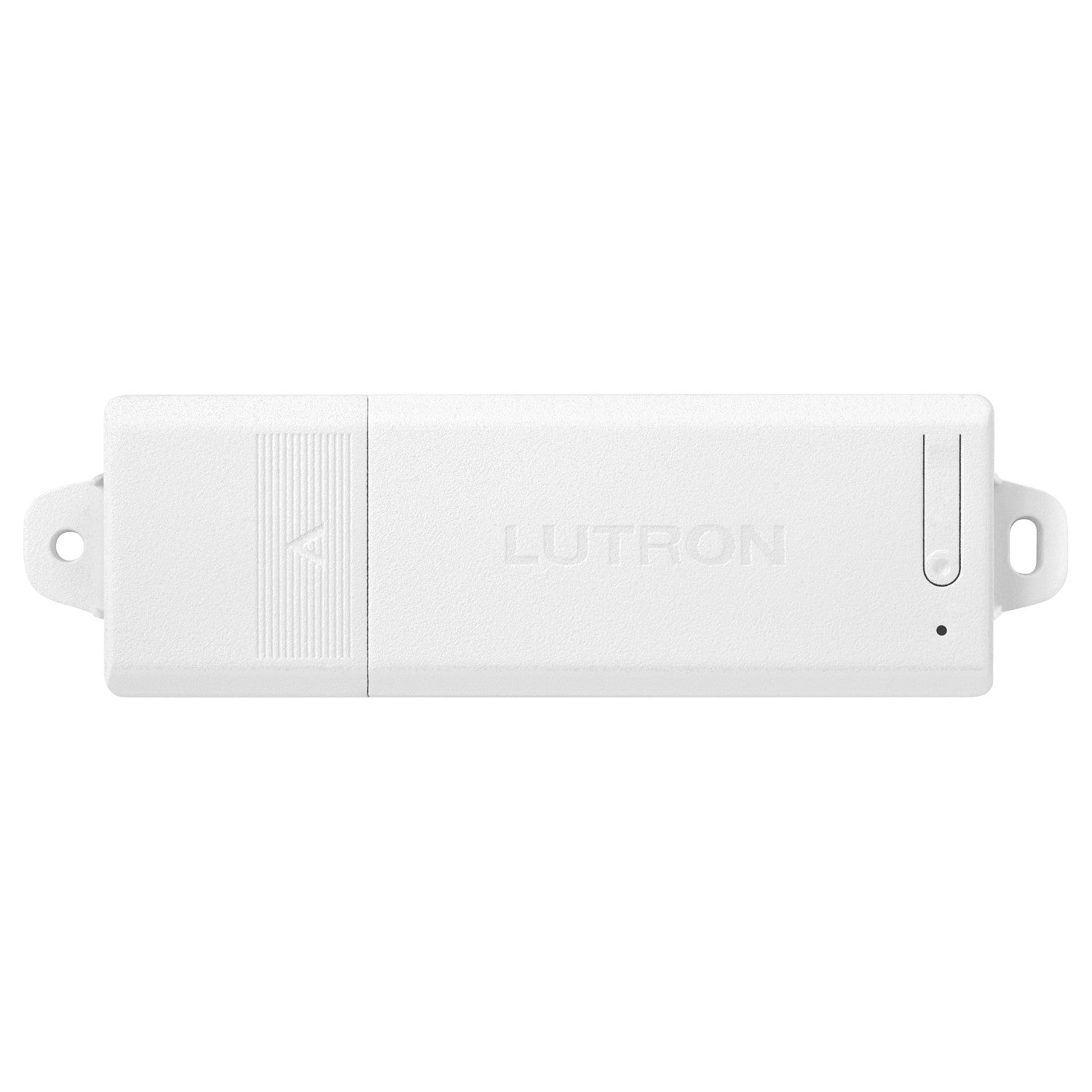

The Lumaris multi-channel wireless controller is a 5-channel combination driver-controller with integrated LED drivers and Lutron Clear Connect – Type X wireless technology. It is the RadioRA 3 control core for Lumaris RGB + Tunable White tape light.
Key Features
- 5-channel (RGB + CCT) combination driver-controller with integrated LED drivers
- Continuous, flicker-free dimming from 100% down to 0.1% of measured light output

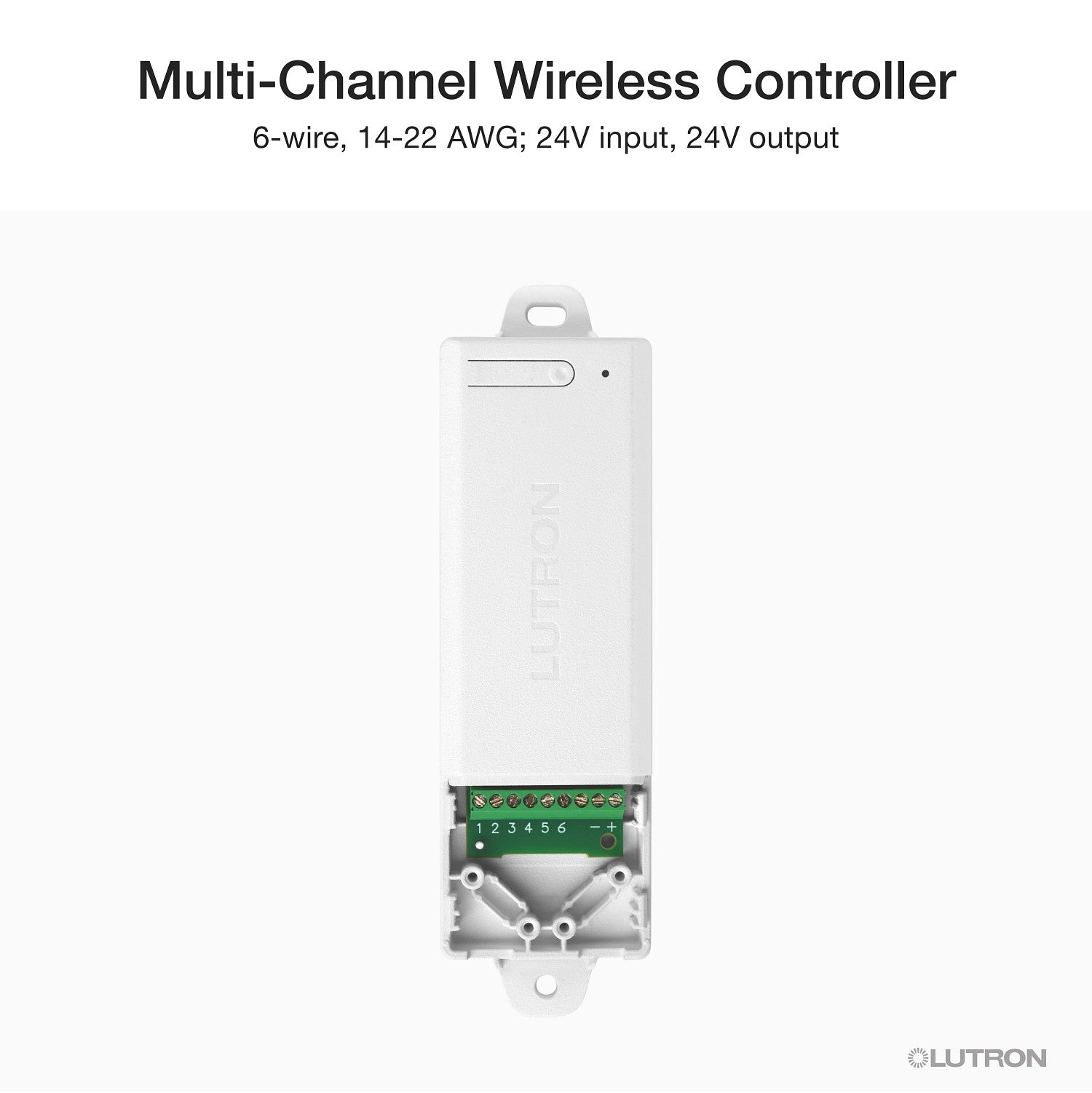

- Controller input: 24 V; output: 24 V, 96 W max
- Seamless integration with RadioRA 3 keypads, the Lutron app, and RadioRA 3 programming software
Applications
- Driving Lumaris RGB + tunable white tape in media rooms, theaters, and entertainment areas
- Multi-zone color and tunable white layouts in RadioRA 3 projects
System Notes
- Power sold separately: pair with the Lutron 96 W hardwired power interface (LU-PH3-B) for RGB + tunable white systems
- Supports up to 32.8 ft (10 m) of Lumaris RGB + tunable white tape (LU-T05-RT-IN or LU-T30-RT-IN), split into parallel runs of no more than 16.4 ft (5 m) each
- LED tape reel and accessories sold separately
- Communicates wirelessly using Lutron Clear Connect – Type X technology; devices must be within 25 ft (7.6 m) of other Clear Connect – Type X devices (see Lutron App Note #804)
- Indoor damp/dry location rating with output short-circuit and overload protection
- Verify layout, load, and control requirements before ordering
