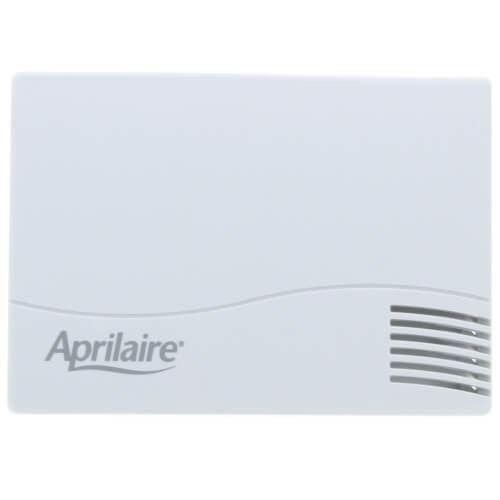

AprilAire 8053 Surface-Mount Temperature Sensor
AprilAire 8053 Surface-Mount Temperature Sensor
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 3–6 Business Days (Eastern Canada)
SKU:8053
MPN: 8053
A surface-mount remote temperature sensor for indoor locations where flush mounting is not practical.
The AprilAire 8053 provides external indoor temperature sensing in a compact wall-mounted enclosure. It is particularly useful in light-commercial spaces, service areas or retrofit locations where a flush-mounted sensor is not desirable.
The connected AprilAire control can use the sensor for remote monitoring or, where supported, as the controlling temperature input.
Key Features
- Surface-mount indoor sensor enclosure.
- 10 kOhm nominal temperature sensor.
- +/-3% published resistance tolerance.
- Maximum published sensor-wire length of 300 ft.
- 18-24 gauge, 2-conductor or greater low-voltage wiring.
- Suitable for residential and light-commercial remote sensing with compatible AprilAire controls.
Application & Compatibility
AprilAire sensor documentation associates the 8053 with selected 8600/8800/8900 and S86 thermostats, plus S84NSU. Older documentation also references legacy 8570/8870 systems. Always verify the exact thermostat input before specifying the sensor.
Key Specifications
| Model | 8053 |
|---|---|
| Sensor Type | Wired temperature sensor |
| Mounting | Surface / wall mount |
| Nominal Resistance | 10 kOhm |
| Tolerance | +/-3% |
| Maximum Wire Length | 300 ft |
| Approx. Size | 2-1/2 in H x 3-1/2 in W x 7/8 in D |
Related AprilAire Products
- AprilAire 8840 Wi-Fi Home Automation IAQ Thermostat
- AprilAire 8910 Home Comfort Control IAQ Thermostat
- AprilAire 8920W Wi-Fi Color Touchscreen IAQ Thermostat
- AprilAire S86NMU Multi-Stage Universal Programmable Thermostat
- AprilAire S86NMUPR Multi-Stage Programmable IAQ Thermostat
- AprilAire S86WMUPR Wi-Fi Multi-Stage Programmable IAQ Thermostat
- AprilAire S84NSU Universal 1H/1C or 2H/1C Heat Pump Thermostat
Frequently Asked Questions
When should I use the 8053 instead of the 8051?
Use the 8053 when a visible surface-mounted enclosure is acceptable or a flush-wall installation is impractical.
Is it intended for outdoor use?
No. AprilAire describes the 8053 as an indoor surface-mount sensor.
Can it control the thermostat from the remote location?
On compatible controls, remote sensor values may be used for monitoring or temperature control. Verify the thermostat configuration options.
