Lotus 4" Round Venus Adjustable Recessed LED 12W 5CCT | AD-LED-4-S12W-5CCT-XX-LREY
Lotus 4" Round Venus Adjustable Recessed LED 12W 5CCT | AD-LED-4-S12W-5CCT-XX-LREY
In Stock (Ready to Ship)
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:AD-LED-4-S12W-5CCT-WH-LREY
AD-LED-4-S12W-LREY | 4" Round Venus Adjustable Recessed LED 12W

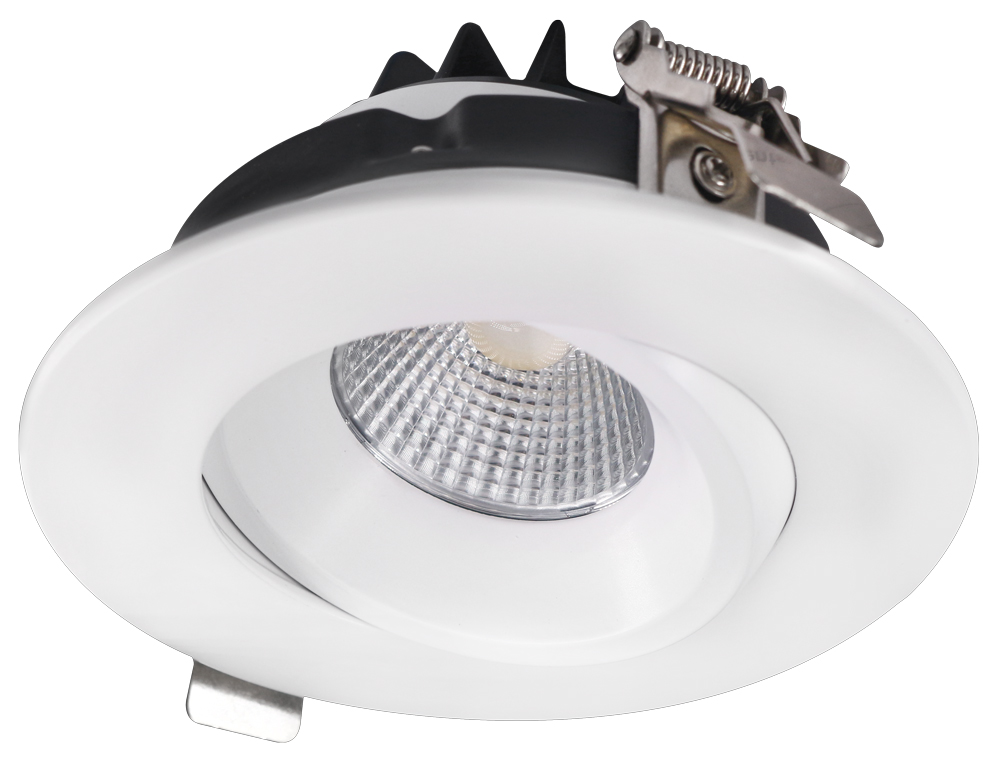

The Lotus AD-LED-4-S12W-LREY is a 4-inch round Venus adjustable recessed LED fixture designed for commercial and residential recessed lighting applications. Its regressed low-glare optics, 20° adjustment each direction, and 360° rotation make it a strong option for general lighting, accent lighting, wall washing, artwork lighting, and spaces where directional control is required.
This 12W adjustable recessed LED is available in 3000K single CCT, 5CCT selectable, and dim-to-warm configurations. The 5CCT model allows field selection between 2700K, 3000K, 3500K, 4000K, and 5000K, while the dim-to-warm version warms from 3000K to 1800K as it dims.
With CRI 90+, a standard 38° beam angle, up to 920 lumens, Type IC rating, air-tight construction, wet-location approval, and an included 120V AC Triac dimmable driver, the AD-LED-4-S12W-LREY is a clean adjustable downlight for both residential and commercial recessed applications.
Why this fixture sells
- Venus adjustable design: regressed adjustable fixture with low-glare optics
- Directional control: adjusts 20° each direction with 360° rotation
- Multiple light engine options: available in 3000K, 5CCT selectable, and dim-to-warm
- 5CCT flexibility: field-selectable 2700K, 3000K, 3500K, 4000K, and 5000K
- Dim-to-warm option: warms from 3000K to 1800K for comfort-focused dimming
- High color quality: CRI 90+ for accurate color rendering
- Focused 38° beam: strong fit for accent, task, and directional recessed lighting
- Type IC rated: no recessed housing required
- Wet location and air-tight: suitable for insulated ceilings and wet-location applications
- Driver inside connection box: no separate junction box required
Recommended applications
- Commercial recessed lighting
- Residential recessed lighting
- Accent lighting
- Wall washing
- Artwork highlighting
- Task lighting
- Retail and hospitality lighting
- Bathrooms and approved wet-location areas
- Insulated ceiling applications
- Housing-free recessed installations
Key specifications
| Model Family | AD-LED-4-S12W-LREY |
|---|---|
| Fixture Type | 4" Round Venus Adjustable Recessed LED |
| Applications | Commercial & Residential Recessed |
| Power | 12 W |
| Color Temperature Options | 3000K / 5CCT Selectable / Dim-to-Warm 3000K-1800K |
| 5CCT Selection | 2700K / 3000K / 3500K / 4000K / 5000K |
| Light Output | 3000K: 880 lm / 5CCT: 780-920 lm / Dim-to-Warm: 700 lm |
| Halogen Equivalent | 90 W |
| Beam Angle | 38° |
| Adjustment | 20° each direction with 360° rotation |
| CRI | 90+ |
| Default Driver Input & Dimming | 120V AC 50/60 Hz, Triac Dimmable |
| Optional Driver Input & Dimming | 120-347V AC 50/60 Hz, 0-10V Dimmable |
| Approved Location | Insulated Ceiling & Wet Locations |
| Air Tight | Yes |
| Type IC Rated | Yes, no housing required |
| Fixture Depth | 2 1/4" |
| Ambient Temperature | -4°F (-20°C) to +104°F (+40°C) |
| Projected Life | 70% light output at 50,000 hours |
| Dimensions | 4" ID, 5" OD |
| Cut Out | 4 1/4" to 4 1/2" |
| Certification | cETLus, T24 |
| Warranty | 5 Year |
Available variants
- AD-LED-4-S12W-3K-WH-LREY: 3000K, White trim, 880 lm
- AD-LED-4-S12W-5CCT-WH-LREY: 5CCT selectable, White trim, 780-920 lm

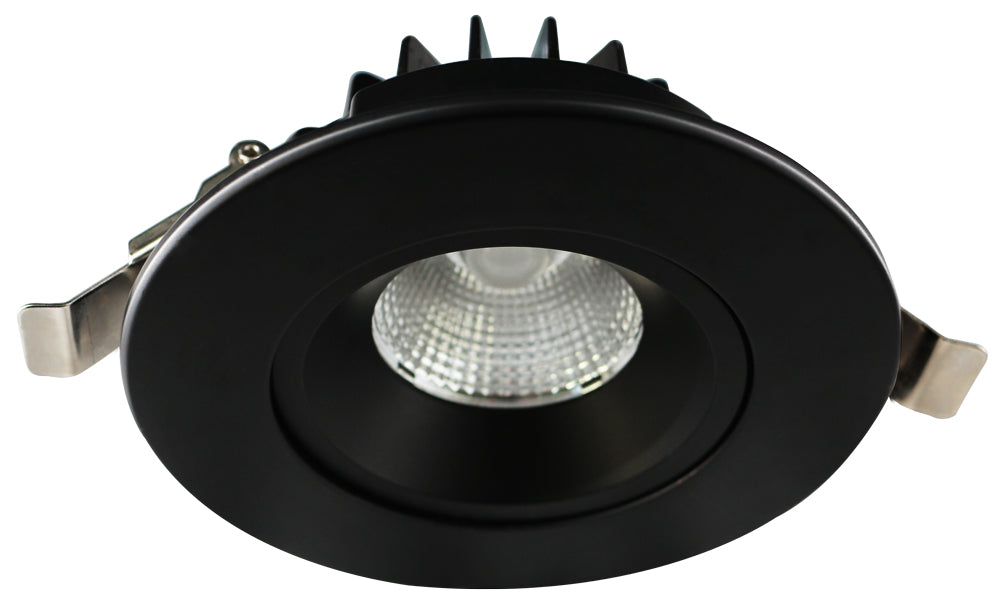

- AD-LED-4-S12W-5CCT-BK-LREY: 5CCT selectable, Black trim, 780-920 lm

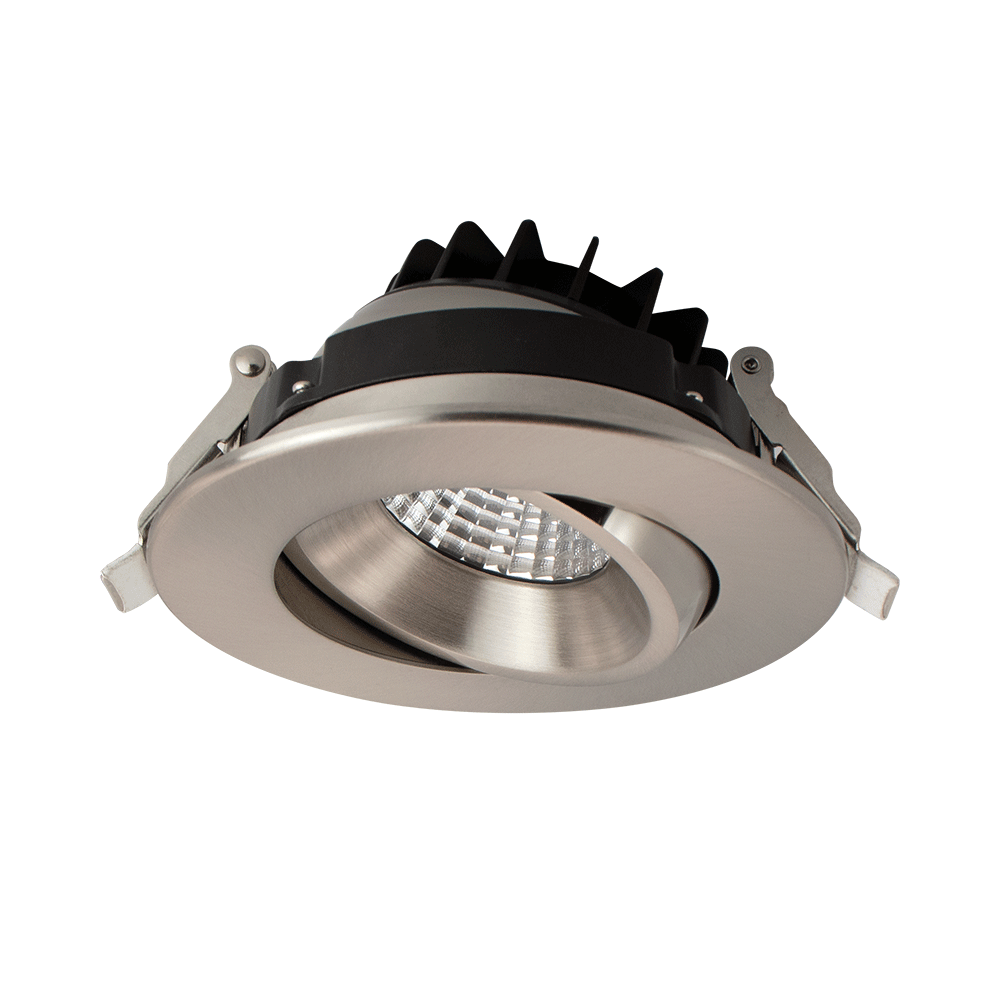

- AD-LED-4-S12W-5CCT-BN-LREY: 5CCT selectable, Brushed Nickel trim, 780-920 lm
- AD-LED-4-S12W-DTW-WH-LREY: Dim-to-Warm 3000K-1800K, White trim, 700 lm
- AD-LED-4-S12W-DTW-BK-LREY: Dim-to-Warm 3000K-1800K, Black trim, 700 lm
- AD-LED-4-S12W-DTW-BN-LREY: Dim-to-Warm 3000K-1800K, Brushed Nickel trim, 700 lm
Recommended Shopify variant options
- Option 1 - Light Engine: 3000K / 5CCT / Dim-to-Warm
- Option 2 - Finish: White / Black / Brushed Nickel
Variant note: The 3000K version is listed in White only. If using a two-option variant structure, leave unavailable combinations such as 3000K Black and 3000K Brushed Nickel unpublished or unavailable.
Compatible accessories
- RIP414: 26" long flat rough-in plate
- MP4-2: 13" long flat rough-in plate
- MP4: 13" long flanged rough-in plate
- FRP4: 4 1/8" hole flanged rough-in plate with hanger bars
- JC-10: 10 ft jumper cable
- GR4: White goof ring
- GR4-BK: Black goof ring
- HBL012-AW-10-01L: Optional 0-10V dimmable driver, 120-347V
Installation notes
- Type IC rated with no recessed housing required.
- Driver is inside the connection box, so no separate junction box is needed.
- Cut out range is 4 1/4" to 4 1/2".
- Fixture depth is 2 1/4".
- Approved for insulated ceilings and wet locations.
- Air-tight construction supports code-conscious recessed lighting installations.
- The default included driver is 120V AC Triac dimmable.
- Optional 120-347V 0-10V dimming is available with the listed accessory driver.
- 4" round Venus adjustable recessed LED fixture
- 12W power consumption with 90W halogen equivalent
- Regressed low-glare optics
- Light engine options: 3000K, 5CCT selectable, or dim-to-warm
- 5CCT selectable version: 2700K, 3000K, 3500K, 4000K, 5000K
- Dim-to-warm version: 3000K to 1800K
- 700-920 lumen output depending on selected configuration
- CRI 90+
- 38° beam angle with 20° adjustment each direction and 360° rotation
- 120V AC Triac dimmable driver included
- Optional 120-347V 0-10V dimming driver available
- Type IC, air-tight, and wet location approved
- White, black, and brushed nickel trim options by configuration
Frequently Asked Questions
What is the Lotus AD-LED-4-S12W-LREY?
The AD-LED-4-S12W-LREY is a 4-inch round Venus adjustable recessed LED fixture with regressed low-glare optics, 20° adjustment each direction, and 360° rotation.
What color temperature options are available?
The fixture is available in 3000K single CCT, 5CCT selectable, and dim-to-warm configurations. The 5CCT version offers 2700K, 3000K, 3500K, 4000K, and 5000K. The dim-to-warm version shifts from 3000K to 1800K.
What trim finishes are available?
White, black, and brushed nickel trims are available by configuration. The 3000K model is listed in white only, while the 5CCT and dim-to-warm versions are listed in white, black, and brushed nickel.
What is the beam angle?
The fixture has a 38° beam angle with 20° adjustment each direction and 360° rotation.
Is this fixture dimmable?
Yes. The default driver is 120V AC Triac dimmable. An optional 120-347V 0-10V dimmable driver is also listed as an accessory.
Does this fixture require a recessed housing?
No. The fixture is Type IC rated and does not require a recessed housing.
Is this fixture air-tight?
Yes. The AD-LED-4-S12W-LREY is listed as air-tight.
Can this fixture be used in wet locations?
Yes. The spec sheet lists the fixture for insulated ceilings and wet locations.
What is the cut out size?
The listed cut out range is 4 1/4" to 4 1/2".
