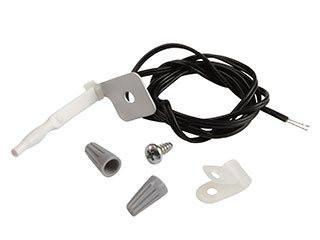

AprilAire 8052 Outdoor / Duct Temperature Sensor
AprilAire 8052 Outdoor / Duct Temperature Sensor
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 3–6 Business Days (Eastern Canada)
SKU:8052
MPN: 8052
A versatile wired temperature probe for outdoor-air, duct and compatible HVAC control applications.
The AprilAire 8052 is a remote temperature sensor designed for outdoor or duct installation. Its removable mounting bracket allows the probe to be installed in supported air-stream or radiant-flow applications, and AprilAire uses the 8052 across a broad range of thermostats, humidistats, humidifiers and control systems.
Key Features
- Designed for outdoor or duct installation.
- Removable mounting bracket for supported probe-mounting applications.
- 10 kOhm nominal temperature sensor with +/-3% published tolerance.
- Maximum published wire length of 300 ft.
- Compatible with residential and light-commercial applications.
- Used by compatible AprilAire controls for outdoor temperature, duct temperature or other configured sensing functions.
Application & Compatibility
AprilAire currently lists the 8052 with S86 thermostats, 8600/8800/8900 thermostats, selected zone controls, humidistats and several humidifier families. Because the same sensor can serve different functions, configure it according to the manual for the connected control.
Key Specifications
| Model | 8052 |
|---|---|
| Sensor Type | Wired temperature sensor |
| Mounting | Outdoor or duct |
| Nominal Resistance | 10 kOhm |
| Tolerance | +/-3% |
| Maximum Wire Length | 300 ft |
| Probe | Approx. 1/4 in diameter x 1-3/4 in long |
Related AprilAire Products
- AprilAire 8840 Wi-Fi Home Automation IAQ Thermostat
- AprilAire 8910 Home Comfort Control IAQ Thermostat
- AprilAire 8920W Wi-Fi Color Touchscreen IAQ Thermostat
- AprilAire 8810 Wi-Fi Home Automation Thermostat with IAQ Control
- AprilAire S86NMU Multi-Stage Universal Programmable Thermostat
- AprilAire S86NMUPR Multi-Stage Programmable IAQ Thermostat
- AprilAire S86WMUPR Wi-Fi Multi-Stage Programmable IAQ Thermostat
Frequently Asked Questions
Can the 8052 be installed outdoors?
Yes. AprilAire specifically designs the 8052 for outdoor or duct installations.
Can it be used with an S86 thermostat?
Yes. AprilAire lists the S86NMU, S86NMUPR and S86WMUPR among compatible models.
Is it only a thermostat sensor?
No. AprilAire also uses the 8052 with compatible humidistats, humidifiers, zone controls and other HVAC controls.
