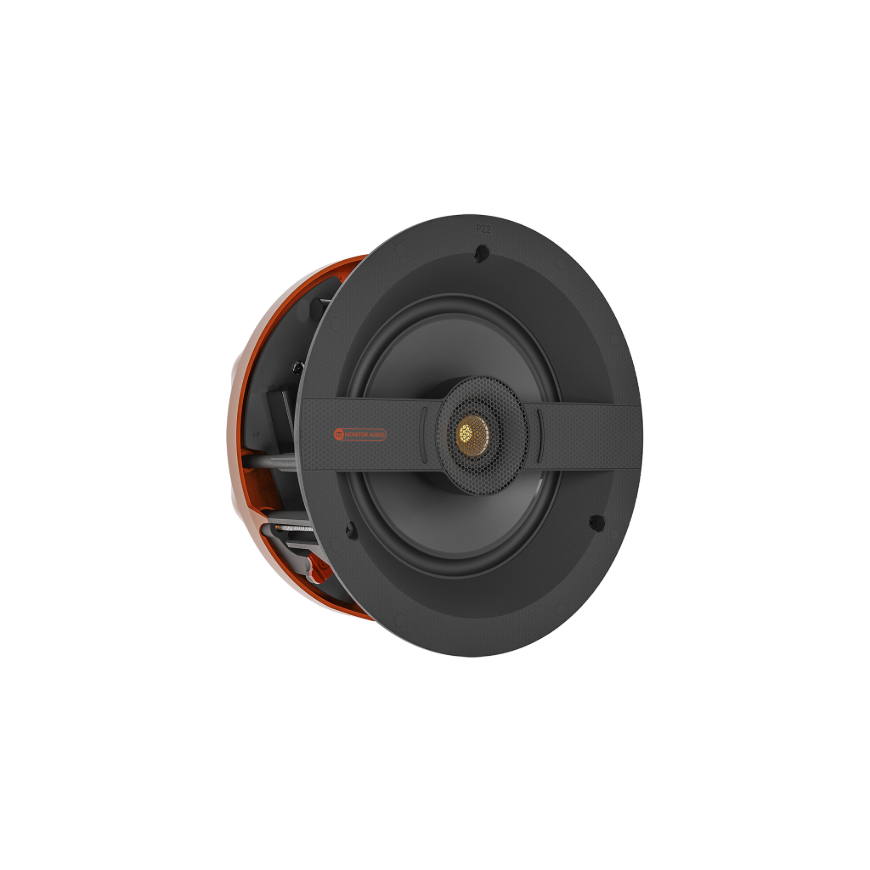

Monitor Audio C1M Creator Series Tier 1 In-Ceiling Speaker | CSC1M
Monitor Audio C1M Creator Series Tier 1 In-Ceiling Speaker | CSC1M
In Stock (Ready to Ship)
Typically ships in 4–8 Business Days (Western Canada) · 2–5 Business Days (Eastern Canada)
SKU:CSC1M
Dealer planning note: Sign in for Simply Controlled dealer pricing. Confirm project quantity, finish availability and lead time before releasing the BOM.
Monitor Audio C1M is a Creator Series Tier 1 in-ceiling loudspeaker designed for cost-effective custom installations without giving up the core C-CAM driver technology and installation system used throughout the range.
C1M at a glance
- System: 2-way, passive.
- Drivers: 1 x 7" C-CAM mid-bass driver; 1 x 1" C-CAM tweeter with UD Waveguide.
- Frequency response: 35 Hz–30 kHz installed (-6 dB).
- Sensitivity: 86 dB.
- Nominal impedance: 8 ohms; minimum 6.5 ohms @ 150 Hz.
- Continuous power handling: 65 W.
- Recommended amplifier power: 35–130 W.
- Warranty: Lifetime.
Installation planning
Cutout diameter is 212 mm with 99 mm mounting depth. The matching pre-construction bracket is CM-B. Quik-Link simplifies speaker-cable connection and Tri-Grip II provides secure fitment.
Physical dimensions
242 × 242 × 103 mm including grille; 1.9 kg each. Sold individually.
