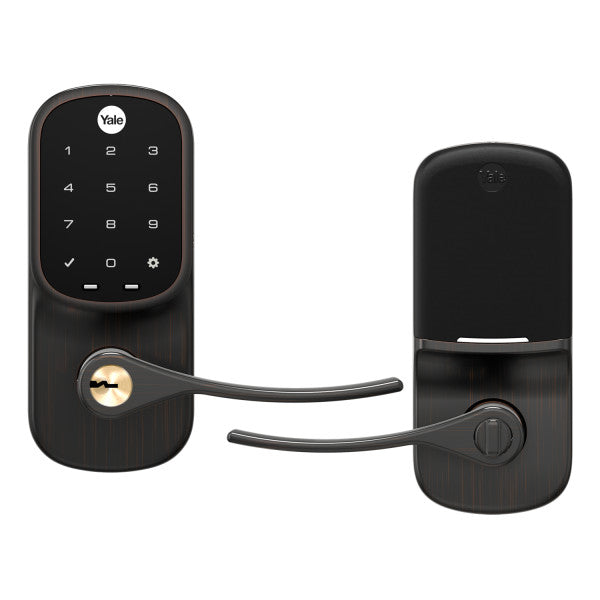

Yale Assure Lever Lock - Touchscreen - Keyed - Z-Wave Plus | YRL226-ZW2

Yale Assure Lever Touchscreen with Z-Wave Plus is a key-free smart lever lock designed for doors with a single bore—no deadbolt required. Ideal for side doors, garage entries, basements, offices, and interior access points, it replaces your existing knob or lever in minutes using just a screwdriver.

Unlock using the backlit touchscreen keypad and stop hiding keys for good. When connected to a compatible Z-Wave smart home or alarm system, you can lock and unlock remotely, manage user codes, receive notifications, and view access activity from anywhere using your Z-Wave partner app.

Key features

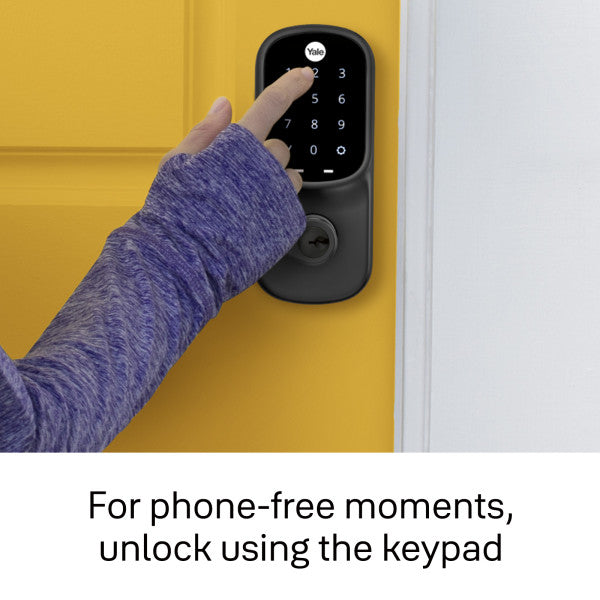

• Key-free touchscreen entry: Unlock using secure PIN codes—no keys required for daily use.
• Z-Wave Plus enabled: Integrates with compatible Z-Wave smart home and alarm systems such as SmartThings, Ring Alarm, ADT, Alarm.com, Qolsys, Honeywell, and more.
• Remote control & monitoring: Lock, unlock, manage codes, and view activity using your Z-Wave system’s app.
• Perfect for single-bore doors: Designed for doors without a deadbolt, including side and garage entry doors.
• Auto-Lock support: Enable Auto-Lock to help ensure the door locks behind you.
• Up to 250 user codes: Create, manage, and delete unique entry codes anytime.
• Never get locked out: Includes a physical key and a 9V emergency battery terminal for backup power.
• Reversible handing: Fits both left- and right-handed doors.
• Door-protecting gasket: Rubber gasket helps protect your door’s finish during installation.
• Backlit touchscreen: Easy to read at night with numbers that won’t wear off.

What’s included

• Yale Assure Lever Touchscreen

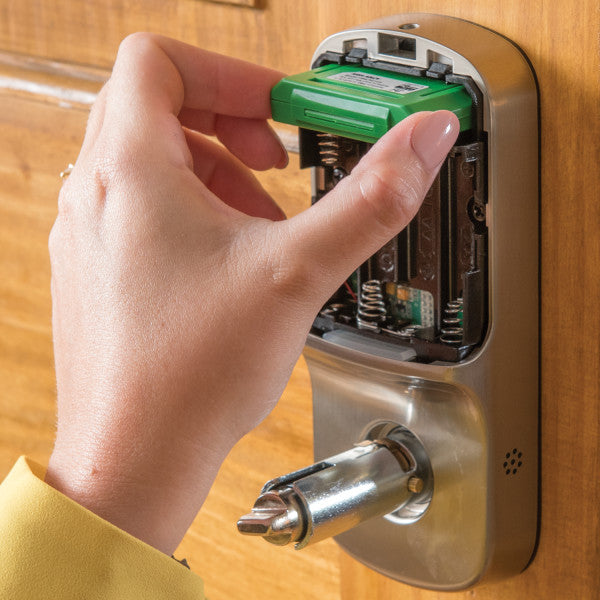

• Z-Wave Plus smart module
• Latch and strike
• Mounting hardware and door template
• 4 × AA batteries
• Installation manual
• 2 physical keys

Compatibility & installation

• Door prep: Single bore (no deadbolt)
• Door thickness: 1 3/8" to 1 3/4"
• Backset: 2 3/8" or 2 3/4"
• Handing: Reversible for left- or right-handed doors
• Required: Compatible Z-Wave smart home or alarm system and hub

Specifications

• Finish: Oil Rubbed Bronze
• Wireless technology: Z-Wave Plus
• Security grade: ANSI/BHMA Grade 2
• Keyway: KW-1, 5-pin cylinder
• Power: 4 × AA batteries with 9V emergency backup
• Warranty: Lifetime limited warranty on finish and mechanical; 1 year on electronics
