Yale Assure Lever Lock - Push Button - Keyed - Z-Wave Plus | YRL216-ZW2

Yale Assure Lever Keypad with Z-Wave Plus is a key-free smart lever lock designed for doors with a single bore and no deadbolt. Ideal for side entry doors, garage entries, basements, offices, and interior access points, it replaces your existing lever or knob in minutes using just a screwdriver.

Powered by Z-Wave Plus technology, the Assure Lever integrates seamlessly with compatible Z-Wave smart home or alarm systems. When connected to a supported hub and app, you can lock and unlock your door remotely, manage entry codes, receive notifications, and view access activity from anywhere. No Yale app is used for Z-Wave configurations.

Key features

• Key-free keypad entry: Unlock using your unique PIN on the backlit keypad—no keys required for everyday use.
• Z-Wave Plus connectivity: Add the lock to compatible smart home or alarm systems for remote access and automation.
• Auto-Lock capability: Enable Auto-Lock to ensure the door always locks behind you.
• Flexible user management: Create, delete, and manage up to 250 unique entry codes through your Z-Wave system.

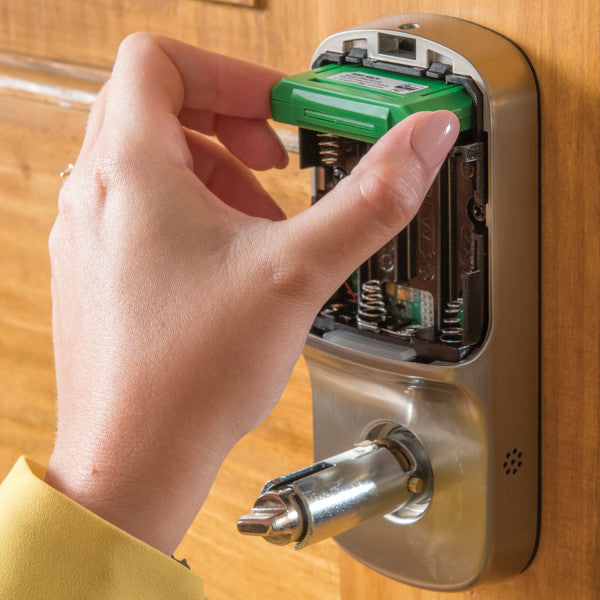

• Never get locked out: Includes physical keys and a 9V emergency battery terminal for backup power.
• Designed for single-bore doors: Perfect for doors without a deadbolt.
• Reversible handing: Fits both left- and right-handed doors.
• Backlit keypad: Easy to see at night with numbers that won’t wear off.
• Protects your door: Rubber gasket helps prevent finish damage during installation.
• Trusted Yale security: ANSI/BHMA Grade 2 certified and backed by Yale’s legacy since 1840.

What’s included

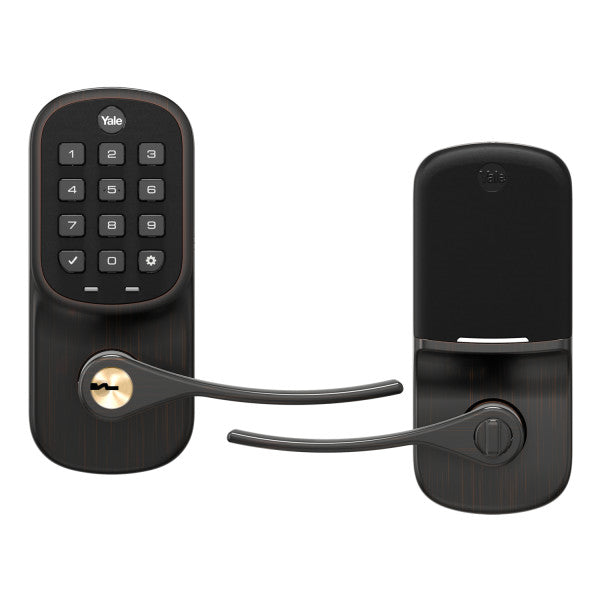

• Yale Assure Lever Keypad
• Z-Wave Plus Smart Module
• Latch and strike plate
• Mounting hardware
• Installation manual and door template
• 4 × AA batteries
• 2 physical keys

Compatibility & installation

• Door prep: Single bore (no deadbolt)
• Door thickness: 1 3/8" to 1 3/4"
• Backset: 2 3/8" or 2 3/4"
• Handing: Reversible for left- or right-handed doors
• Requirements: Compatible Z-Wave smart home or alarm system and hub

Specifications

• Finish: Oil Rubbed Bronze
• Connectivity: Z-Wave Plus
• Security grade: ANSI/BHMA Grade 2
• Keyway: KW-1, 5-pin cylinder
• Power: 4 × AA batteries with 9V emergency backup
• Warranty: Lifetime limited warranty on finish and mechanical; 1 year on electronics
