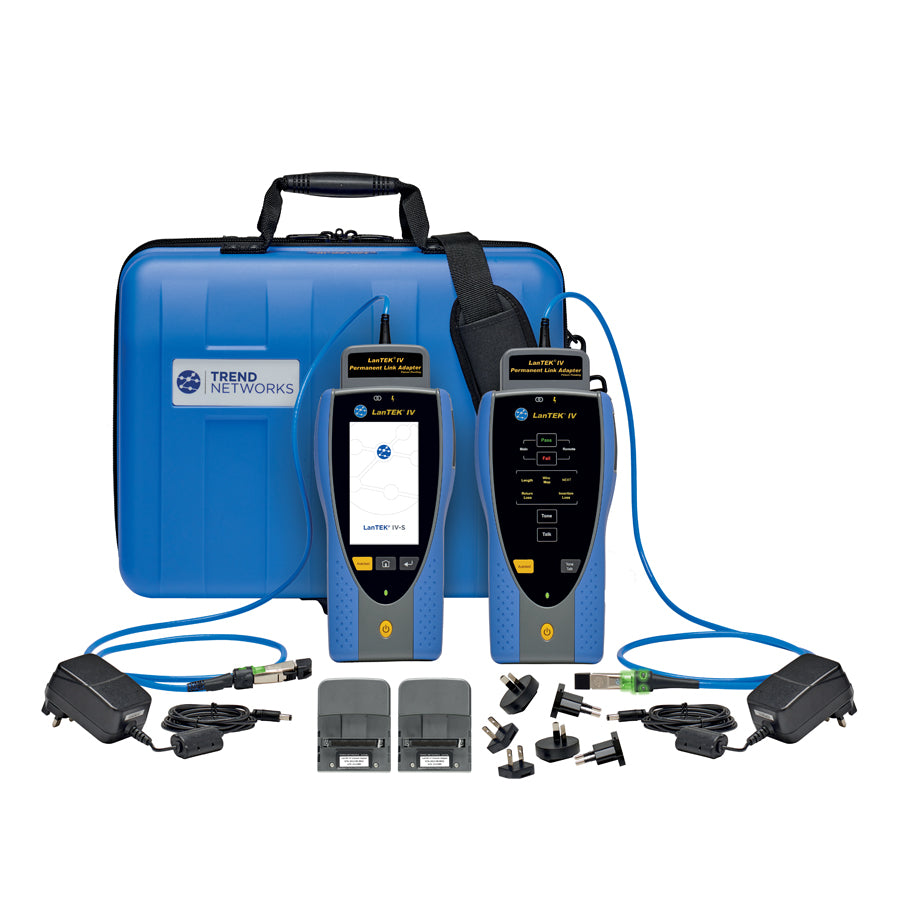

SimplyTEST LanTEK IV-S 500MHz Cable Certifier with PL/CH Adapters — ST-163008
The ST-163008 LanTEK IV-S 500MHz is SimplyTEST's professional copper cable certification platform for Cat5e, Cat6, and Cat6A (Class EA) structured cabling — the certification standard required on Canadian commercial, institutional, healthcare, and government infrastructure projects. It delivers ANSI/TIA-568.2-D and ISO/IEC 11801 Class E/Ea pass/fail certification reports at a substantially lower investment than comparable Fluke Networks DSX instruments.
What's Included
- LanTEK IV-S 500MHz main unit with touchscreen
- LanTEK IV-S remote unit
- Permanent Link (PL) adapters
- Channel (CH) adapters
- Carrying case
- Power supply and cables
The Canadian Case for LanTEK IV-S
TIA-568 cable certification is a contractual requirement on most Canadian federal, provincial, healthcare, and post-secondary projects. Until now, the market for professional certification instruments has been dominated by Fluke Networks at $15,000–25,000 CAD. The LanTEK IV-S delivers the same ANSI/TIA-568.2-D compliant certification at a significantly lower price point — making instrument ownership viable for independent structured cabling contractors across Canada.
The LanTEK IV-S 500MHz certifies Cat6A/Class EA — the performance standard for 10GBaseT, which is the current commercial cabling baseline for new Canadian construction. For Cat8/Class I (25G/40GBaseT) certification, see the ST-163009 3000MHz model.
Technical Specifications
| Part Number | ST-163008 |
| Brand | SimplyTEST (SimplyBRANDS) |
| Bandwidth | 500MHz |
| Cable Standards | Cat5e, Cat6, Cat6A UTP/STP |
| Certification | ANSI/TIA 568.2-D, ISO/IEC 11801 Class E/Ea |
| Test Parameters | Wire map, length, IL, NEXT, PSNEXT, ACR-F, PSACR-F, RL, delay, skew, TCL, ELTCTL |
| Adapters Included | Permanent Link (PL) + Channel (CH) |
| Interface | Touchscreen |
| Sapphire Care Plan | Available separately (ST-SCP1YR / ST-SCP2YR / ST-SCP3YR) |
| Country of Origin | Malaysia |
| UPC | 810093721108 |
| Warranty | 1 Year (extendable via Sapphire Care Plan) |
| HTS Code (Canada) | 9030.40.0000 |
Request a Quote
For volume pricing, Sapphire Care Plan bundles, or to discuss project requirements, contact SimplyControlled.ca. We work with Canadian structured cabling contractors, electrical wholesalers, and IT infrastructure teams on LanTEK IV deployments.
Frequently Asked Questions
How does LanTEK IV-S compare to Fluke DSX-5000?
Both are ANSI/TIA-568.2-D compliant certifiers for Cat6A and below. The LanTEK IV-S delivers comparable certification capability at a lower Canadian price point. Verify acceptability against your project specification's approved instrument list before purchase.
Is calibration service available in Canada?
Yes. SimplyTEST Sapphire Care Plans include annual calibration. Contact SimplyControlled.ca for Sapphire Care Plan options.
