SimplyTEST SignalTEK 10G PRO — Network Speed, Fiber & Copper Qualification Tester | ST-157003
SimplyTEST SignalTEK 10G PRO — Network Speed, Fiber & Copper Qualification Tester | ST-157003
Available to order — ships from incoming stock
Typically ships in 3–6 Business Days (Western Canada) · 4–8 Business Days (Eastern Canada)
SKU:ST-157003
SimplyTEST SignalTEK 10G PRO — Network Speed, Fiber & Copper Qualification — ST-157003

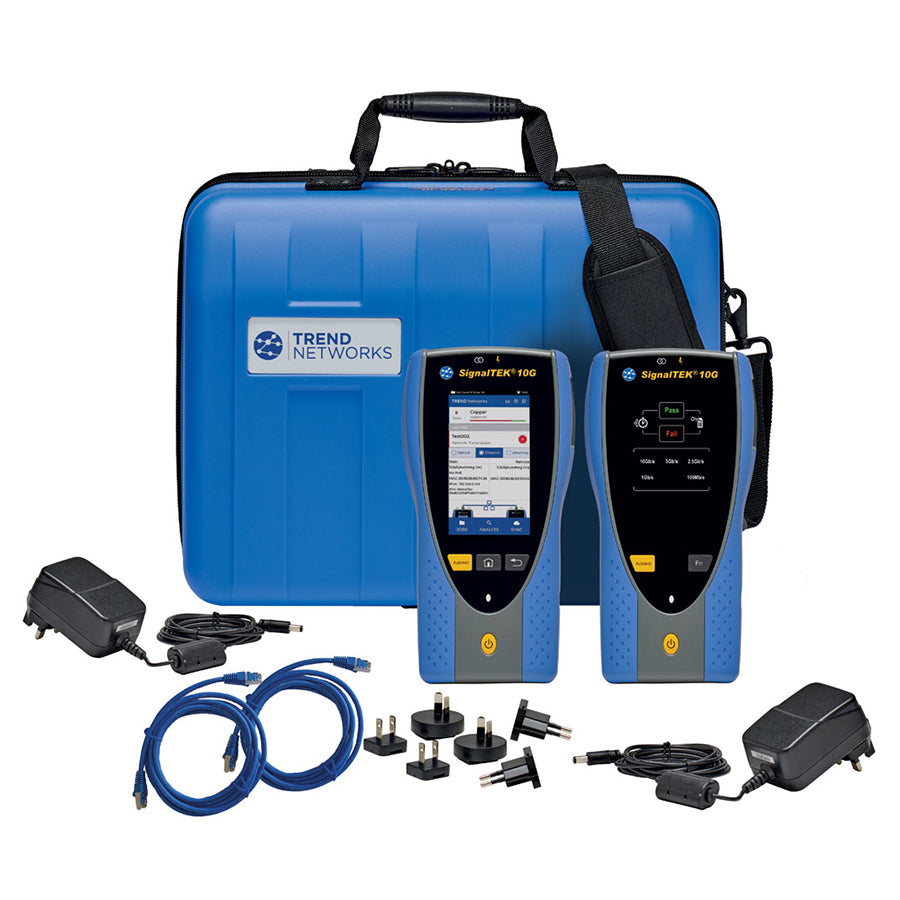

The ST-157003 SignalTEK 10G PRO is SimplyTEST's multi-technology network infrastructure qualification tester — combining 10G network speed testing, fiber cable qualification, and copper cable verification in a single instrument. For Canadian IT infrastructure contractors, MSPs, and data centre teams who need to qualify and troubleshoot the complete network path — from cable to switch to application performance.
Three Tools in One
10G Network Speed Testing — Measures actual data throughput at 1G and 10G speeds between the test points. Proves the network delivers the bandwidth the customer is paying for.
Fiber Qualification — Tests insertion loss on multimode and single-mode fiber links using optical loss test set (OLTS) methodology — documents fiber link performance for project acceptance.
Copper Cable Verification — Wire map, length, and basic link qualification on Cat5e through Cat6A — the first step in diagnosing connectivity problems.
Technical Specifications
| Part Number | ST-157003 |
| Brand | SimplyTEST (SimplyBRANDS) |
| Network Speed Testing | 1G and 10G bidirectional throughput |
| Fiber Testing | OLTS insertion loss — MM (850nm/1300nm) and SM (1310nm/1550nm) |
| Copper Testing | Wire map, length, Cat5e–Cat6A verification |
| Network Protocols | Ethernet, VLAN, PoE detection |
| UPC | 810093721184 |
| Country of Origin | Malaysia |
| Warranty | 1 Year (2-year plan available: ST-1570032Y) |
| HTS Code (Canada) | 9030.40.0000 |
Frequently Asked Questions
Is the SignalTEK 10G PRO a cable certifier?
No. The SignalTEK 10G PRO is a qualification and speed tester — it does not produce ANSI/TIA-568 certification reports. For full cable certification, see the SignalTEK CT (ST-156006) or LanTEK IV-S series.
What fiber connector types does the 10G PRO support?
The SignalTEK 10G PRO includes LC fiber ports. Adapter cords for SC, ST, or FC connections may be used.
