SimplyTEST SignalTEK NT Cable Certifier with Touchscreen — Cat7/Cat6A TIA-568 Pro | ST-156005
SimplyTEST SignalTEK NT Cable Certifier with Touchscreen — Cat7/Cat6A TIA-568 Pro | ST-156005
Available to order — ships from incoming stock
Typically ships in 3–6 Business Days (Western Canada) · 4–8 Business Days (Eastern Canada)
SKU:ST-156005
SimplyTEST SignalTEK NT Cable Certifier with Touchscreen — ST-156005
The ST-156005 SignalTEK NT is SimplyTEST's top-tier copper cable certifier — delivering ANSI/TIA 568.2-D and ISO/IEC 11801 Class F/FA certification for Cat5e, Cat6, Cat6A, Cat7, and Cat7A structured cabling. Built for Canadian data centres, healthcare facilities, post-secondary institutions, and government infrastructure where Cat7/Class F certification and detailed bandwidth reporting are specified.
The Professional Case for SignalTEK NT
The NT model certifies to Class F (Cat7) and Class FA (Cat7A) — capabilities not available on the SignalTEK CT. For Canadian data centre build-outs, hospital IDF rooms, and enterprise core cabling where 40GBaseT or higher bandwidth is planned, Cat7/Class FA certification provides the documented performance headroom that system integrators and building owners require.
The touchscreen interface accelerates test workflow on large-floor commercial projects. The NT stores complete test datasets for every run on the unit and generates professional PDF certification packages suitable for project handover and manufacturer warranty registration.

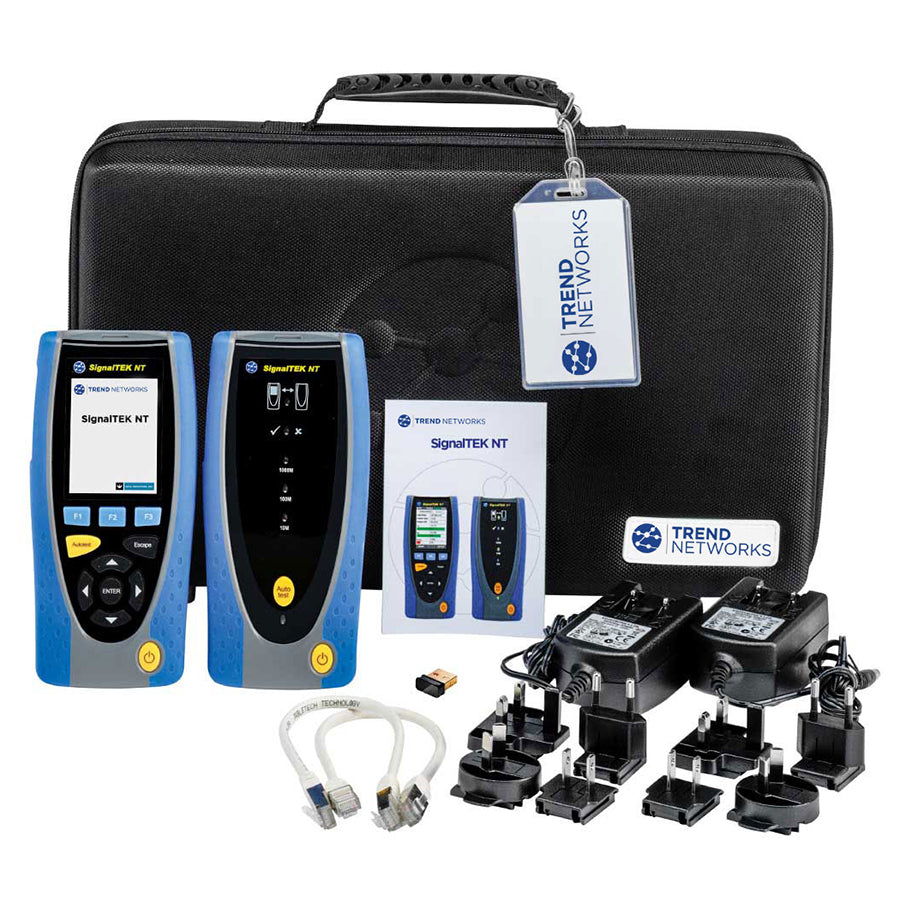

Kit Contents
- 1 × SignalTEK NT display unit with touchscreen
- 1 × SignalTEK NT remote unit
- 2 × Power modules
- RJ45 adapters
- Carrying case
Technical Specifications
| Part Number | ST-156005 |
| Brand | SimplyTEST (SimplyBRANDS) |
| Cable Standards | Cat5e, Cat6, Cat6A, Cat7, Cat7A UTP/STP |
| Certification Standard | ANSI/TIA 568.2-D, ISO/IEC 11801 Class E/Ea/F/FA |
| Test Parameters | Wire map, length, insertion loss, NEXT, PSNEXT, FEXT, ELFEXT, ACR-F, PSACR-F, return loss, propagation delay, delay skew, TCL, ELTCTL |
| Interface | Touchscreen display |
| Report Output | PDF certification report export |
| Country of Origin | Malaysia |
| UPC | 810093721283 |
| Weight | 17.3 lbs / 7.85 kg (kit) |
| Warranty | 1 Year |
| HTS Code (Canada) | 9030.40.0000 |
Frequently Asked Questions
What is the difference between SignalTEK CT (ST-156006) and SignalTEK NT (ST-156005)?
The CT certifies Cat5e through Cat6A (TIA Class E/Ea). The NT adds Cat7/Cat7A (ISO Class F/FA) and extended test parameter reporting — designed for projects where premium cabling infrastructure is specified.
Are SignalTEK NT certification reports accepted by cabling manufacturers for warranty registration?
Consult your cabling manufacturer's warranty program requirements. Most structured cabling system warranties require test results from an approved Level IV field tester. Verify SignalTEK NT acceptance with your specific manufacturer prior to project start.
Can I upgrade from SignalTEK CT to SignalTEK NT?
The CT and NT are separate hardware units — they are not field-upgradeable via software. The NT must be purchased as a separate instrument.
