Simply45 Batwing J-Hooks 2" with Retainer Pin — 100 Pack | S45-JHW32-100
Simply45 Batwing J-Hooks 2" with Retainer Pin — 100 Pack | S45-JHW32-100
Available to order — ships from incoming stock
Typically ships in 2–4 Business Days (Western Canada) · 4–7 Business Days (Eastern Canada)
SKU:S45-JHW32-100

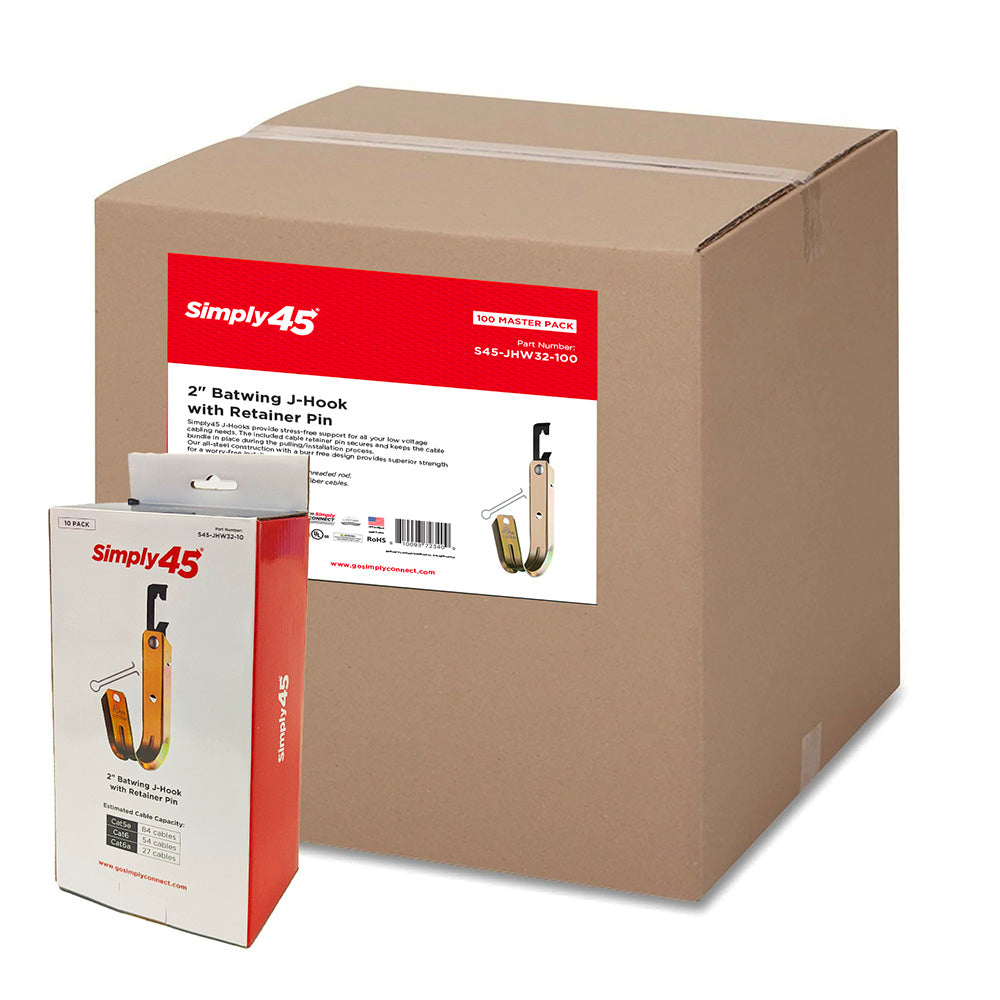

Simply45 Batwing J-Hooks 2" with Retainer Pin — 100 Pack — S45-JHW32-100
The S45-JHW32-100 is a commercial-grade 100-pack of 2-inch batwing J-hooks with retainer pins — the cable support hardware specified on Canadian commercial, institutional, and industrial structured cabling projects. Batwing (wide-flange) J-hooks provide a larger cable support surface than standard J-hooks, reducing cable stress and maintaining bend radius compliance on larger cable bundles.
Why Specify Batwing J-Hooks on Commercial Projects
ANSI/TIA-568 and BICSI standards require maintaining minimum bend radius on Category cable. Batwing J-hooks distribute cable weight across a wider bearing surface, reducing point-loading and protecting cable geometry in high-density commercial ceiling runs. The included retainer pin locks cables in the hook — preventing drop-out during above-ceiling work and meeting BICSI installation quality requirements.
Technical Specifications
| Part Number | S45-JHW32-100 |
| Brand | Simply45 (SimplyBRANDS) |
| Type | Batwing J-Hook with Retainer Pin |
| Size | 2 inch (50mm) |
| Material | High-strength steel |
| Quantity | 100 pc / master box |
| Inner Pack Qty | 10 pc / inner carton |
| UL Listing | E542928 |
| Country of Origin | China |
| UPC | 810093723409 |
| Weight | 25 lbs / 11.3 kg (100-pack) |
| Warranty | Limited Lifetime |
| HTS Code (Canada) | 7326.90.8688 |
Frequently Asked Questions
What is the difference between S45-JH32-100 and S45-JHW32-100?
The S45-JH32-100 is a standard 2-inch J-hook. The S45-JHW32-100 is a batwing (wide-flange) J-hook of the same size — providing a wider cable contact surface for better bend radius support on larger cable bundles.
Are these J-hooks compatible with standard beam clamp and threaded rod hardware?
Yes. Simply45 J-hooks are designed for standard 3/8" and 1/2" threaded rod and compatible with standard beam clamps used on Canadian commercial construction projects.
How many J-hooks are required per 100 feet of cable tray run?
BICSI recommends J-hook spacing of 4–5 feet on horizontal runs. A 100-foot run requires approximately 20–25 hooks. One master box of 100 covers 4–5 full 100-foot runs.
