Simply45 PROSeries Cat6 UTP Pass-Through RJ45 Plugs with Cap45™ — 500pc Jar | S45-1605P
Simply45 PROSeries Cat6 UTP Pass-Through RJ45 Plugs with Cap45™ — 500pc Jar | S45-1605P
Available to order — ships from incoming stock
Typically ships in 2–4 Business Days (Western Canada) · 4–7 Business Days (Eastern Canada)
SKU:S45-1605P

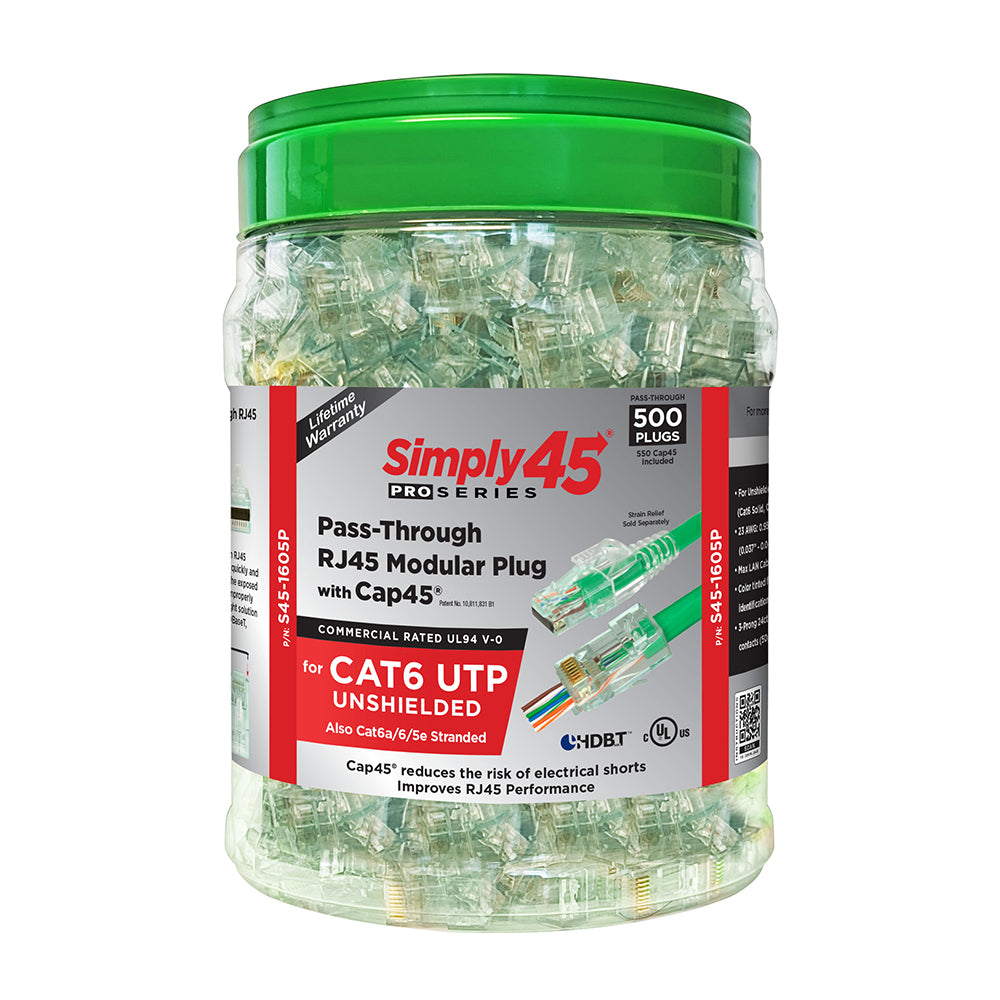

Simply45 PROSeries Cat6 UTP Pass-Through RJ45 Plugs with Cap45™ — 500pc — S45-1605P
The S45-1605P is the high-volume commercial jar for Cat6 UTP installations: 500 PROSeries pass-through RJ45 plugs in a wide-mouth jar with green tint for immediate field identification. The plug of choice for Canadian structured cabling contractors on large commercial, institutional, and multi-tenant projects.
Commercial Grade. cUL Listed. Lifetime Warranty.
Every S45-1605P plug is cUL Listed (E520614) and meets ANSI/TIA 568.2-D Class E performance standards — the baseline requirement for commercial structured cabling specifications in Canada. The 3-prong, 50µ 24ct gold-plated contacts provide reliable low-resistance connections for PoE 802.3af/at/bt and 10GBaseT applications.
Cap45™ is included. It snaps over the pass-through wire ends post-termination — eliminating exposed conductor risk on live PoE circuits and meeting commercial safety requirements without affecting plug performance.
Technical Specifications
| Part Number | S45-1605P |
| Brand | Simply45 (SimplyBRANDS) |
| Plug Type | PROSeries Pass-Through (Single-Piece, No Load Bar) |
| Cable Compatibility | Cat6 UTP, 23 AWG solid; 28–26 AWG stranded |
| Conductor Range OD | 0.95–1.05 mm (0.037?–0.041?) |
| Max Cable OD | 7.0 mm (0.276?) |
| Pin Design | 3-Prong, 50µ 24ct Gold-Plated |
| Color | Green Tint |
| Quantity | 500 pc / jar |
| Standards | ANSI/TIA 568.2-D, ISO/IEC 11801 Class E/Ea, 10GBaseT |
| Certification | cUL Listed (E520614), UL94 V0, FCC |
| Compatible Crimper | S45-C100, S45-C101, S45-C360, S45-C370 |
| Country of Origin | Taiwan |
| UPC | 810093721955 |
| Weight | 1.25 lbs |
| Warranty | Limited Lifetime |
| HTS Code (Canada) | 8536.69.4040 |
Frequently Asked Questions
How many plugs does a typical commercial floor require?
A standard commercial floor with 48 drops (96 ends) consumes approximately 100–110 plugs allowing for reterminations. One 500pc jar covers 4–5 full commercial floors.
What crimper is required for the S45-1605P?
Any S45-series crimper: S45-C100, S45-C101, S45-C360, or S45-C370 all crimp the S45-1605P correctly.
