Lutron Lumaris RadioRA 3 Tunable White Tape Light Starter Kit – Daylight 2500K–5000K | RRL-TLK-DL

The Lumaris Tunable White Tape Light Starter Kit (Daylight) is a complete, professional-grade tape light package native to the Lutron RadioRA 3 control system. It pairs field-cuttable daylight tunable white LED tape with a wireless controller and power supply, making it a straightforward single-SKU starting point for RadioRA 3 lighting projects.

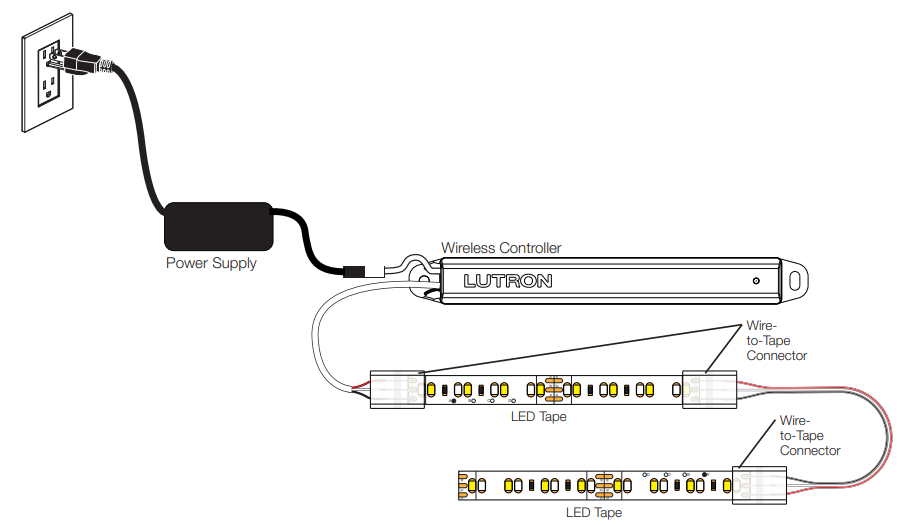

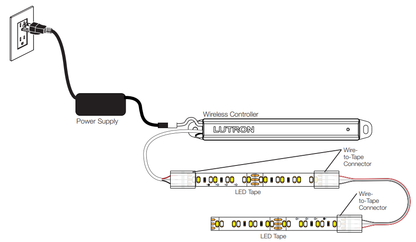

Included Components

• (1) Lumaris wireless controller
• (1) Plug-in power supply

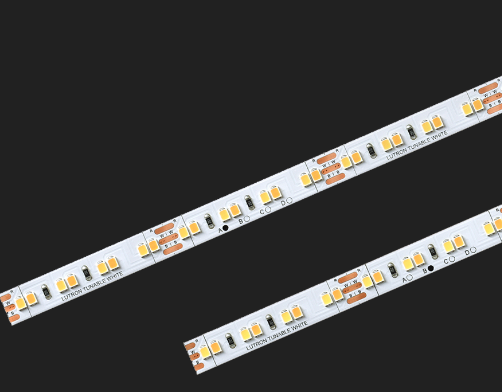

• (1) 16.4 ft (5 m) Lumaris LED tape reel, Daylight 2500K–5000K
• (5) Wire/tape connectors
• (1) 10 ft (3 m) 3-conductor cable

Key Features

• 2-channel tunable daylight white LED tape: 2500K–5000K, 90+ CRI, 200 lumens per foot
• Continuous, flicker-free dimming from 100% down to 0.1% of measured light output
• Warm dim mimics the dimming curve of an incandescent lamp; color temperature can also shift automatically through the day
• Wireless controller with integrated multi-channel LED driver
• Field-cuttable LED tape in 2 in (50.8 mm) segments with adhesive backing

Applications

• Cove, under-cabinet, and architectural accent lighting in RadioRA 3 projects
• Daylight-biased spaces such as kitchens, offices, and task areas

System Notes

• Native to Lutron RadioRA 3 keypads, the Lutron app, and RadioRA 3 programming software
• Maximum tape length 16.4 ft (5 m) per wireless controller: single run, or field-cut and split into multiple runs
• Power supply input: 120 V~ (50/60 Hz); output: 24 V, 1500 mA, 36 W max. Wireless controller input: 24 V; output: 24 V, 0–1375 mA, 33 W max
• Communicates wirelessly using Lutron Clear Connect – Type X technology; devices must be within 25 ft (7.6 m) of other Clear Connect – Type X devices (see Lutron App Note #804)
• Indoor damp/dry location rating with output short-circuit and overload protection
• Verify layout, load, and control requirements before ordering
