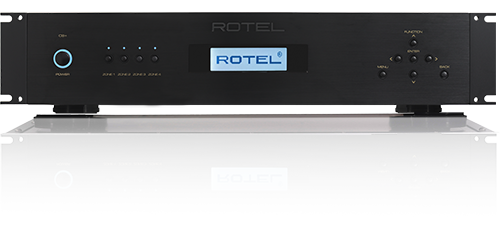

Rotel C8+ 8-Channel Custom Installation Power Amplifier
The Rotel C8+ is an 8-channel Class AB custom-install amplifier built for higher-output multi-zone systems and CI racks that need both analog and S/PDIF digital source connectivity. It delivers 100 W/ch into 8 Ω and 150 W/ch into 4 Ω with all channels driven, supports bridged mode for 300 W into 4 Ω, and adds a source-to-zone matrix with front-panel setup/control for fast commissioning.
Dealer Quick Fit
- Best for: high-output multi-zone audio (4 stereo zones) or mixed-use racks (zones + theater height/utility channels)
- Power: 8 × 100 W/ch (8 Ω) • 8 × 150 W/ch (4 Ω) • Bridged: 300 W (4 Ω)
- Source flexibility: 4 × analog stereo inputs + 4 × S/PDIF digital inputs, routed via internal matrix
- Digital decoding: 4 onboard DACs (TI, 24-bit / 192 kHz) supporting S/PDIF up to 192 kHz
- Control: Ethernet (IP control) + RS232 + 12V trigger input
- Priority audio: Priority Zone PA Override for paging/announcement use cases

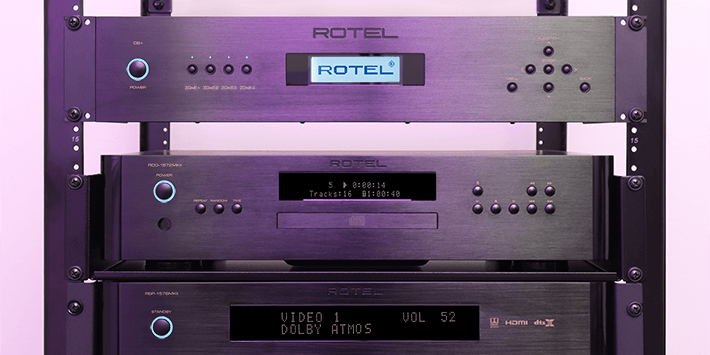

- Rack: 2U chassis designed for dense rack layouts
Why Dealers Care
- Higher-output zones: 150 W/ch into 4 Ω supports demanding in-wall/in-ceiling arrays and larger rooms.
- Matrix routing built in: route different sources to different zones without external distribution hardware in many installs.
- Digital inputs done right: direct optical/coax source connection avoids external DAC boxes and reduces failure points.
- Bridgeability: use bridged channels for high-power needs (larger zones, patio speakers, or passive subs where appropriate).
- CI control stack: RS232/IP/trigger provide options from basic power sequencing to full automation control.
Inputs, Routing & Zone Model (CI Overview)
- Zones: 4 stereo zones (8 amplifier channels total).
- Matrix: select which source feeds each zone from the chassis (front panel) or via control system (IP/RS232).
- Analog sources: 4 stereo RCA inputs (matrixed).
- Digital sources: 2 optical + 2 coaxial S/PDIF inputs (matrixed), decoded internally via onboard DACs.
- Bridged mode: bridge channel pairs when a zone requires higher power; confirm speaker impedance is compatible before bridging.
- Priority override: PA override can force a priority input to a selected zone for paging/announcements.
Specs at a Glance
| Category | Specification |
|---|---|
| Channels | 8 |
| Continuous Power Output | 100 W/ch (8 Ω, all channels driven) • 150 W/ch (4 Ω, all channels driven) |
| Bridged Power | 300 W (4 Ω) |
| Amplifier Type | Class AB |
| THD | < 0.1% |
| Frequency Response (Line) | 10 Hz–100 kHz (0 ± 0.5 dB) |
| S/N Ratio | 100 dB (Line) • 102 dB (Digital) |
| Damping Factor | 80 |
| Digital Input Capability | S/PDIF up to 192 kHz; 4 onboard TI DACs (24-bit / 192 kHz) |
| Power Consumption | 980 W (Standby: < 0.5 W • Network Standby: < 2 W) |
| BTU | 2744 BTU/h |
| Dimensions (W×H×D) | 16.9 × 3.8 × 16.3 in (430 × 97 × 414 mm) |
| Front Panel Height | 2U / 3.5 in (88.9 mm) |
| Net Weight | 40.8 lb (18.35 kg) |
Connectivity & Control
- Analog Inputs: 4 × stereo RCA pairs (matrixed)
- Digital Inputs: 2 × optical (TOSLINK) + 2 × coaxial (S/PDIF)
- Speaker Outputs: 8 channels / 4 stereo zones (CI-style terminal outputs)
- Network: Ethernet for IP control and configuration
- RS232: serial control for automation systems
- Trigger: 12V trigger input (3.5 mm mono)
Installation Notes (Dealer-Level)
- Zone design: treat as four stereo zones; allocate sources per zone using the internal matrix and verify gain structure using zone trims/settings.
- Bridging best practice: bridge only when the speaker load and wiring are confirmed compatible; label bridged channels clearly for serviceability.
- Digital source hygiene: keep optical/coax runs within best practices and confirm stable S/PDIF lock before leaving site.
- Control-system choice: use IP control for modern automation stacks; use RS232 where deterministic serial control is preferred.
- Thermal planning: 2U density is rack-friendly—still confirm airflow strategy for sustained multi-zone duty cycles.
- Paging / priority: enable PA override only on the zones that require announcement priority to avoid unintended takeovers.
Finish Options (SKU)
- C8+ — Black
Commercial & Logistics (No Dealer Pricing)
- MSRP: $3,499.00
- Warranty: 5 Years
- Status: Active
| UPC | Ship Wt | Carton (L×W×H) |
|---|---|---|
| 672563145117 | 50 lb | 22 × 20 × 9 in |
In the Box
- Rack ears
- Detachable IEC power cord
FAQ
- Can I route multiple sources to different zones? Yes — analog and digital inputs are matrixed to zones.
- Does it have digital inputs? Yes — 2 optical and 2 coaxial S/PDIF inputs with onboard DACs.
- Can it be bridged for more power? Yes — bridged mode is supported (300 W into 4 Ω stated).
- Does it support automation control? Yes — RS232, IP control (Ethernet), and 12V trigger input.
- Is it intended for dense racks? Yes — 2U chassis is designed for CI racks; still plan airflow for sustained duty cycles.
