Rotel A11MKII Stereo Integrated Amplifier

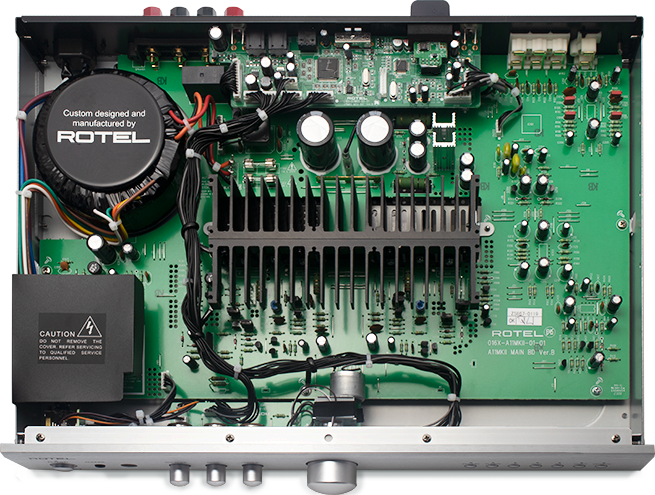

The Rotel A11MKII is a modern, mixed-source stereo integrated amplifier that blends Class AB amplification with built-in digital and wireless connectivity. A linear power supply with a Rotel-built toroidal transformer supports 50 W/ch into 8 Ω and 62 W/ch into 4 Ω, while an onboard TI PCM5102A DAC enables optical/coax digital sources and Bluetooth (aptX HD/AAC) supports convenient wireless playback. An MM phono input is included for turntable systems.
Dealer Quick Fit
- Best for: analog sources + turntable (MM) + TV/streamer via optical/coax + Bluetooth convenience listening
- Power: 50 W/ch (8 Ω) • 62 W/ch (4 Ω), Class AB
- Digital: 1 × optical + 1 × coax S/PDIF inputs (PCM)
- Wireless: Bluetooth with aptX HD and AAC (antenna included)
- Analog: 3 line-level RCA inputs + MM phono
- Outputs: speaker binding posts + front 3.5 mm headphone out
- Automation: dual 12V trigger outputs
- What it is NOT: no PC-USB audio input
Why Dealers Care
- “TV + vinyl + phone” solved: covers the most common modern stereo use-case mix without adding external DACs or streamers.
- Simple digital integration: optical/coax inputs make it easy to land TV audio and popular streamers while keeping two-channel purity.
- Better Bluetooth interoperability: aptX HD and AAC improve compatibility and quality across Android/iOS devices where supported.
- Trigger outputs for system builds: dual 12V trigger outs allow clean power sequencing with sub amps, external power amps, or source components.
Digital Integration Notes (Dealer-Useful)
- TV setup: set the TV/streamer to output 2-channel PCM over S/PDIF (not Dolby/DTS) for reliable lock on optical/coax inputs.
- S/PDIF capability: PCM over S/PDIF up to 24-bit/192 kHz (source dependent).
- Bluetooth positioning: ideal for casual playback; for maximum fidelity, prioritize wired analog or S/PDIF digital sources.
Connectivity
- Analog Inputs: 3 × RCA stereo pairs (line) + 1 × RCA stereo pair (Moving Magnet / MM phono)
- Digital Inputs: 1 × coaxial (S/PDIF) + 1 × optical (TOSLINK)
- Speaker Outputs: stereo binding posts
- Headphone Output: 3.5 mm on the front panel
- Automation: 2 × 12V trigger outputs
- Control: IR remote (included)
Specs at a Glance
| Category | Specification |
|---|---|
| Amplifier Topology | Class AB |
| Power Output | 50 W/ch (8 Ω) • 62 W/ch (4 Ω) |
| DAC | TI PCM5102A (32-bit / 384 kHz capability) |
| Digital Input Capability | S/PDIF LPCM up to 24-bit/192 kHz |
| Bluetooth | aptX HD, AAC |
| Phono Stage | Moving Magnet (MM) |
| THD | < 0.03% |
| Frequency Response (Line) | 10 Hz–100 kHz (−0.5 dB, +0.05 dB) |
| Damping Factor | 120 (8 Ω) |
| S/N Ratio (Line) | 90 dB |
| Tone Controls | ±6 dB at 100 Hz / 10 kHz; balance control |
| Power Consumption | 150 W (Standby: < 0.5 W) |
| BTU | 450 BTU/h |
| Dimensions (W×H×D) | 16.9 × 2.9 × 13.7 in (430 × 73 × 347 mm) |
| Net Weight | 15.0 lb (6.8 kg) |
Finish Options (SKUs)
- A11MKII-B — Black
- A11MKII-S — Silver
Commercial & Logistics (No Dealer Pricing)
- MSRP: $999.00
- Warranty: 5 Years
- Status: Active
| Finish | UPC | Ship Wt | Carton (L×W×H) |
|---|---|---|---|
| Black | 672563145612 | 22 lb | 20 × 15 × 7 in |
| Silver | 672563645617 | 22 lb | 20 × 15 × 7 in |
In the Box
- IR remote control
- Bluetooth antenna
- Detachable IEC power cord
FAQ
- Does it have a phono input for a turntable? Yes — Moving Magnet (MM) phono input.
- Does it include a DAC? Yes — built-in TI PCM5102A DAC; optical/coax inputs supported.
- Can I connect a TV? Yes — via optical or coaxial digital input (TV must output 2-channel PCM over S/PDIF).
- Does it have Bluetooth? Yes — Bluetooth with aptX HD and AAC.
- Does it support system automation? Yes — dual 12V trigger outputs.
- Can I connect a computer via USB audio? No — there is no PC-USB audio input on this model.
