Lotus 5 LED Linear Recessed 11W 5CCT | JXL-TXH05-T11W-5CCT

Overview

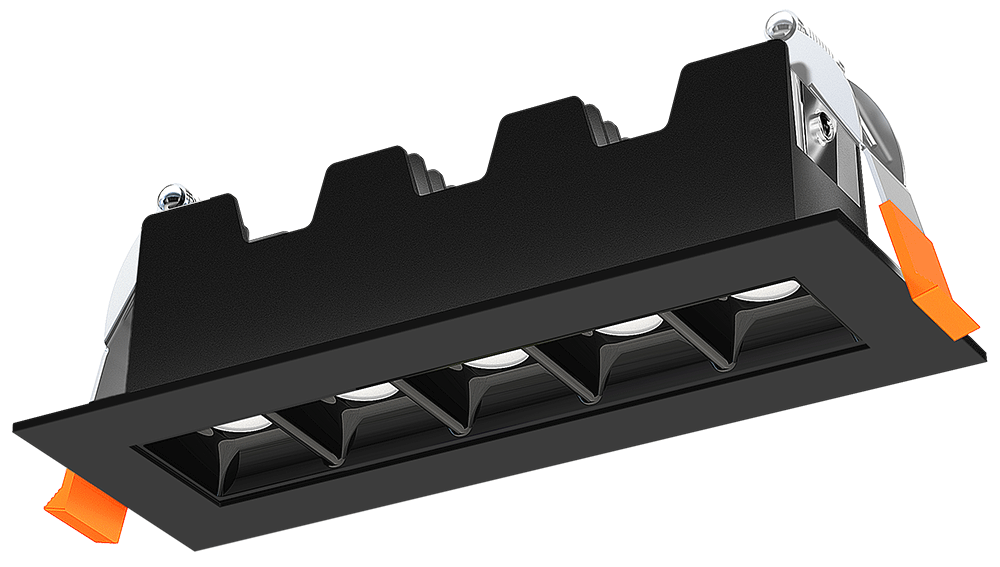

The Lotus LED JXL-TXH05-T11W-5CCT is an architectural-spec 5-light linear recessed fixture designed for unique and original lighting installations. Its ultra-shallow 2-inch depth allows for seamless integration into limited ceiling spaces, while the black reflectors provide a high-end appearance with reduced glare.

Key Features

• 5 CCT Selectable: Choose between 2700K, 3000K, 3500K, 4000K, and 5000K at the time of installation.
• IC Rated: Approved for direct contact with insulation, requiring no recessed housing.
• Dimmable: Includes a 120V Triac driver with a 20% to 100% dimming range.
• Low Profile: A 2-inch physical depth allows for installation where ceiling clearance is restricted.
• Contractor-grade Construction: Air Tight and Damp Location rated for versatile residential and commercial applications.

Technical Specifications

• Energy Used: 11W
• Halogen Equivalent: 60W
• Light Output: 520 | 550 | 630 | 660 | 650 Lumens
• Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K (Selectable)
• CRI: 80
• Beam Angle: 45° (default), 30° (custom)
• Driver Input: 120V AC 50/60 Hz
• Dimming: TRIAC Dimmers 20% - 100%
• Outside Dimensions: 6 3/8" x 2 5/16"
• Inside Dimensions: 5 3/8" x 1 5/16"
• Depth: 2"
• Cut Out: 5 1/2" x 1 1/2"
• Junction Box Dimensions: 4 1/2” x 2 5/8” x 1 3/8”
• Ceiling Clearance Required: 3"
• Approved Locations: Insulated Ceilings and Damp Locations
• Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
• Projected Life: 70% light output at 30,000 hours
• Certification: cETLus
• Warranty: 3 Year
