Monitor Audio Radius 3 4G Bookshelf Speakers - Pair | RAD4G3
Monitor Audio Radius 3 4G Bookshelf Speakers - Pair | RAD4G3
In Stock (Ready to Ship)
Typically ships in 4–8 Business Days (Western Canada) · 2–5 Business Days (Eastern Canada)
SKU:RAD4G3B
MPN: RAD4G3B
Dealer planning note: Sign in for Simply Controlled dealer pricing. Confirm project quantity, finish availability and lead time before releasing the BOM.

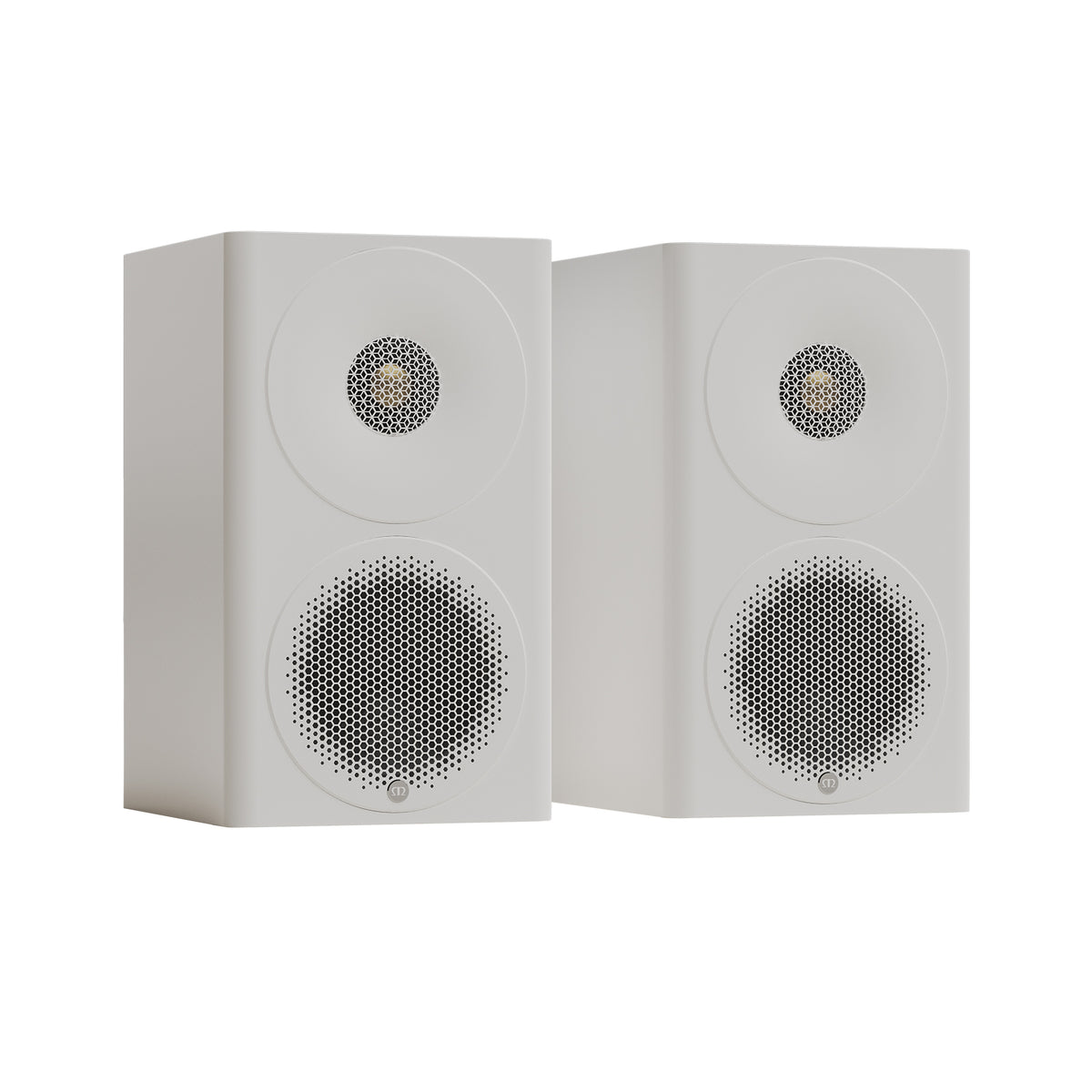

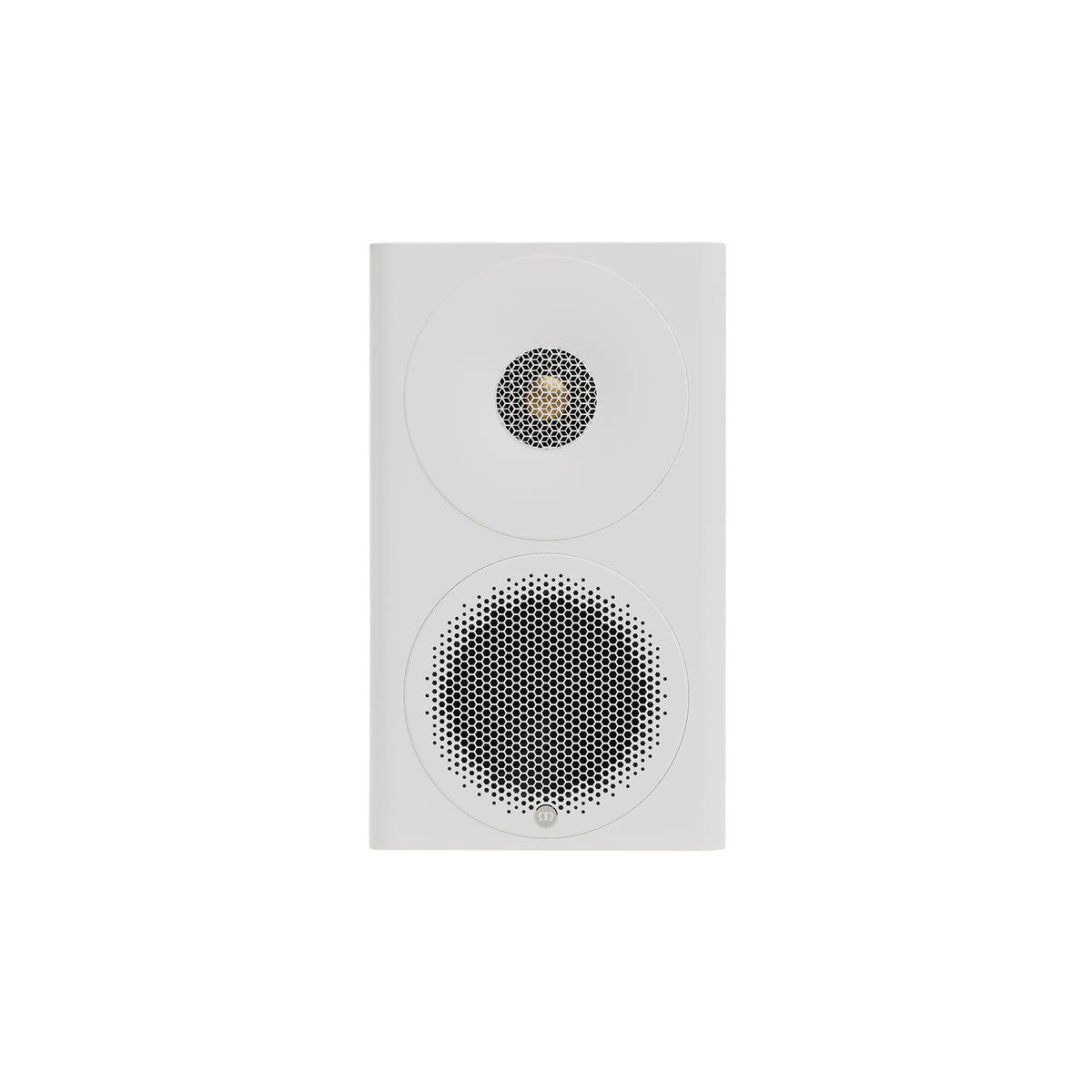

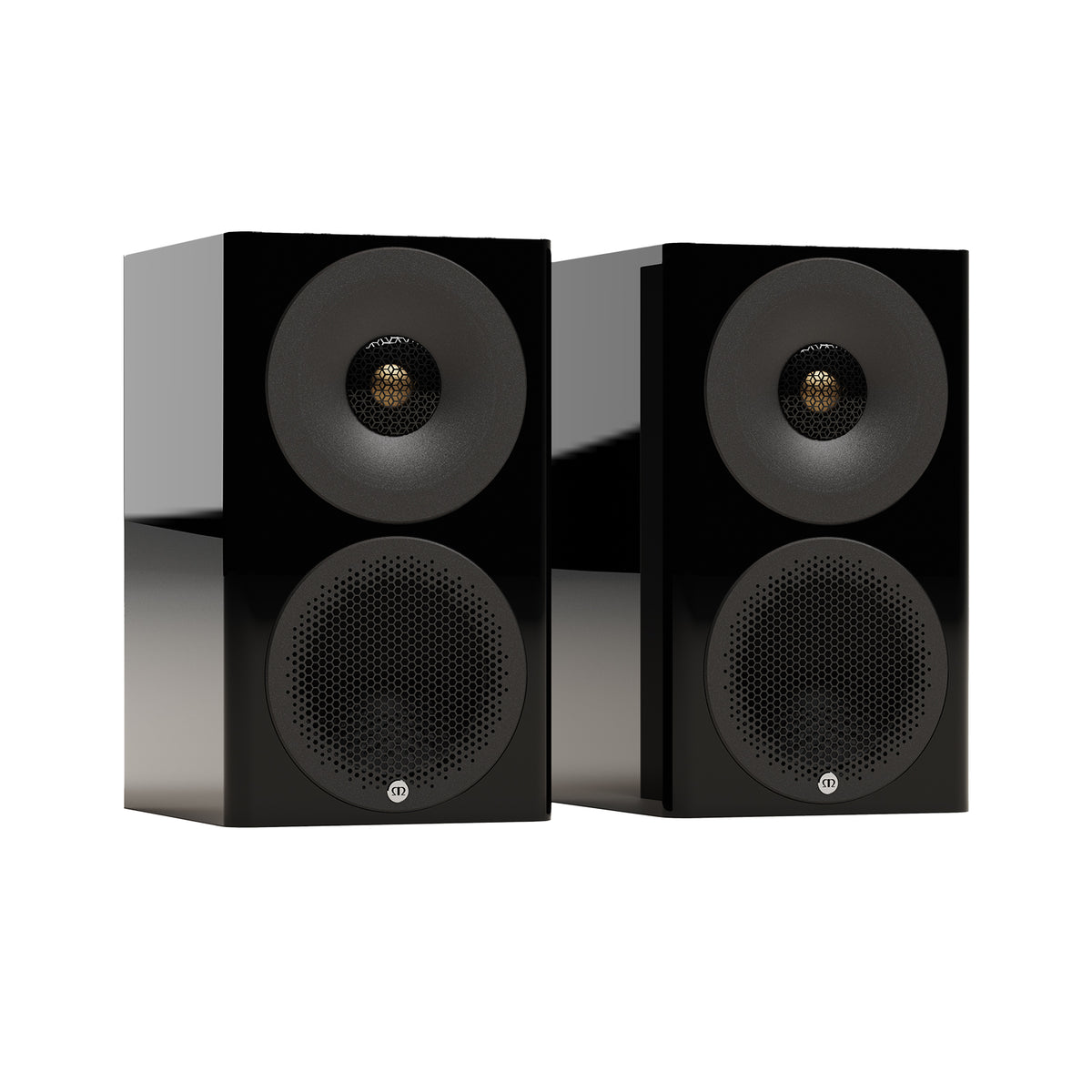

Monitor Audio Radius 3 4G is a compact passive, 2-way mini-monitor designed for desktop, floor-stand, wall-mount, stereo, AV and multi-room installations. It is sold as a manufacturer-defined pair, with High Gloss Black and Satin White finish variants.
Each speaker combines a 4.5-inch RST III C-CAM bass-mid driver with a 25 mm C-CAM Gold Dome tweeter in a ported enclosure tuned to 53 Hz. Monitor Audio publishes a 44 Hz–35 kHz in-room response (-6 dB), 84 dB free-field sensitivity, 107 dB maximum peak SPL and 75 W continuous power handling.
Radius 3 4G at a glance
- Sold as: Pair — two speakers per manufacturer sell unit.
- Speaker type: Passive, wired, 2-way compact mini-monitor.
- Placement options: Desktop, Radius floor stand or wall mount with compatible accessories.
- Driver system: 1 × 4.5 in RST III C-CAM bass-mid driver + 1 × 25 mm C-CAM Gold Dome tweeter per speaker.
- Bass alignment: Ported; 53 Hz tuning.
- Nominal / minimum impedance: 8 ohms / 4.0 ohms at 250 Hz.
- Current wall-mount compatibility: FIX-M.
- Compatible Radius accessories: Radius Desk Pad 4G and Radius Floor Stand 4G.
- Finishes: High Gloss Black and Satin White.
- Warranty: 5 years.
Compact speaker with multiple placement paths
Radius 3 4G is designed to move between several installation formats rather than being restricted to a conventional shelf. Monitor Audio supports desktop, floor-stand and wall-mount placement and positions the model for stereo, TV / film, gaming, surround and multi-room systems.

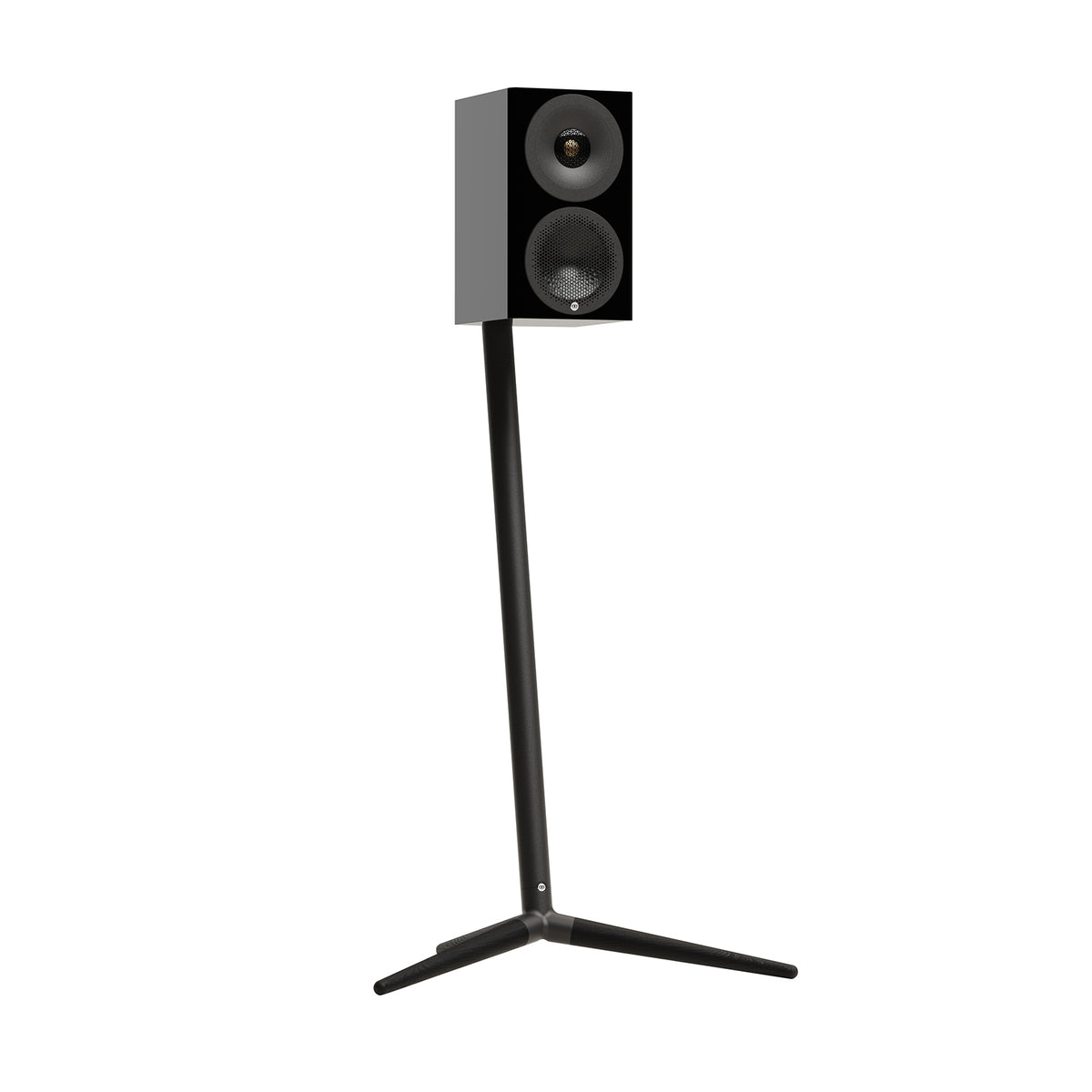

The Radius Desk Pad 4G is specifically designed for Radius 1 4G and Radius 3 4G and adds a rubber isolation surface with a subtle upward tilt. The Radius Floor Stand 4G also explicitly supports Radius 3 4G, securing the speaker with a single bolt while routing cable through the stand. For wall mounting, the current Radius 3 4G product page lists FIX-M as the compatible Monitor Audio bracket.
Ported enclosure with 53 Hz tuning

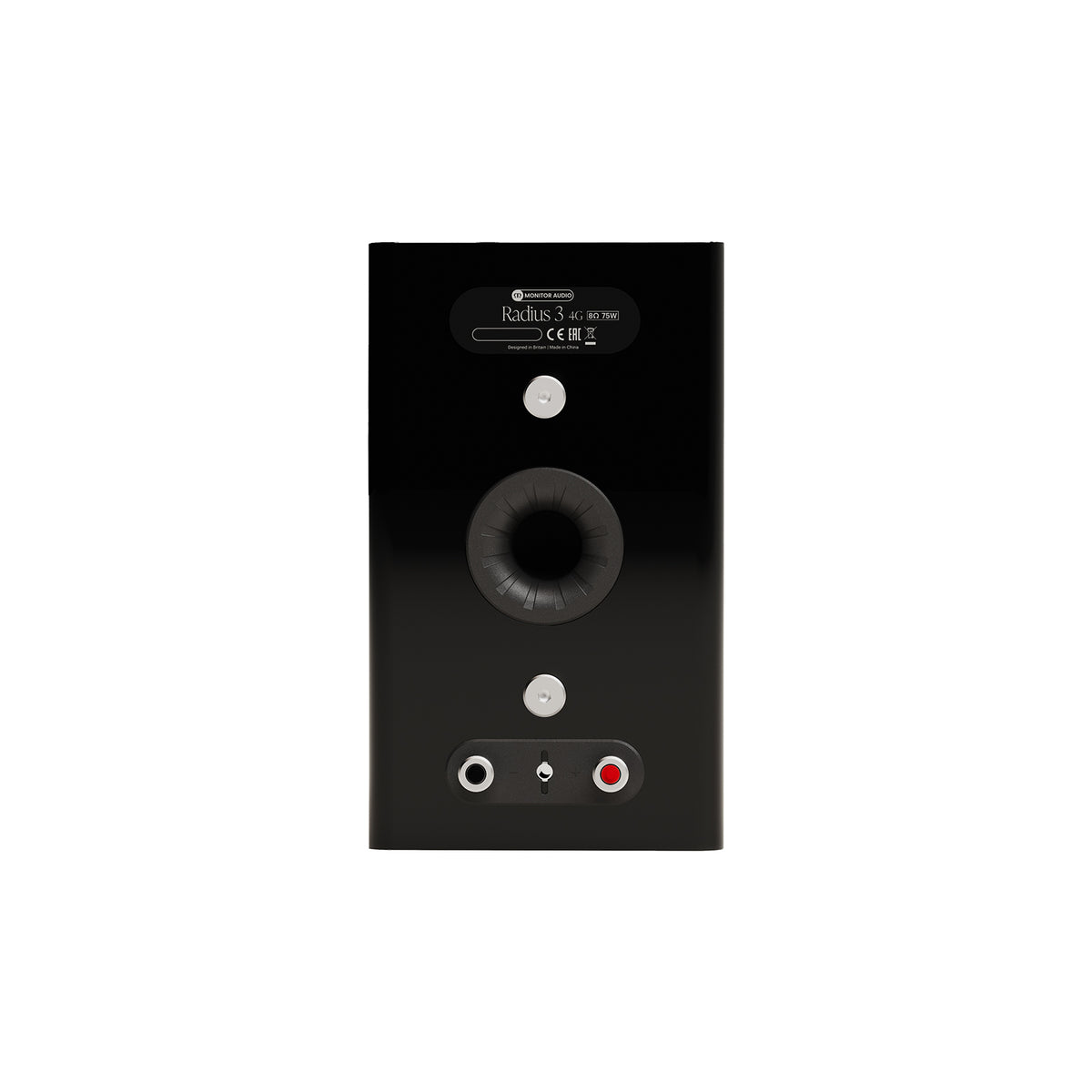

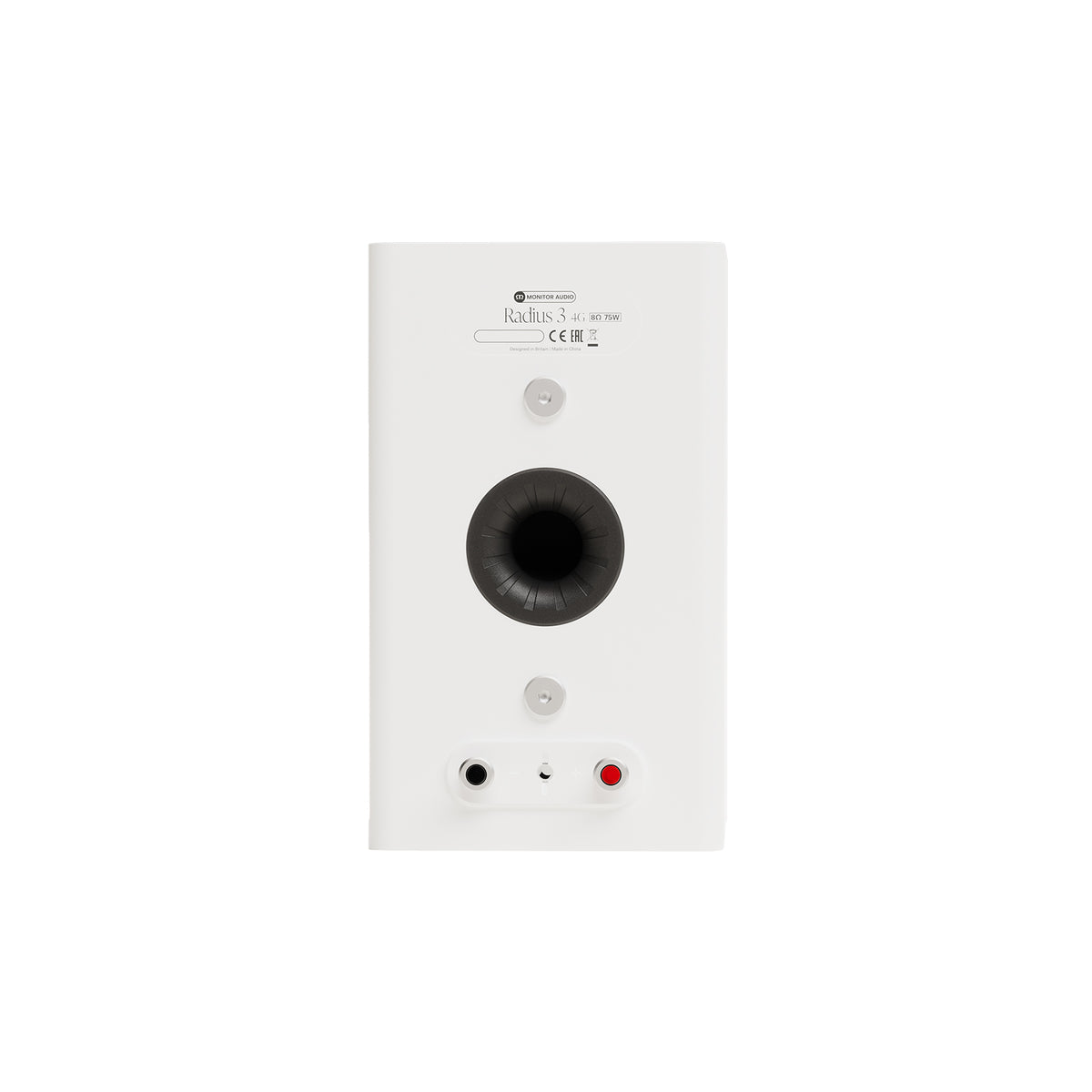

Unlike the sealed Radius 1 4G, Radius 3 4G uses a ported enclosure with a published tuning frequency of 53 Hz. The current manufacturer page also references HiVe II port technology in the product design.
That distinction matters when comparing the two Radius models: the Radius 3 cabinet is not merely a larger Radius 1. Its larger driver, lower published frequency limit and ported alignment create a different acoustic architecture.
Driver and crossover design
A 4.5-inch RST III C-CAM bass-mid driver works with a 25 mm C-CAM Gold Dome tweeter. Monitor Audio publishes a crossover point of 2.7 kHz.
The current manufacturer page specifies a 44 Hz–35 kHz in-room response (-6 dB), materially extending the published low-frequency limit below the 100 Hz figure of Radius 1 4G.
Amplifier matching
Radius 3 4G is rated at 8 ohms nominal and reaches a published minimum impedance of 4.0 ohms at 250 Hz. Continuous power handling is 75 W (CTA 426-B).
Monitor Audio recommends 40–75 W RMS into 8 ohms or 75–150 W RMS into 4 ohms with a music signal. The speaker remains an 8-ohm nominal design; the 4-ohm figure describes the amplifier's rated-output condition used for the recommendation.
Audio specifications
| System format | 2-way, passive compact mini-monitor |
|---|---|
| Frequency response | 44 Hz–35 kHz, in-room (-6 dB) |
| Sensitivity | 84 dB (2.83 Vrms @ 1 m, free-field) |
| Maximum peak SPL | 107 dB (AES75, Z-weighted) |
| Nominal impedance | 8 ohms |
| Minimum impedance | 4.0 ohms @ 250 Hz |
| Continuous power handling | 75 W (CTA 426-B) |
| Recommended amplifier power | 40–75 W into 8 ohms; 75–150 W into 4 ohms (RMS, music signal) |
| Crossover | LF/HF: 2.7 kHz |
| Bass alignment | Ported |
| Port tuning | 53 Hz |
Drivers and physical design
| Bass-mid driver | 1 × 4.5 in RST III C-CAM |
|---|---|
| Tweeter | 1 × 25 mm C-CAM Gold Dome |
| Connection type | Wired / external amplification required |
| Supported placement | Desktop, Radius floor stand or compatible wall mount |
Dimensions and weight
| Dimensions (H × W × D) | 255 × 150 × 201 mm, all accessories fitted |
|---|---|
| Imperial dimensions | 10 1/16 × 5 7/8 × 7 15/16 in |
| Weight | 3.7 kg / 8 lb 3 oz each |
| Combined speaker weight | 7.4 kg / approximately 16 lb 5 oz per pair |
| Verified shipping / packed weight | Not currently available from the approved source stack |
Radius 3 4G or Radius 1 4G?
| Decision point | Radius 1 4G | Radius 3 4G |
|---|---|---|
| Bass-mid driver | 4 in RST III | 4.5 in RST III |
| Tweeter | 19 mm C-CAM Gold Dome | 25 mm C-CAM Gold Dome |
| Frequency response | 100 Hz–35 kHz | 44 Hz–35 kHz |
| Sensitivity | 82 dB | 84 dB |
| Maximum peak SPL | 104 dB | 107 dB |
| Continuous handling | 50 W | 75 W |
| Bass alignment | Sealed | Ported, 53 Hz |
| Dimensions | 135 × 135 × 156 mm | 255 × 150 × 201 mm |
Choose Radius 1 when minimum physical footprint is the priority. Choose Radius 3 when the installation can accommodate the taller enclosure and the system benefits from its lower published frequency limit and higher output capability.
Compatible placement accessories
| Accessory | Use |
|---|---|
| Radius Desk Pad 4G | Desktop isolation platform with subtle upward tilt; explicitly designed for Radius 1 4G and Radius 3 4G |
| Radius Floor Stand 4G | Floor-standing installation; speaker attaches with a single bolt and cable can route through the stand |
| FIX-M Speaker Mount | Current manufacturer-listed compatible wall-mount bracket for Radius 3 4G |
Finish and SKU identification
| Finish | SKU / MPN |
|---|---|
| High Gloss Black | RAD4G3B |
| Satin White | RAD4G3SW |
GTIN note: commercial GTIN candidates exist for both Radius 3 4G finishes, but they remain verification-only in the approved truth source. They are intentionally not published here until matched to a stronger identifier source.
Important purchase detail: Radius 3 4G is sold by Monitor Audio as a pair. The pair is the manufacturer's normal sell unit; it is not a retailer-created multipack.
Warranty
Monitor Audio's current product page supports a 5-year warranty for Radius 3 4G.
