Monitor Audio Radius 1 4G Compact Speakers - Pair | RAD4G1

Monitor Audio Radius 1 4G Compact Speakers - Pair | RAD4G1

In Stock (Ready to Ship)

Typically ships in 4–8 Business Days (Western Canada) · 2–5 Business Days (Eastern Canada)

SKU:RAD4G1B

MPN: RAD4G1B

Shipping terms (Free over $300) calculated at checkout.
Color

Dealer planning note: Sign in for Simply Controlled dealer pricing. Confirm project quantity, finish availability and lead time before releasing the BOM.

Monitor Audio Radius 1 4G is an ultra-compact passive, 2-way loudspeaker designed to work across desktop, stand-mounted, wall-mounted, surround and discreet multi-room installations. It is sold as a manufacturer-defined pair, with High Gloss Black and Satin White finish variants.

Each speaker uses a 4-inch RST III C-CAM bass-mid driver and a 19 mm C-CAM Gold Dome tweeter. Monitor Audio publishes a 100 Hz–35 kHz in-room response (-6 dB), 82 dB free-field sensitivity, 104 dB maximum peak SPL and 50 W continuous power handling from a cabinet measuring only 135 × 135 × 156 mm.

Radius 1 4G at a glance

  • Sold as: Pair — two speakers per manufacturer sell unit.
  • Speaker type: Passive, wired, 2-way compact / micro loudspeaker.
  • Placement options: Desktop, floor stand or wall mount with compatible accessories.
  • Driver system: 1 × 4 in RST III C-CAM bass-mid driver + 1 × 19 mm C-CAM Gold Dome tweeter per speaker.
  • Bass alignment: Sealed.
  • Nominal / minimum impedance: 8 ohms / 3.8 ohms at 950 Hz.
  • Compatible wall mounts: MASM and FIX-M.
  • Compatible Radius accessories: Radius Desk Pad 4G and Radius Floor Stand 4G.

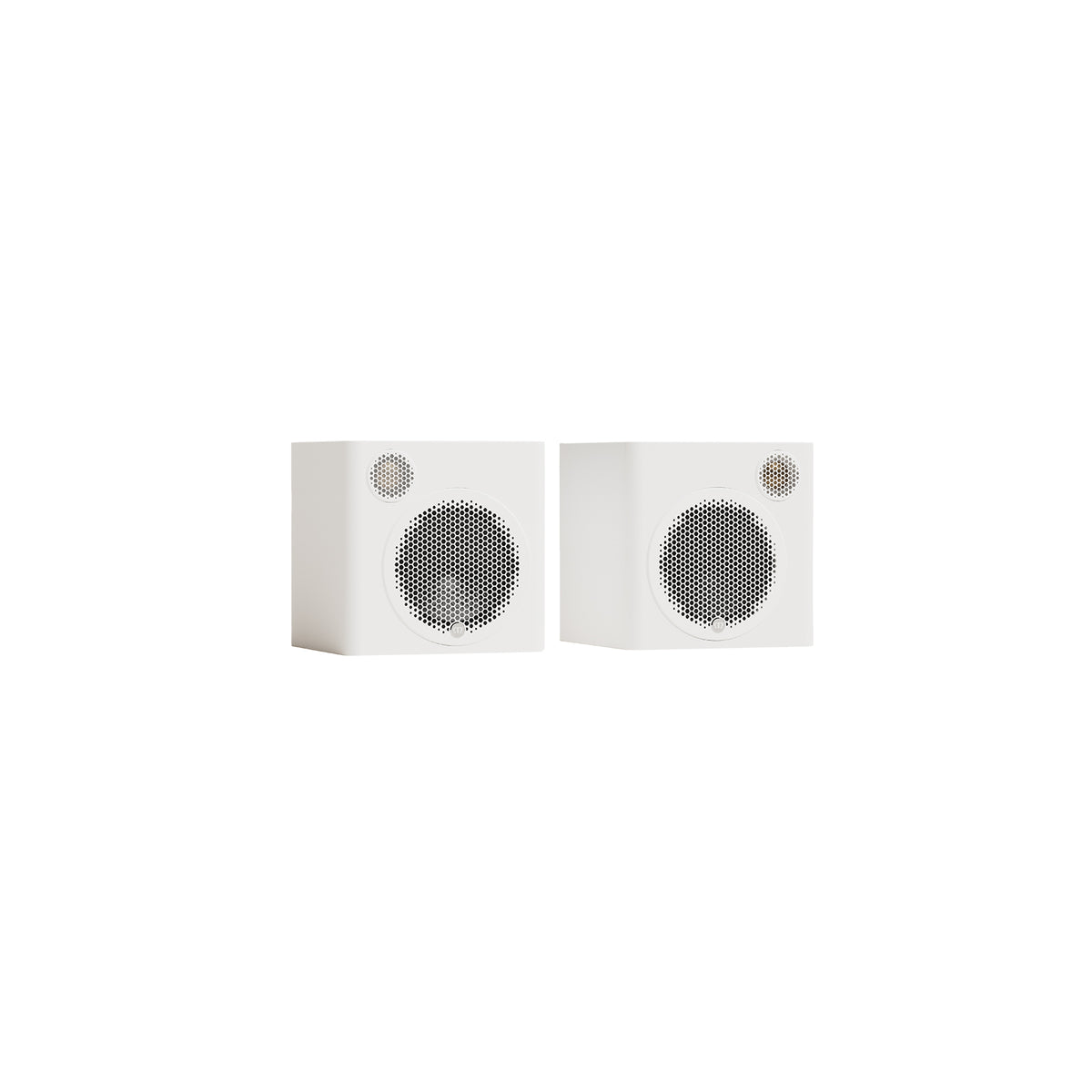

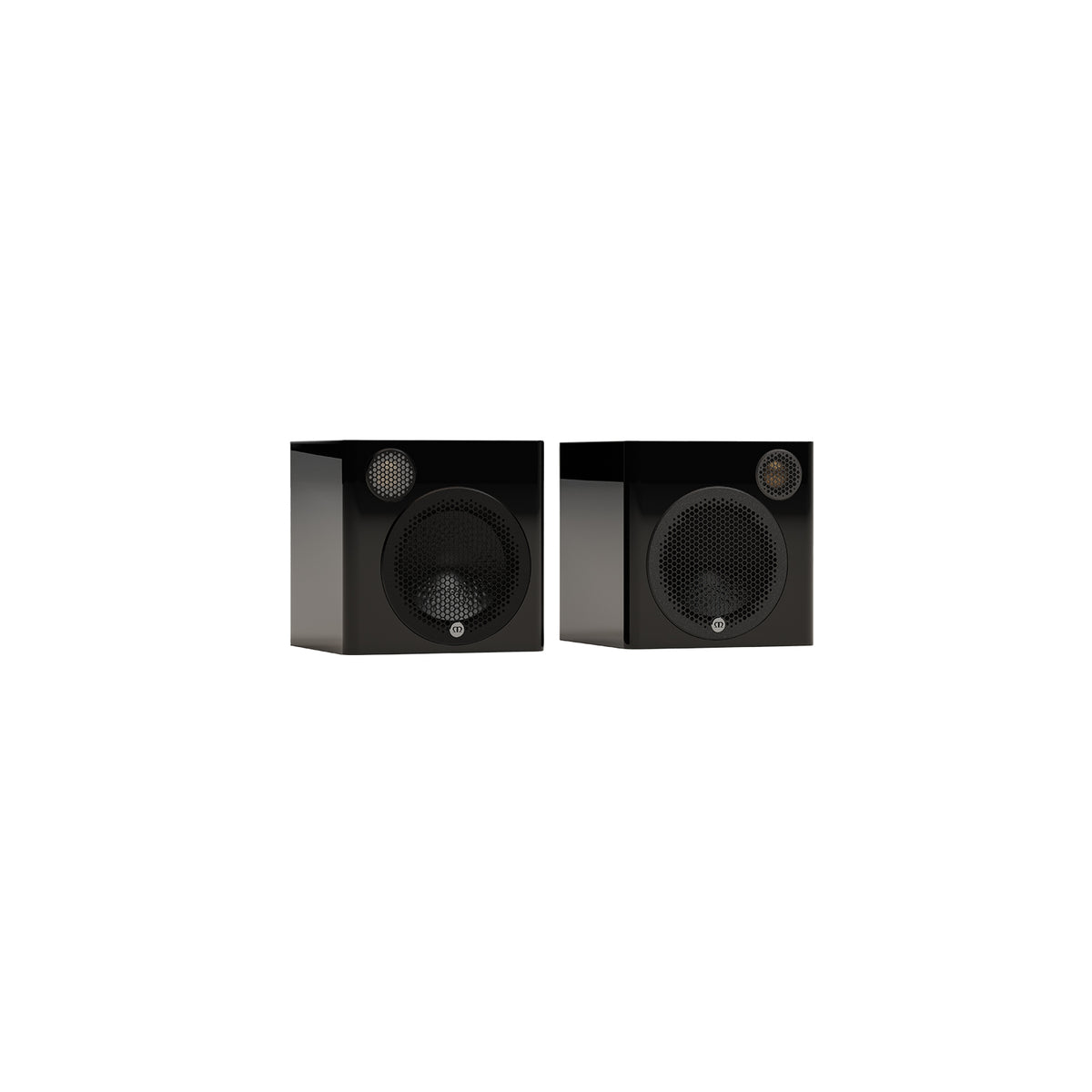

  • Finishes: High Gloss Black and Satin White.
  • Warranty: 5 years.

One compact speaker, multiple placement paths

Radius 1 4G is intentionally not limited to a single “bookshelf” use case. Monitor Audio designs it for discreet AV, surround and multi-room systems and supports three distinct physical placement paths: desktop, floor stand and wall mount.

For desktop use, the Radius Desk Pad 4G is specifically designed for Radius 1 4G and provides a rubber isolation platform with a subtle upward tilt. For floor placement, the Radius Floor Stand 4G attaches the speaker using a single bolt and routes speaker cable through the stand. For wall mounting, Monitor Audio explicitly lists both MASM and FIX-M as compatible brackets.

Sealed enclosure — exact specification wins

The current Radius 1 4G page contains a marketing feature string that references HiVe II ports, but the exact technical specification on that same page states Bass Alignment: Sealed and Port Tuning Frequency: N/A. This PDP follows the exact model specification.

Radius 1 4G is therefore presented as a sealed loudspeaker; no port or port-tuning frequency is claimed.

Driver and crossover design

A 4-inch RST III C-CAM bass-mid driver works with a 19 mm C-CAM Gold Dome tweeter. Monitor Audio publishes a crossover frequency of 3.2 kHz.

The current manufacturer page publishes an in-room response of 100 Hz–35 kHz (-6 dB). Because of the compact enclosure and 100 Hz published low-frequency limit, system designers who require deeper bass can plan a separate subwoofer as part of the overall system rather than expecting this micro-speaker to reproduce sub-bass on its own.

Amplifier matching

Radius 1 4G is rated at 8 ohms nominal and reaches a published minimum impedance of 3.8 ohms at 950 Hz. Continuous power handling is 50 W (CTA 426-B).

Monitor Audio recommends 25–50 W RMS into 8 ohms or 50–100 W RMS into 4 ohms with a music signal. The speaker remains an 8-ohm nominal design; the 4-ohm figure describes the amplifier's rated-output condition used by Monitor Audio.

Audio specifications

System format 2-way, passive compact loudspeaker
Frequency response 100 Hz–35 kHz, in-room (-6 dB)
Sensitivity 82 dB (2.83 Vrms @ 1 m, free-field)
Maximum peak SPL 104 dB (AES75, Z-weighted)
Nominal impedance 8 ohms
Minimum impedance 3.8 ohms @ 950 Hz
Continuous power handling 50 W (CTA 426-B)
Recommended amplifier power 25–50 W into 8 ohms; 50–100 W into 4 ohms (RMS, music signal)
Crossover LF/HF: 3.2 kHz
Bass alignment Sealed
Port tuning Not applicable — sealed enclosure

Drivers and physical design

Bass-mid driver 1 × 4 in RST III C-CAM
Tweeter 1 × 19 mm C-CAM Gold Dome
Connection type Wired / external amplification required
Supported placement Desktop, Radius floor stand or compatible wall mount

Dimensions and weight

Dimensions (H × W × D) 135 × 135 × 156 mm, all accessories fitted
Imperial dimensions 5 5/16 × 5 5/16 × 6 1/8 in
Weight 1.8 kg / 3 lb 15 oz each
Combined speaker weight 3.6 kg / approximately 7 lb 15 oz per pair
Verified shipping / packed weight Not currently available from the approved source stack

Compatible placement accessories

Accessory Use
Radius Desk Pad 4G Desktop isolation platform with subtle upward tilt; explicitly designed for Radius 1 4G and Radius 3 4G
Radius Floor Stand 4G Floor-standing installation; speaker attaches with a single bolt and cable can route through the stand
MASM Mount Manufacturer-listed compatible wall-mount bracket
FIX-M Speaker Mount Manufacturer-listed compatible wall-mount bracket

Finish and SKU identification

Finish SKU / MPN
High Gloss Black RAD4G1B
Satin White RAD4G1SW

GTIN note: commercial GTIN candidates exist for both Radius 1 4G finishes, but they remain verification-only in the approved truth source. They are intentionally not published here until matched to a stronger identifier source.

Important purchase detail: Radius 1 4G is sold by Monitor Audio as a pair. The pair is the manufacturer's normal sell unit; it is not a retailer-created multipack.

Warranty

Monitor Audio's current product page supports a 5-year warranty for Radius 1 4G.
