Lutron GRAFIK Eye QS 6-Zone Wired Phase Control Main Unit | QSGR-6P

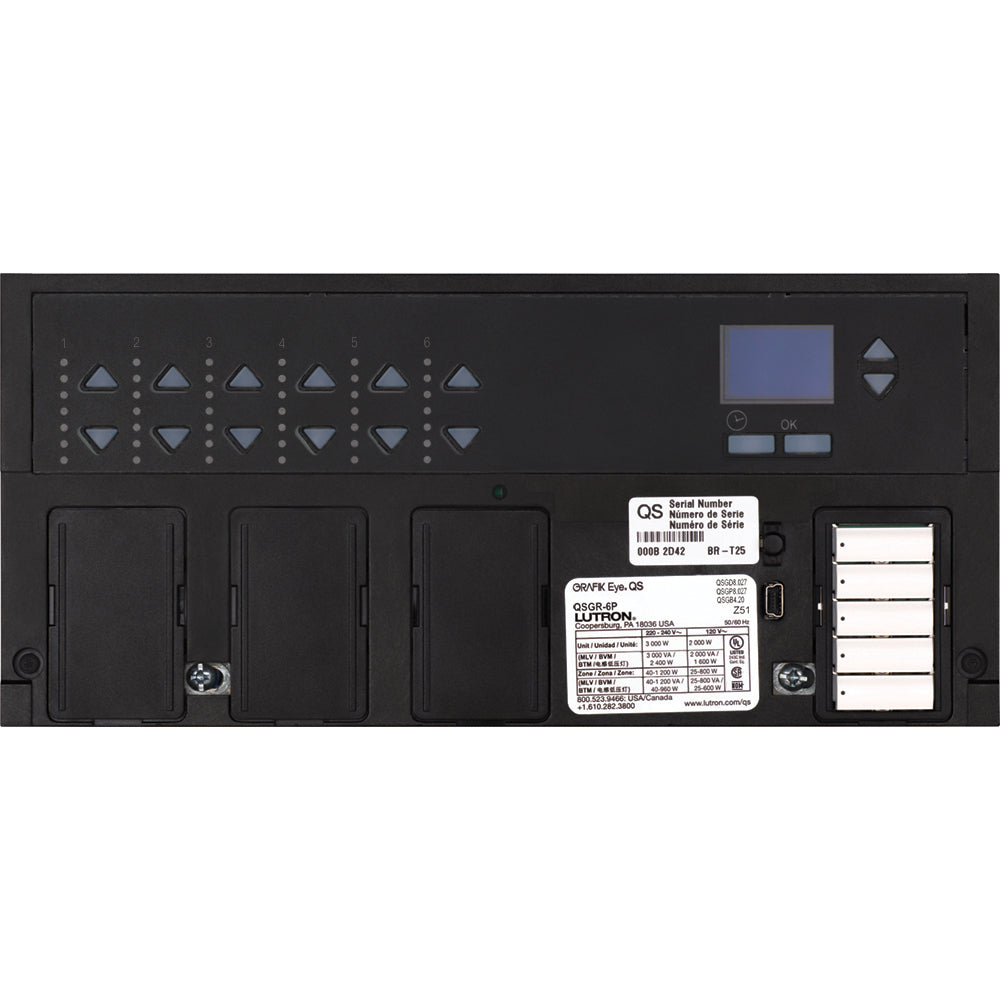

Lutron QSGR-6P GRAFIK Eye QS 6-Zone Wired Lighting Controller

The Lutron QSGR-6P is a premier, wired architectural lighting control unit designed for environments that demand precision and reliability without the use of RF technology. Managing up to six independent zones of light, the QSGR-6P allows users to create, store, and recall up to 16 different lighting scenes, transforming the mood of a room at the touch of a button.

As a non-RF (wired) unit, this model communicates via the Lutron QS Link to connect with seeTouch QS keypads, Sivoia QS shades, and other QS-compatible power modules. With a robust 2300W total power rating and a built-in astronomic timeclock, it is an ideal solution for boardrooms, lecture halls, and high-end residential spaces where hardwired stability is a priority.

Key Features

• 6-Zone Wired Control: Direct, independent phase-control dimming for six zones of lighting.
• High Capacity: Supports up to 2300W of total load (800W per zone max) for large-scale installations.
• 16 Programmable Scenes: Effortlessly recall complex lighting presets; four scenes plus "Off" are accessible from the faceplate.
• Astronomic Timeclock: Automate lighting based on schedules or sunrise/sunset with 10-year power failure memory.
• RTISS™ Technology: Real-Time Illumination Stability System filters out line noise and frequency variations for stable, flicker-free dimming.
• Wired QS Link: Connects directly to Lutron QS devices and systems via a 4-wire link for secure, interference-free communication.

Technical Specifications

Included in the Box

• (1) GRAFIK Eye QS 6-Zone Wired Main Unit
• (1) Faceplate / Opaque Cover
• (1) Button Labeling Kit
• (1) Mounting Hardware & Instructions
