Lutron Sivoia QS Long-Distance Control Cable, 12/22 AWG, Non-Plenum, 500ft | QSH-CBL-L-500

Lutron QSH-CBL-L-500 Sivoia QS Long-Distance Control Cable (500ft)

The Lutron QSH-CBL-L-500 is a specialized, 5-conductor composite cable engineered for Sivoia QS shade and drapery systems. This "Long" distance (L) variant is designed to solve voltage drop issues on extended wire runs. By upgrading the power and common conductors to 12 AWG, this cable allows for reliable performance even when the power supply is located far from the window treatments.

This cable features a shielded 22 AWG pair for the QS Link (Mux Data) to ensure communication integrity, while the heavy-duty power wires provide the necessary current for motorized window movements. This 500-foot spool is Non-Plenum (CL3) rated, making it suitable for standard in-wall installations in residential and commercial settings.

Key Features

• Optimized for Long Runs: 12 AWG power conductors allow for significantly longer distances between the power source and the shade motor compared to standard cables.
• High Signal Integrity: Shielded 22 AWG data pair protects communication from electromagnetic interference.

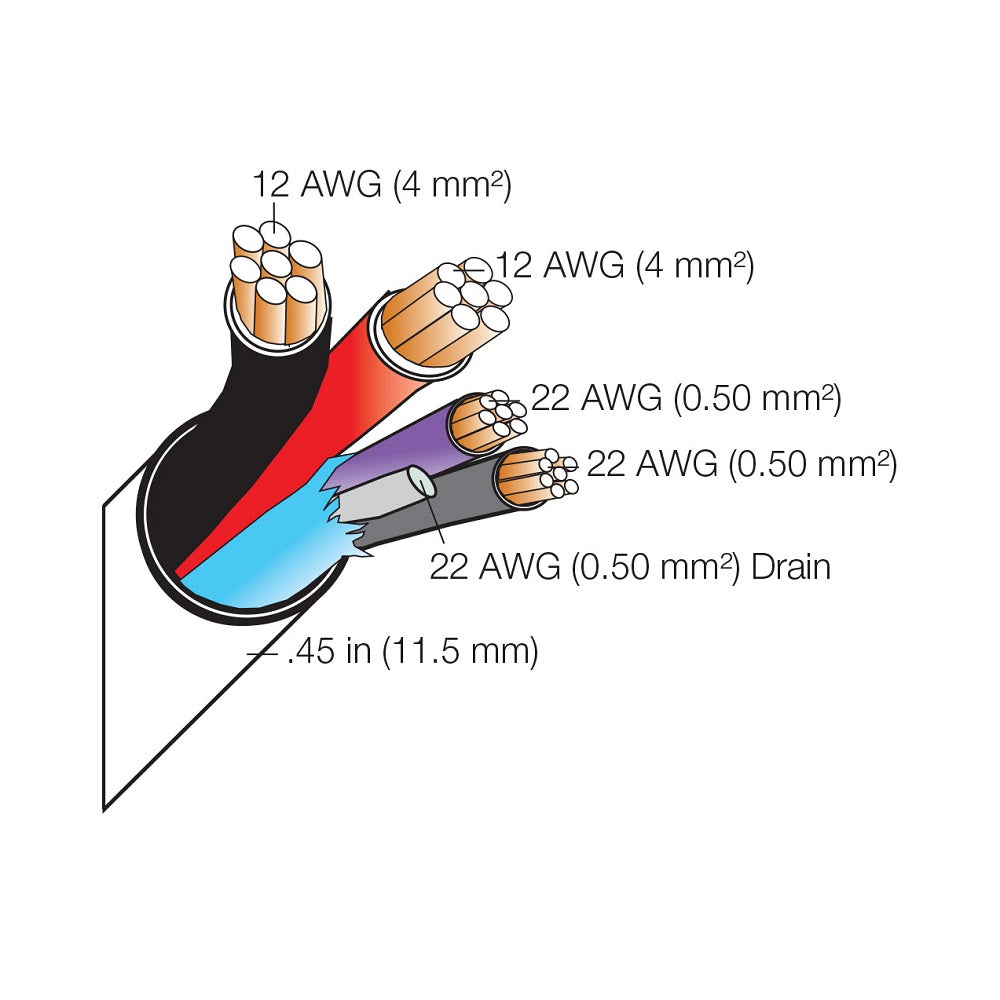

• One-Cable Solution: Combines power (12 AWG), common (12 AWG), and data (22 AWG) along with a drain wire into a single jacket for easier pulls.
• RoHS Compliant: Environmentally friendly materials and construction.
• Durable Construction: Non-plenum CL3-rated jacket designed for standard architectural wiring.

Technical Specifications

Applications

• Sivoia QS Motorized Shades & Drapery
• GRAFIK Eye QS to Shade Communication
• Extended Low-Voltage QS Link Communication
• Centralized Power Supply Wiring
