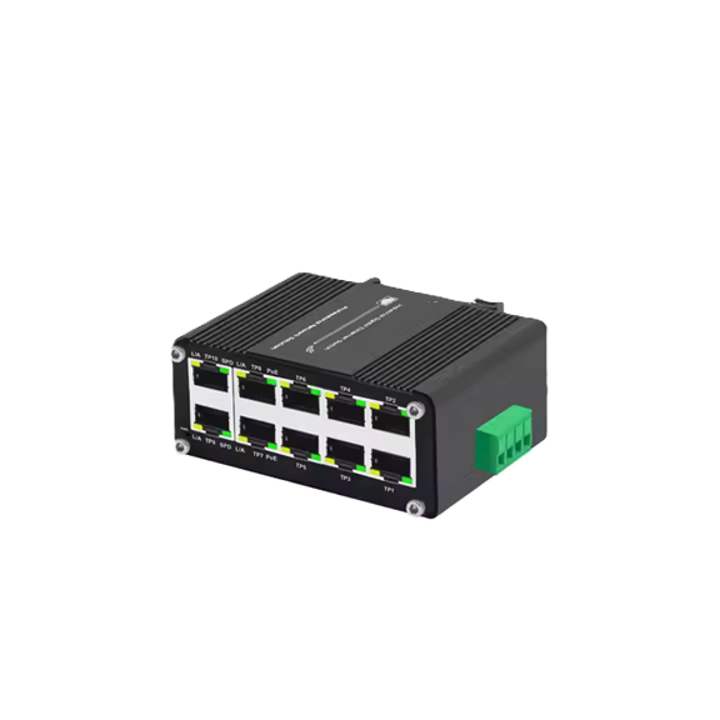

Grid Industrial Gigabit PoE Switch | 8 PoE Downlink Ports + 2 Uplink Ports | POEJK-S8-240

Overview

The POEJK-S8-240 is an industrial Gigabit PoE+ switch with eight copper ports, a 240W PoE budget and dual-uplink design for compact DC microgrid zones. It is unmanaged, extended-temperature and built for DIN-rail, wall or shelf mounting in enclosures, mechanical rooms, warehouses and remote IDFs.

Powered from a 48–57 VDC source and housed in an IP40-rated aluminum enclosure, this switch is a solid choice when you need a small 8-port PoE+ field switch that still fits into the broader GRID DC microgrid architecture.

Key features

• Industrial Gigabit PoE+ switch – unmanaged design for simple, robust operation at the edge.
• 8 × 10/100/1000 Mbps copper ports with 802.3af/at PoE+ injector function on ports 1–4.
• 240W shared PoE budget for mixed IP cameras, APs, sensors and POE-Jack® nodes (within design limits).
• 2 uplink ports for connecting back to aggregation or core switches.
• Dual redundant DC power input (48–57 VDC), using external supplies such as POEJK-PS48-200 or POEJK-PS48-240 (sold separately).
• Wide operating temperature from -40°C to +80°C (-40°F to 176°F) for harsh environments.
• Rugged IP40 aluminum housing for industrial and light-commercial sites.
• Flexible mounting – DIN-rail, wall-mount or shelf-mount options.

Technical highlights

Ideal applications

• Small industrial or warehouse PoE zones serving cameras, APs and sensors.
• Remote telecom rooms and cabinets where extended-temperature hardware is required.
• Outdoor-rated enclosures (within IP40 limits) feeding PoE loads along a site perimeter.
• Compact DC microgrid nodes in garages, shops or mechanical spaces powered by DC supplies.

Compatibility & ecosystem

The POEJK-S8-240 sits naturally under GRID aggregation and core switches as an industrial edge node. Its 48–57 VDC power input aligns with GRID DC supplies (e.g., POEJK-PS48 series), and its PoE+ injector function on ports 1–4 makes it suitable for powering IP cameras, access points or small POE-Jack® clusters at the edge.

Use standard Cat5e/Cat6/Cat6A cabling for horizontal runs and pair with GRID’s enhanced cabling options (such as POEJC6E-CMP) where PoE++ or long bundles are involved.

Install & design notes

• Plan PoE budgets assuming the 240 W total is shared across PoE ports 1–4.
• Use redundant DC inputs where uptime is important; connect to separate 48 VDC supplies or feeds where practical.
• Mount in a ventilated enclosure or cabinet; while extended-temperature rated, good airflow improves longevity.
• Observe IP40 limits—protect against dust and moisture as required by the installation environment.

Canada-ready checklist

• ✓ Temperature range suited to many Canadian utility rooms, warehouses and sheltered outdoor enclosures (within IP40 limits).
• ✓ Ideal for small PoE zones in shops, barns and detached buildings where DC power is available.
• ✓ Compatible with common Canadian structured cabling and PoE practices.

Compatibility micro Q&A

Are all eight ports PoE?
The switch provides eight copper ports with 802.3af/at PoE+ injection on ports 1–4. Plan PoE devices on those ports accordingly.

Do I need a special power supply?
You’ll need a 48–57 VDC source such as the POEJK-PS48 family (sold separately). Dual inputs allow redundant power designs where required.

Specifications are subject to change without notice. Always verify details against the latest GRID documentation before design or tender.
