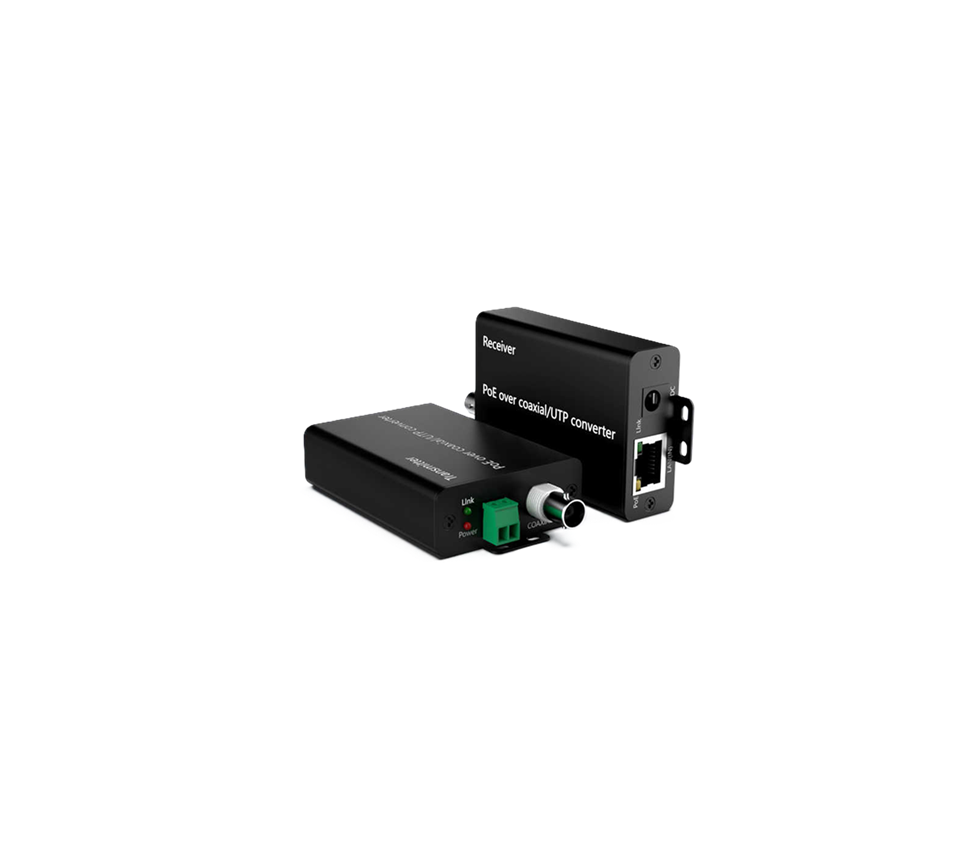

Grid IP/PoE over Coax & 2-Wire Extender | 100 Mbps up to 500 m / 1,640 ft Retrofit Ethernet | POEJK-2WIRE

Overview

The POEJK-2WIRE is a compact IP / PoE extender that pushes 10/100 Mbps Ethernet data and 802.3af/at PoE over existing 2-wire copper or coax. It’s designed for retrofit projects where you want to get an IP camera, intercom, access point or PoE-powered device to a location that only has legacy cabling—without opening walls to pull new Cat6.

Each link uses a pair of POEJK-2WIRE units (one at the network/PoE side and one at the remote device side). With suitable copper, you can reach up to 500 m / 1,640 ft and still deliver PoE power up to 30 W to the far end.

If you’re searching for an IP-over-coax or IP-over-2-wire PoE extender for long runs in Canadian buildings, POEJK-2WIRE is the GRID ecosystem answer.

Key features

• 10/100 Mbps Ethernet over 2-wire or coax – extends 10/100 Mbps data plus PoE/PoE+ over legacy copper.
• PoE / PoE+ support – passes 802.3af/at power with up to 30 W max PoE to the remote device (within distance and cable limits).
• Long-reach extension – up to 500 m / 1,640 ft on suitable 2-core pure copper pair or copper coaxial cable.
• Two-wire or coax options – use BNC for coax or the 2 × 3.81 mm Phoenix terminal for 2-wire twisted pair.
• Pair-based design – devices are used in pairs; one unit at the PoE switch side, one at the remote device.
• Flexible power input – can be powered from upstream PoE or via external DC 44–57 V power supplies when PoE isn’t available (power supplies not included).
• Point-to-point simplicity – ideal for single camera, door controller or POE-Jack® runs over existing copper.

Technical highlights

Ideal applications

• Reusing existing coax or 2-wire from old analog cameras to carry IP cameras and PoE.
• Upgrading door phones, gates and intercoms in older Canadian buildings where only 2-wire is present.
• Running PoE to garages, barns, sheds or outbuildings using spare low-voltage pairs or coax.
• Renovations where opening finished walls or core drilling for new conduit would be costly.

Compatibility & ecosystem

POEJK-2WIRE is designed to work alongside GRID PoE switches and Active POE-Jack® deployments as a long-reach “bridge” where Cat6 isn’t practical. One unit lives near the PoE switch, the other near the remote IP device or POE-Jack® node.

The extender simply presents regular RJ45 Ethernet + PoE at each end, so it is compatible with IP cameras, access control panels, small PoE switches, POE-Jack® in-wall switches and other standards-based powered devices.

Install & design notes

• Always use pairs of POEJK-2WIRE units on each extended link (head-end and remote).
• Verify that the existing copper is pure copper (not copper-clad steel or aluminum) and in good condition.
• Use dedicated pairs or coax runs; avoid sharing conductors with other systems.
• At long distances, treat 30 W as an upper bound—real-world available power at the far end will depend on cable gauge and condition.
• If upstream PoE is not available, budget for DC 44–57 V power supplies at the appropriate end(s).

Canada-ready checklist

• ✓ Ideal for Canadian retrofits where running new Cat6 is difficult (heritage buildings, condos, farm structures).
• ✓ Works with typical RG59/RG62 coax and 2-wire low-voltage pairs found in older camera and doorbell installs.
• ✓ Helps extend PoE into unconditioned spaces like detached garages (within product temperature limits and code).
• ✓ Reduces unnecessary demolition and patching in finished basements and suites.

Compatibility micro Q&A

Can I get Gigabit over POEJK-2WIRE?
No. POEJK-2WIRE is designed for 10/100 Mbps Ethernet. In most IP camera and access control applications, 100 Mbps is more than sufficient.

Do I have to use coax, or can I use any 2-wire?
You can use either 2-core pure copper wire or copper coaxial cable. Avoid copper-clad conductors, alarm wire with very small gauge, or mixed conductors in the same sheath.

Can I use just one unit as an adapter?
No. Each link requires two POEJK-2WIRE units—one at each end of the legacy cable run.

Specifications and features are subject to change without notice. Always verify final details with the latest GRID documentation before design or tender.
