Panasonic FV-21VEC1S BalancedHome 210 Elite Plus+ Side-Port ERV | FV21VEC1S

Panasonic FV-21VEC1S BalancedHome 210 Elite Plus+ Energy Recovery Ventilator

The Panasonic FV-21VEC1S is a BalancedHome 210 Elite Plus+ energy recovery ventilator for residential balanced ventilation projects. This side-port ERV is intended for HVAC dealers, contractors, builders, and integrators specifying a Panasonic ERV with adjustable supply and exhaust airflow from 40 to 210 CFM.

Key Benefits

• Balanced ventilation: Provides tempered supply air while exhausting stale indoor air.
• Adjustable airflow: Independent supply and exhaust settings from 40 to 210 CFM.
• Side-port configuration: Uses four horizontally oriented 6-inch ducts for supply, exhaust, room air, and room return air.
• ECM motor design: Two DC-enclosed ECM brushless motors are rated for continuous run.
• Filtration included: Includes MERV 13 filter FV-FL1321VE1; washable MERV 6 replacement option FV-FL0621VE1 is available.
• Code-support features: Built-in ASHRAE 62.2 timing function and fault indication support professional ventilation compliance work.

Dealer / B2B Use Case

Use the FV-21VEC1S for single-family residential ventilation projects where a higher-capacity Panasonic BalancedHome Elite Plus+ ERV is required and a horizontal side-port layout fits the mechanical design. It is suitable for dealer quoting, HVAC specification, builder packages, and code-driven ventilation upgrades where confirmed airflow, duct routing, controls, and regional compliance requirements must be reviewed before purchase.

Technical Specifications

Brand	Panasonic
Model	FV-21VEC1S
Product family	BalancedHome 210 Elite Plus+
Product type	Energy Recovery Ventilator, ERV
Port configuration	Side port / horizontally oriented ducts
Airflow range	40 to 210 CFM adjustable supply and exhaust
Boost capability	Occupant-controlled boost up to 210 CFM
Motor type	Two DC-enclosed ECM brushless motors
Power rating	120V / 60Hz, 3.1 amps
Duct connections	Four 6-inch ducts
Housing	Galvanized, corrosion-resistant steel body
Included filter	MERV 13 filter, FV-FL1321VE1
Optional filter	Washable MERV 6 filter, FV-FL0621VE1

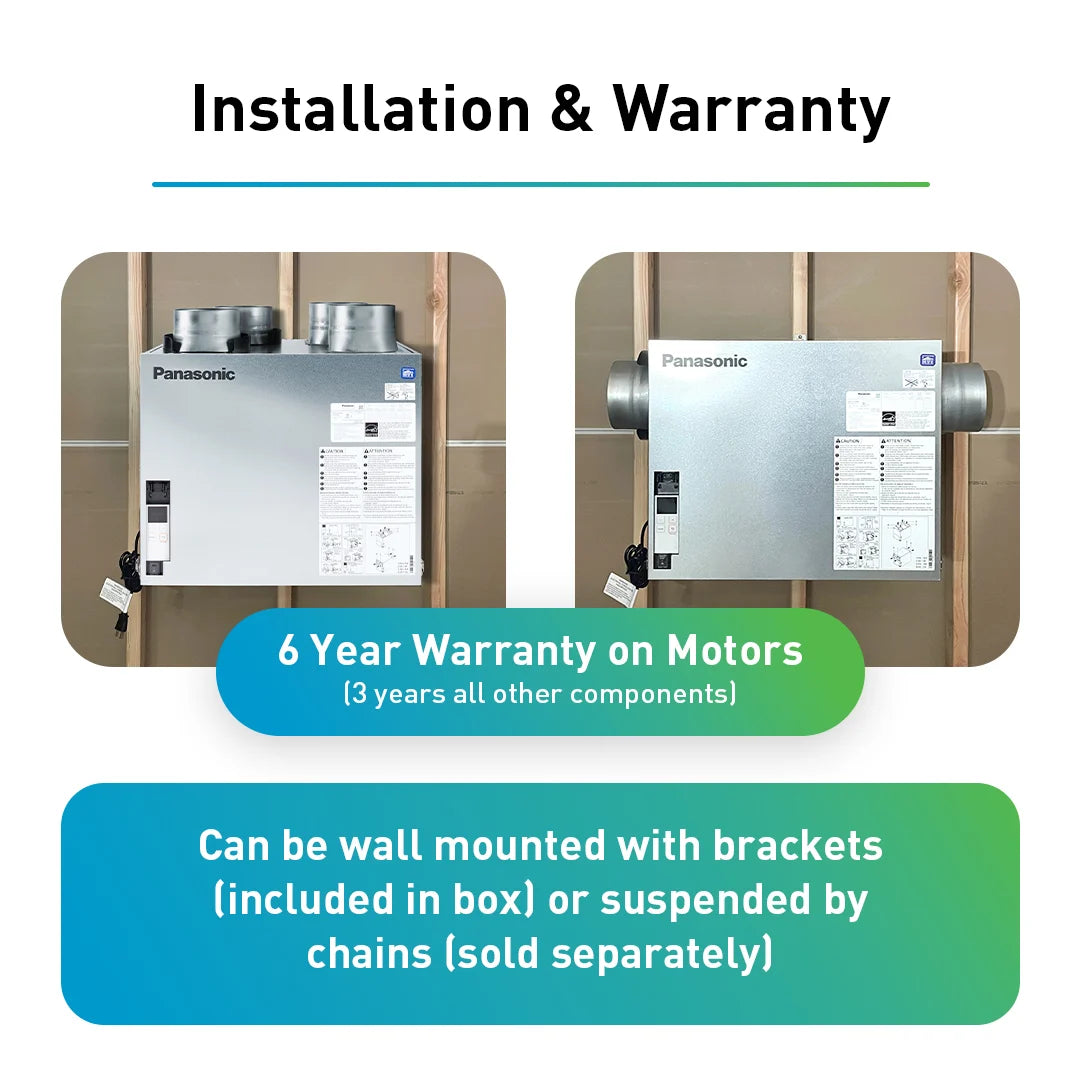

Mounting	Wall mount brackets included; chain suspension supported with chains sold separately
Warranty stated by Panasonic	6 years on ECM motors; 3 years on all other parts from original purchase date

Compatibility / Application Notes

• Optional touch screen LED wall control / Fault Indicator Display: FV-SCVE2, sold separately.
• Optional Wi-Fi control module: WP100PBA, sold separately.
• Optional push-button boost timer: FV-SWLV1060, sold separately.
• Panasonic states the unit is engineered for use in any North American climate zone.
• ENERGY STAR certification language is region-dependent; Panasonic notes this applies to the Canadian market only for ERVs.

Ordering / Dealer Notes

Confirm project airflow requirements, duct routing, wall control requirements, filter replacement plan, and regional code documentation before ordering. Use FV-21VEC1S when the side-port version is required; FV-21VEC1T is the related top-port model in the same BalancedHome 210 Elite Plus+ family.

Why Dealers Choose This Product

The FV-21VEC1S gives dealers a higher-capacity Panasonic BalancedHome ERV option with documented 40 to 210 CFM adjustability, ECM motors, included MERV 13 filtration, 6-inch duct connections, and side-port installation flexibility for professional residential ventilation projects.
