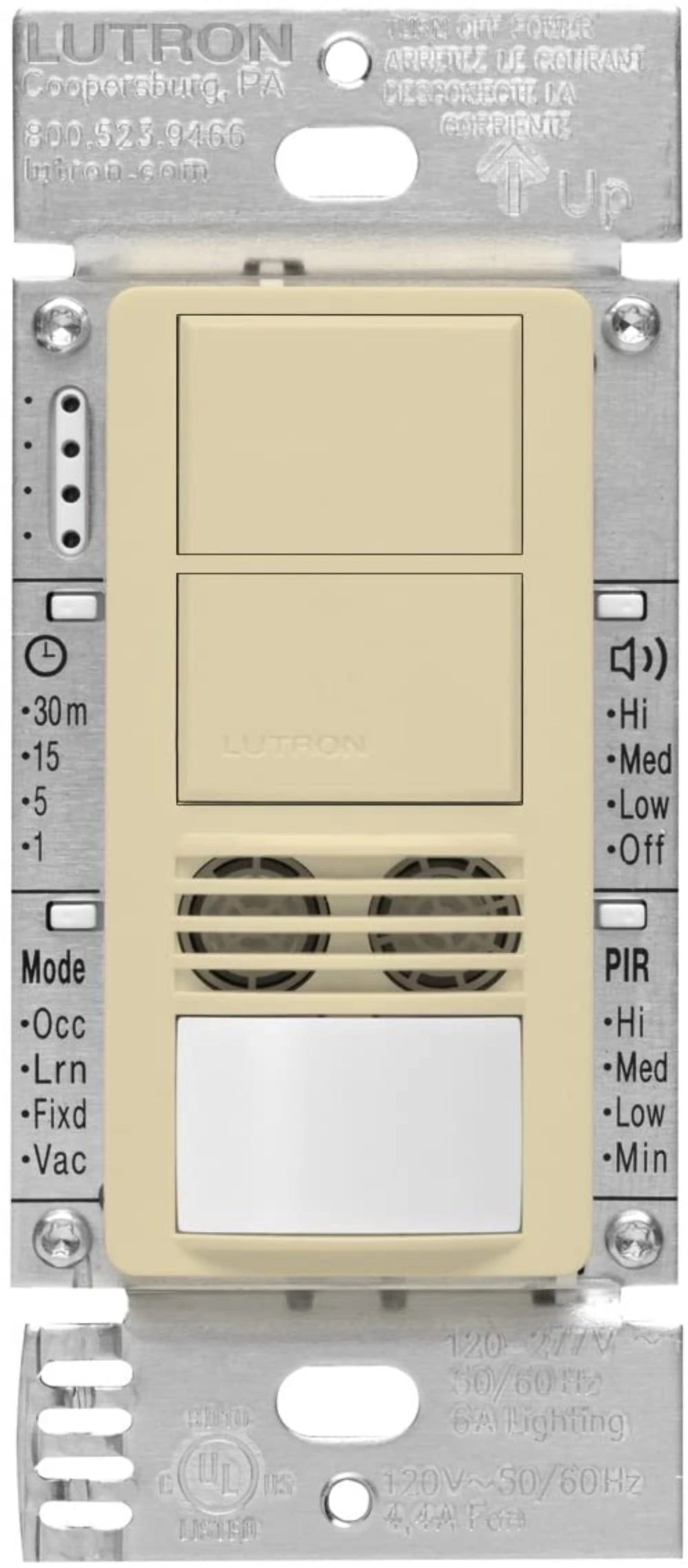

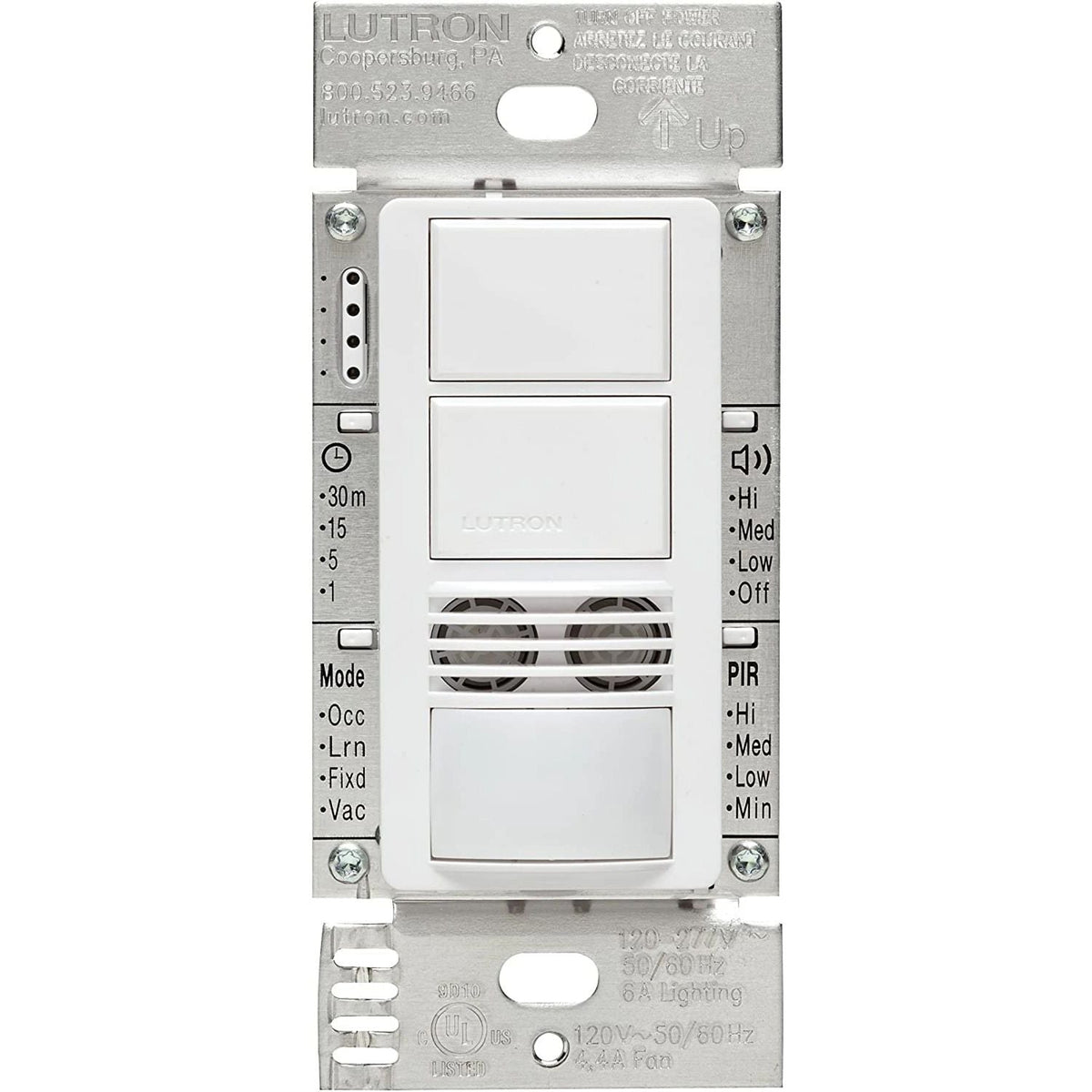

Lutron Maestro Dual-Tech Motion Sensor - PIR + Ultrasonic | MS-B202

The Lutron Maestro Dual Circuit Dual-Tech Motion Sensor Switch combines two switches with ultrasonic waves and passive infrared (PIR) technology to ensure reliable automatic sensing. Each circuit can be controlled independently as an occupancy/partial-on sensor to meet energy codes (e.g., ASHRAE). This Dual Circuit Dual-Tech motion sensor controls 2 individual single pole circuits each rated for up to 6A of lighting or 4.4A (1/6HP) fan motors. The sensor has a 180-degree field of view (900 sq ft major motion & 400 sq ft minor motion coverage) and is covered with a tamper resistant lens. It can be used to meet many of the Title 20/24, ASHRAE 90.1, and IECC code requirements such as “automatic shutoff” and “multi-level lighting control”. This Lutron Maestro Dual Circuit and Dual-Tech Motion Sensor features Dual Sensing Technology (PIR and ultrasonic) which detects very fine motion, such as typing at a desk or reading, ensuring lights do not turn off inadvertently. Lutron Maestro Sensors have an adjustable timeout (1, 5, 15 or 30 minutes), to control how long the lights stay on after leaving the room. Lutron’s, patent pending, adaptive zero-cross switching algorithm extends and maximizes the relay’s life by switching at the point of minimum energy on the AC power curve. It’s also equipped with smart ambient light detection (ALD), allowing you to customize your sensor to detect daylight, so lights don't turn on when there is enough natural light in the room. Easy to read programming buttons are directly on the sensor switch. Includes multiple settings such as, timeout, sensitivity, and programmable circuit swapping – eliminating the need to rewire the sensor after installing. Available in 10+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

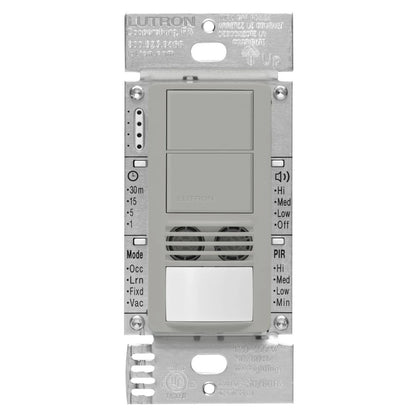

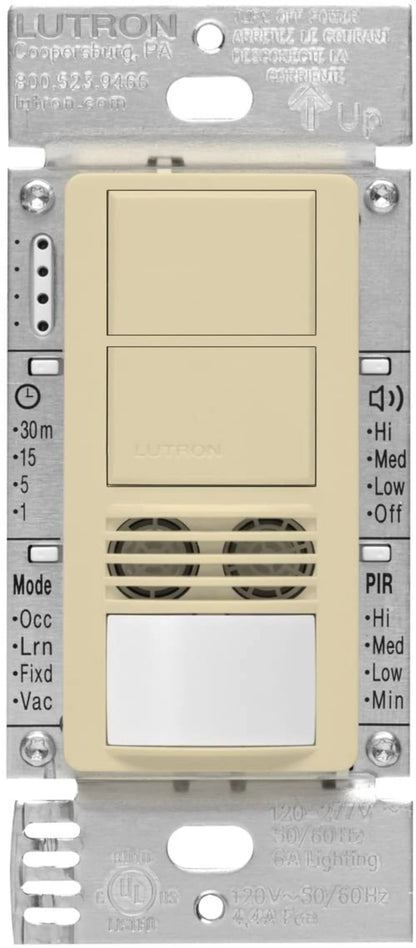

-Includes (1) Lutron Maestro Dual Circuit Dual-Tech Motion 6A Sensor Switch; Gloss Finish
-Controls (2) individual circuits, each rated up to 6A lighting, 4.4A (1/6HP) fans motors, or 4.4A combined fan/light
-Ground or Neutral required; 120-277V
-Functions as either (2) single pole circuits or (1) single pole and (1) 3-way circuit with an existing 3-way switch
-Lutron Dual Sensing Technology: Ultrasonic and PIR (Passive-Infrared) for major, minor, fine, and very fine motion detection
-180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); tamper resistant lens
-Smart Ambient Light Detection (ALD) can be programmed so lights stay off if enough light is present in the room
-Complies with Title 20/24, ASHREA 90.1 and IECC requirements for “automatic shutoff” and “multi-level lighting control
-Easy to read programming buttons directly on sensor; Settings include timeout, sensitivity, and programmable circuit swapping (eliminates rewiring after installation) and more

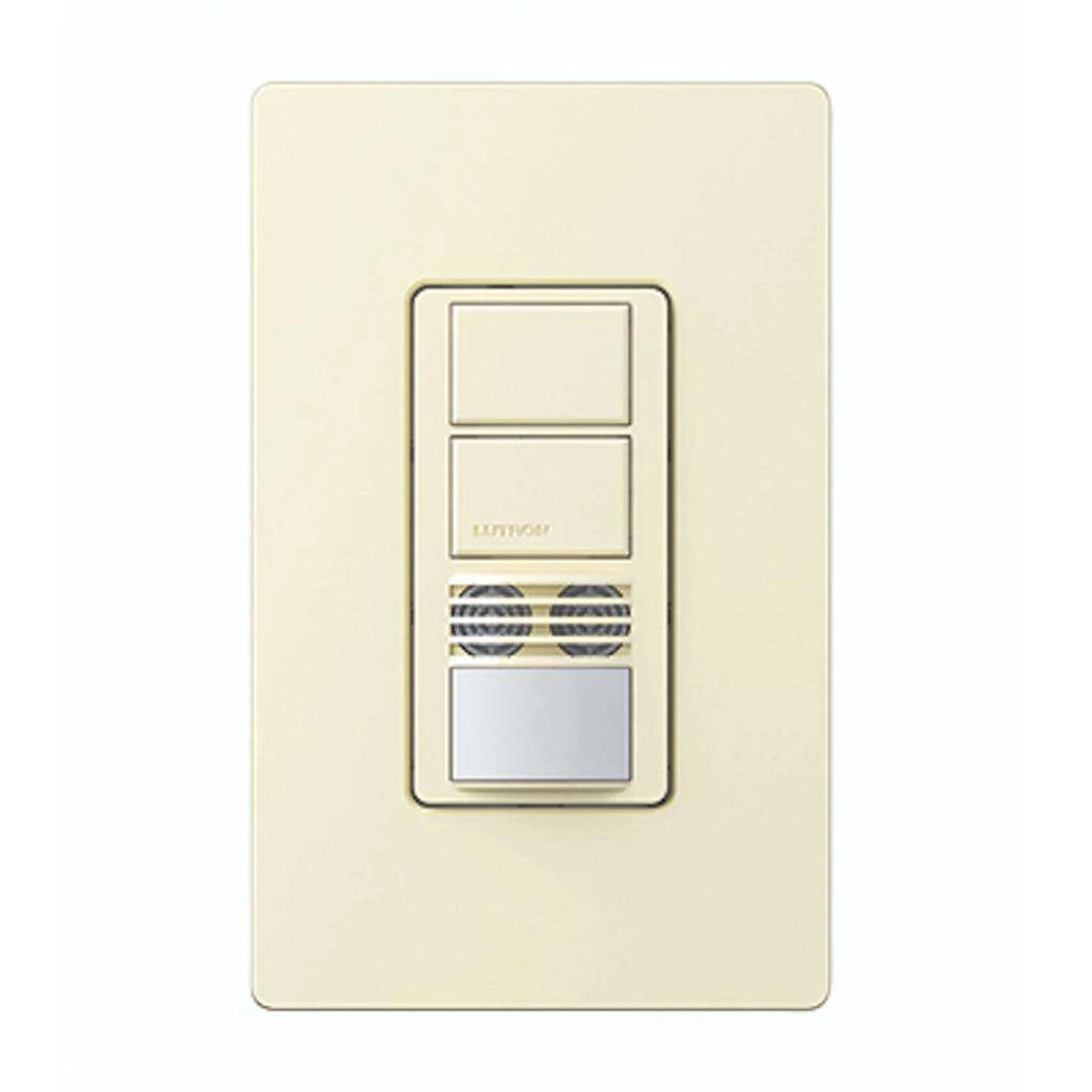

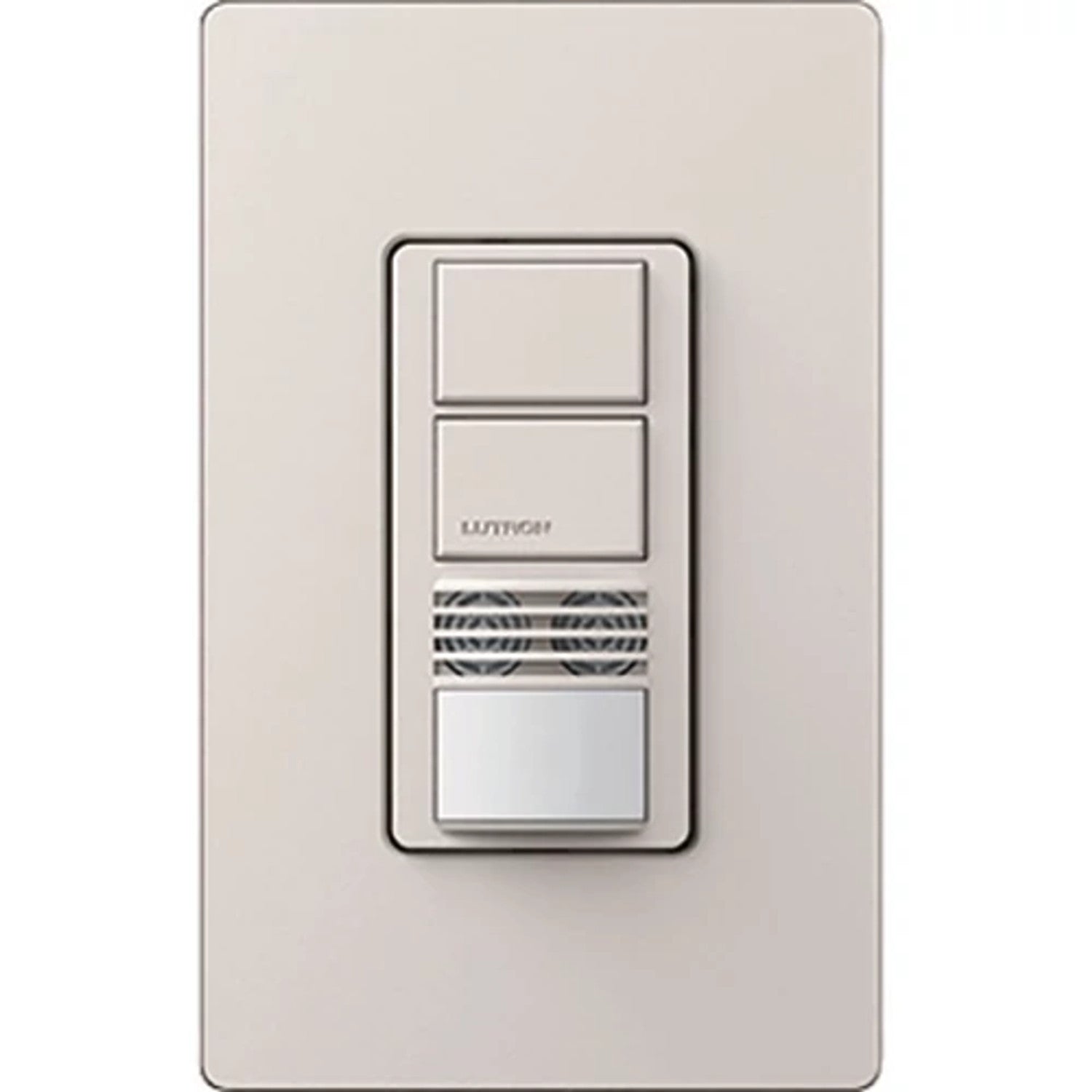

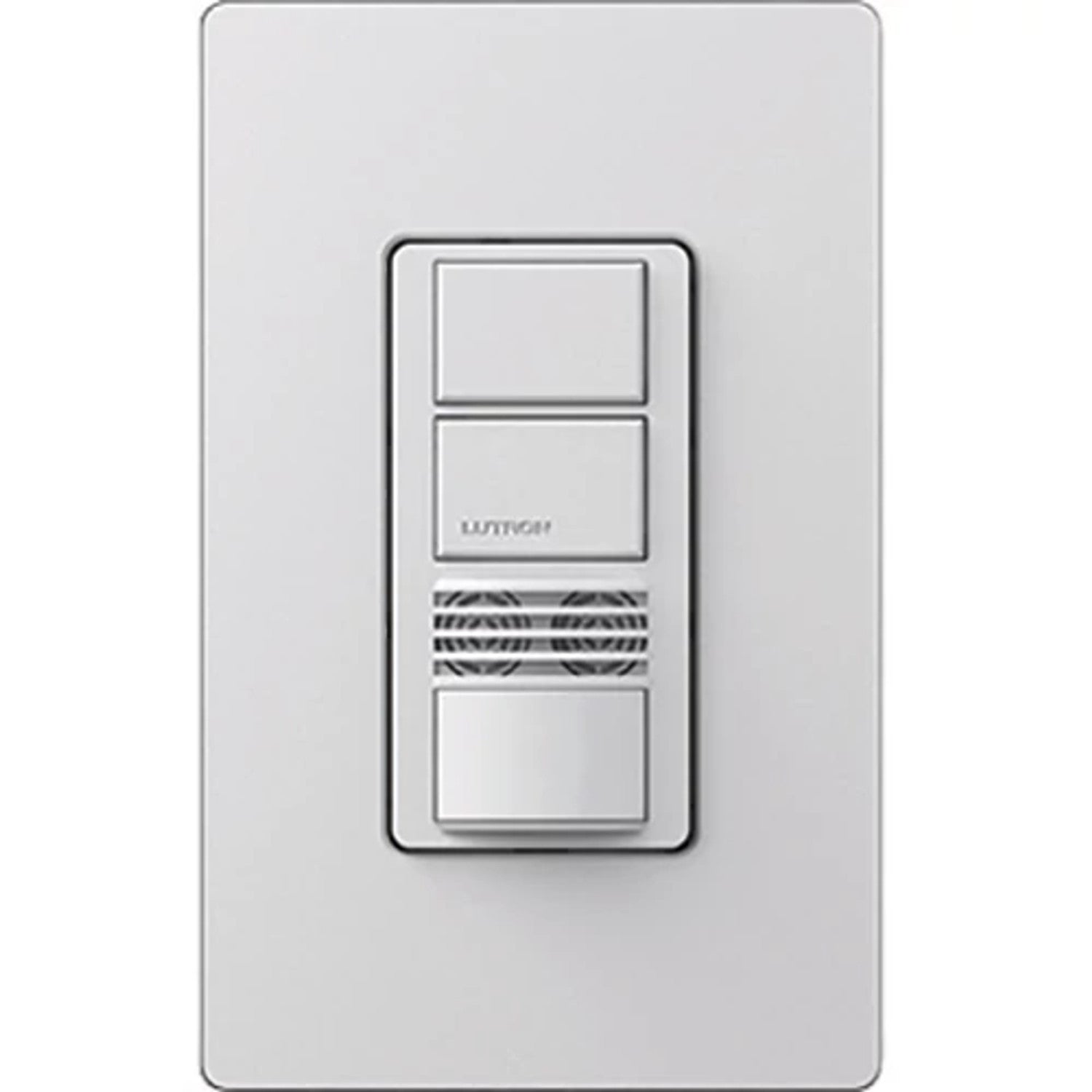

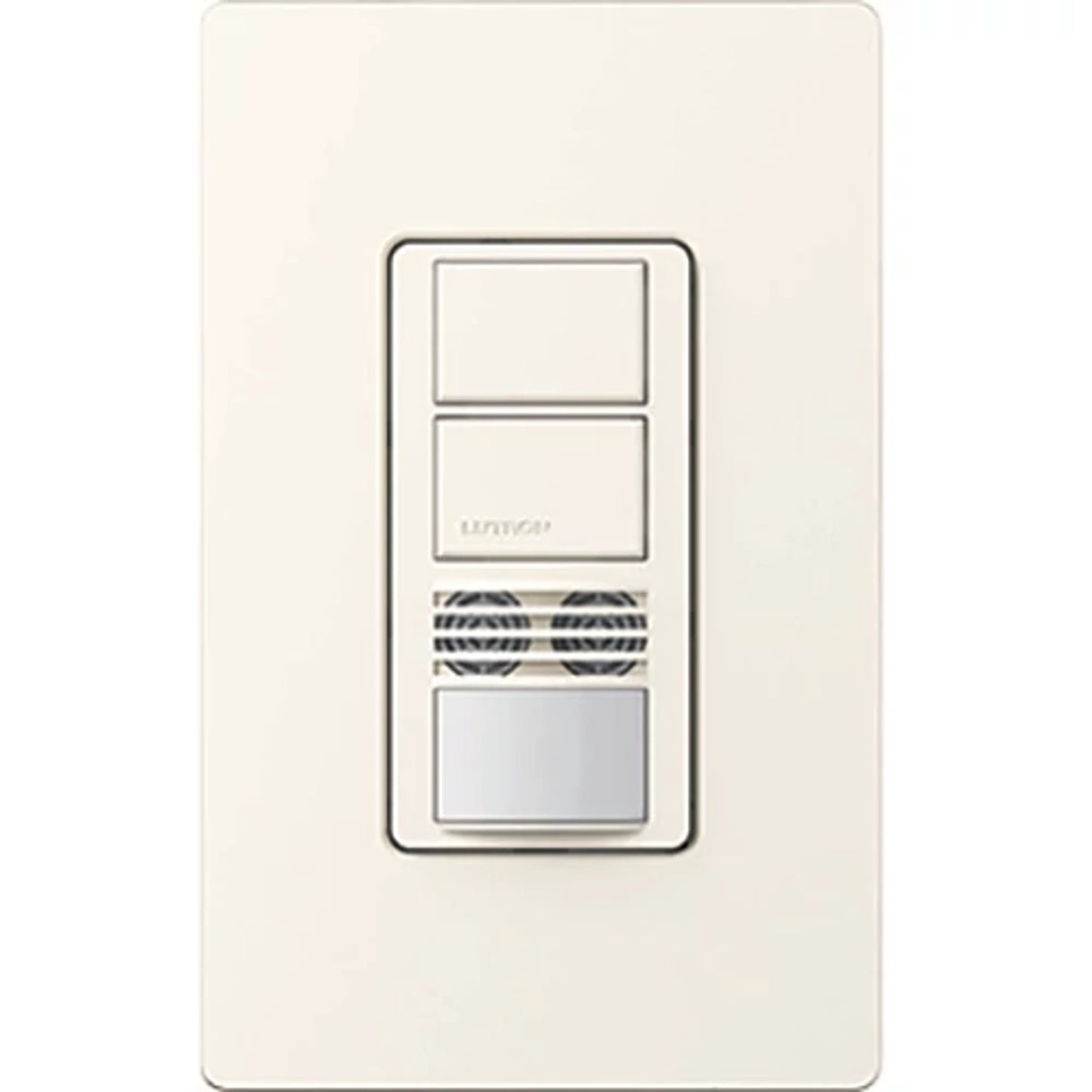

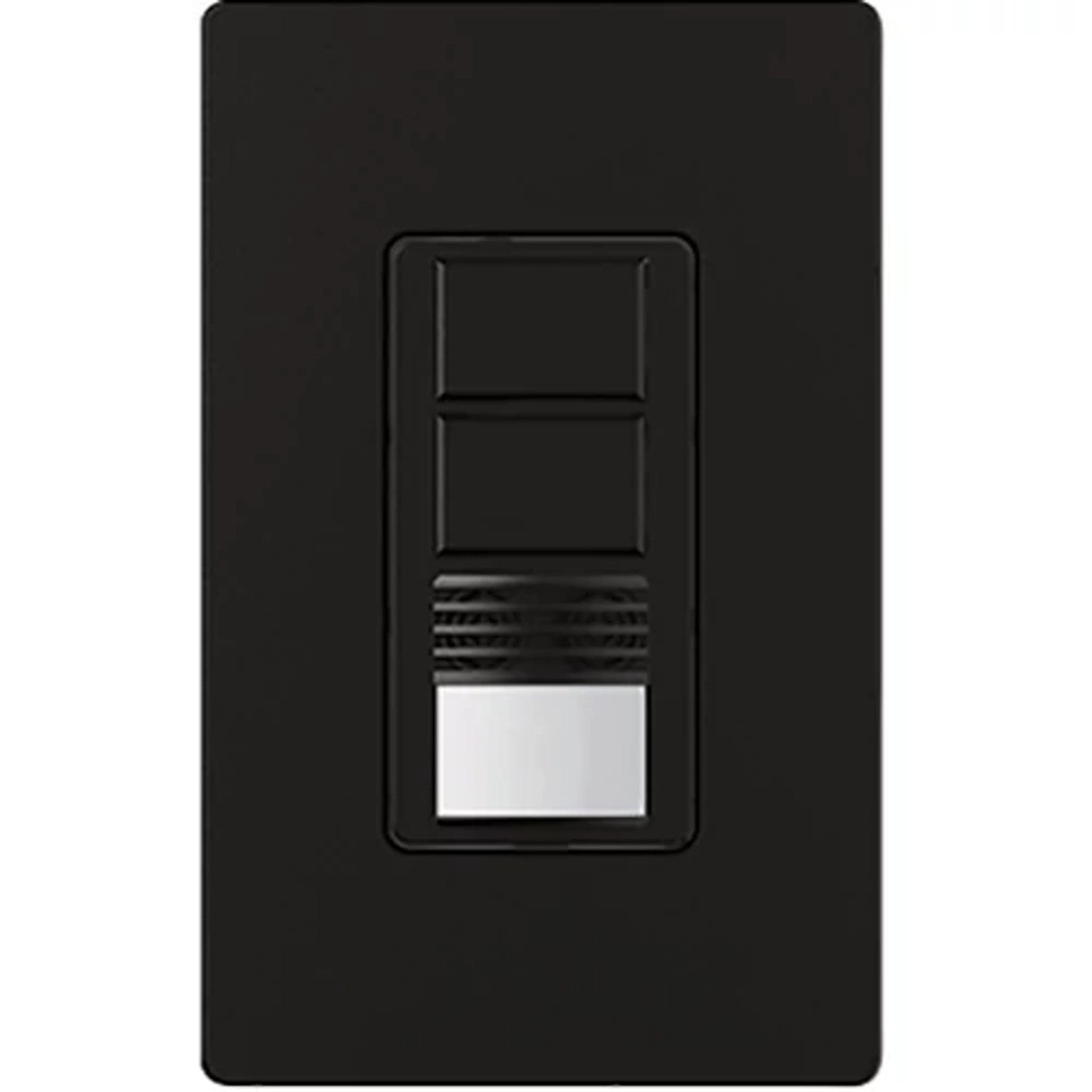

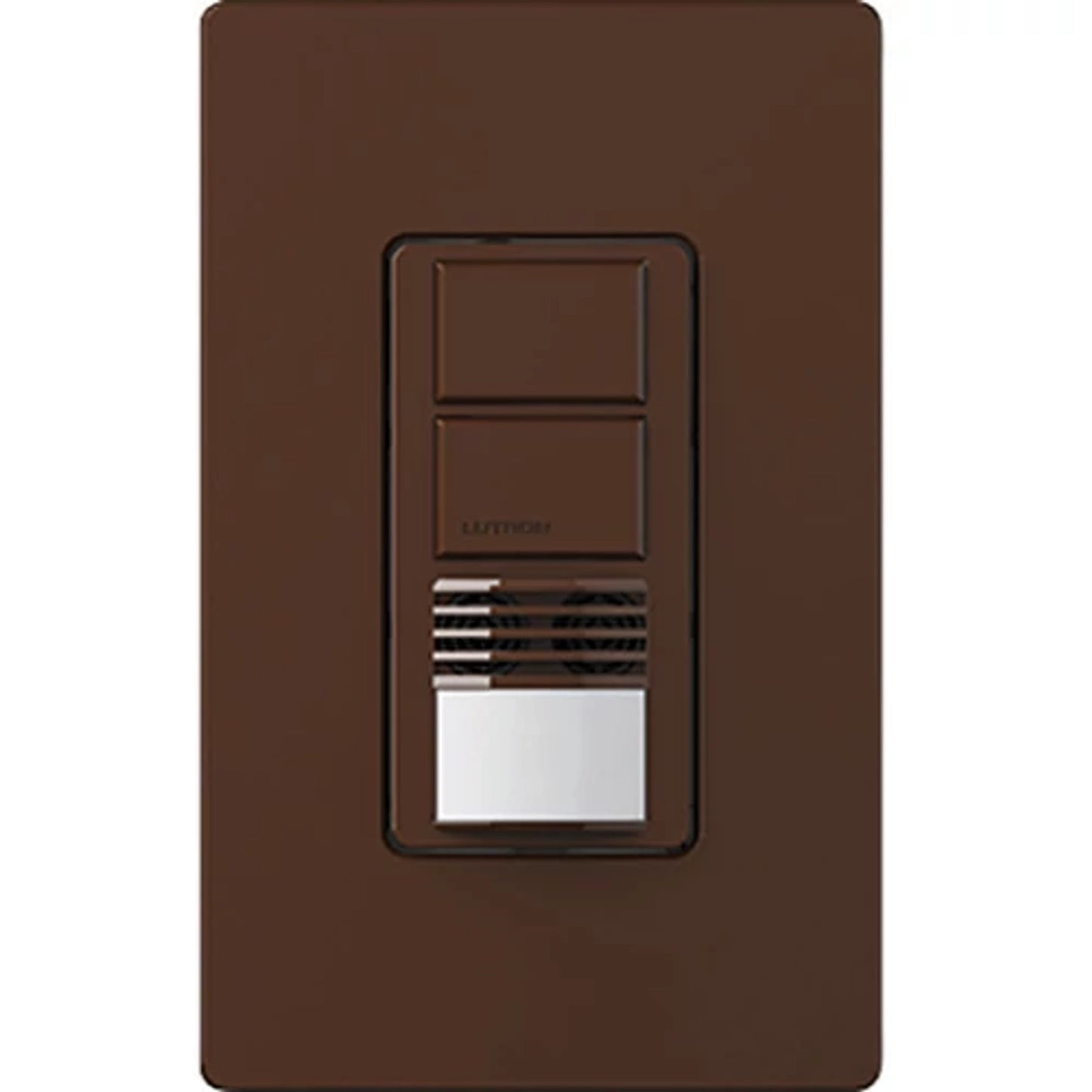

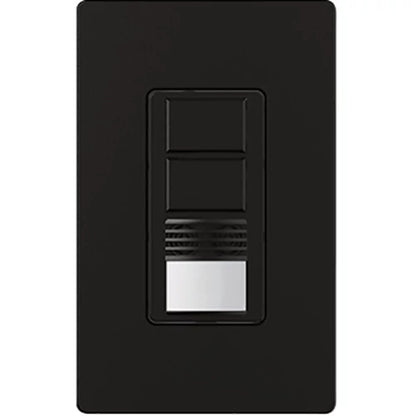

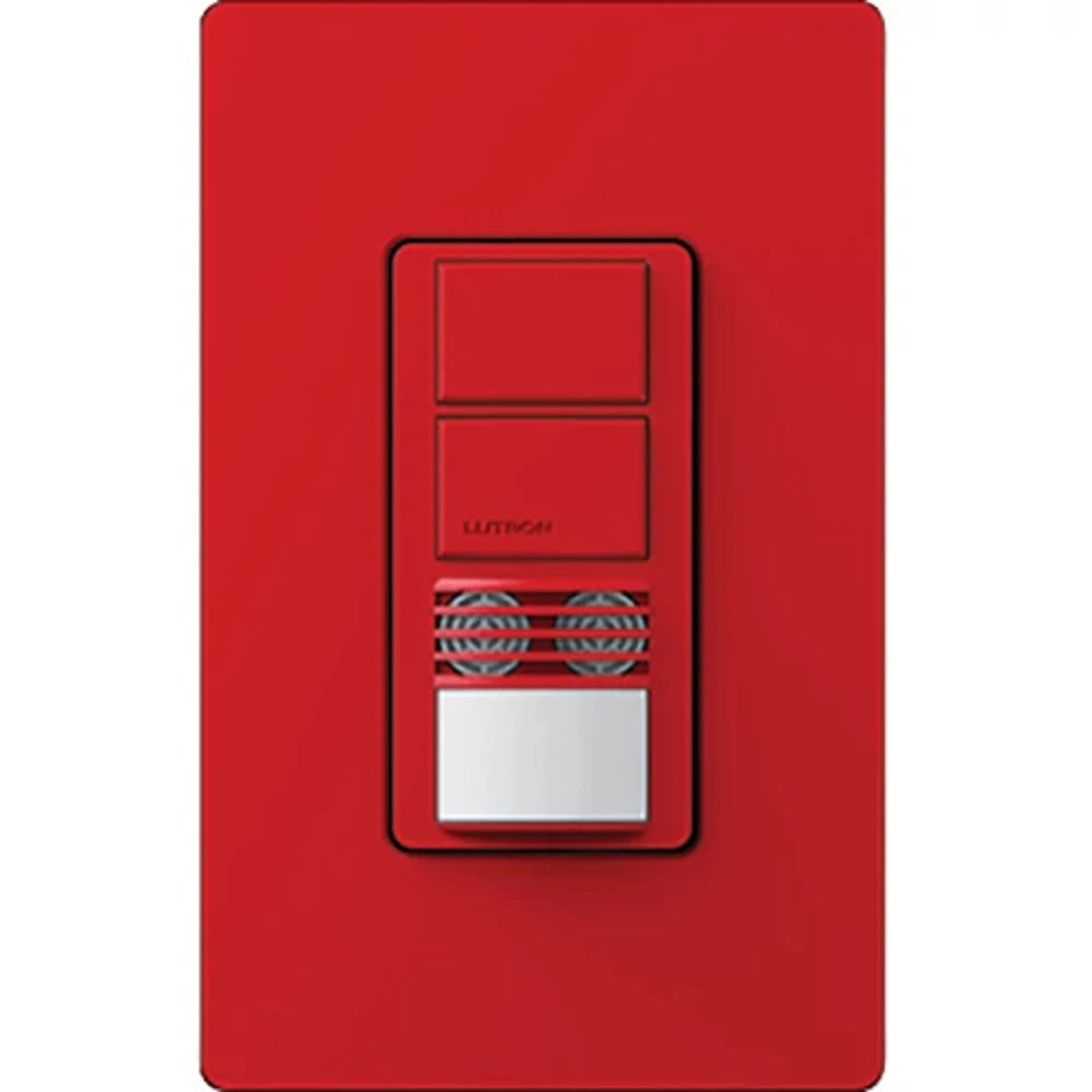

-Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
