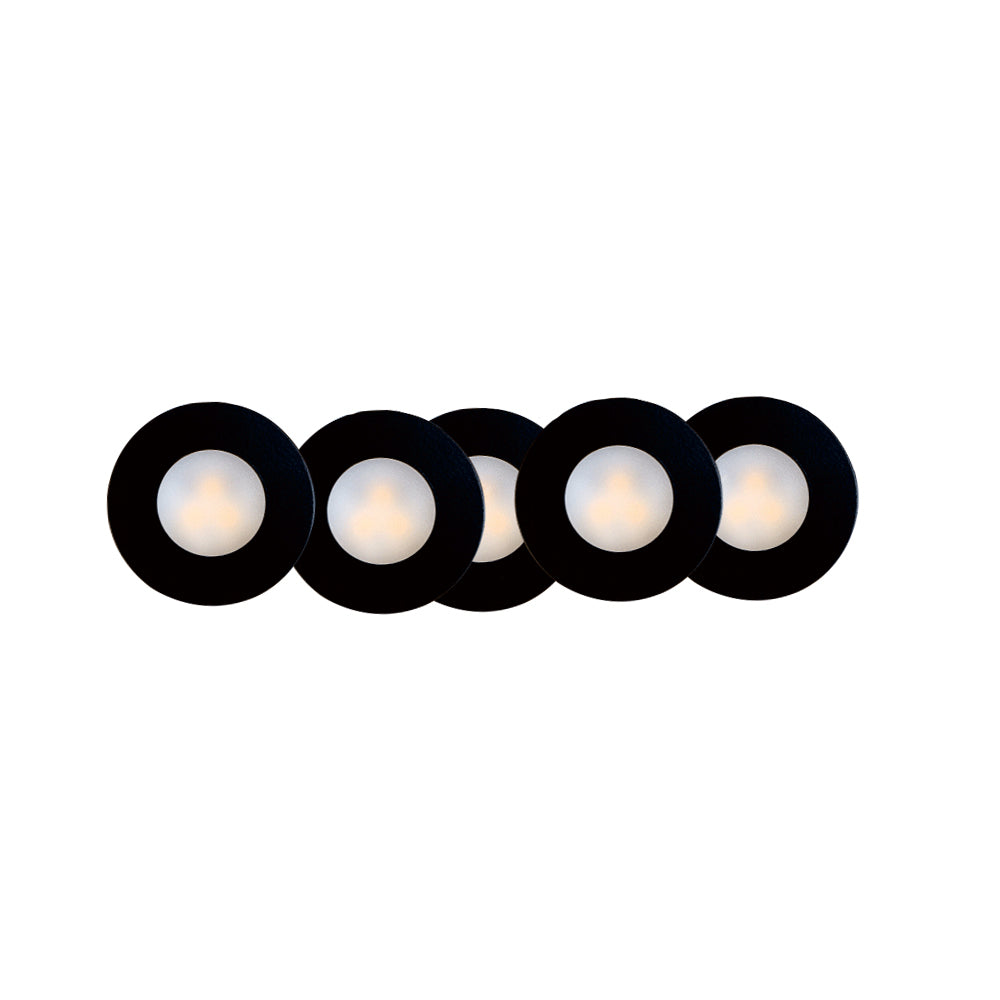

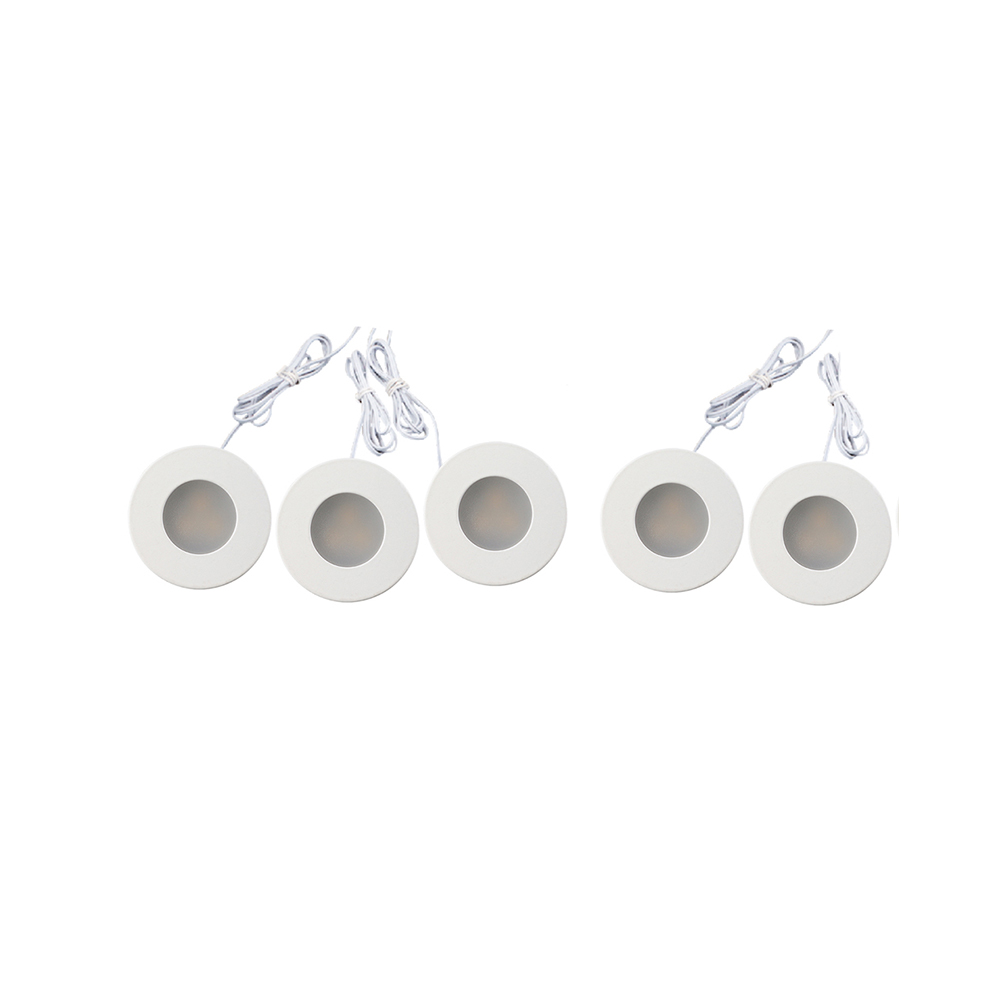

Lotus 5 Pack Mini Puck 1" LED 12V 1W 30K 70 lm Without Connectors | AD-108-5
Lotus 5 Pack Mini Puck 1" LED 12V 1W 30K 70 lm Without Connectors | AD-108-5
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:5P-AD108-3K
MPN: 6P-AD108-4K-D-H-BK
Shipping terms (Free over $300) calculated at checkout.
Overview
The Lotus LED AD-108 6-Pack is a comprehensive architectural-spec kit designed for precision recessed lighting in cabinetry, displays, and niche applications. This low-voltage system provides a complete plug-and-play solution, featuring six ultra-compact 1-inch mini pucks, a 6-port hub, and a dedicated plug-in driver for streamlined installation.
Key Features
- Full contractor-grade kit includes 6 mini puck lights, a 6-port hub, and a 12V DC plug-in driver.
- Exceptional color accuracy with a CRI of 90+ for high-end display environments.
- Ultra-low profile design with a 5/8-inch depth ideal for shallow shelving and soffits.
- Air-tight construction and approved for damp locations to ensure long-term durability.
- Efficient 1W LED performance delivering crisp 4000K cool white illumination.
Technical Specifications
- Energy Used: 1W per puck
- Halogen Equivalent: 5W
- Light Output: 80 lm
- Color Temperature: 4000K
- CRI: 90+
- Beam Angle: 100°
- Input Voltage: 12V DC (Pucks) / 120V AC (Plug-in Driver)
- Fixture Dimensions: 1" ID, 1 5/16" OD, 5/8" Depth
- Cutout: 1 1/16"
- Approved Location: Damp Locations
- Air Tight: Yes
- Projected Life: 70% light output at 50,000 hours
- Certification: cETLus
- Driver: Non-dimmable plug-in driver included (Model WLS-PD30LU-24)
- Daisy Chain Capability: Connect up to 10 puck lights to the included driver
- Warranty: 3 Year
