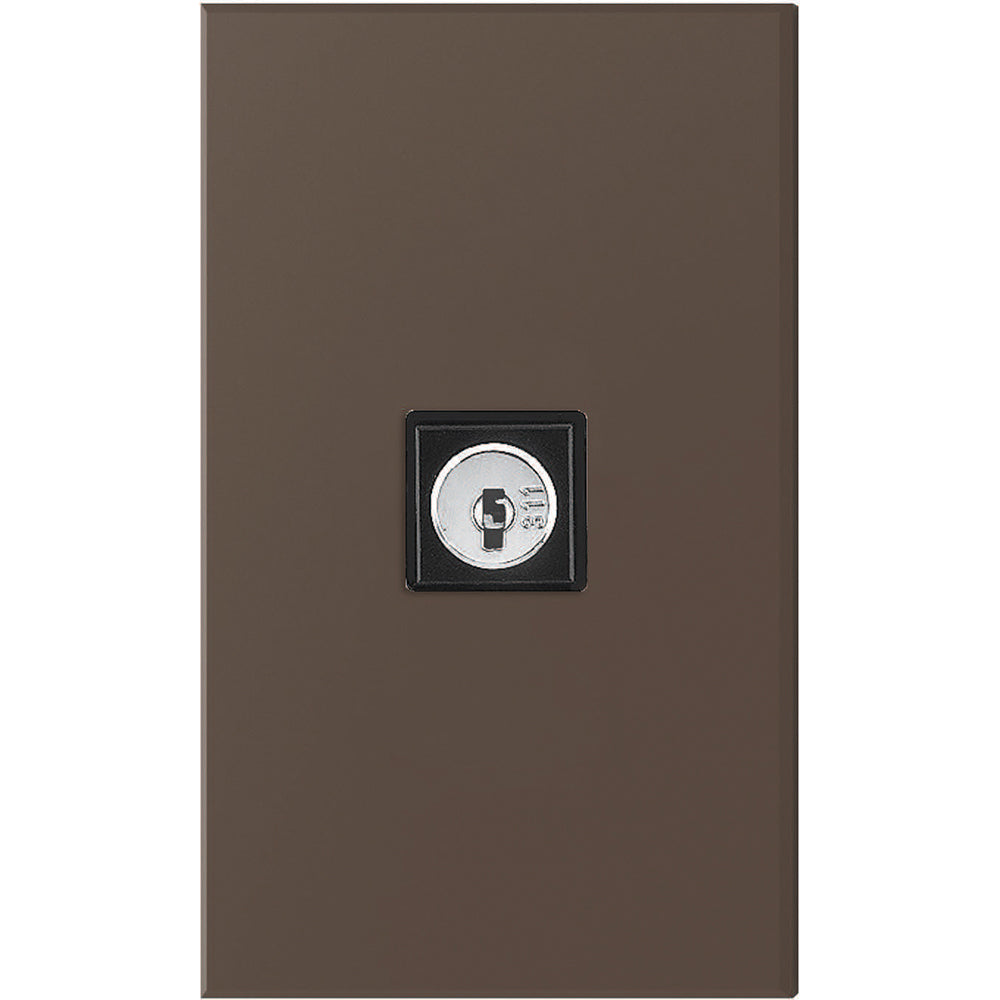

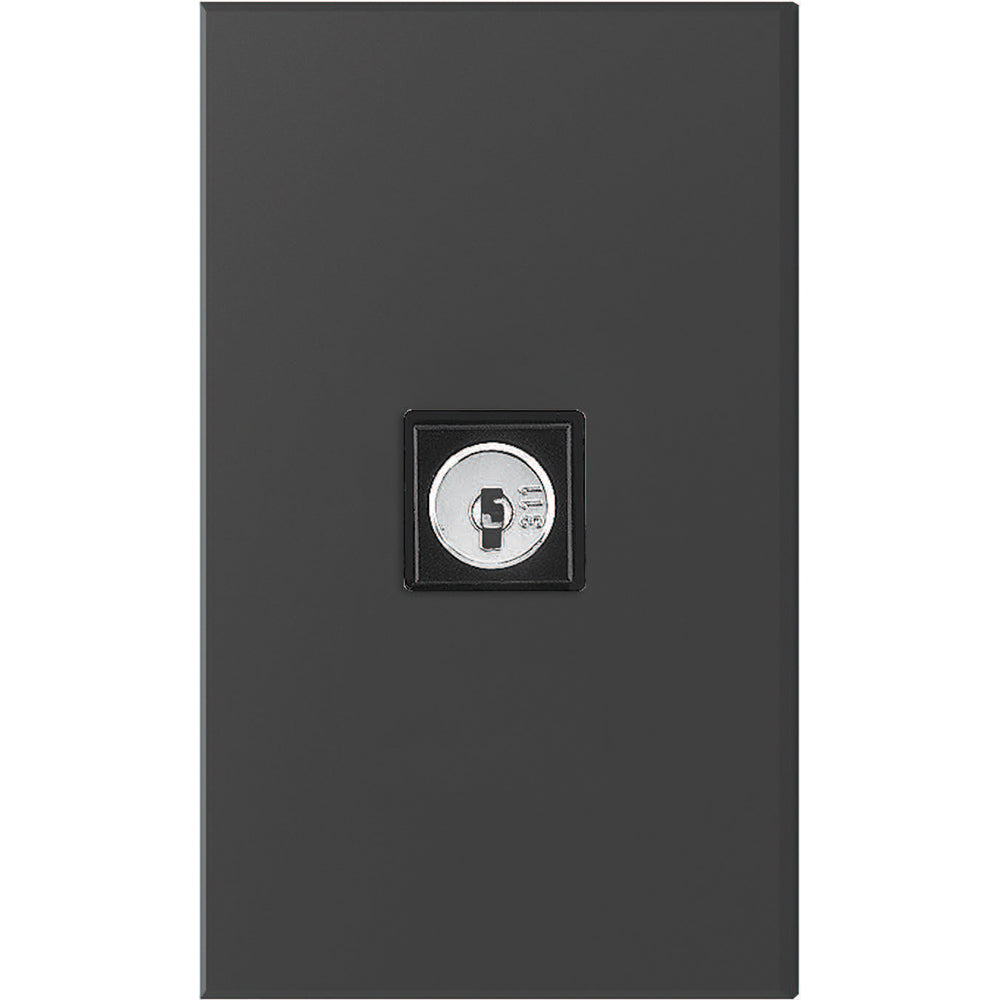

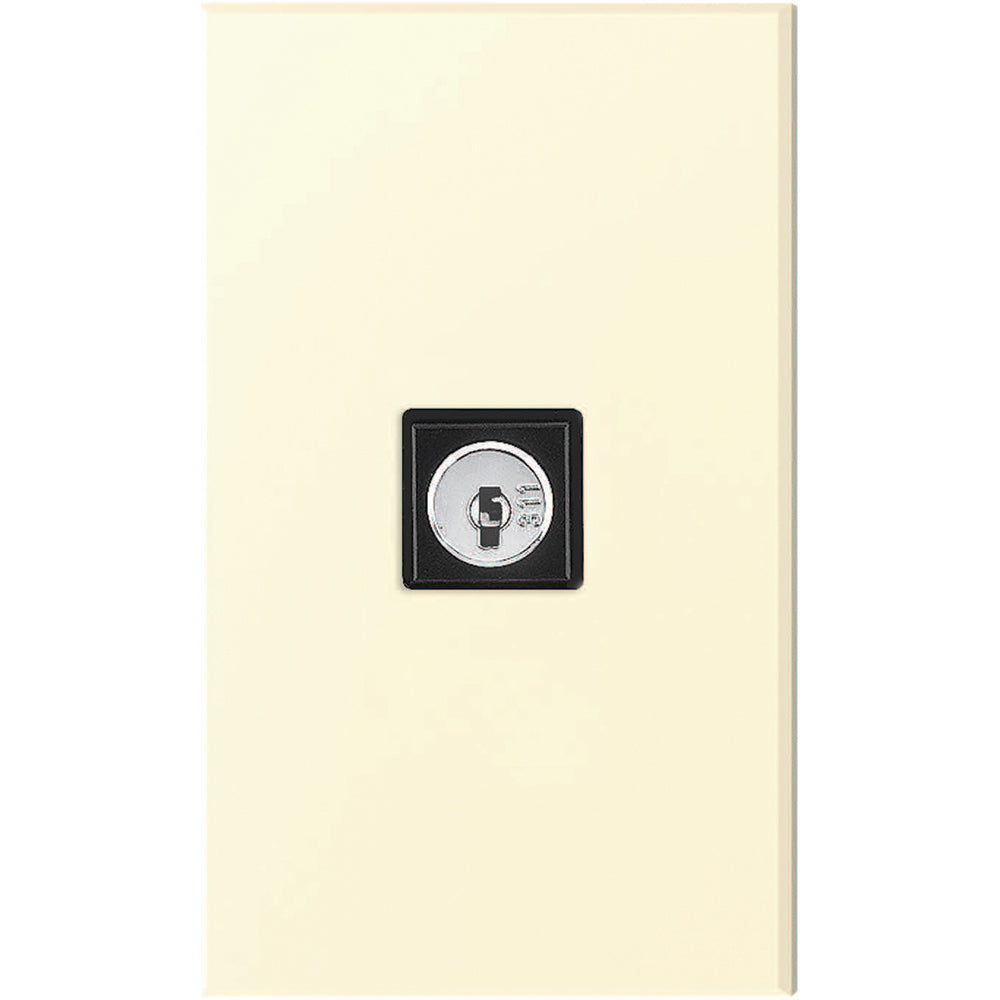

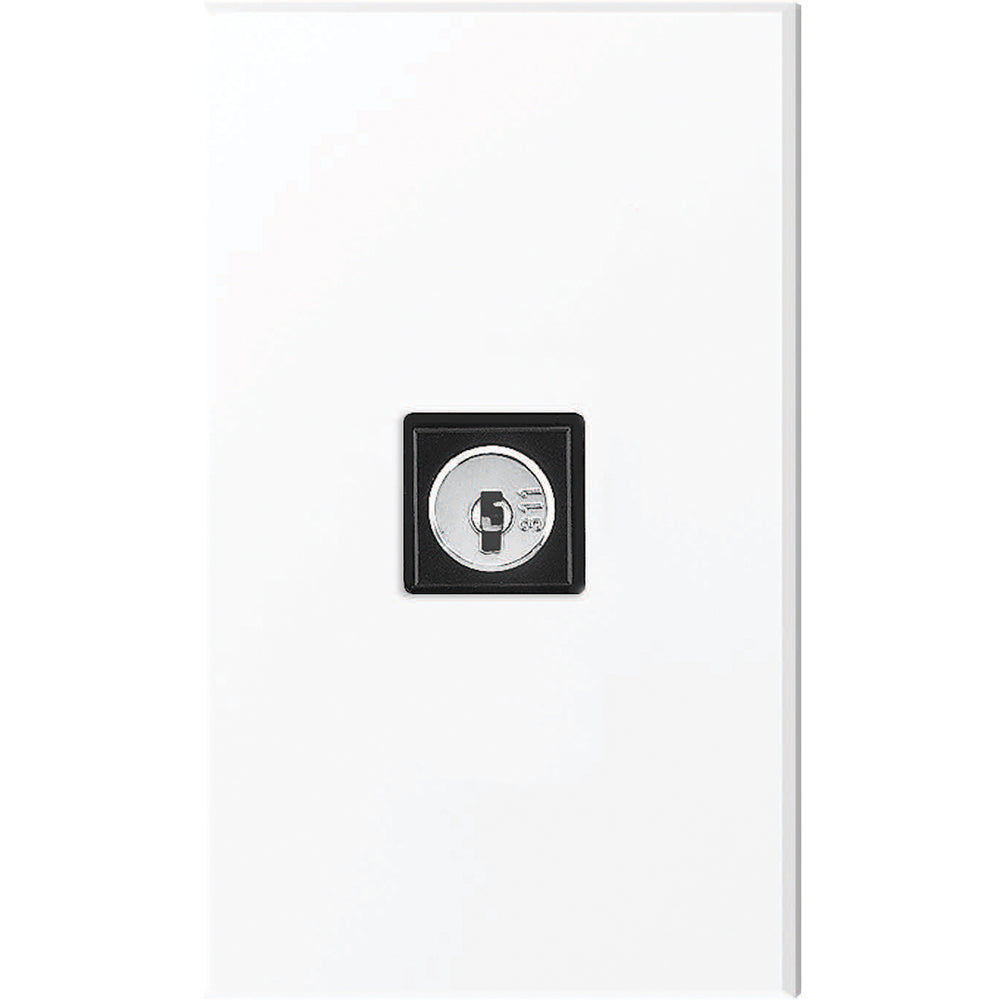

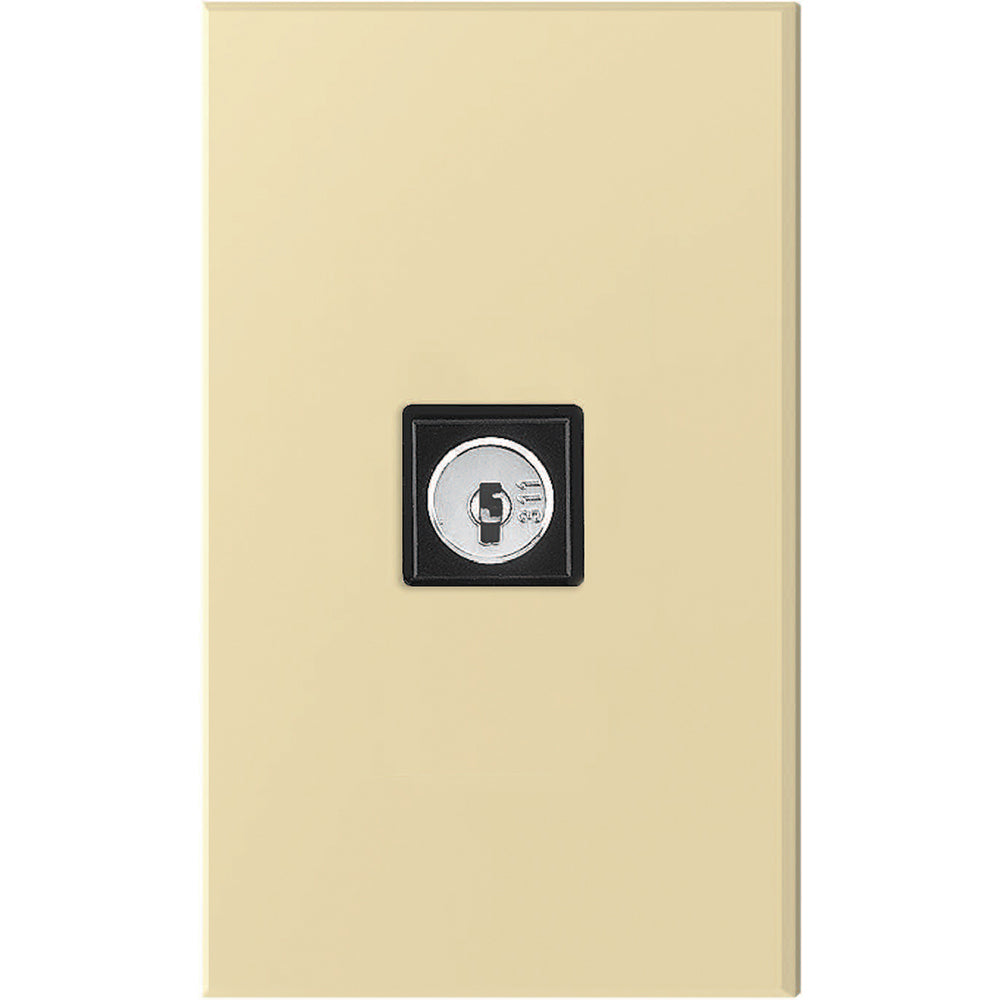

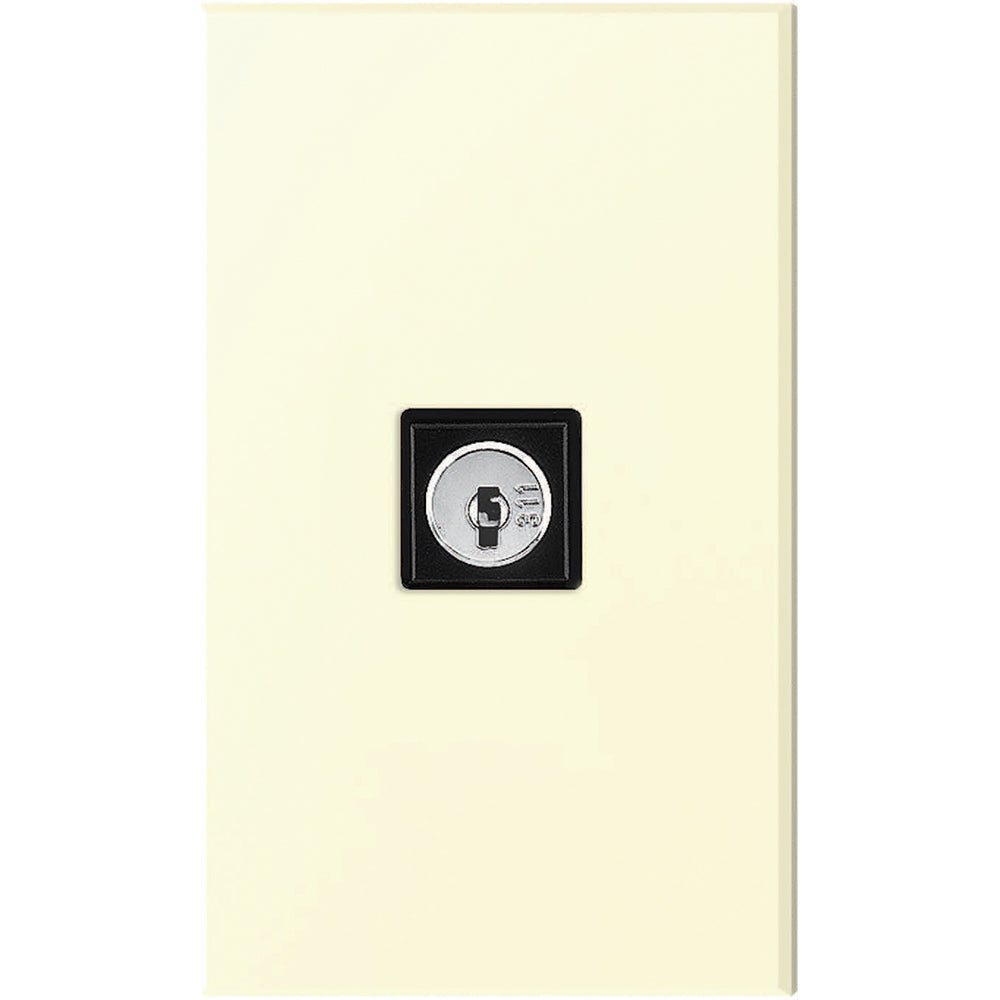

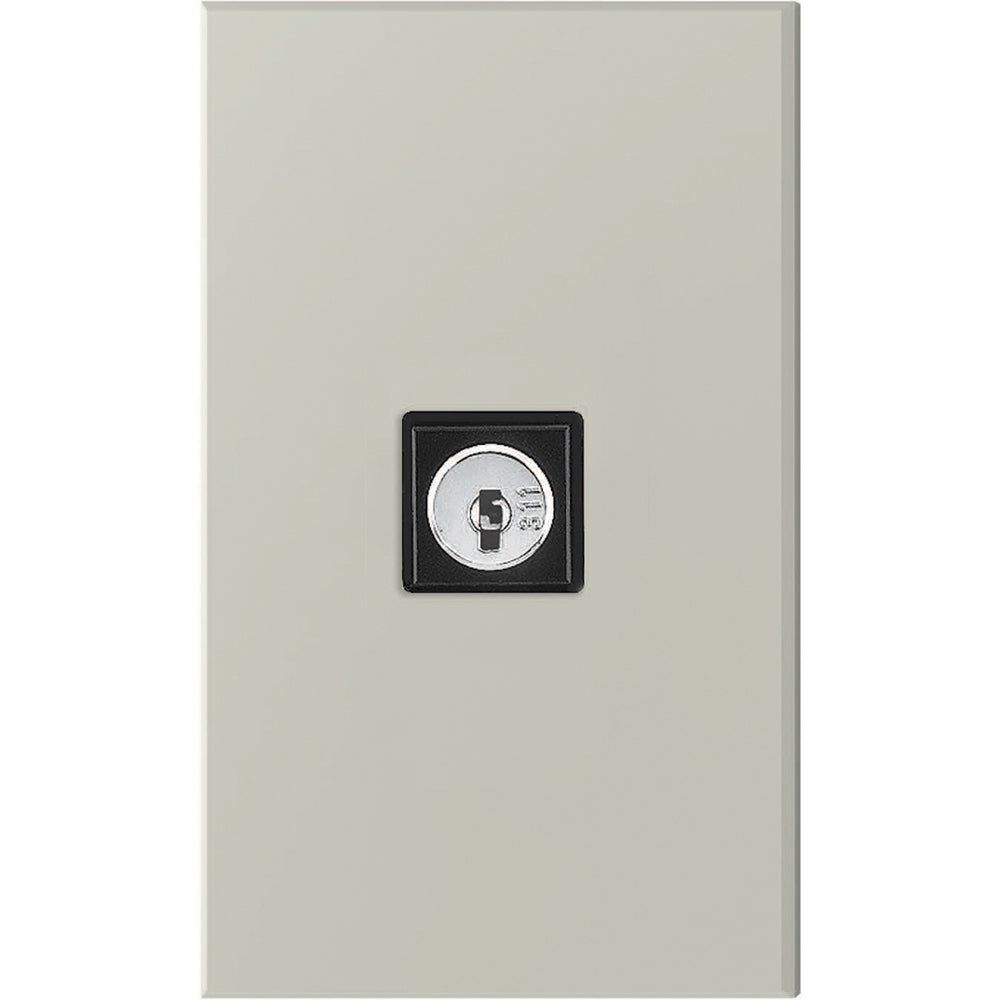

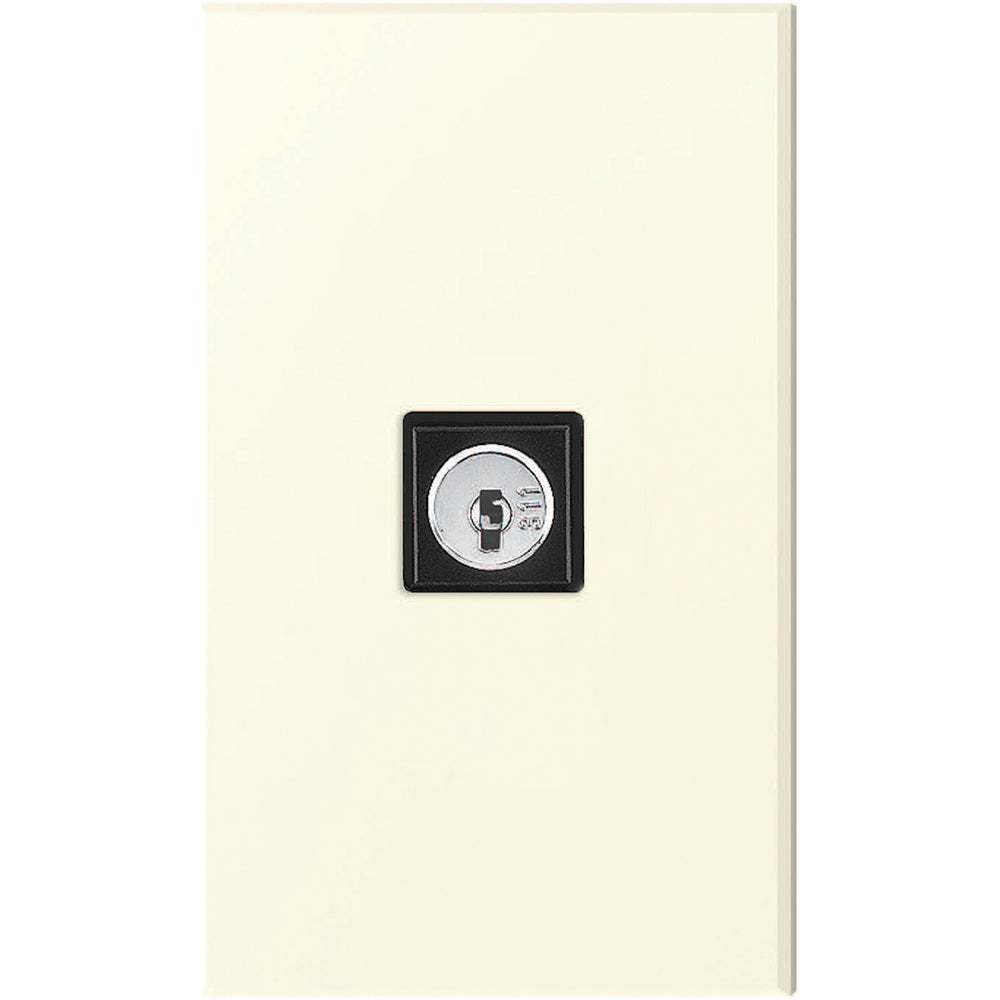

Lutron GRAFIK Eye QS seeTouch QS Keyswitch 3-Scene Momentary Contact - Non-Insert Architectural Style | QSWS2-KSN3MOC

High-Security Architectural System Control

The Lutron seeTouch QS Keyswitch (QSWS2-KSN3MOC) provides secure, restricted access to the lighting control system via a physical key. This "Non-Insert" model is designed for a clean, architectural look where the faceplate is an integral part of the unit. Ideal for high-traffic commercial environments, schools, or public spaces, this keyswitch ensures that critical system overrides and scene adjustments are reserved for authorized personnel only.

Dealer & Installer Key Features

• Restricted System Access: Key-only operation prevents unauthorized tampering with lighting presets, system logic, or energy-saving settings.
• 3-Scene Momentary Contact: Features a three-position momentary contact switch to recall two presets plus "Off," or to trigger custom programmed events.
• System-Wide Functionality: Can be programmed via Lutron Designer software to enable/disable occupancy sensors, daylight sensors, timeclocks, or to trigger "Panic" and "After-hours" modes.
• Architectural "Non-Insert" Design: Features a sleek, integrated look that doesn't require a separate decorator wallplate insert. It mounts directly to a standard U.S. single-gang wallbox.
• QS Link Powered: Seamlessly integrates with GRAFIK Eye QS, Quantum, HomeWorks QS/QSX, and Athena systems using standard 4-conductor QS Link wiring.

Critical Technical Specifications

• Model Number: QSWS2-KSN3MOC
• Control Type: 3-Scene, Momentary Contact Keyswitch.
• Mounting: Non-Insert (Architectural Style).
• Voltage: 24-35 V? (PELV/Class 2) powered via the QS Link.
• Communication: Wired QS Link.
• Compatibility: Compatible with all Lutron QS-based processors and controllers.

Note: This unit includes the keyswitch and integrated architectural-style faceplate. Ensure you select the correct color finish to match the architectural hardware of your project.
