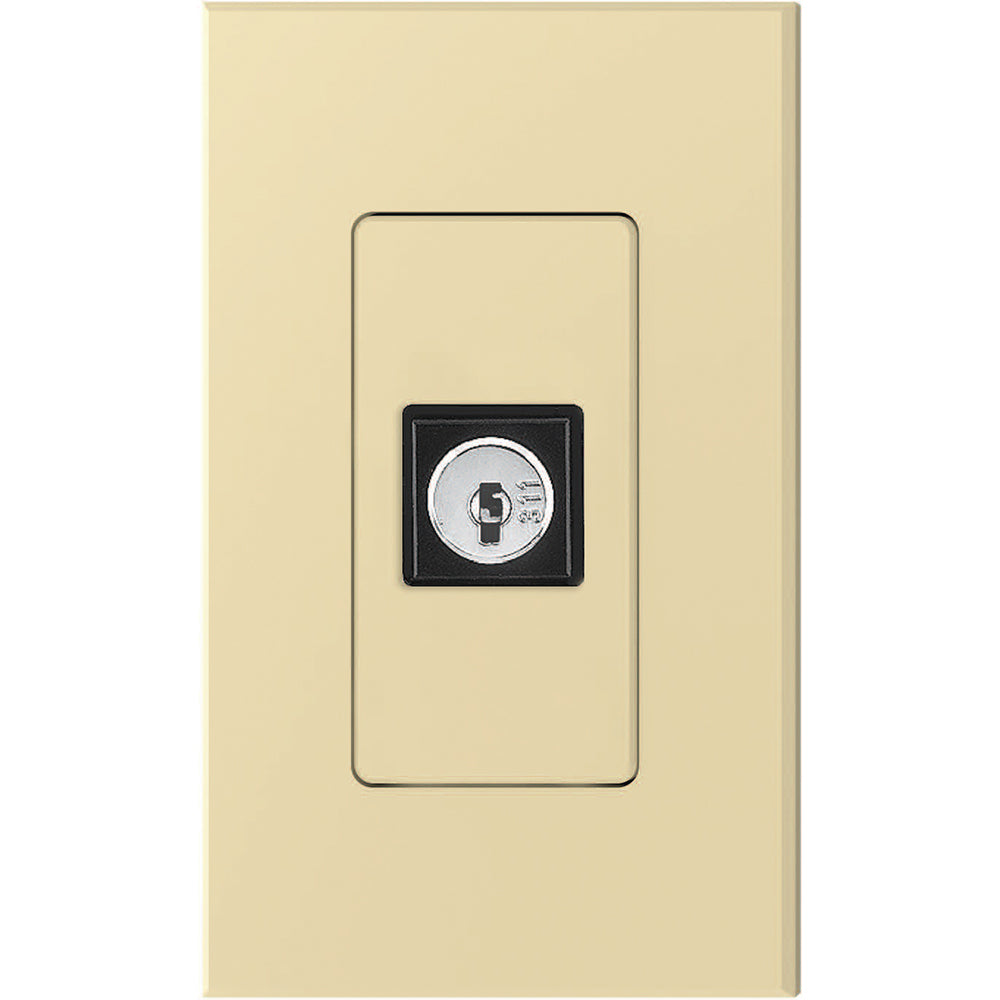

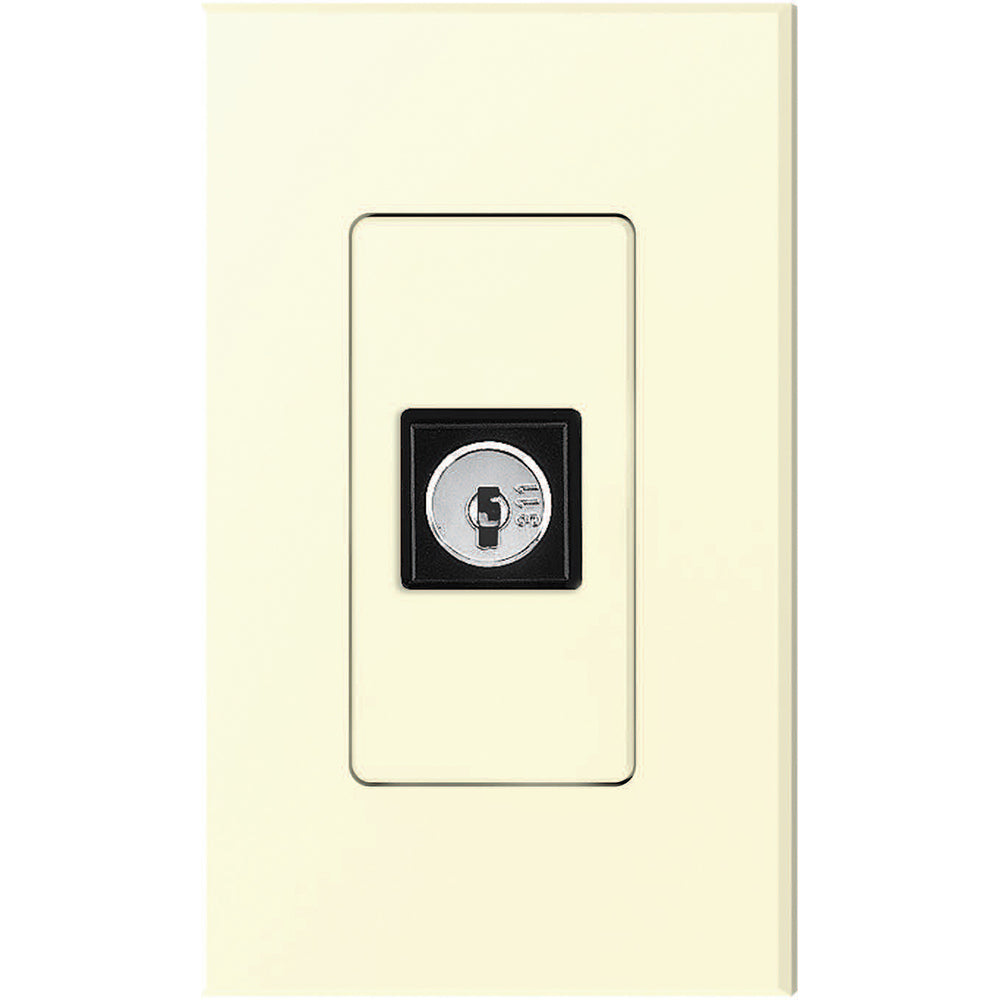

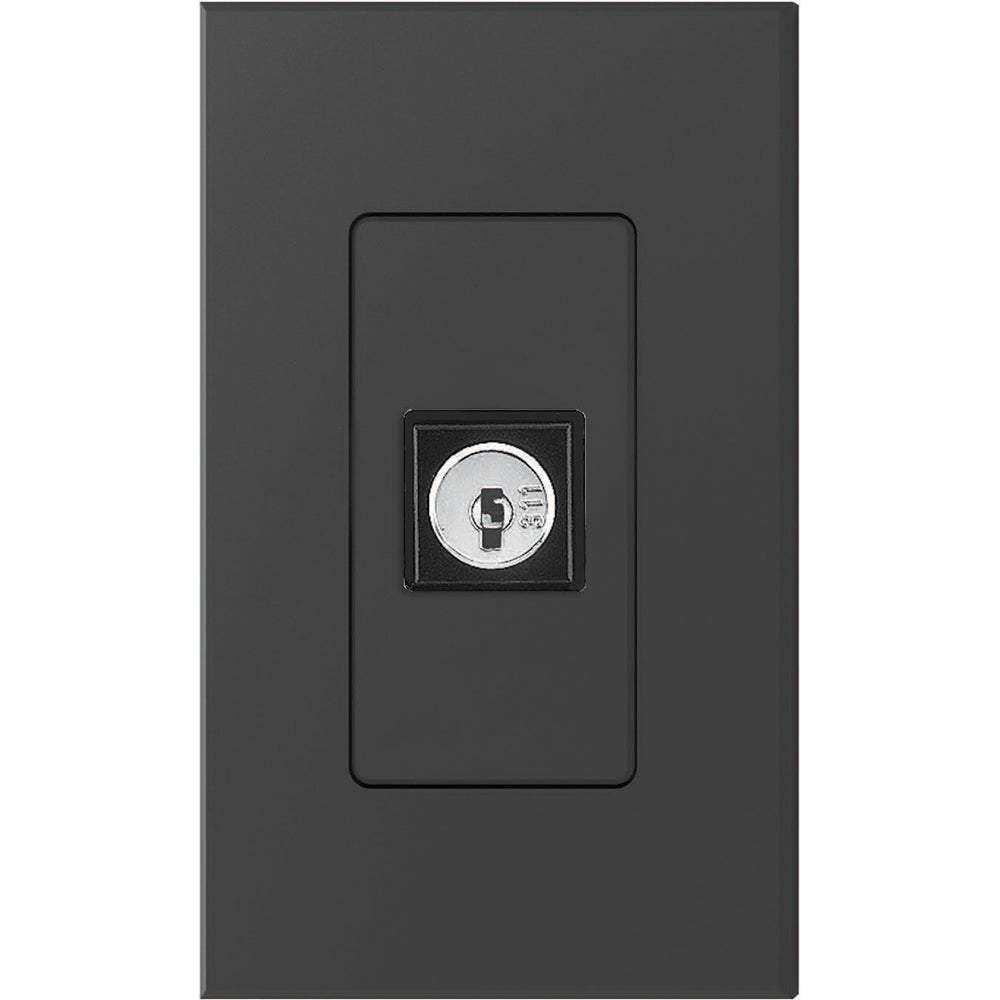

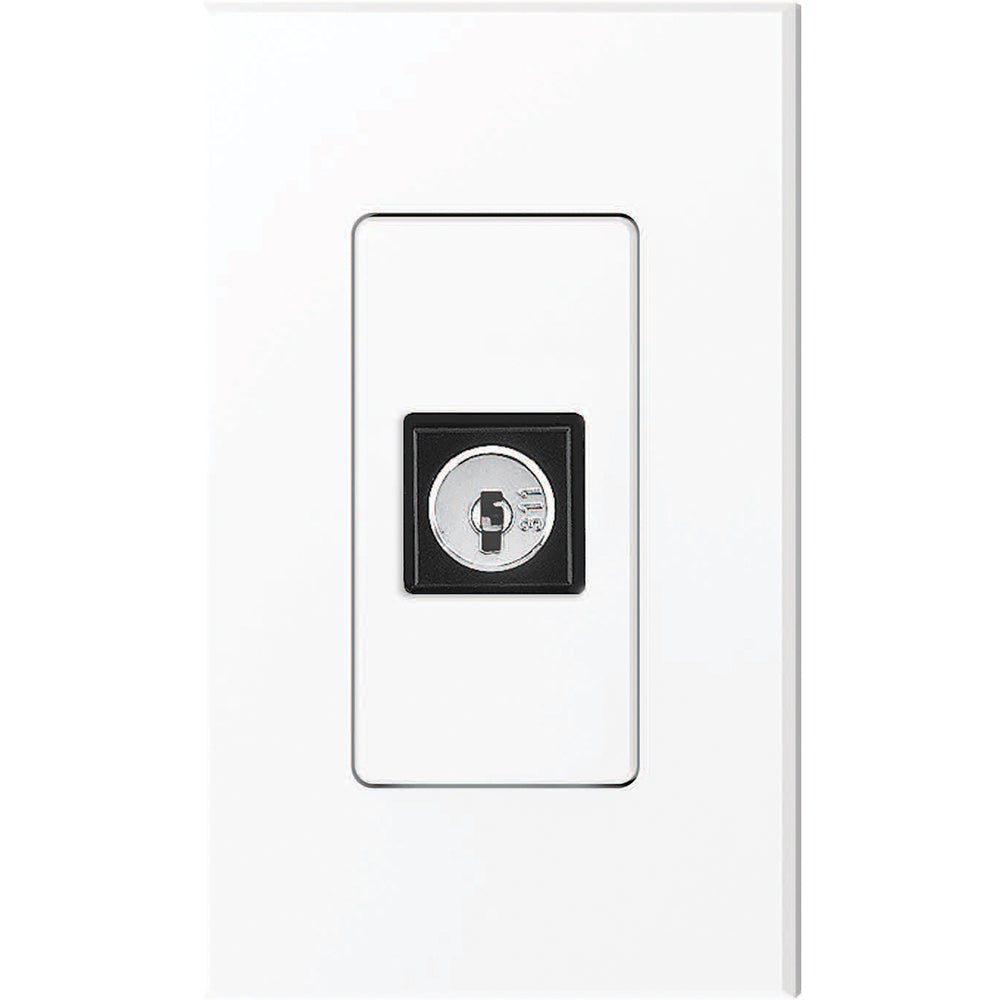

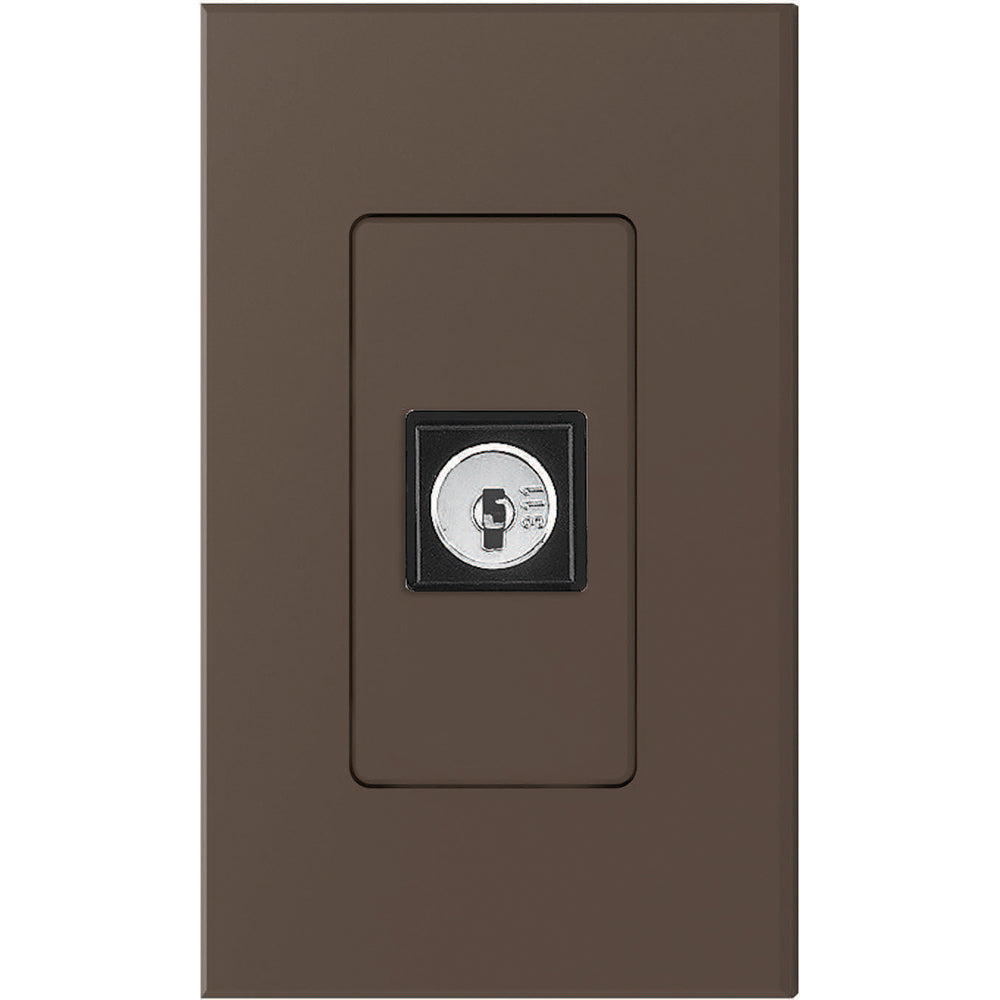

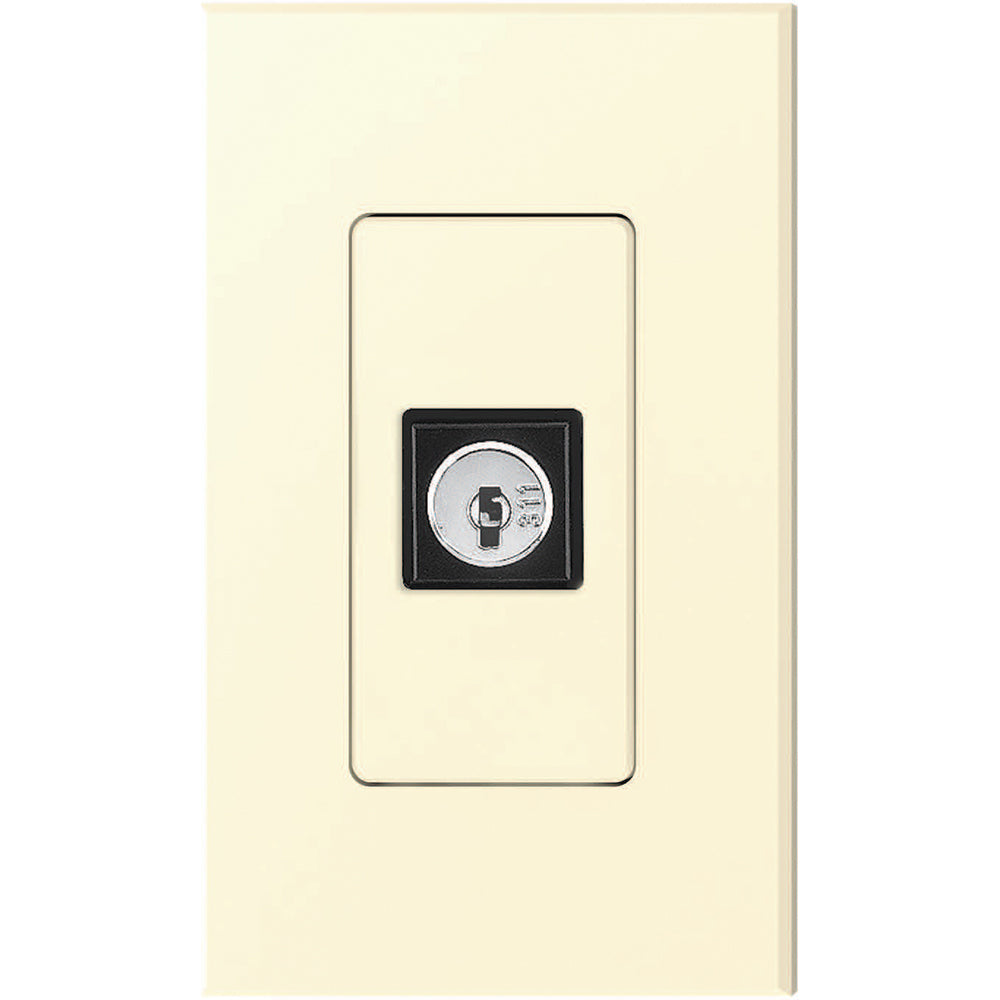

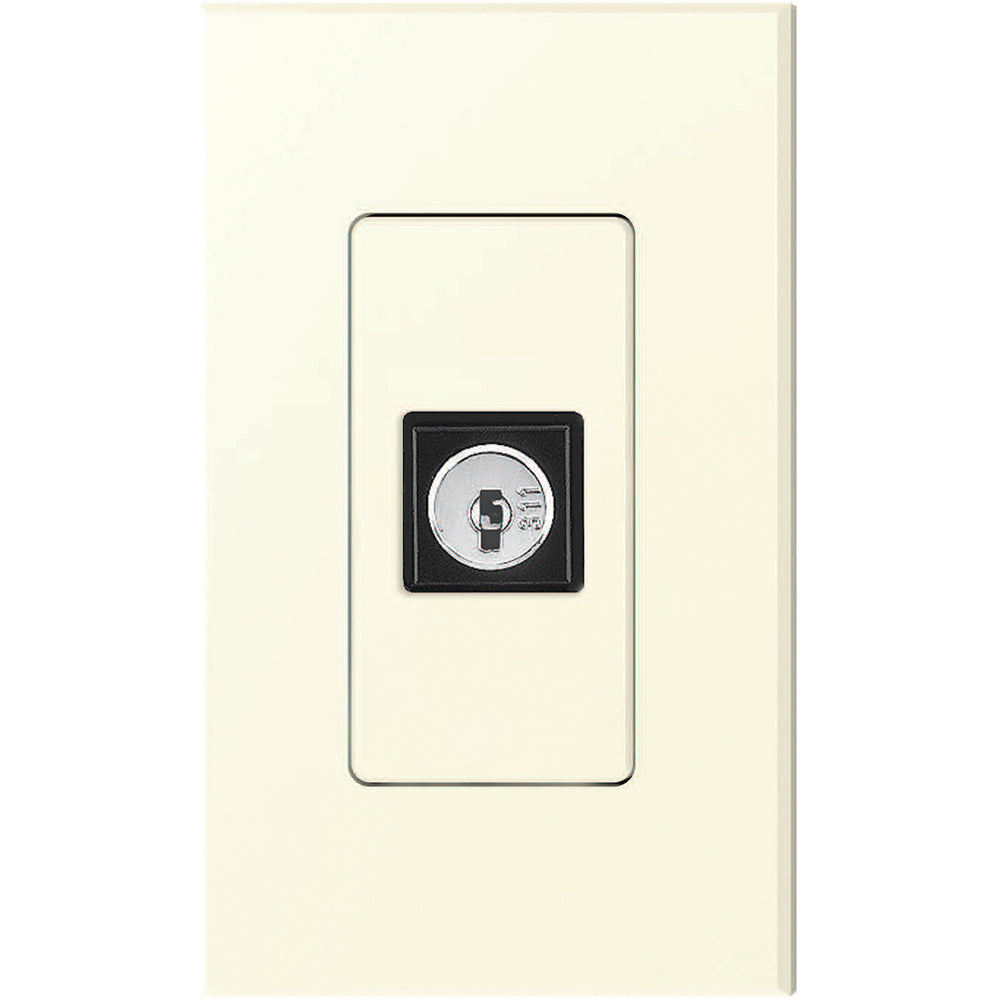

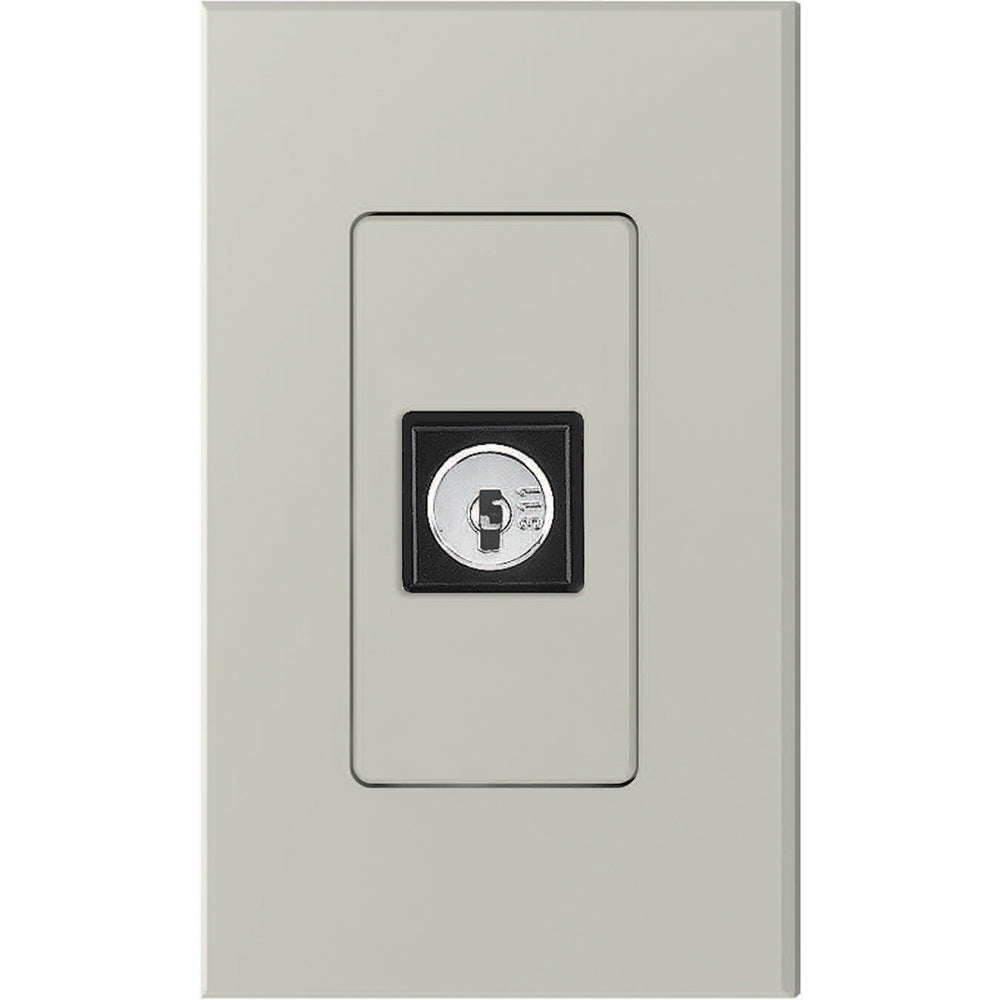

Lutron GRAFIK Eye QS seeTouch QS Keyswitch - 3-Scene Momentary Contact Insert | QSWS2-KSI3MOC

High-Security System Control for GRAFIK Eye QS & Quantum

The Lutron seeTouch QS Keyswitch (QSWS2-KSI3MOC) provides secure, key-only access to your lighting control system. Designed for environments where restricted access is critical—such as public spaces, schools, or commercial facilities—this 3-scene momentary contact keyswitch ensures that only authorized personnel can adjust lighting scenes or override system logic.

Dealer & Installer Key Features

• Restricted Access Control: Provides "key-only" operation, preventing unauthorized users from tampering with lighting levels or system settings.
• Versatile System Recall: Recalls preset light levels for up to three scenes (including Off) and allows for fine-tuning (Raise/Lower) of specific zones or groups.
• System-Wide Overrides: Can be programmed to enable or disable timeclocks, occupancy sensors, and daylight sensors, or to trigger/stop scene sequencing and "Panic Mode."
• Seamless Integration: Connects directly to the QS Link for easy communication with GRAFIK Eye QS, Quantum, and Athena systems.
• Insert Style: This "Insert" model is designed to be paired with specific Lutron seeTouch faceplates for a clean, professional look in any architectural setting.

Critical Technical Specifications

• Model Number: QSWS2-KSI3MOC
• Control Type: 3-Scene, Momentary Contact.
• Voltage: 24V DC (Powered via the QS Link).
• Wiring: Standard 4-conductor QS Link wiring (2 for power, 2 for data).
• System Compatibility: Fully compatible with GRAFIK Eye QS, Quantum, HomeWorks QS/QSX, and Athena.

Note: This is the keyswitch insert only. Keypads and faceplates are sold separately. Ensure you select a compatible architectural or designer faceplate to complete the installation.
