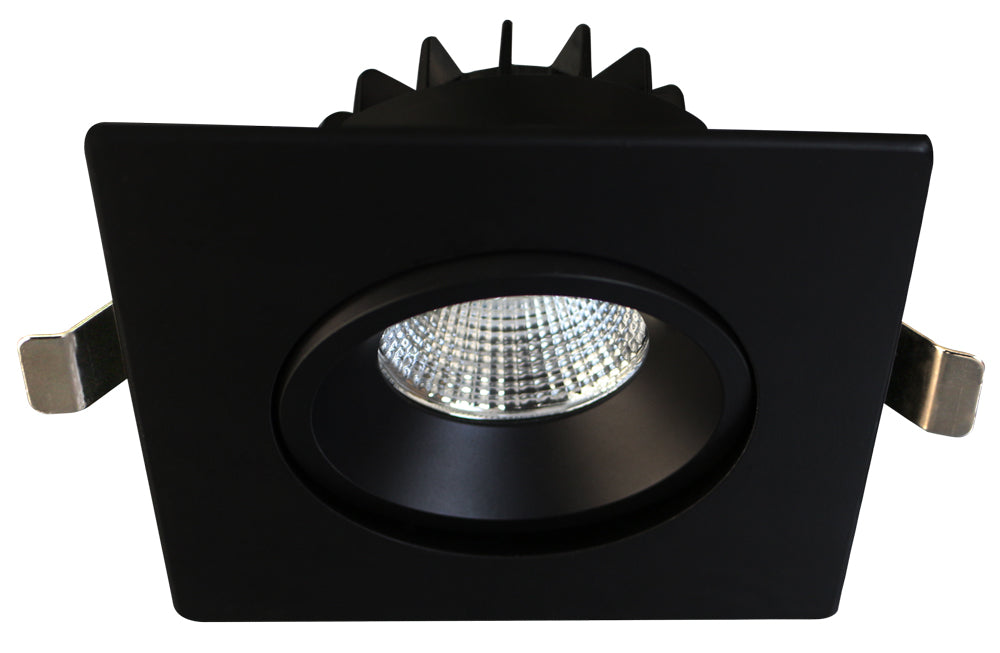

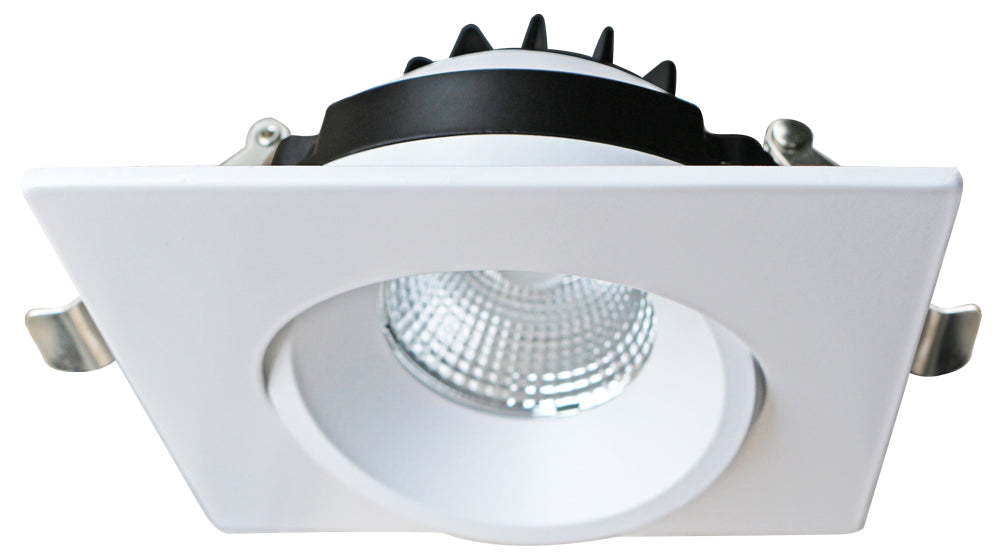

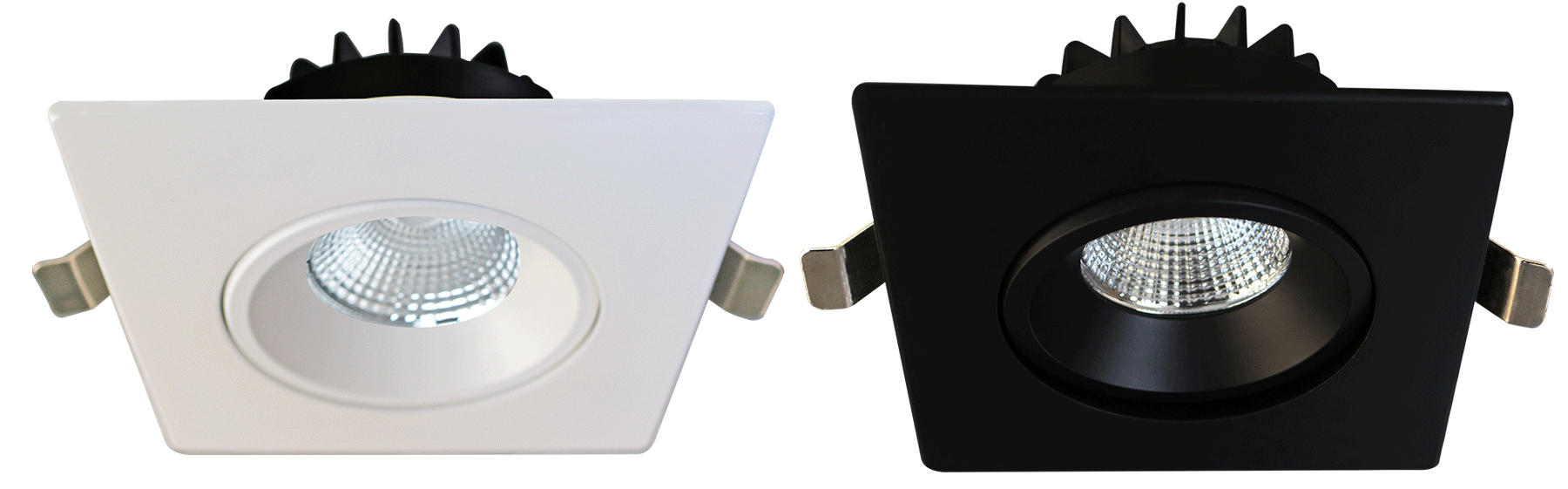

Lotus 4" Square Venus Adjustable Recessed LED 12W | AD-LED-4-S12W-xx-xx-LREY-SQ

Overview

The Lotus LED 4-inch square Venus adjustable gimbal is an architectural-spec recessed fixture designed for both commercial and residential applications. Featuring regressed optics for low glare and a versatile 360° rotation with a 20° tilt, this fixture offers precise directional lighting in a sleek, square profile.

Key Features

• Adjustable Gimbal: Provides 360° rotation and a 20° tilt in any direction for maximum aiming flexibility.
• 2 Light Options: Available in a 5CCT selectable version (2700K to 5000K) or a "Dim to Warm" option (3000K to 1800K).
• IC Rated: Contractor-grade design approved for direct contact with insulation without the need for a separate housing.
• Low Profile: At only 2 1/4" deep, this fixture is engineered to fit into limited ceiling spaces.
• Dimmable: Smoothly dimmable from 100% down to 5% using standard TRIAC dimmers.

Technical Specifications

• Power: 12W
• Halogen Equivalent: 90W
• Light Output: 780 – 920 lm (5CCT) / 700 lm (DTW)
• Color Temperature: 5CCT (2700K, 3000K, 3500K, 4000K, 5000K) or Dim to Warm (3000K-1800K)
• Input Voltage: 120V AC (Standard) / 120V-347V AC (Optional 0-10V)
• CRI: 90+
• Beam Angle: 38°
• Aperture/Size: 4-inch Square (OD 5")
• Cut Out: 4 1/4" to 4 1/2"
• Approved Location: Insulated Ceiling & Wet Locations
• Air Tight: Yes
• Projected Life: 70% light output at 50,000 hours
• Certifications: cETLus, T24
• Warranty: 5 Year
