Lotus 4" Round Disk Downlight 10W | DL205T-4-10W-5CCT-R90-0081
Lotus 4" Round Disk Downlight 10W | DL205T-4-10W-5CCT-R90-0081
Special Order / Call for ETA
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:DL205T-4-10W-5CCT-R90-0081-WH
DL205T-4-10W-5CCT-R90-0081 | 4" Round Disk Downlight 10W
The Lotus DL205T-4-10W-5CCT-R90-0081 is a 4-inch round multi-purpose LED disk downlight designed for residential, commercial, hospitality, and multi-family lighting applications. It provides a clean surface mount look with fast J-box installation and optional 4-inch recessed can retrofit flexibility.
This 10W LED disk downlight features 5CCT selectable color temperature, CRI 90+ color rendering, 120V AC Triac dimming, and a wide 115° beam angle. Its wet-location approval, flicker-free AC design, and white or black trim options make it a practical general-purpose disk light for ceiling lighting, retrofit projects, and project-based lighting packages.
Why this disk downlight sells
- Multi-purpose disk format: clean round LED surface mount fixture for general lighting
- 5CCT selectable: field-selectable 2700K, 3000K, 3500K, 4000K, or 5000K
- Efficient 10W output: 75W halogen equivalent performance
- Fast J-box installation: compatible with 2.75", 3", and 4" J-boxes
- 4" can retrofit option: installs as a 4" recessed can retrofit with separately sold retrofit kit
- Wet location approved: suitable for indoor and outdoor installations where permitted by code
- High color accuracy: CRI 90+ for true color rendering
- Wide beam spread: 115° beam angle for broad general illumination
- Flicker-free AC design: engineered for clean, reliable light output
- White and black trims: finish options for different ceiling conditions
Recommended applications
- Residential ceiling lighting
- Commercial general lighting
- Hospitality spaces
- Multi-family corridors and suites
- Bathrooms and approved wet-location areas
- J-box surface mount installations
- 4" recessed can retrofit applications
- General-purpose LED disk light replacements
Key specifications
| Model | DL205T-4-10W-5CCT-R90-0081 |
|---|---|
| Fixture Type | 4" Round Multi-Purpose Energy-Efficient Fixture |
| Applications | Residential, Commercial, Hospitality, Multi Family |
| Power | 10 W |
| Color Temperature | 5CCT Selectable: 2700K / 3000K / 3500K / 4000K / 5000K |
| Light Output | 760 / 790 / 820 / 805 / 760 lm |
| Halogen Equivalent | 75 W |
| Beam Angle | 115° |
| CRI | 90+ |
| Voltage Input | 120V AC |
| Dimming | Triac dimmers, 10% - 100% |
| Approved Location | Wet Locations |
| Air Tight | No |
| Dimensions | 6" OD x 1" thickness |
| Ambient Temperature | -4°F (-20°C) to +104°F (+40°C) |
| Projected Life | 70% light output at 50,000 hours |
| Certification | cETLus, Energy Star, JA8 |
| Warranty | 5 Year |
Available models

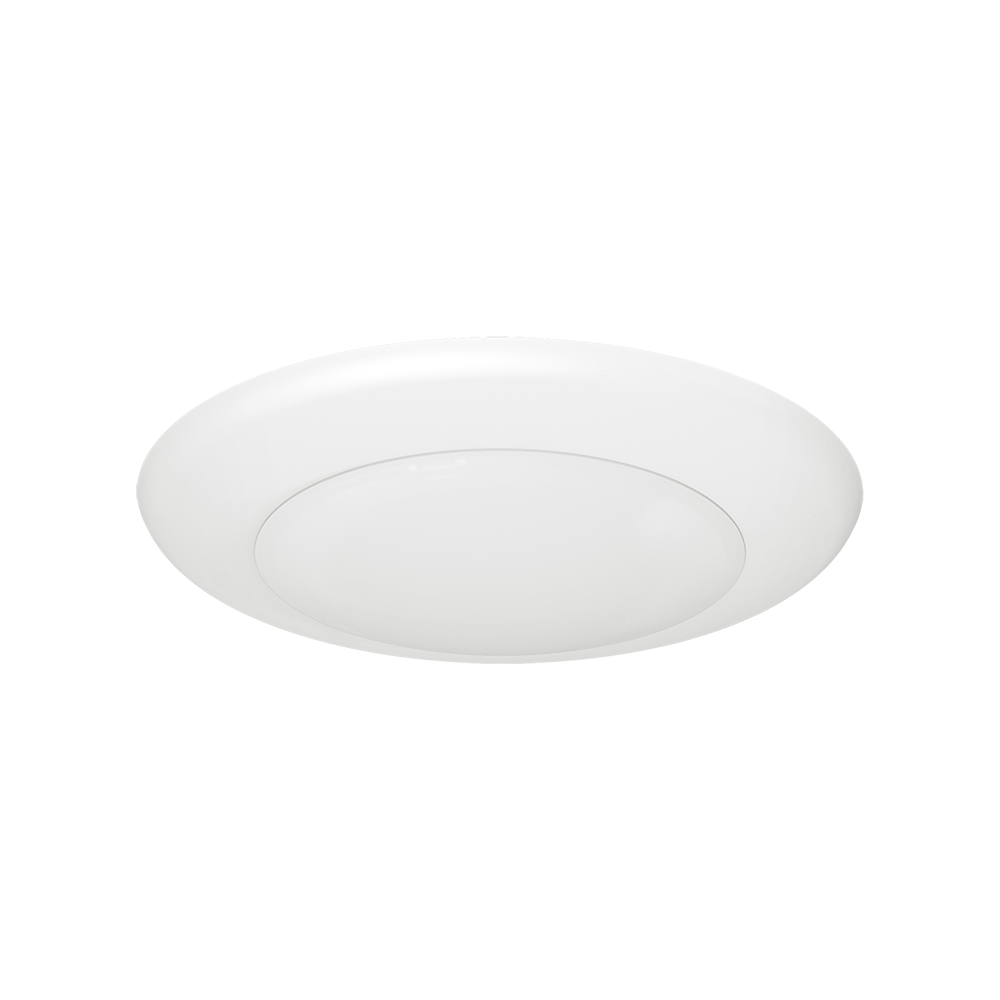

- DL205T-4-10W-5CCT-R90-0081-WH: White trim

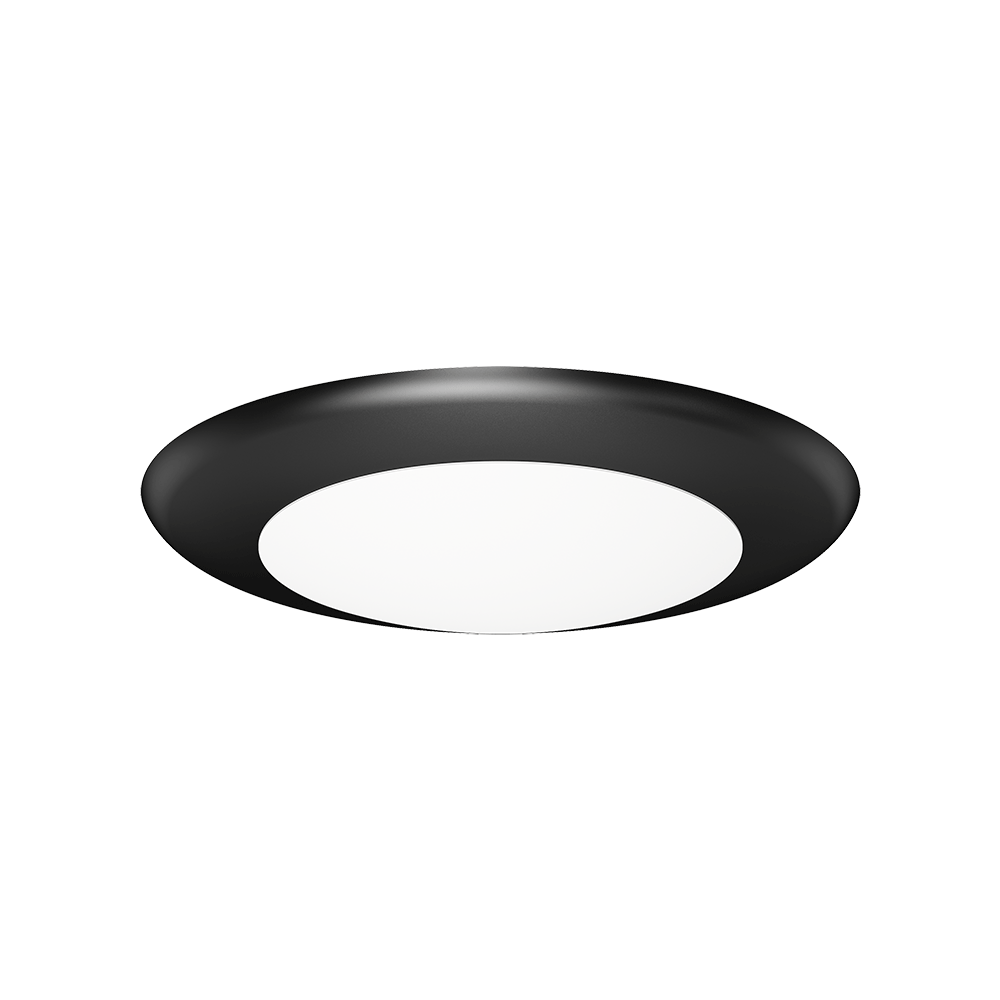

- DL205T-4-10W-5CCT-R90-0081-BK: Black trim
Compatible accessories
- 4RK-DL205-4: Retrofit kit for 4" cans, sold separately
Installation notes
- Designed for fast installation in a J-box or as a 4" can retrofit.
- Compatible with 2.75", 3", and 4" J-boxes.
- Retrofit kit is not included in the fixture package and is sold separately.
- Use retrofit kit 4RK-DL205-4 for 4" can retrofit applications.
- Approved for wet locations when installed according to code and manufacturer instructions.
- 4" round multi-purpose LED disk downlight
- 10W power consumption with 75W halogen equivalent
- 5CCT selectable: 2700K, 3000K, 3500K, 4000K, 5000K
- 760-820 lumen output depending on selected CCT
- CRI 90+ with 115° beam angle
- 120V AC Triac dimmable, 10%-100%
- Wet location approved
- J-box mount or 4" can retrofit with separately sold retrofit kit
- Flicker-free AC design
- White and black trim options
Frequently Asked Questions
What is the Lotus DL205T-4-10W-5CCT-R90-0081?
It is a 4-inch round multi-purpose LED disk downlight designed for J-box installation or 4-inch recessed can retrofit applications.
Does this model have a PIR sensor?
No. This is the standard non-sensor DL205T version. For integrated PIR sensor control and closet rating, use the DL205S family.
Is the color temperature adjustable?
Yes. The fixture is 5CCT selectable, allowing field selection between 2700K, 3000K, 3500K, 4000K, and 5000K.
Is this fixture dimmable?
Yes. It is designed for 120V AC Triac dimming from 10% to 100%.
Can this fixture be used in wet locations?
Yes. The DL205T-4 is wet location approved when installed according to code and manufacturer instructions.
Can this fixture be installed in a J-box?
Yes. It is compatible with 2.75", 3", and 4" J-boxes.
Can it be used as a recessed can retrofit?
Yes. It can be used as a 4" can retrofit with retrofit kit 4RK-DL205-4, sold separately.
What trim finishes are available?
The fixture is available in white and black trim options.
