Lotus 3" Round Regressed Gimbal LED 15° Spot | LRG3-15D
Lotus 3" Round Regressed Gimbal LED 15° Spot | LRG3-15D
Special Order / Call for ETA
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:LRG3-27K-WH-15D

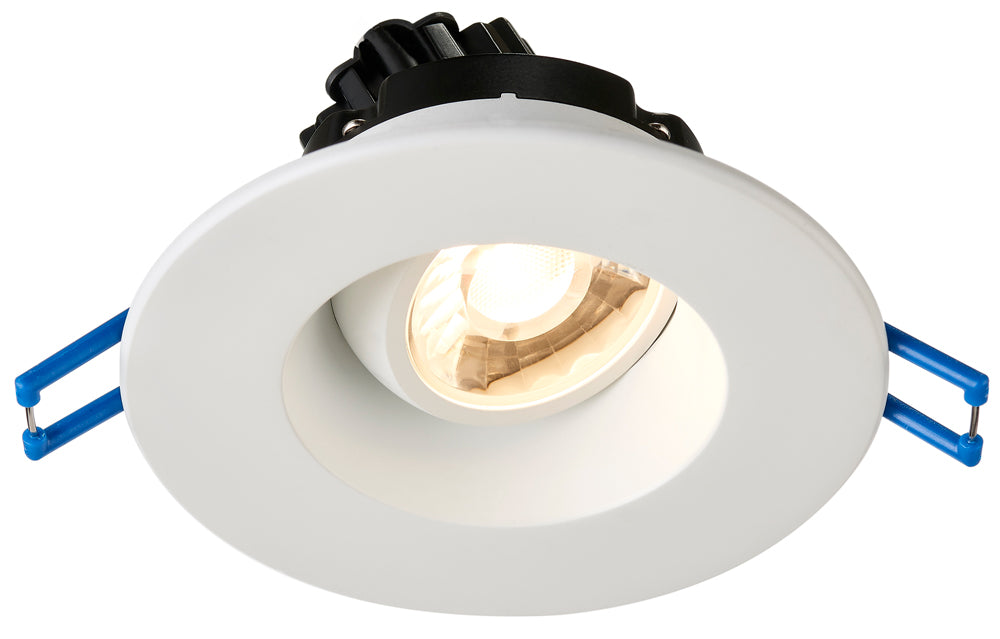

LRG3-15D | 3" Round Regressed Gimbal LED 15° Spot
The Lotus LRG3-15D is a 3-inch round regressed gimbal LED downlight with a focused 15° spot beam for precise accent, feature, and directional recessed lighting. Its compact regressed aperture helps control glare, while the adjustable gimbal provides 20° tilt and 360° rotation for aiming light exactly where it is needed.
Designed for sloped ceilings up to 20°, artwork, architectural details, wall accents, and focused general lighting, the LRG3 15D versions deliver 7.5W LED performance, CRI 90+ color quality, and the output of a 50W halogen equivalent. The fixture is Type IC rated, air-tight, and approved for wet locations, making it a flexible small-aperture recessed solution for residential and light commercial projects.
Why this 15D version sells
- 15° spot beam: focused beam control for accent lighting, artwork, feature walls, and precise aiming
- Regressed round aperture: clean architectural look with improved glare control
- Adjustable gimbal: 20° tilt and 360° rotation for directional lighting
- Compact 3" format: small-aperture recessed fixture for refined ceiling layouts
- No housing required: Type IC rated fixture installs without a recessed can
- Driver inside connection box: no separate junction box required
- High color accuracy: CRI 90+ for true color rendering
- Single CCT options: available in 2700K, 3000K, 3500K, 4000K, and 5000K
- Wet location approved: suitable for insulated ceilings and wet-location applications
- Triac dimmable standard: 120V AC Triac dimmable driver included
Recommended applications
- Focused accent lighting
- Artwork lighting
- Feature wall lighting
- Display and object lighting
- Sloped ceilings up to 20°
- Directional recessed lighting
- Bathrooms and approved wet-location ceiling areas
- Residential and light commercial recessed lighting
Key specifications
| Model Family | LRG3-15D |
|---|---|
| Fixture Type | 3" Round Regressed Gimbal LED |
| Beam Type | 15° Spot Beam |
| Applications | Sloped ceilings up to 20°, accent lighting, artwork lighting, directional recessed lighting |
| Energy Used | 7.5 W |
| Color Temperature Options | 2700K / 3000K / 3500K / 4000K / 5000K |
| Light Output | 580 / 600 / 620 / 630 / 650 lm |
| Halogen Equivalent | 50 W |
| Beam Angle | 15° spot beam with 20° tilt and 360° rotation |
| CRI | 90+ |
| Default Driver Input | 120V AC, Triac dimmable |
| Optional Driver Input | 120V-347V AC, 0-10V dimmable |
| Optional 0-10V Driver | LLL-LD0716T, ordered separately |
| Junction Box Wire Capacity | Max 5 No. 12 AWG or 8 No. 14 AWG |
| Power Factor | 0.95 |
| Approved Location | Insulated Ceiling & Wet Locations |
| IP Rating | IP54 |
| Air Tight | Yes |
| Type IC Rated | Yes, no housing required |
| Ambient Temperature | -40°F (-40°C) to +104°F (+40°C) |
| Projected Life | 70% light output at 50,000 hours |
| Dimensions | 3 1/4" ID, 4 1/4" OD |
| Cut Out | 3 1/4" to 3 1/2" |
| Ceiling Clearance Required | 3 1/2" |
| Certification | cULus |
| Warranty | 10 Year Residential / 5 Year Commercial |
Available 15D models
- LRG3-27K-WH-15D: 2700K, White trim, 15° spot beam
- LRG3-30K-WH-15D: 3000K, White trim, 15° spot beam
- LRG3-35K-WH-15D: 3500K, White trim, 15° spot beam
- LRG3-40K-WH-15D: 4000K, White trim, 15° spot beam
- LRG3-50K-WH-15D: 5000K, White trim, 15° spot beam

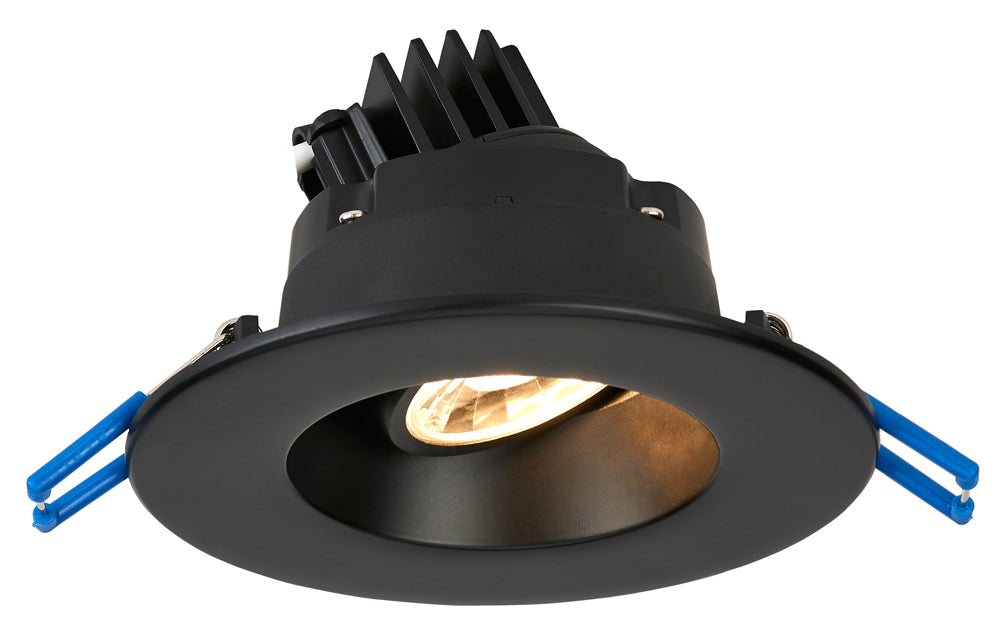

- LRG3-27K-BK-15D: 2700K, Black trim, 15° spot beam
- LRG3-30K-BK-15D: 3000K, Black trim, 15° spot beam
- LRG3-35K-BK-15D: 3500K, Black trim, 15° spot beam
- LRG3-40K-BK-15D: 4000K, Black trim, 15° spot beam
- LRG3-50K-BK-15D: 5000K, Black trim, 15° spot beam
Important ordering note
The -15D option is for the 15° spot beam versions. The Lotus spec sheet notes that dim-to-warm and 5CCT versions are available in 38° only, so this 15D PDP should be used for single CCT models only.
Compatible accessories
- EXC6: 6 ft low-voltage extension cable
- EXC20: 20 ft low-voltage extension cable
- RIP312: Flat rough-in plate
- FRP312: Flanged plate with hanger bars
- LLL-LD0716T: Optional 120V-347V 0-10V dimmable driver, ordered separately
Installation notes
- Cut hole in ceiling and snap fixture into the opening with attached spring clips.
- Ceiling clearance required is 3 1/2".
- The standard 120V Triac dimmable driver is included.
- The optional 120V-347V 0-10V dimmable driver is ordered separately.
- Low-voltage extension cable runs are limited to a maximum of 40 ft.
- Fixture is Type IC rated, air-tight, and approved for insulated ceilings and wet locations.
- 3" round regressed gimbal LED downlight
- 15° spot beam for focused accent lighting
- 7.5W power consumption with 50W halogen equivalent
- 20° tilt and 360° rotation for directional aiming
- Single CCT options: 2700K, 3000K, 3500K, 4000K, 5000K
- CRI 90+ color rendering
- Type IC, air-tight, and wet location approved
- 120V Triac dimmable driver included
- Optional 120V-347V 0-10V driver available separately
- White and black trim options
Frequently Asked Questions
What is the Lotus LRG3-15D?
The LRG3-15D is the 15° spot beam version of the Lotus 3-inch round regressed gimbal LED downlight. It is designed for focused accent lighting, artwork lighting, sloped ceilings, and directional recessed applications.
What is the difference between the standard LRG3 and the LRG3-15D?
The standard LRG3 uses a 38° beam angle. The LRG3-15D uses a narrower 15° spot beam for more focused light placement.
Is the LRG3-15D adjustable?
Yes. The fixture provides 20° tilt and 360° rotation, allowing the beam to be aimed for accent lighting, general lighting, or sloped ceiling applications.
Is the 15D option available for 5CCT or dim-to-warm versions?
No. The Lotus spec sheet notes that dim-to-warm and 5CCT versions are available in 38° only. The 15D version should be used for single CCT models only.
Does the LRG3-15D require a recessed housing?
No. The LRG3 is Type IC rated and does not require a recessed housing.
Is the driver included?
Yes. The standard 120V AC Triac dimmable driver is included. An optional 120V-347V AC 0-10V dimmable driver is available separately as model LLL-LD0716T.
Can the LRG3-15D be used in wet locations?
Yes. The spec sheet lists the LRG3 as approved for insulated ceilings and wet locations, with an IP54 rating.
What trim finishes are available?
The 15D versions are available in white and black trim finishes.
