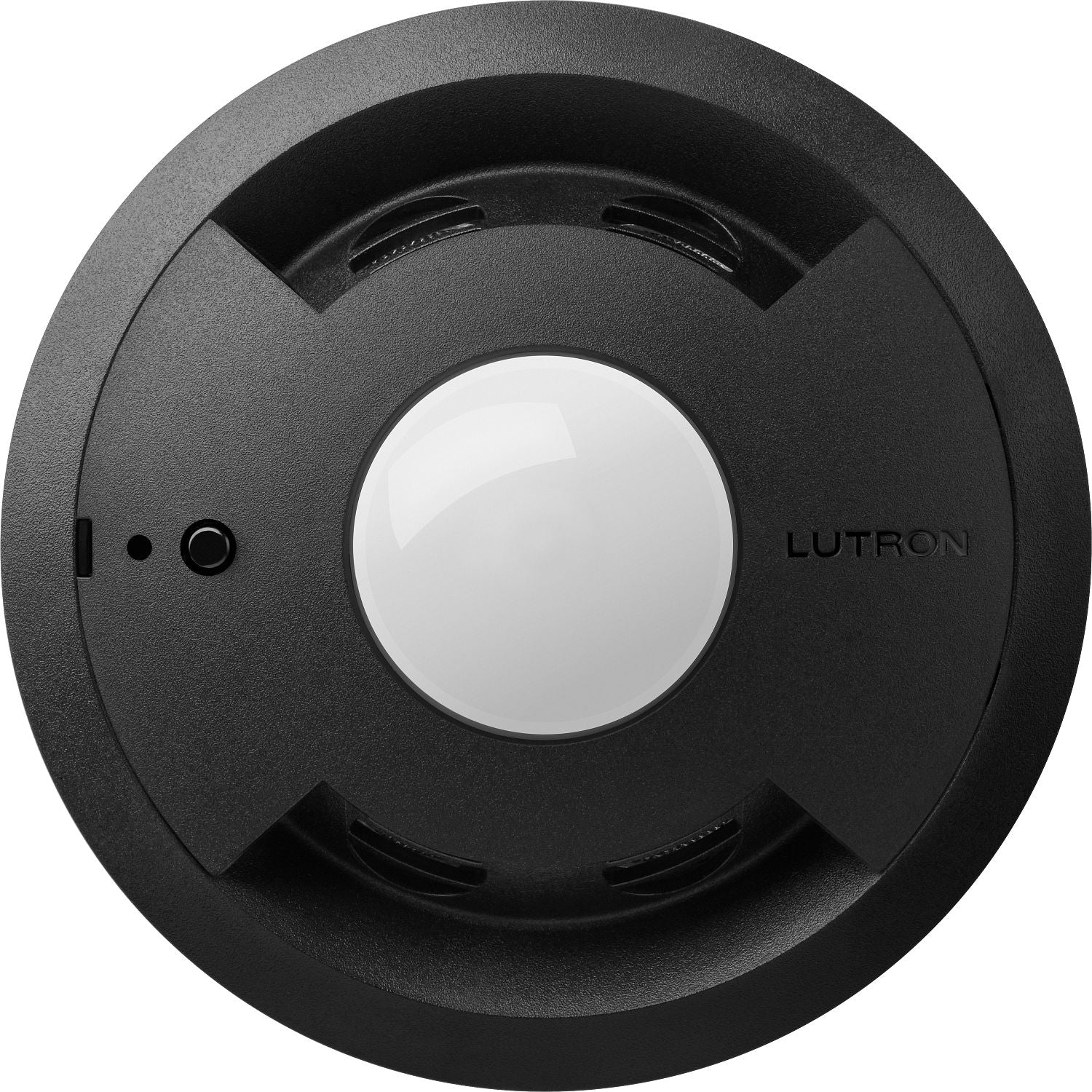

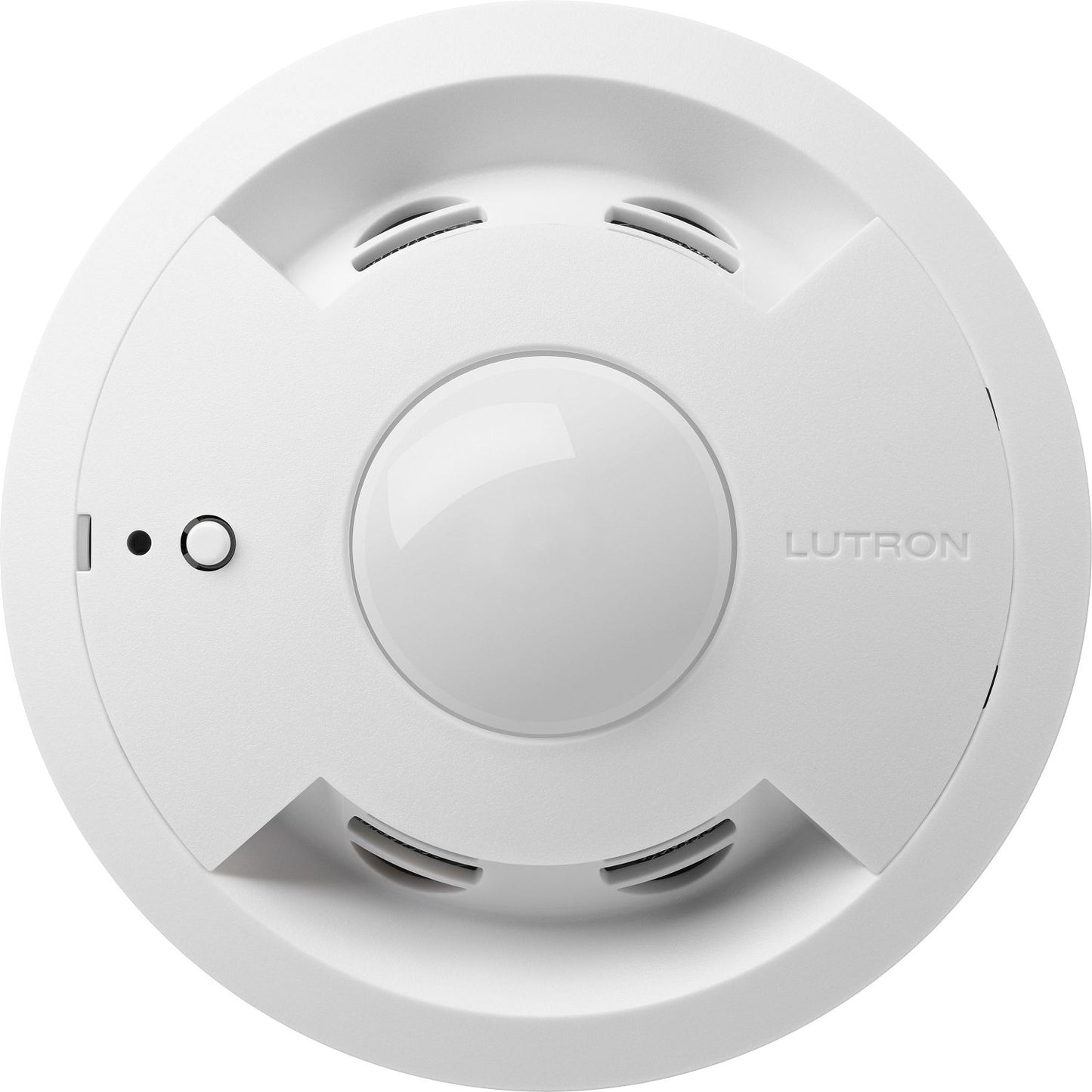

Lutron LOS2 Wired Ceiling Occupancy Sensor – Dual-Technology PIR/Ultrasonic, 2000 sq ft | LOS2-CDT

The Lutron LOS2 Dual-Technology (PIR + Ultrasonic) ceiling occupancy sensor delivers 2000 sq ft of 360-degree coverage with wired reliability and built-in intelligence for commercial and architectural lighting control. Available in Standard and Relay (R) models. White color variants available July 1, 2026.

• Dual-Technology: Passive Infrared (PIR) for initial detection combined with Ultrasonic sensing to maintain "lights on" for even minor movements.
• 2000 sq ft Coverage: Full 360-degree field of view; optimal ceiling height 8–12 ft.
• Wired / 15–24V: Connects directly to compatible Lutron power packs or wired lighting control systems.
• Relay Model (R): Includes an integrated dry-contact relay output for connection to HVAC systems or building management systems.
• Self-Adaptive: Microprocessor continuously adjusts sensitivity and time delays based on occupancy patterns.
• Non-Volatile Memory: Retains all settings through power outages.
