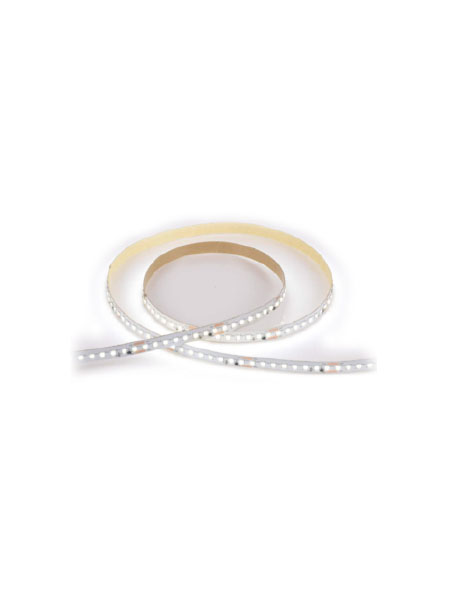

Lotus LED Strip 24V 1.5W/FT 100 FT IP20 | LBL-2216-126P-24V-10

Overview

The Lotus LED LBL-2216 series is a professional-grade 24V DC flexible LED strip designed for high-end dry location applications, including cove lighting, undercabinet valances, and architectural path marking. These architectural-spec strips feature a high-density 2216 SMD LED source, ensuring perfect light consistency and a wide 120° beam angle for uniform, hotspot-free illumination. Available in both 1.5W/ft and 3W/ft densities, this versatile recessed lighting solution is contractor-grade, dimmable, and features a 3M 300SE adhesive backing for secure mounting to thermo-conductive surfaces.

Key Features

• High Color Accuracy: Boasts a CRI of 90+ across all variants to ensure true color rendering in professional and residential settings.
• Multiple Densities: Available in 126P (1.5W/ft) for subtle accenting and 238P (3W/ft) for high-output task lighting.
• Precision Fitting: Engineered with short cuttable increments—2 1/4" for 126P and 1 1/8" for 238P—allowing for exact customization to any length.
• IC Rated & Safe: Designed for constant voltage operation and approved for indoor dry locations, including clothes closets for the 238P model.
• Architectural Reliability: Features a projected life of 20,000 hours (L70) and is cETLus certified for safety and performance.

Technical Specifications

• Input Voltage: 24V DC
• Power Consumption: 1.5W/ft (126P) or 3W/ft (238P)
• Light Output (126P): 190 - 220 lm/ft
• Light Output (238P): 290 - 320 lm/ft
• Color Temperature (K): 2700K, 3000K, 4000K, 5000K
• CRI: 90+
• Beam Angle: 120°
• Cuttable Increment: 2 1/4" (126P) or 1 1/8" (238P)
• Standard Roll Length: 100 ft (30 meters)
• Max Run Length: 50 ft (126P) or 33 ft (238P)
• IP Grade: IP 20 (Dry Location)
• Dimmable: Yes
• Certification: cETLus
• Warranty: 3 Year (when used with Lotus LED Lights driver)
