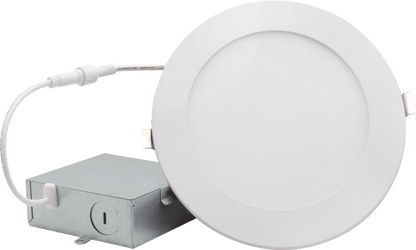

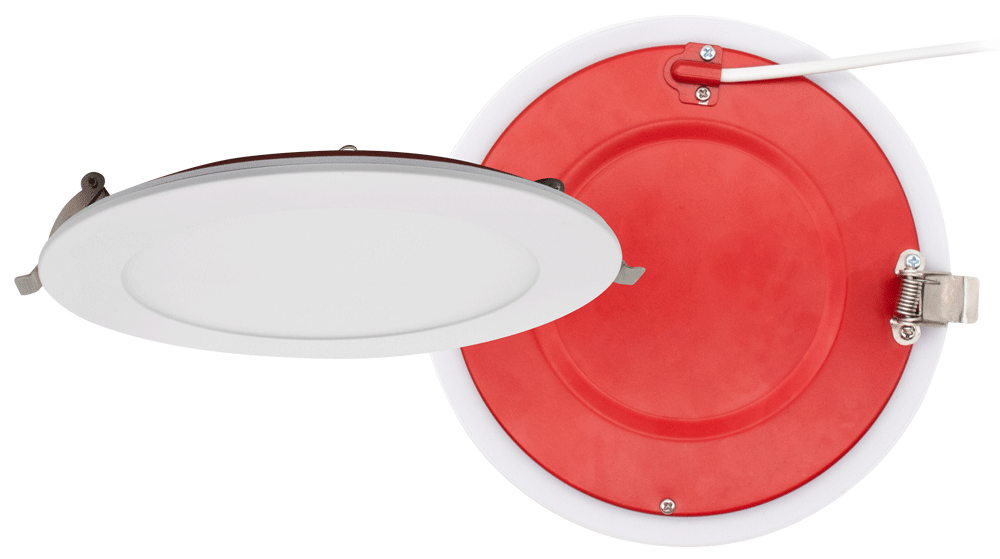

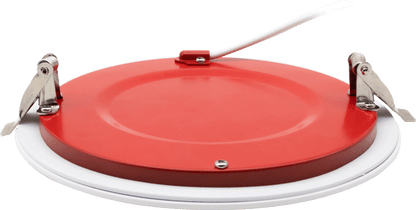

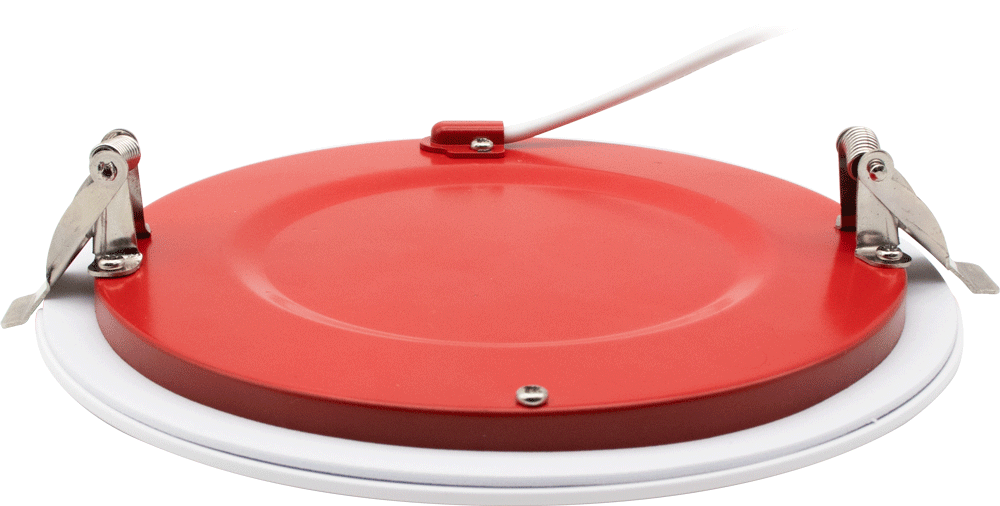

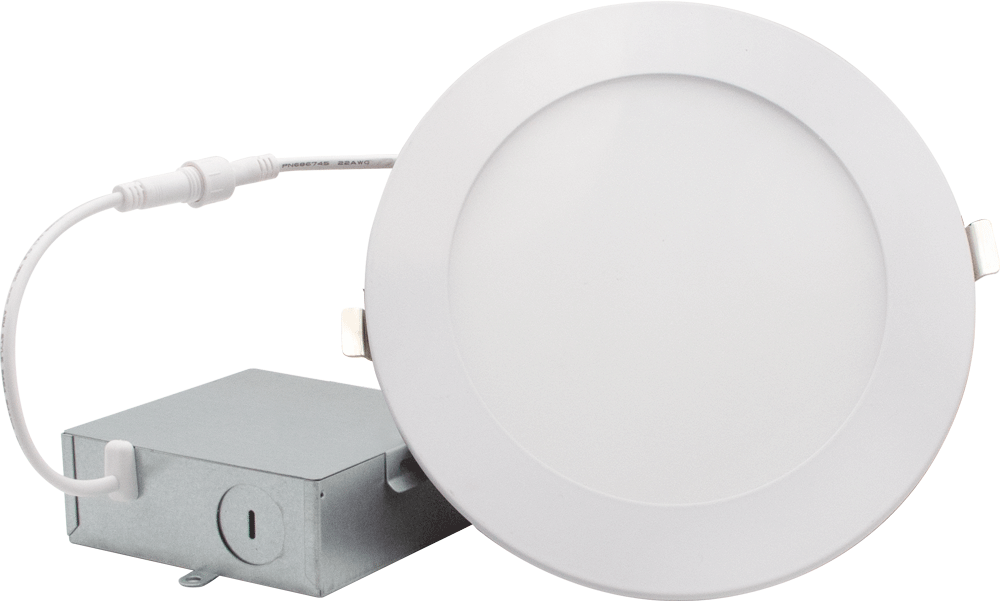

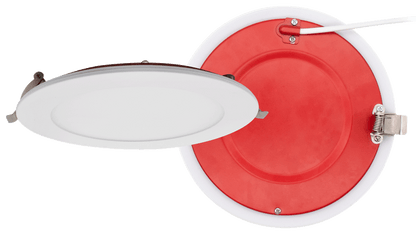

Lotus 6" Fire Rated Ultra Slim Recessed LED 15W | FR-LED-6-S15W-5CCT-PL
Lotus 6" Fire Rated Ultra Slim Recessed LED 15W | FR-LED-6-S15W-5CCT-PL
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:FR-LED-6-S15W-5CCT-PL-WH
FR-LED-6-S15W-5CCT-PL-WH | 6" Fire Rated Ultra Slim Recessed LED 15W
The Lotus FR-LED-6-S15W-5CCT-PL-WH is a 6-inch round fire rated ultra slim recessed LED fixture designed for multi-family residential, basement, and commercial applications. Its heat resistant steel casing provides up to 2-hour fire protection without requiring additional fire-rated housing or hardware.
This 15W fire rated recessed downlight features 5CCT selectable color temperature, allowing field selection between 2700K, 3000K, 3500K, 4000K, and 5000K. With CRI 90+, up to 1100 lumens, a wide 110° beam angle, Type IC, air-tight, wet location approval, and FT6 / CMP plenum rated cable, it is built for projects that need code-conscious recessed lighting in fire-rated ceiling assemblies.
Why this fire rated fixture sells
- 2-hour fire rated: fire protection without additional housing or hardware
- Heat resistant steel casing: designed to help maintain ceiling fire separation
- Ultra slim 1/2" fixture body: installs directly under ceiling joists
- 5CCT selectable: field-selectable 2700K, 3000K, 3500K, 4000K, or 5000K
- Plenum rated cable: FT6 / CMP cable for commercial installations
- Heavy duty steel spring clips: designed for secure, fast installation
- 1 1/4" spring height: suitable for installations on 2 x 5/8" drywall
- No separate junction box needed: driver is inside the connection box
- Type IC, wet location, and air-tight rated: strong fit for insulated ceilings and wet-location applications
- CRI 90+: high-quality color rendering for residential and commercial spaces
Recommended applications
- Multi-family residential projects
- Basements
- Commercial ceiling lighting
- Fire-rated ceiling assemblies
- Insulated ceilings
- Wet-location ceiling applications
- Plenum-rated commercial installations
- Projects requiring ultra slim recessed fixtures under joists
Key specifications
| Model | FR-LED-6-S15W-5CCT-PL-WH |
|---|---|
| Fixture Type | 6" Round Fire Rated Ultra Slim Recessed LED |
| Applications | Multi-Family Residential, Basements & Commercial |
| Power | 15 W |
| Color Temperature | 5CCT Selectable: 2700K / 3000K / 3500K / 4000K / 5000K |
| Light Output | 960 / 1030 / 1080 / 1100 / 1050 lm |
| Halogen Equivalent | 90 W |
| Beam Angle | 110° |
| CRI | 90+ |
| Driver Input | 120V AC 50/60 Hz |
| Dimming | Triac dimmers, 10% - 100% |
| Junction Box Volume | 9.69 cubic inches / Max 5 No. 12 AWG or 8 No. 14 AWG |
| Approved Location | Insulated Ceiling & Wet Locations |
| Cable | FT6 / CMP Plenum Rated |
| Air Tight & Type IC | Yes |
| Fire Rating | UL 263-2011(R2022), ASTM E119-20 & CAN/ULC-S101-14 |
| Ambient Temperature | -4°F (-20°C) to +104°F (+40°C) |
| Projected Life | 70% light output at 50,000 hours |
| Dimensions | 6 1/8" ID, 6 7/8" OD, 1/2" fixture thickness |
| Cut Out | 6 1/4" |
| Certification | cETLus, JA8 |
| Warranty | 3 Year |
Available model
- FR-LED-6-S15W-5CCT-PL-WH: 5CCT selectable, White trim
Compatible accessories
- MP6-114FR: 1 1/4" flanged rough-in plate
- MP6-2: 13" flat mounting plate
- RIP6: 26" flat rough-in plate
- FRP6: Flanged plate with hanger bars
- FR-JC-5CCT-10: 10 ft jumper cable for 5CCT model
- HBL015-AW-10-01A-5CS: Optional 0-10V dimmable driver, 120-347V
- BLD-HM08D-YYY: Emergency driver, 8W, 120-347V
Installation notes
- Cut a circular opening in the gypsum ceiling so the annular space between the ceiling membrane and fixture does not exceed 1/8".
- Ensure penetrations do not exceed 100 square inches in any 100 square feet of ceiling area.
- Install with a minimum separation of 4 feet between units.
- Maintain a minimum 1" space between the edge of the fixture and closest structural member.
- The fixture is 1/2" thin and can install directly under ceiling joists.
- The included driver is 120V Triac dimmable.
- Use compatible accessories where required for rough-in, extension, 0-10V dimming, or emergency backup applications.
- 6" round fire rated ultra slim recessed LED
- 2-hour fire rated without additional housing or hardware
- 15W power consumption with 90W halogen equivalent
- 5CCT selectable: 2700K, 3000K, 3500K, 4000K, 5000K
- 960-1100 lumen output depending on selected CCT
- CRI 90+ with 110° beam angle
- FT6 / CMP plenum rated cable
- Type IC, air-tight, and wet location rated
- 120V Triac dimmable driver included
- White stock trim
Frequently Asked Questions
What is the Lotus FR-LED-6-S15W-5CCT-PL-WH?
It is a 6-inch round fire rated ultra slim recessed LED fixture with 5CCT selectable color temperature, plenum rated cable, and an integral driver in the connection box.
Is this fixture fire rated?
Yes. The fixture is listed as 2-hour fire rated without additional housing or hardware.
What fire rating standards are listed?
The spec sheet lists UL 263-2011(R2022), ASTM E119-20, and CAN/ULC-S101-14.
Is the color temperature adjustable?
Yes. The fixture is 5CCT selectable, allowing field selection between 2700K, 3000K, 3500K, 4000K, and 5000K.
Is the driver included?
Yes. A 120V AC Triac dimmable driver is included inside the connection box.
Is this fixture dimmable?
Yes. The included driver supports Triac dimming from 10% to 100%. An optional 120-347V 0-10V dimmable driver is also listed as an accessory.
Can this fixture be used in wet locations?
Yes. The fixture is approved for insulated ceilings and wet locations.
Is this fixture air-tight and Type IC?
Yes. The spec sheet lists the fixture as both air-tight and Type IC rated.
What trim color is stocked?
The stock trim is white. Other trim colors are available by custom order.
What spacing is required between fixtures?
The installation notes state to install with a minimum separation of 4 feet between units and maintain a minimum 1" space between the fixture edge and the closest structural member.
