Lutron Standard Distance Control Link Cable, Non-Plenum, 500ft | GRX-CBL-346S-500
Lutron Standard Distance Control Link Cable, Non-Plenum, 500ft | GRX-CBL-346S-500
Available to order — ships from incoming stock
Typically ships in 2–5 Business Days (Western Canada) · 3–6 Business Days (Eastern Canada)
SKU:GRX-CBL-346S-500
Lutron GRX-CBL-346S-500 Standard Distance Non-Plenum Control Link Cable

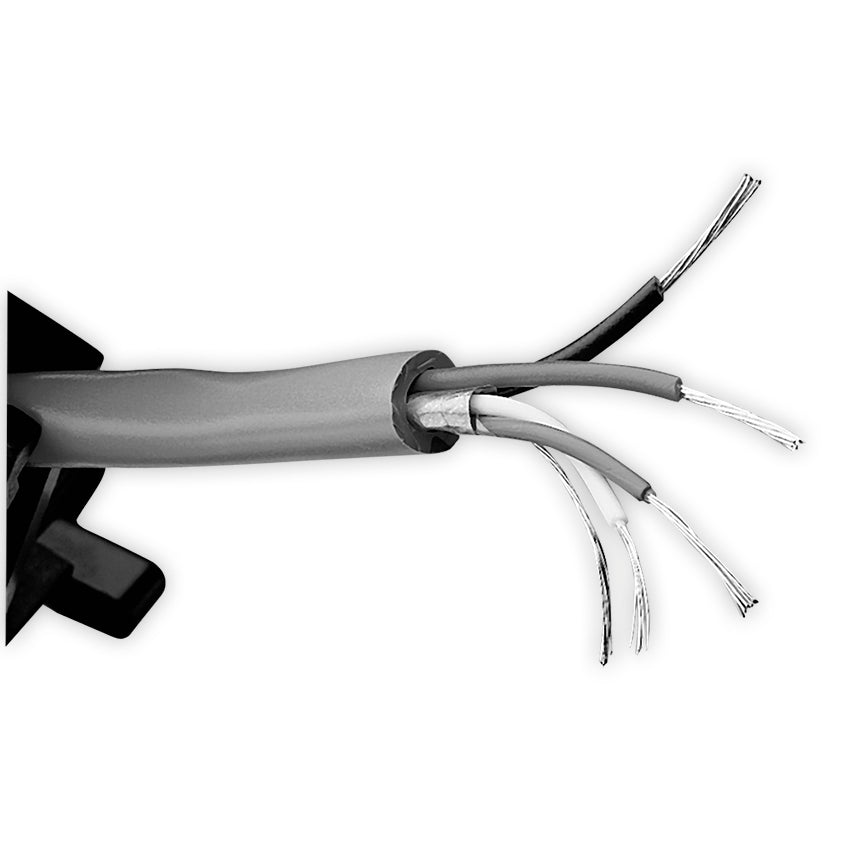

The Lutron GRX-CBL-346S-500 is a high-performance, 5-conductor composite cable designed specifically for the Lutron QS and GRAFIK Eye 3000/4000 control links. This cable provides the critical physical connection for communication between control units, seeTouch wallstations, and power modules. As a Non-Plenum (CL3R/CMG) rated cable, it is the ideal, cost-effective choice for residential or commercial projects where wiring is run in conduit or non-plenum wall cavities.
This "346S" standard-distance cable utilizes a specialized composite design: two 18 AWG conductors for power and common, and one shielded, twisted 22 AWG pair for Mux Data. To ensure easy identification during installation, the cable features a Light Blue outer jacket with a Red stripe, adhering to Lutron’s standardized color-coding for non-plenum control wiring.
Key Features
- Standard Architectural Choice: Optimized for GRAFIK Eye QS, GRAFIK Eye 3000/4000, HomeWorks, and Energi Savr Node systems.
- Reliable Data Transmission: Features a shielded 22 AWG twisted pair with a 24 AWG drain wire to protect digital signals from electromagnetic interference (EMI).
- Composite Design: Combines 18 AWG power/common and 22 AWG data lines in a single 0.21-inch diameter jacket for faster, cleaner wire pulls.
- Cost-Effective Non-Plenum: UL/CSA listed as CL3R/CMG (Riser rated), perfect for residential applications and commercial installations in conduit.
- System Capacity: Supports total control link lengths up to 2,000 feet (610 m) when properly configured.
- Universal Voltage: Rated for 300V AC operation.
Technical Specifications
| Attribute | Details |
|---|---|
| SKU / Part Number | GRX-CBL-346S-500 |
| Total Conductors | 5 (Power, Common, Data+, Data-, Drain) |
| Power/Common Gauge | 18 AWG (Stranded Copper) |
| Data Pair Gauge | 22 AWG (Twisted & Shielded) |
| Drain Wire Gauge | 24 AWG |
| Jacket Rating | Non-Plenum (CL3R / CMG / FT4) |
| Outer Diameter | 0.21 Inch (5.3 mm) |
| Length | 500 ft (152.4 m) Spool |
| Jacket Color | Light Blue with Red Stripe |
Applications
- Lutron GRAFIK Eye QS and 3000/4000 Control Links
- HomeWorks QS and Interactive Wired Communication
- Energi Savr Node (ESN) Wired Links
- seeTouch QS and seeTouch International Keypad Wiring
- Residential and Commercial Non-Plenum Installations
