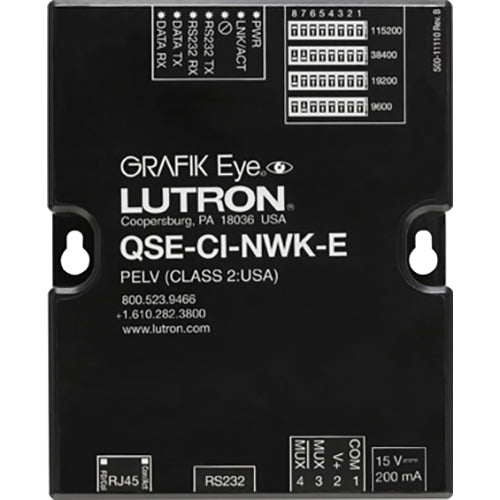

Lutron QSE-CI-NWK-E QS RS232 and Ethernet Integration Interface
The Lutron QSE-CI-NWK-E is a versatile integration bridge that allows for seamless bi-directional communication between a Lutron QS system and third-party equipment. By utilizing either a standard RS232 serial connection or an Ethernet (TCP/IP) link, this interface enables external devices to trigger lighting scenes, adjust shades, and receive real-time status feedback from the Lutron network.
Ideal for boardrooms, home theaters, and smart buildings, the QSE-CI-NWK-E is the go-to solution for integrating Lutron with AV processors, touchscreens, and building management systems (BMS). It is powered directly by the QS link, making installation straightforward and eliminating the need for external power supplies at the interface location.
Key Features
- Dual Connectivity: Supports both RS232 (DB9) and Ethernet (RJ45) protocols for maximum flexibility.
- Bi-Directional Communication: Not only sends commands to Lutron devices but also provides status feedback to the third-party controller.
- System Compatibility: Works with GRAFIK Eye QS, Sivoia QS, Energi Savr Node, HomeWorks QS, and Quantum systems.
- Telnet Support: Use the Ethernet port to connect via Telnet for easy integration with network-based control systems.
- QS Link Powered: Draws power (24-36 VDC) directly from the Lutron QS communication link.
- Diagnostic LEDs: Built-in indicators for Link, Data, and Error status to simplify setup and troubleshooting.
Technical Specifications
| Attribute | Details |
|---|---|
| SKU / Part Number | QSE-CI-NWK-E |
| Input Voltage | 24 - 36 VDC (Powered by QS Link) |
| Current Draw | 65 mA (2 Power Draw Units) |
| Serial Port | Standard RS232 (DB9 Female) |
| Ethernet Port | RJ45 (10/100 Mbps, Auto-MDI/MDIX) |
| Dimensions | 5.26" H x 4.26" W x 1.06" D |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Mounting | Surface Mount (Wall or Junction Box) |
Included in the Box
- (1) QS RS232/Ethernet Interface Unit (QSE-CI-NWK-E)
- (1) Installation & Programming Guide
